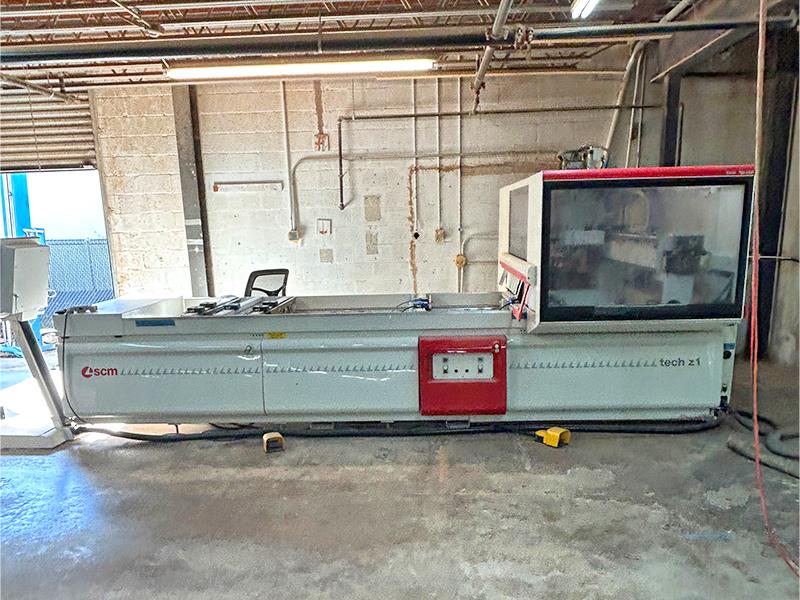

SCM TECH Z1 CNC MACHINING CENTER (W/ATC/BORING/"C" AXIS): ≈≈ Specifications:
Working Capacity:
"X" axis 120" (3,050 mm), "Y" axis 41.3" (1,050 mm), "Z" axis stroke 5.9" (150 mm), max material thickness 3.9" (100 mm).
Positioning speed: "X" & "Y" axis is 229 FPM (70 MPM), "Z" axis is 72 FPM (22 MPM).
Axes positioning by AC Brushless motors and YASKAWA drives; all axes ride on prismatic guideways & sliding blocks.
Worktable: (6) "TV" tube-less mobile support rails, (2) vacuum pods per rail; (4) pneumatic lifter rails for heavy panels; (6) pneumatic pop-up backstops, (6) pneumatic pop-up front stops; (2) pneumatic pop-up side stops. LED display positioning assistance for the support rails & vacuum pods; (2) independent working fields;

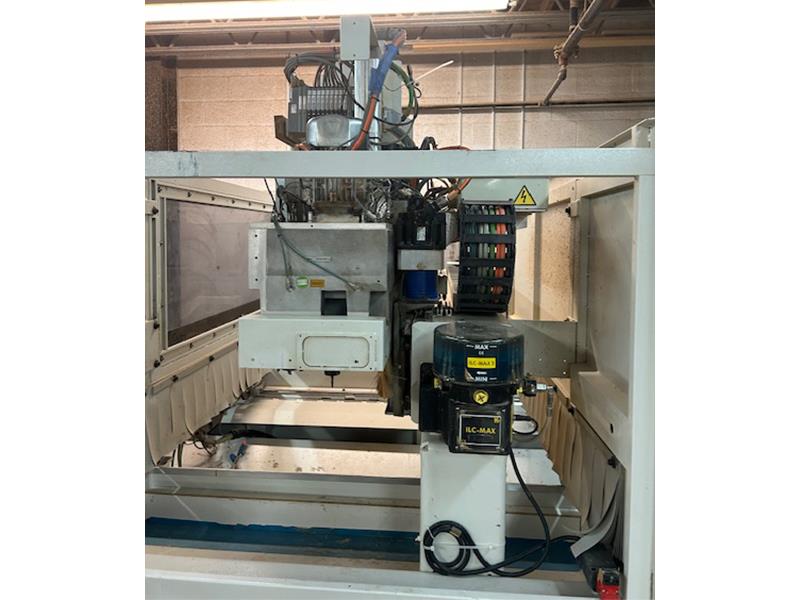

Boring Head: 3 HP (2.2 kW) motor, 4,000 RPM; (8) Independent vertical spindles, (5) spindles in "X" & (3) spindles in "Y". (6) Horizontal spindles (2+2) in "X" & (1+1 ) in "Y" axis; (1) "X" axis grooving saw for max. 120 mm dia blade - 6,000 RPM.

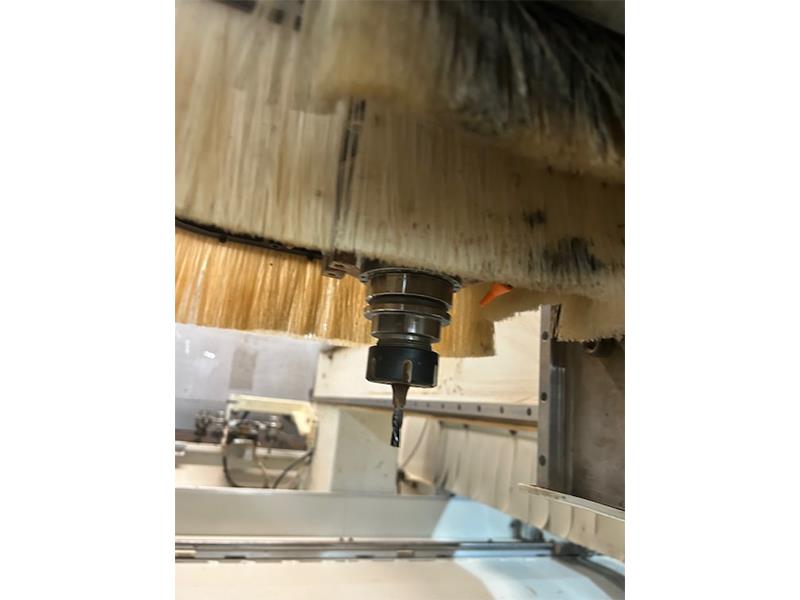

Machining: (1) 10 HP (7.5 kW) Air-cooled Electro-spindle router with HSK F63 adaptor; variable speed from 1,000 - 24,000 RPM, max. torque achieved at 12,000 RPM; static inverter for stepless speed & rapid shutdown rotation.
(1) NC controlled "C" Axis for 360° Horizontal Processing.
(1) 10-Position ATC rack mounted on the RH side of the machine. Max. tool weight is 8 KG (17.6 Lbs).

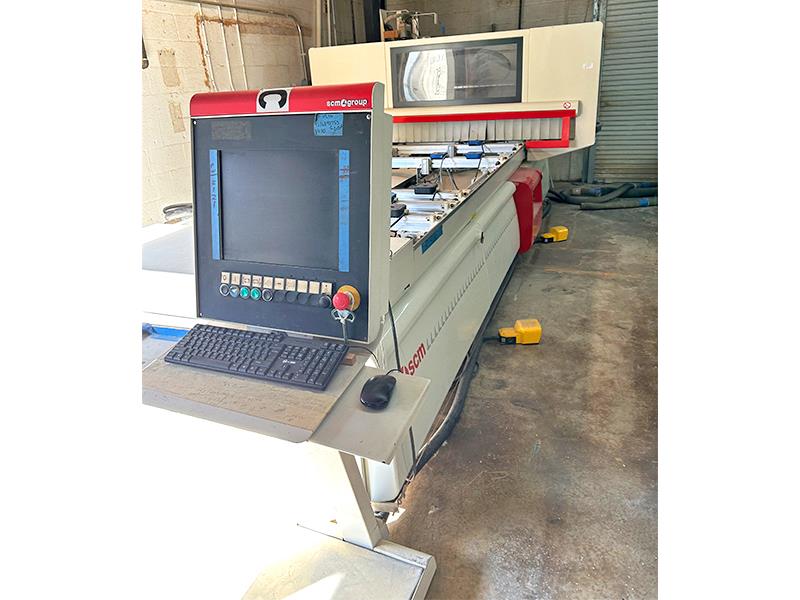

Operator & Machine Control: PC front end with SCM "Xilog Plus" + Windows "7" Pro operating system; 15" CRT color display, CELERON 2 GHz processor, enclosed in air-conditioned cabinet.
