Working cap.: "X" axis: 3,750 mm (147.6"), "Y" axis: 1,250 mm (49.2"), 80 mm (3.1") max. material thickness.
Positioning Speed: "X" axis is 196 FPM (60 MPM), "Y" axis 164 FPM (50 MPM) & "Z" axis 66 FPM (20 MPM). The heads travels on THK linear motion guides on all axes.
Worktable: (6) Moveable support rails, raise-and-lower panel feeding rails, (3) matrix style vacuum pods per rail. (6) Pneumatic backstops, (6) Pneumatic front stops, (2) movable pneumatic side stops, and the dual central zero-stop creates (2) working zones.
Boring Unit: (1) 3.5 HP, 1,500 - 7,000 RPM Motor; equipped with (24) independent vertical spindles with (16) spindles in "X" axis & (8) spindles in "Y" axis.
(4) Horizontal spindles with (1+1) in the "X" axis & (1+1) in "Y" axis;
(1) "X" axis grooving saw for max. 100 mm dia. blade, 2,000 - 7,000 RPM.
Machining: (1) 8 HP HSK F63 Liquid cooled electro-spindle powered by KEB frequency inverter, programmable from 1,200 - 18,000 RPM (constant torque from 9,000 - 18,000 RPM), RH or LH rotation.

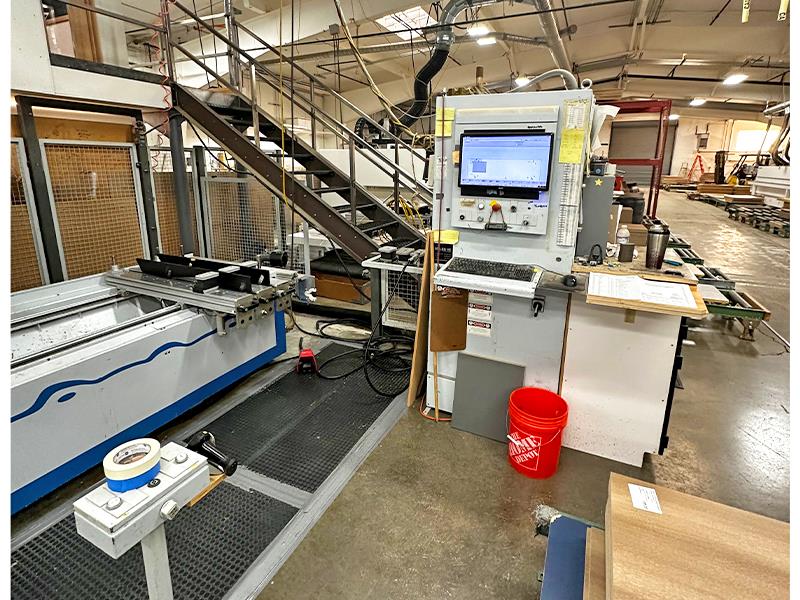

Operator & Machine Control: IPC control with "WEEKE MCC" + Windows "XP" + WoodWOP 5.0 operating system; 15" high resolution color graphic monitor, standard keyboard & mouse for data entry, 1.44MB floppy disk drive, CD ROM drive.
*** Please click the link for full description***

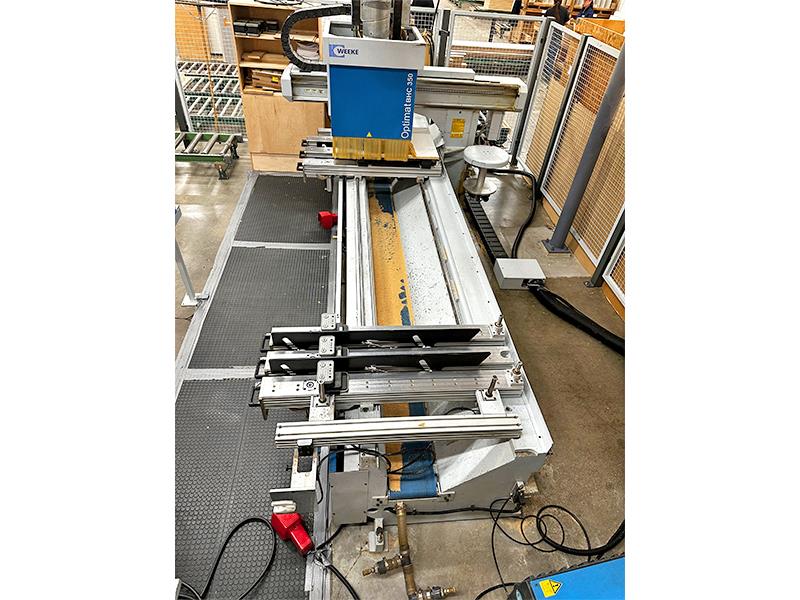

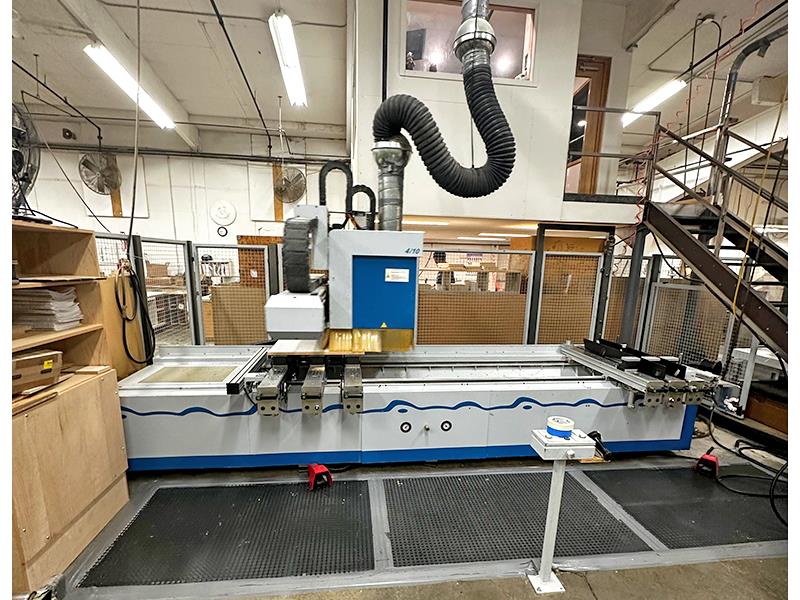

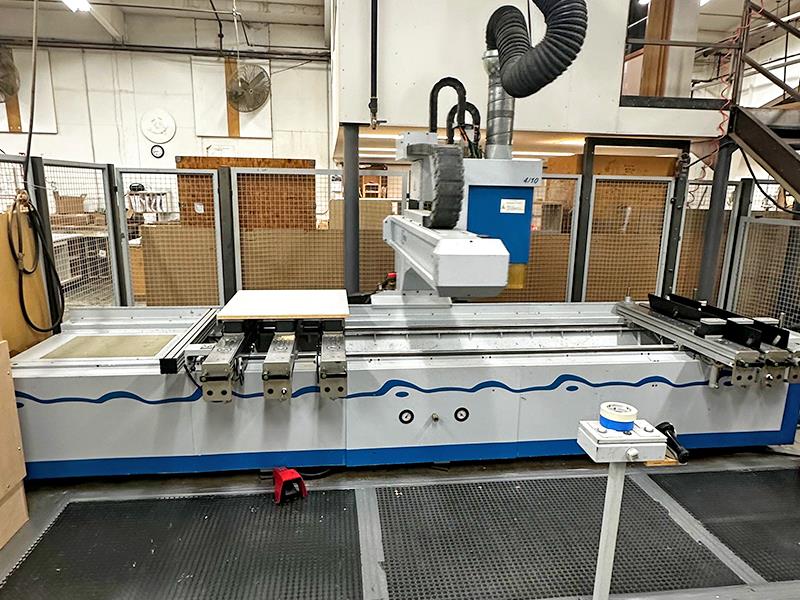

Weeke BHC 350 Cnc Machining Center
