Stock Number: 52160

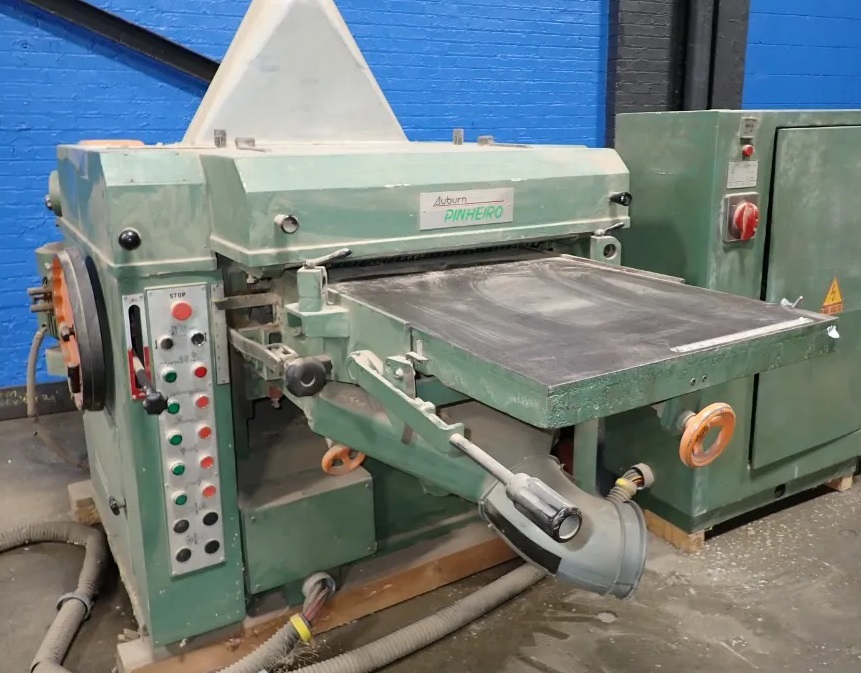

Pinheiro Model MF4-630 Four Sided Planer
Condition: As Is (fences need replaced)
24" max. planing width
20" max. moulding width
3" min. moulding width
8" max. thickness capacity
16" min. length workpiece unbutted, 9" butt fed
7.5 HP top head
5.5 HP bottom head

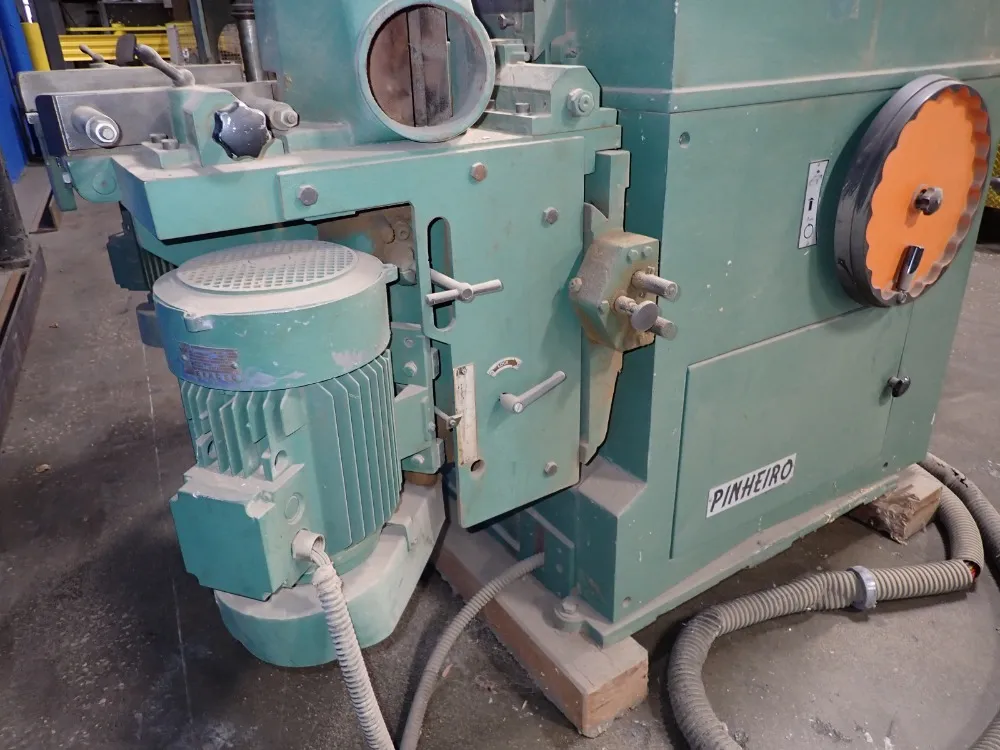

side heads are 17.5 HP each
4 HP variable speed feed 20 to 100 FPM
top and bottom heads are 4-knife straight knife cutter heads
side heads are 5" dia. X 8" long 4-knife corrugated back cutter heads
1-13/16" dia. arbor on side heads
5,000 RPM spindle speed on side heads
power raise and lower of table

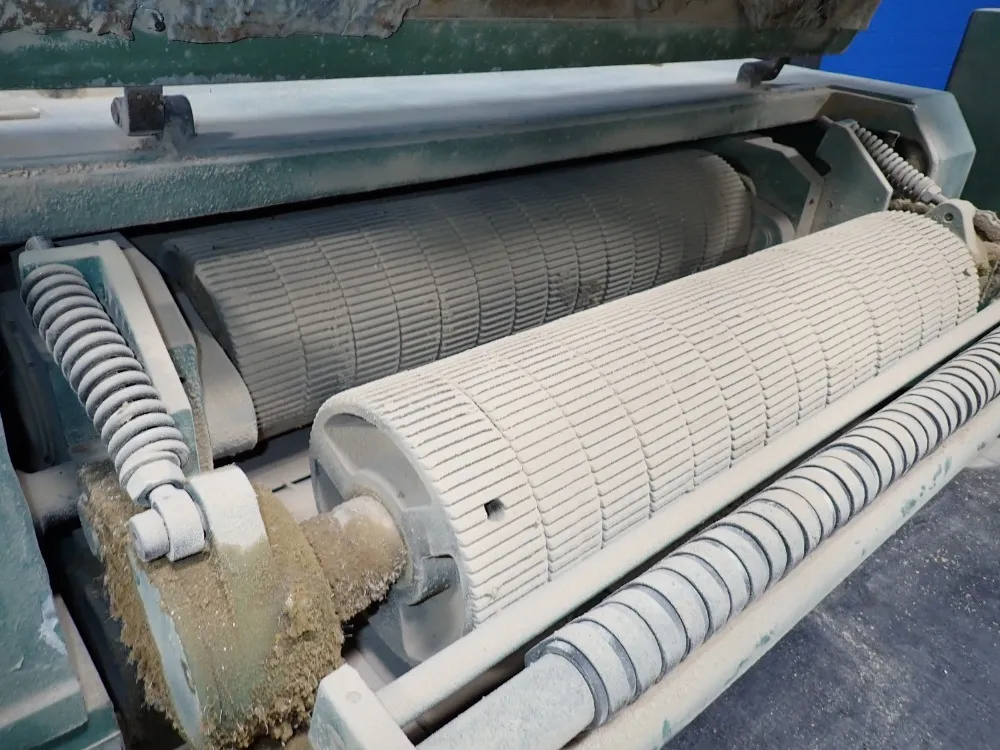

sectional feed rolls
(9) powered feed rolls
8" dia. dust hood on top head
7" dia. dust hood on bottom head
6" dia. dust hood on each side head

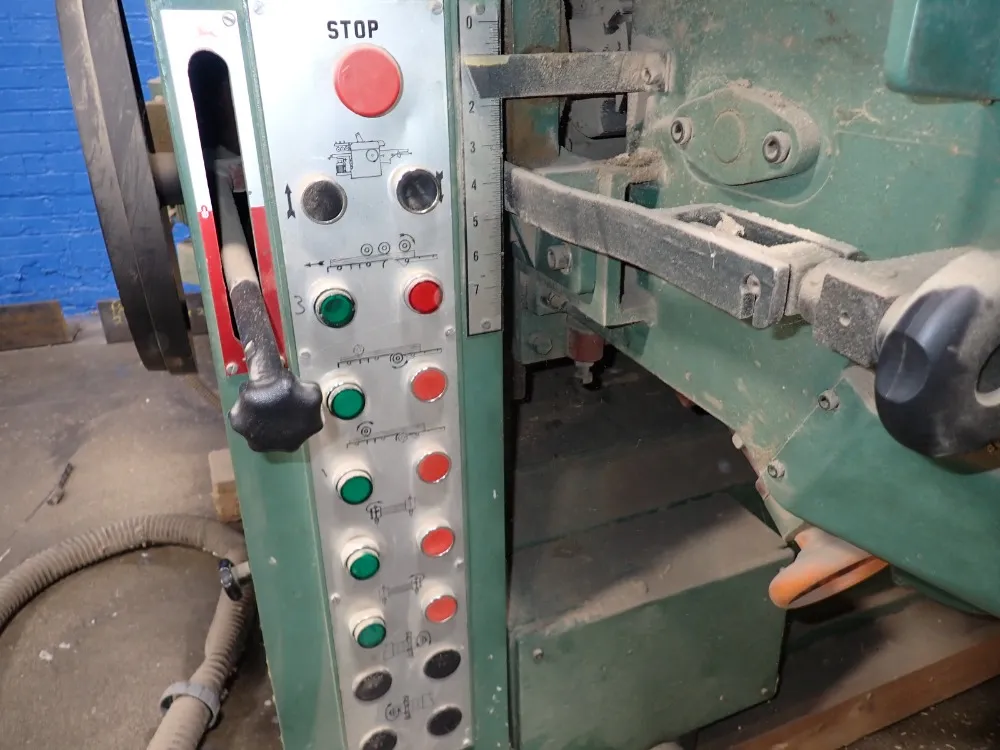

separate electrical control panel
Total HP 59; 440 Volt; 77 amps
