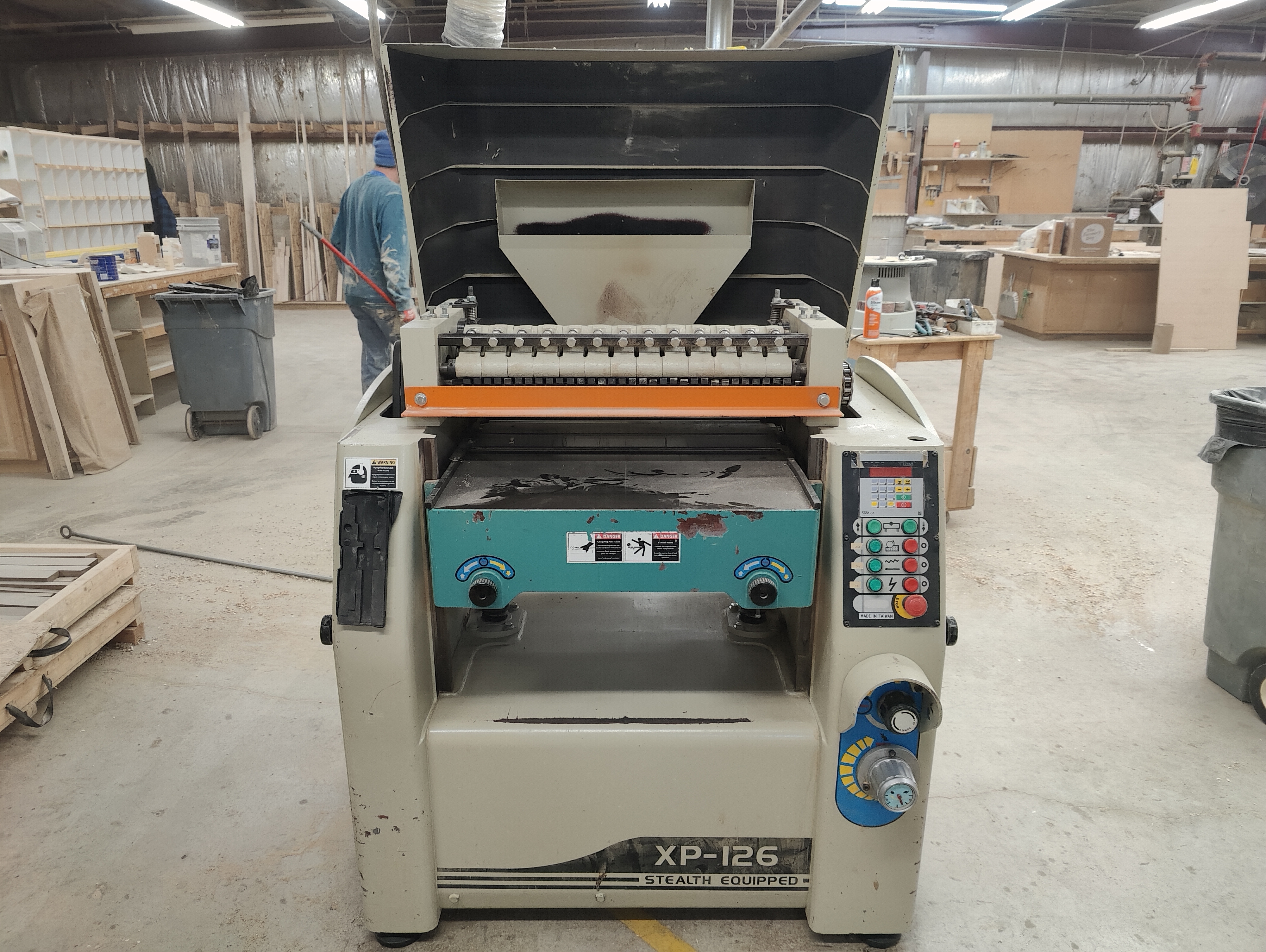

Extrema 26" Helical Head Planer, XP-126A, 2004, 20HP, 3PH, 11.75" Thickness Cap., 20-75Ft/Min. Feed
Just in from owner who retired. I believe he bought it new in 2004. To be cleaned and checked here, video of machine in website link.
Extrema’s Series XP-126 is available with a helical insert Cutterhead, infeed roller, heavy duty internal drive system, and a PLC controler.
The following specifications are believed to be correct off of current model specs provided by manufacturer, but may need to be further verified.
11-3/4” thickness capacity
High Horsepower: 20 HP, 3PH motor
6000 RPM cutterhead
Powered top and bottom bed rollers
Motorized table elevation

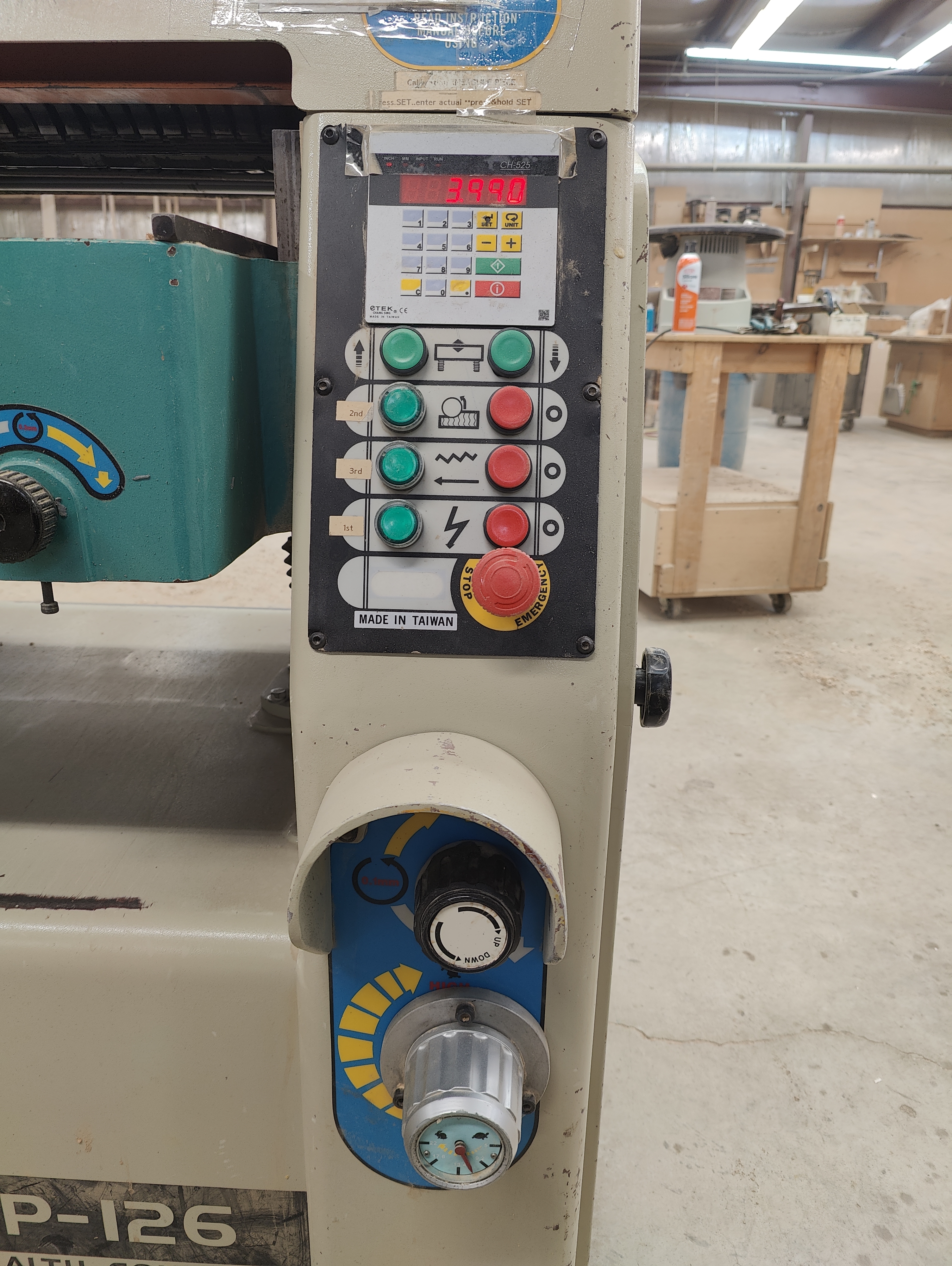

Digital thickness controller
Solid cast-iron construction
Triple v-belts
Sectional chipbreakers
Externally adjustable front and rear bed rollers
Sound deadening enclosure

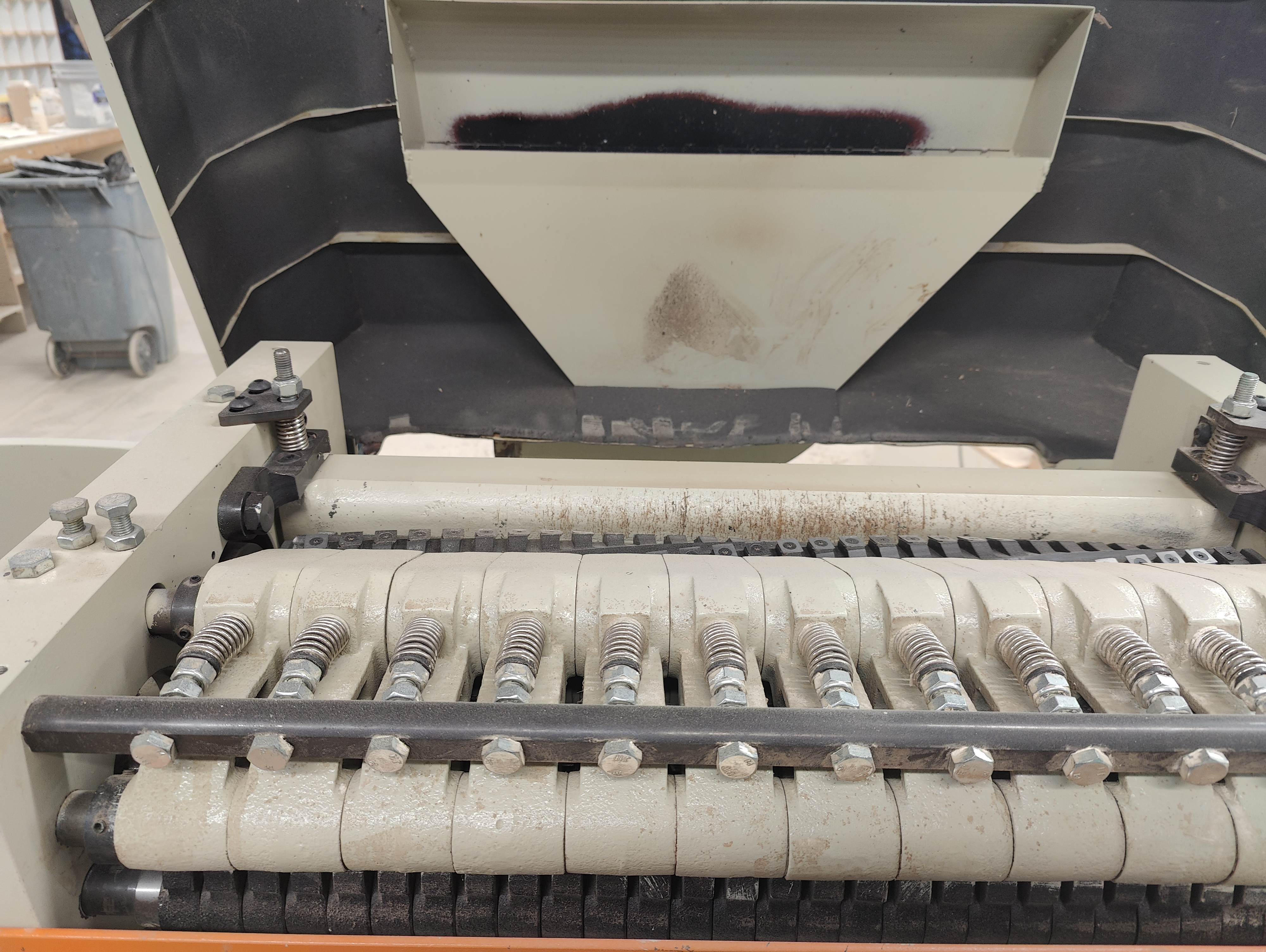

Powered top and bottom feed rollers
Horsepower: 20 HP
Voltage: 230V / 460V
Phase(s): 3 PH
Width: 26"
Main Horsepower: 20 HP
Feed Horsepower: 1 HP
Elevator Horsepower: 0.5 HP
Max Thickness: 11.75"
Min Thickness: 0.375"
Max Cut: 0.375"
Min Length: 10.5"
Cutterhead RPM: 6000
Feed Speed: 20-75 ft/min
CFM Requirements: 1100
Thickness Adjustment: PLC Controller
Bed Roller Adjustment: External Power
Bed Rollers: Top and Bottom
AMPS (230V/460V): 52A / 26A
Weight: 2675 lbs
Extrema XP-126A Planer Website Link
