Specifications
CONTROL
Control type: ProDrive
Control panel: Mounted at eye level, swiveling
Display: Digital for tilt angle Rip fence position
Functions:
- Sawblade specifications
- Sawblade height and tilt positions
- CNC rip fence position
- Grooving
- 99 position memory"
SAW UNIT
Motor: 7.5 kw (10 hp) high torque
RPM: 3,000, 4000 & 5,000
Blade rise and fall adjustment: Powered
Tilt mechanism: Powered
Tilt range: 0 - +46°
SAWBLADE DETAILS
Max blade dia: 450 mm (17.7”) (scoring saw must be removed when using blade larger than 400 mm (15.7”))
Max blade width (Dado set for grooving): 20 mm (0.78”)
Arbor dia: 30 mm
Pin holes: 2 x 10 mm @ 60 mm centers
Included main blade: 300 mm dia 72T
SAW BLADE PROJECTION
90° with max 450 mm dia blade: 154 mm (6”)
+45° with max 450 mm dia blade: 105 mm (4”)
DADO CAPACITY
Maximum width of dado: 20 mm (25/32”)
SLIDING TABLE
Sliding table length: 3400 mm (133”)
Stop / start buttons: On control and sliding table
Table locking mechanism: Infinite
Maximum weight supported: 250 kg (550lbs)

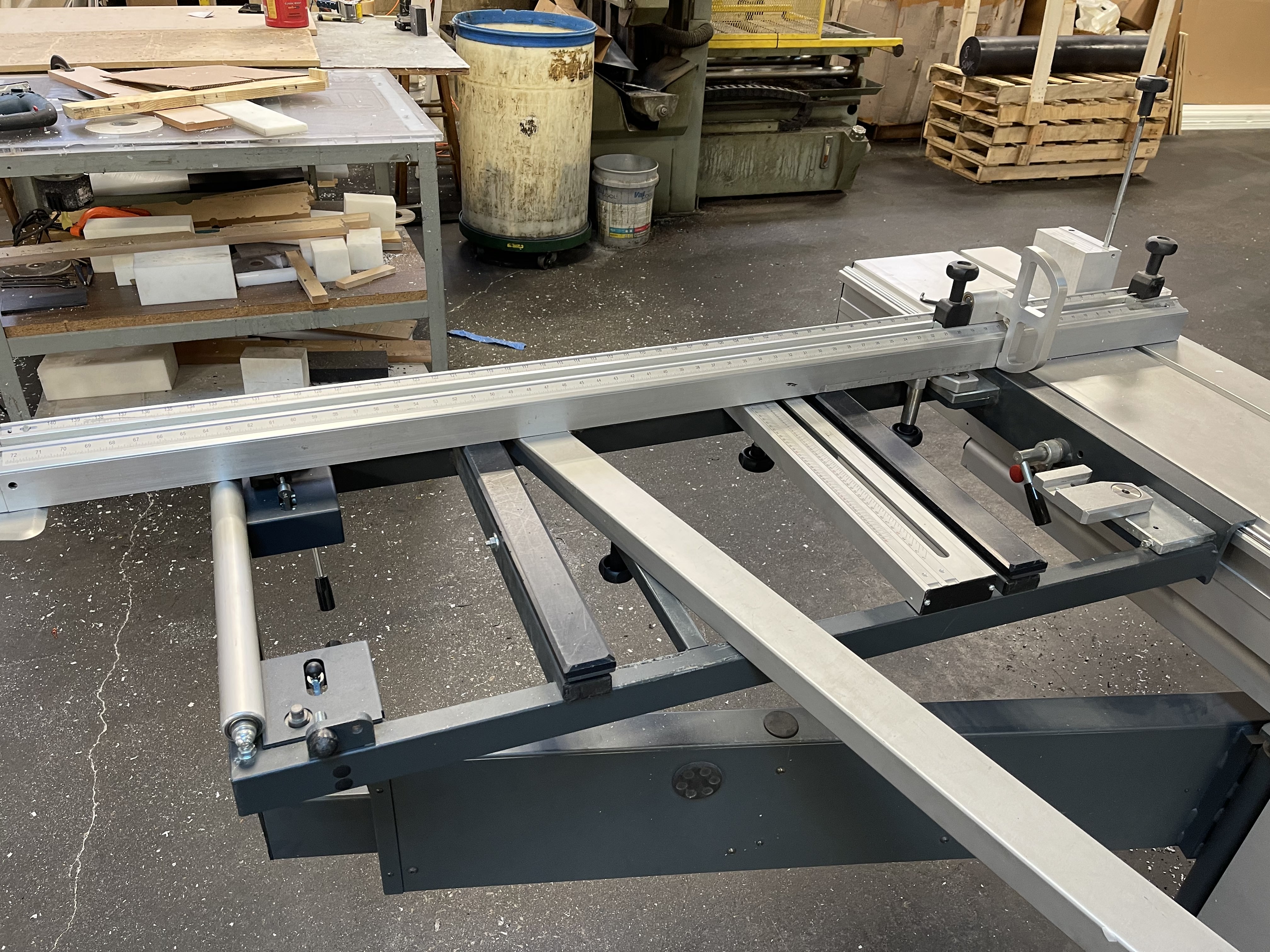

CROSSCUT FENCE
Type: Cross cut mitre
Maximum length: 3500 mm (137”) with included extension
Type of cross stop: Manual
Readout: scale
Miter angle capacity: 0 – 49°
RIP FENCE
Ripping capacity: 1300 mm (51”)
Adjustment: Programable
Readout: Digital
Traverse speed: 250 mm / sec (9.8” / sec)
Accuracy: +/- 1/10 mm (0.004”)
SERVICES
Dust extraction: Approx. 900 cfm
Saw guard port: 80 mm (3.15”)
Bottom port: 120 mm (4.75”)
440volts at 26 amps 3~
