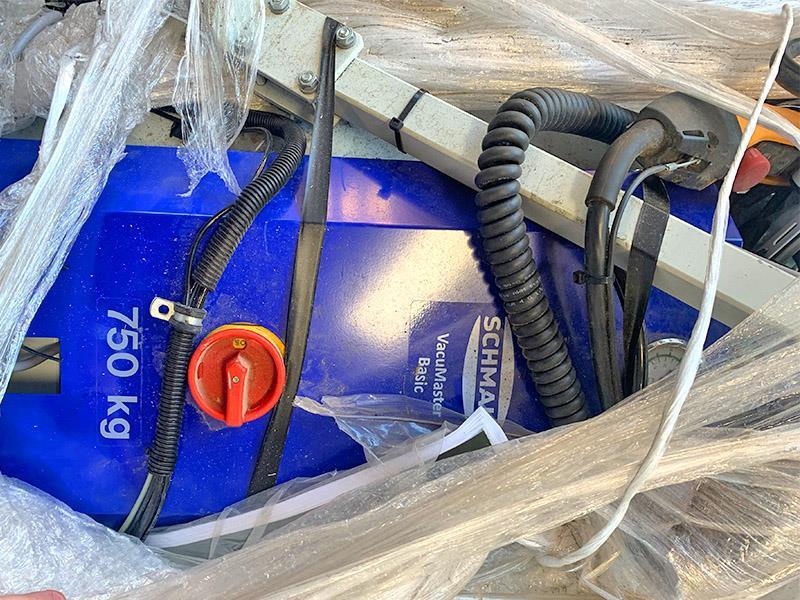

SCHMALZ VACUMASTER BASIC 250 Vacuum Lift w/90° Rotate
"VacuMaster Basic" Vacuum Lifting device for mounting on a Crane hook. Model "VM-BASIC-250-90-8": Suitable for the horizontal transportation of workpieces with a weight of up to 550 Lbs. (250 kG).
(1) "VacuMaster" bow handle for ergonomic operation; "BB-VM-BASIC-H-1300": Length 51" (1,300 mm); malfunction-free manual sliding valve with a holder to fasten a Chain Hoist controller.
Directly driven Vacuum Blower for high suctions volume.
(1) Main beam: 95-1/2" (2,400 mm) length.
(2) Crossbeams: 45" (1,150 mm) length each.
(10) Elements: Mounting suction pads on crossbeam with flexible and reinforced mounting of the suction pads.
(10) Suction plates (round): For rough and structured surfaces.

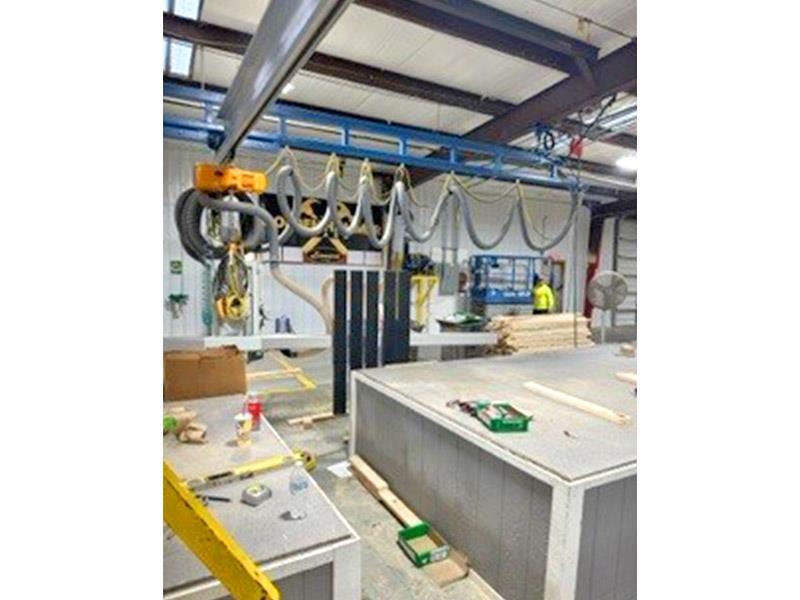

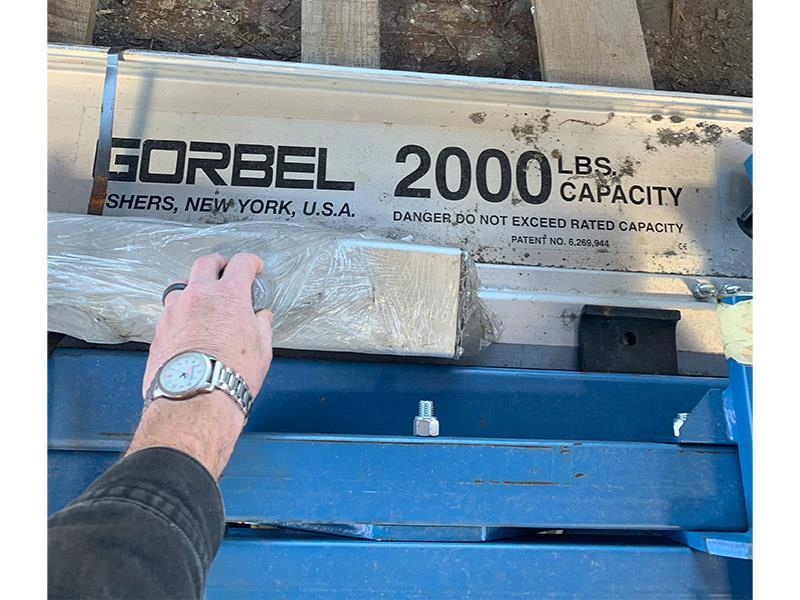

Includes: (1) GORBEL Model "GLCSL2000-34AL-29" Ceiling mounted Bridge Crane: 2,000 Lbs capacity.
Schmalz Vacumaster Basic Vacuum Lift
