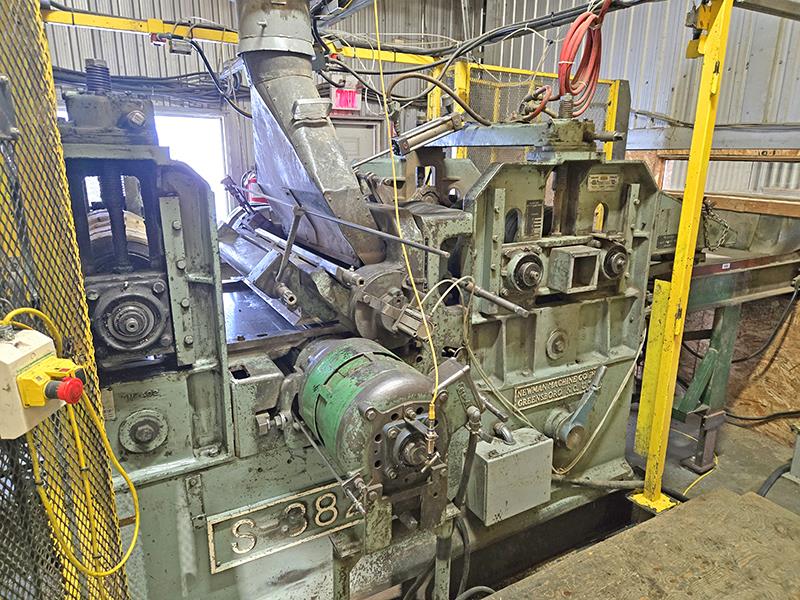

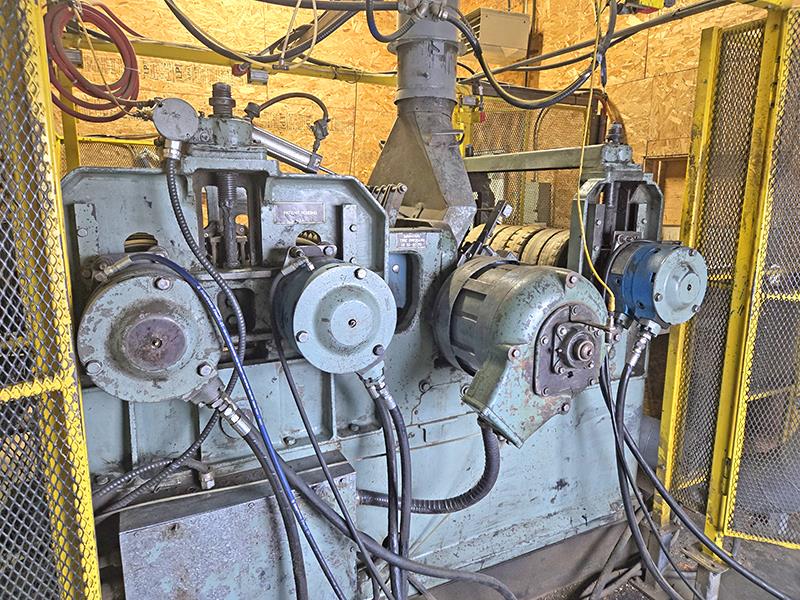

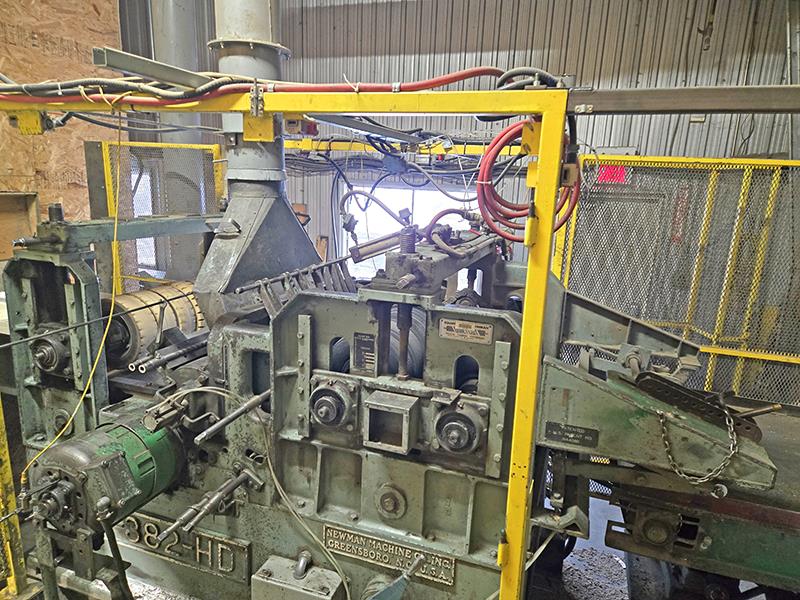

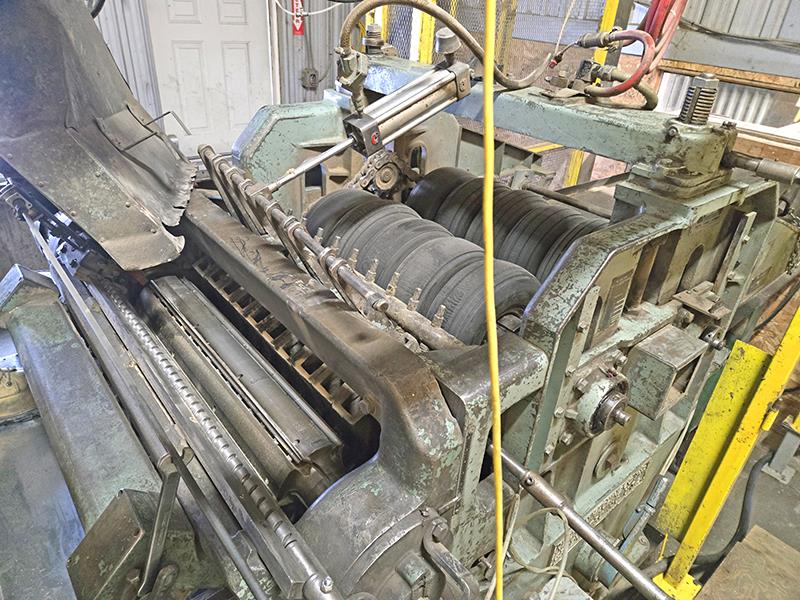

NEWMAN/WHITNEY S-382 HD Top & Bottom Roughing Planer
30" Width with a 6" max. and 3/8" min. thickness cap., shortest stock 46" (not butted).
40 HP - 3,600 RPM Direct drive motor to top head,
25 HP - 3,600 RPM direct drive motor to bottom head, both heads with straight knives
Sectional top chipbreaker with 3" wide hardened steel sections.
15 HP Hydraulic power unit for variable feed speed of 80 - 300 FPM
Top head pressure bar-manual release; double set tire infeed rollers, each consisting of (5) 16" dia. pneumatic tires allowing up to 1-1/2" independent yield, additionally bottom infeed and (5) outfeed rolls, outfeed bottom roll with scraper; motorized thickness adjustment, 1 HP motor.
*** Please click the link for full description***
Newman Whitney S-382 Planer (Double Sided)
