1100 mm (43.31") 3-Head Wide Belt Sander, with Combination Head
Suitable for sanding of veneered parts in 1 or 2 passes with segmented pad only & Thickness tolerance compensation up to 1 mm (0.04”), Suitable for sanding of solid wood & wood based materials in single pass with 3 grit sequence.
Thickness cap. 3 mm - 160 mm (0.19” - 6.30"). ≈≈ Variable feed speeds 2.5 - 13 MPM (8.5 - 42 FPM).

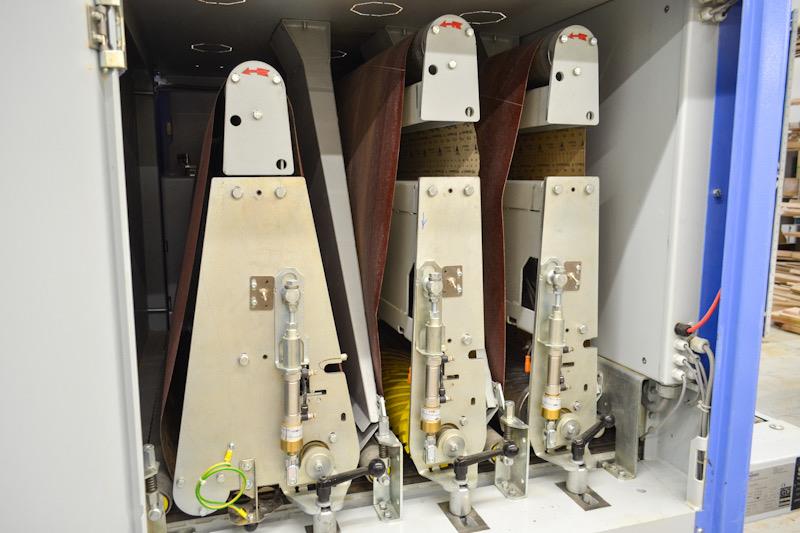

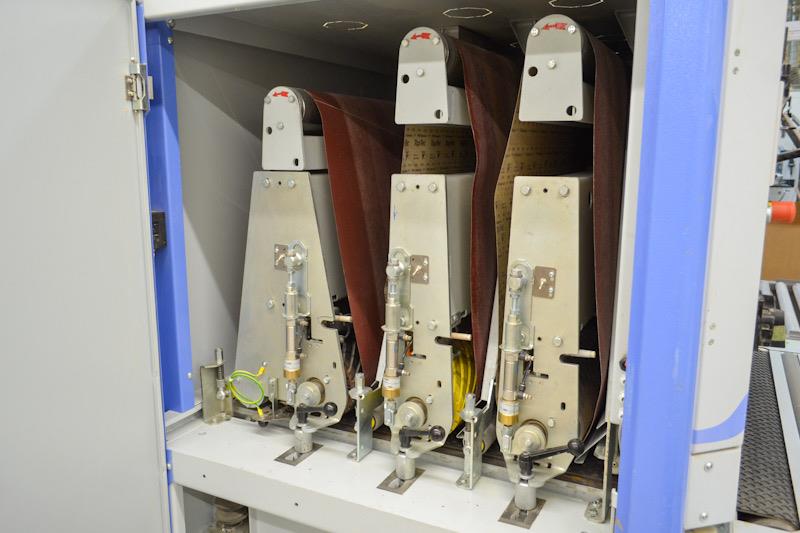

1st Head: 160 mm (6.30”) Dia. Grooved steel contact roll, with Grit size compensation, Automatic positioning for calibrating, & 15 kW (20 HP) - 2,930 RPM Motor with Electric braking.
2nd Head: 160 mm (6.30”) Dia. 85° Shore Grooved rubber-covered contact roll, with Grit size compensation, Automatic positioning for calibrating, & 15 kW (20 HP) - 2,930 RPM Motor with Electric braking.
3rd Head: Combination head, with 60 mm (6.30”) Dia. 65° Shore Grooved rubber-covered contact roll, 3-3/4" Dia. Smooth steel contact roll, 3-1/8” W Electronically-controlled segmented pad finishing platen with 35 mm (1.38”) W Segments, & 18 kW (15 HP) Motor with Electric braking
*** Please click the link for full description***

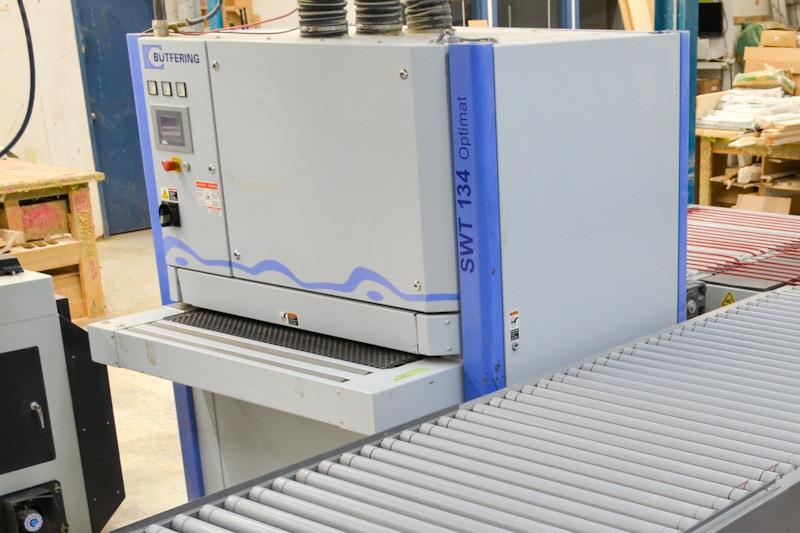

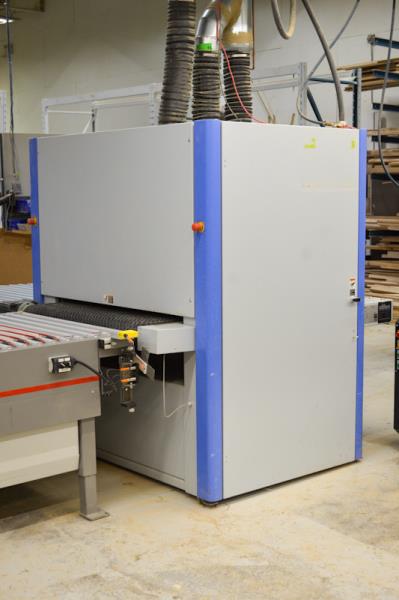

Butfering SWT 134 RRC Wide Belt Sander
