Automatic loading system with scissors lift table lift table
Flat Table nesting
Working field in X axis mm 3100 (122")
Working field in Y axis mm 2205 (87")
17.7hp Spindle, w/ATC , HSK F63 and 8 position tool carousel
Prearrangement for the assembly of a 360° rotation interpolating unit (C axis)
Tool length presetter
BH 18 boring head with independent spindles arranged as follows:
11 verticals in X axis
7 vertical in Y axis

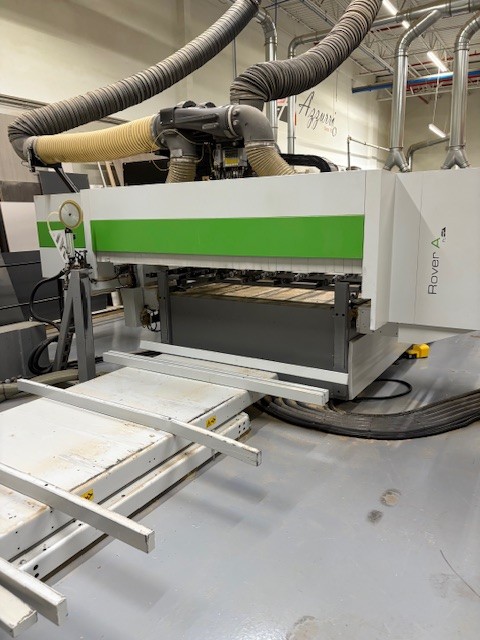

Automatic unloading system with motorized conveyor belt
Automatic lubrication system
Vacuum pumps
Biesse Works and B-solid Software
This machine will push-off a completed panel, vacuum the table, and load a new panel to be processed at the same time. Its a time saver!!
