Edgebander with Corner Rounding:
Left-hand material infeed for strips & coiled edge material like PVC, ABS, veneer, and solid wood.
Specifications: ≈≈ 0.4 - 8 mm (5/16") Cap. Edgebanding thickness, min. panel width 85 mm & min. length 140 mm, panel thickness 10 - 50 mm.
Adjustable top pressure beam positioning.
Automatic strip & coil feed magazine with robust shear type 3 mm PVC guillotine.
Hot-Melt glue system (12 min. heat up time) with Teflon coated gluepot, digital thermostats with automatic kick-down when machine is in idle mode; 1" dia. glue applicator roller.
Pressure section with (1) large dia. "non-stick" coated drive roller & (2) chrome plated idle rollers with pneumatic positioning.
Workstations:
Front & Rear End Trims (0.33 HP - 12,000 RPM motors), motors travel on (2) straight slides and pneumatic tilt 0° - 25° on horizontal plane.
Top & Bottom Flush Trims with "Quick Change" motors (1.0 HP - 12,000 RPM motors), digital readouts for easy setup.
2-Motor (0.3 HP - 12,000 RPM motors) Corner rounding unit for trimming leading & trailing upper & lower edge/corners with "Fast Position" and can be used as a second Top & Bottom fine trimmer as well.
Top & bottom Scrapers for 3 mm thick PVC banding, digitals for horizontal adjustments.
Top & bottom Buffing (0.5 HP - 2,800 RPM motors), units tilt 0° - 30°.
Top & bottom (2,000 Watt) Hot Air Blowers with temperature adjustment.
Feed Speed 39 FPM, 3 HP feed drive.
*** Please click the link for full description***

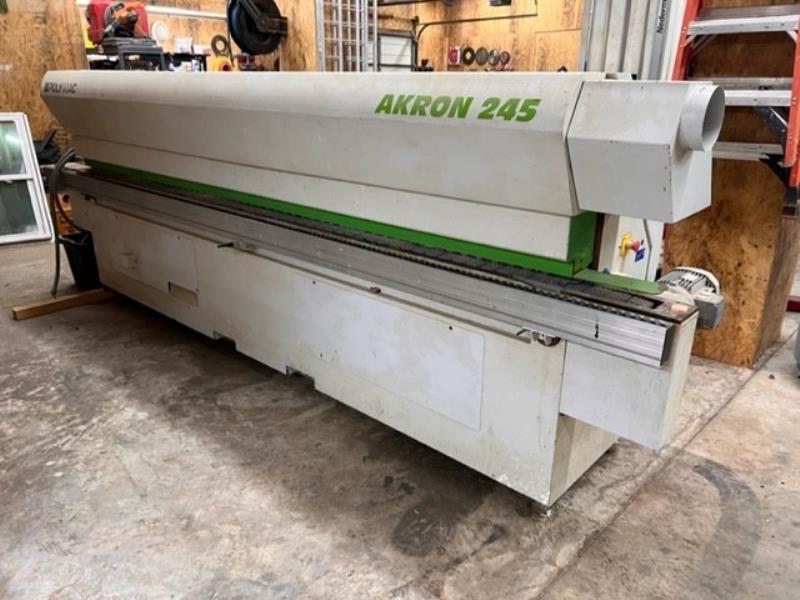

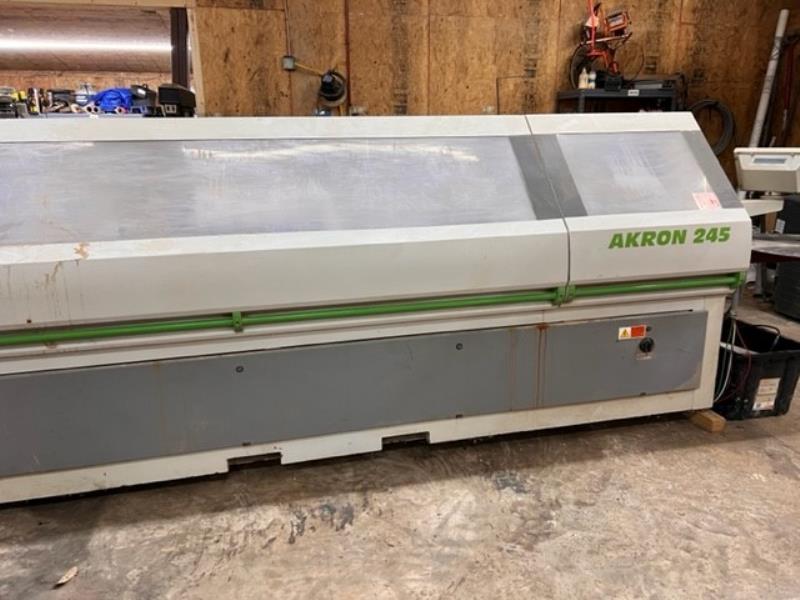

Biesse AKRON 245 Edgebander
