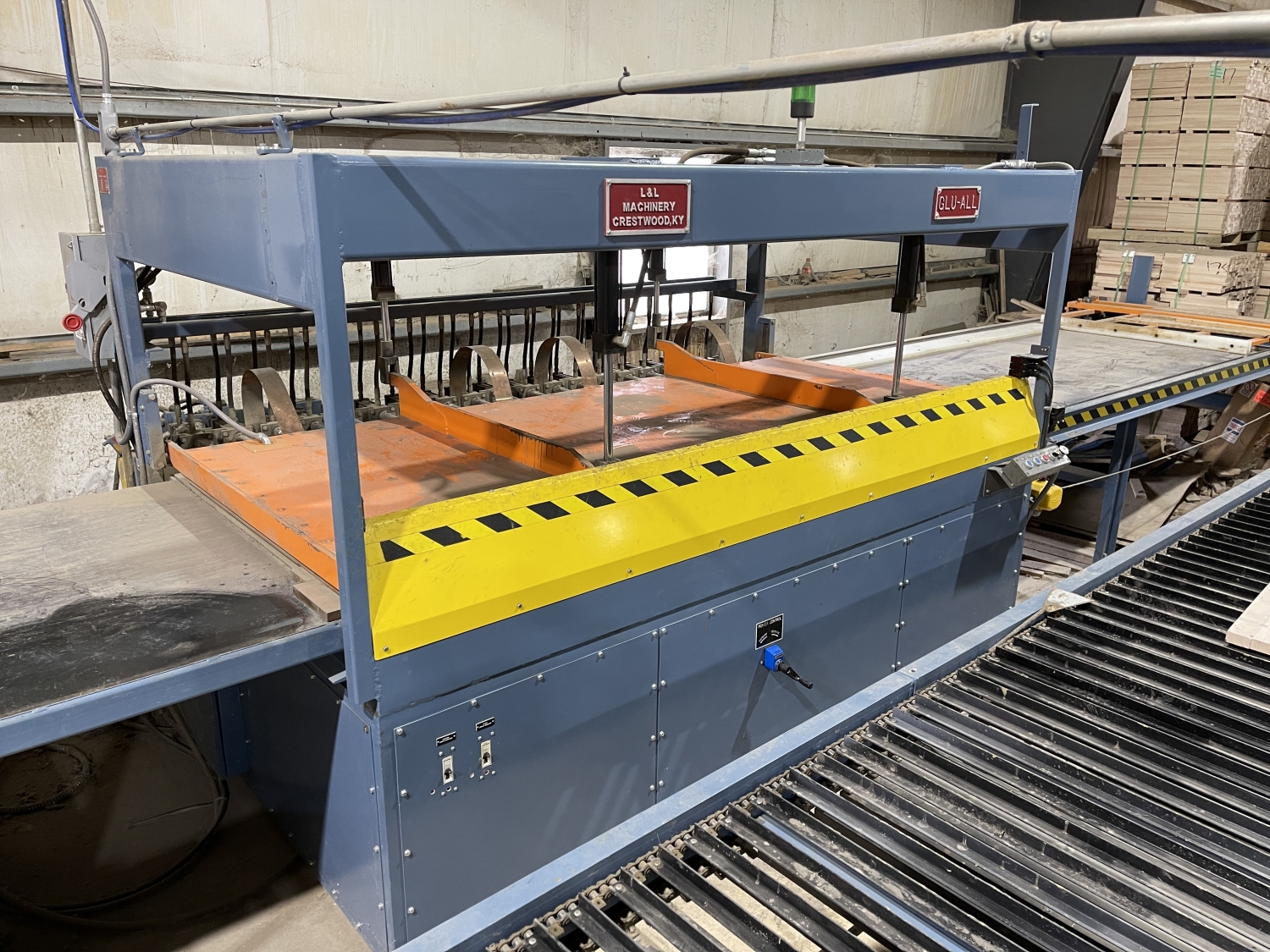

L & L Machinery GA-100 High Frequency Gluer
Condition: As Is
Stock Number: 201623
Gluing Capacity 50" Wide X 100" Long X 4.5" Thick
Generator 20KW

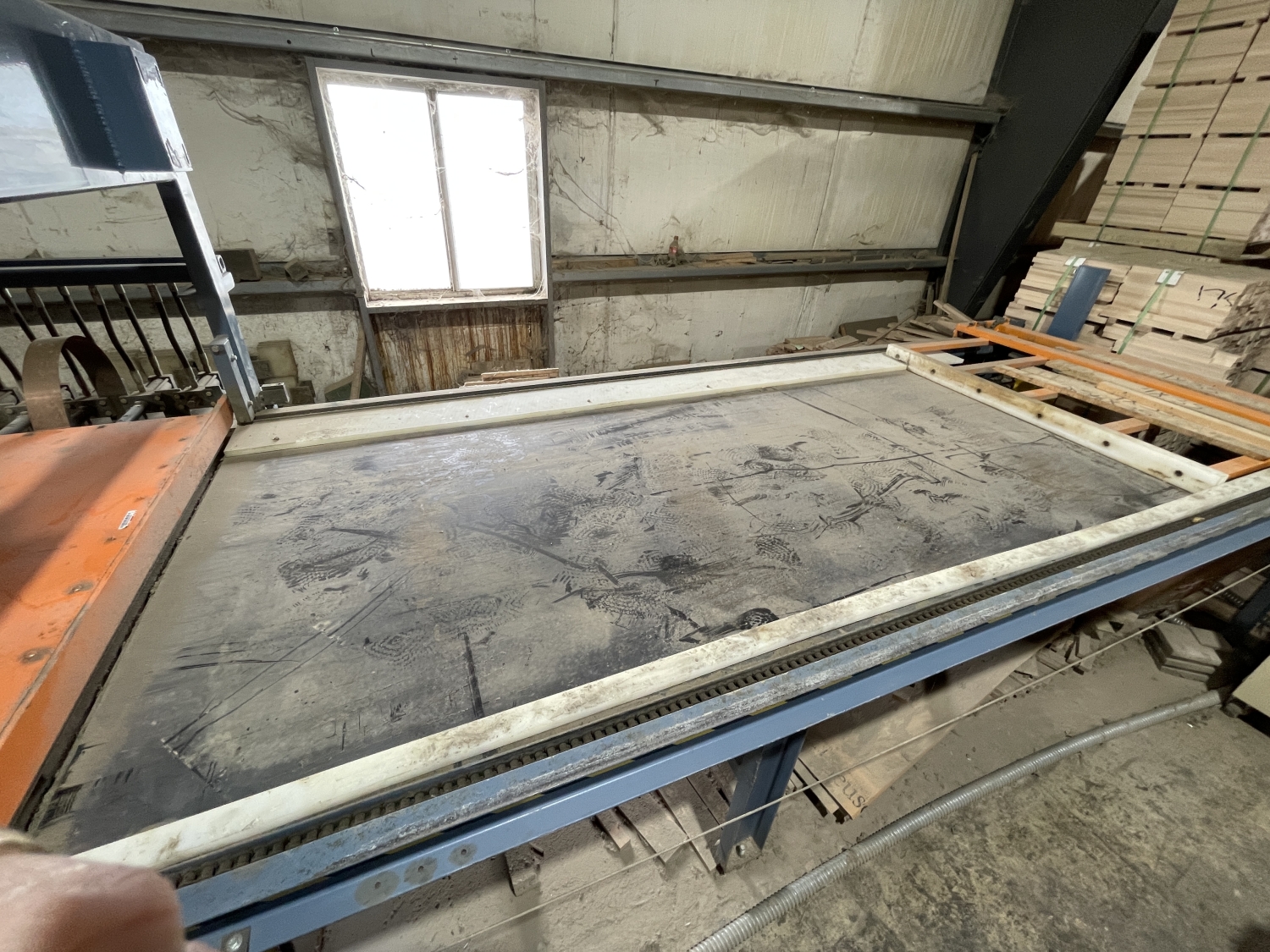

Infeed Lay-up Table: The loading area is 60" Wide X 160" Long with Pusher Fence Driven by 1HP Motor. When the Load is Completely in the Press the Carriage will Automatically Reverse and Return to Starting Position
Out-Feed Table is Heavy Flat Steel 60" Wide X 109" Long
Machine Operates from Right to Left

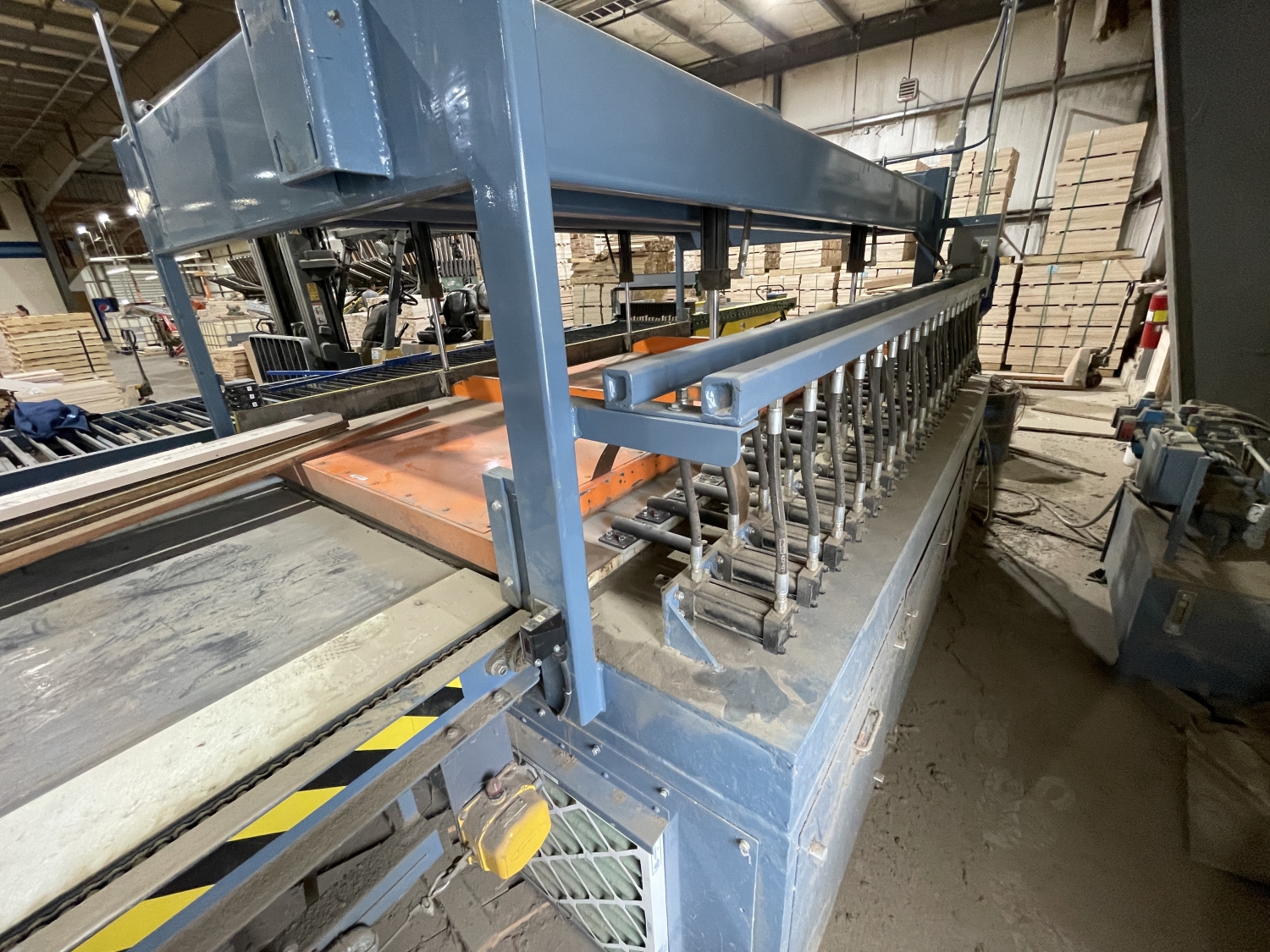

Side Pressure with 17 Individual 2" Bore x 6" Stroke Hydraulic Cylinders with Easily Adjusted Vertical Movement
Top Pressure Applied by 3 each 3-1/2" Bore Hydraulic Cylinders
Hydraulic Pumping Unit 5HP; 3PH Motor with 15 GPM Pump
Current Voltage: 480v
Includes Slat Type Glue Spreader 39" Wide with 18' Long Infeed and 10' Long Outfeed
New in 2017
L & L Machinery GA-100 High Frequency Gluer
