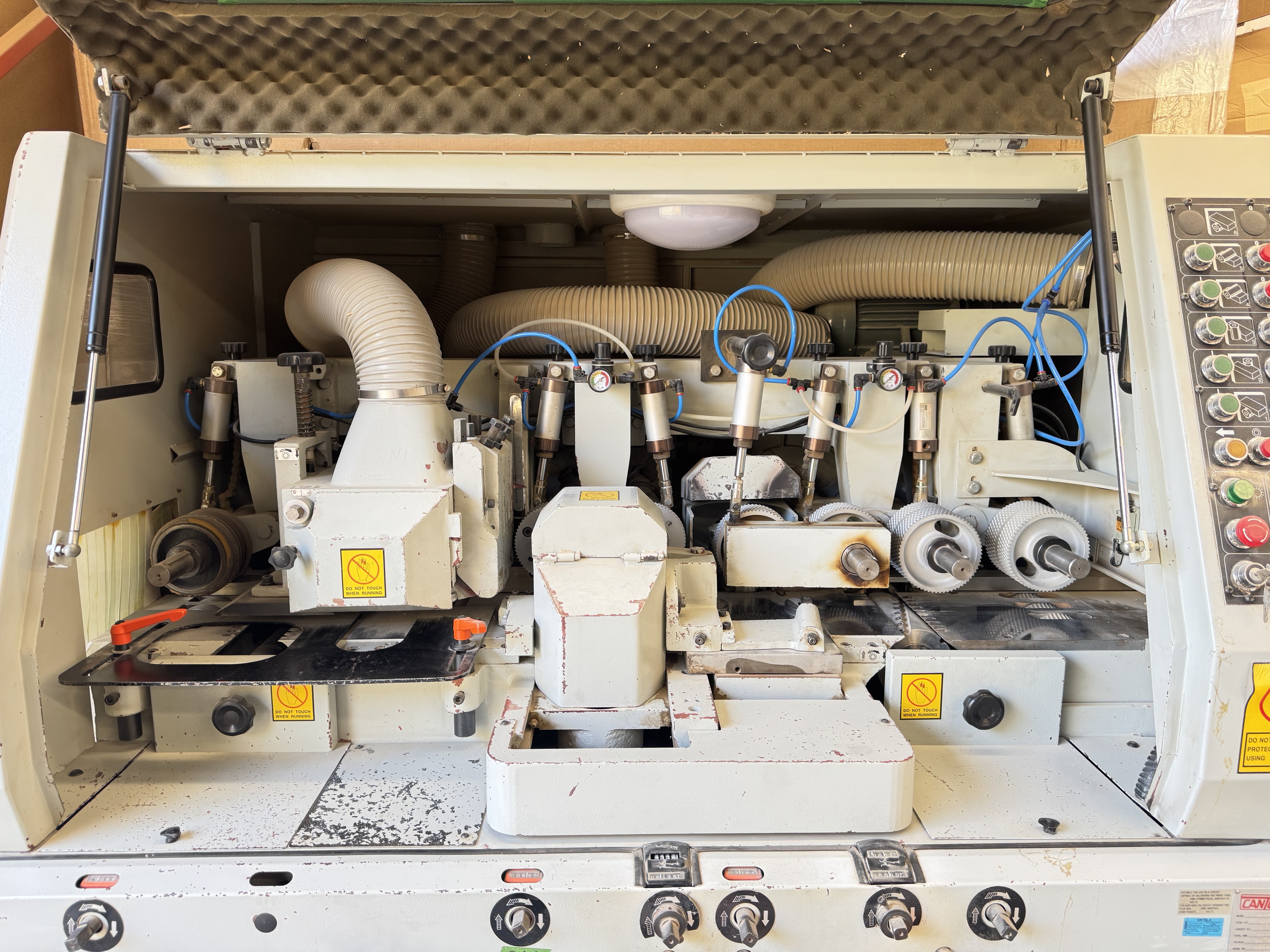

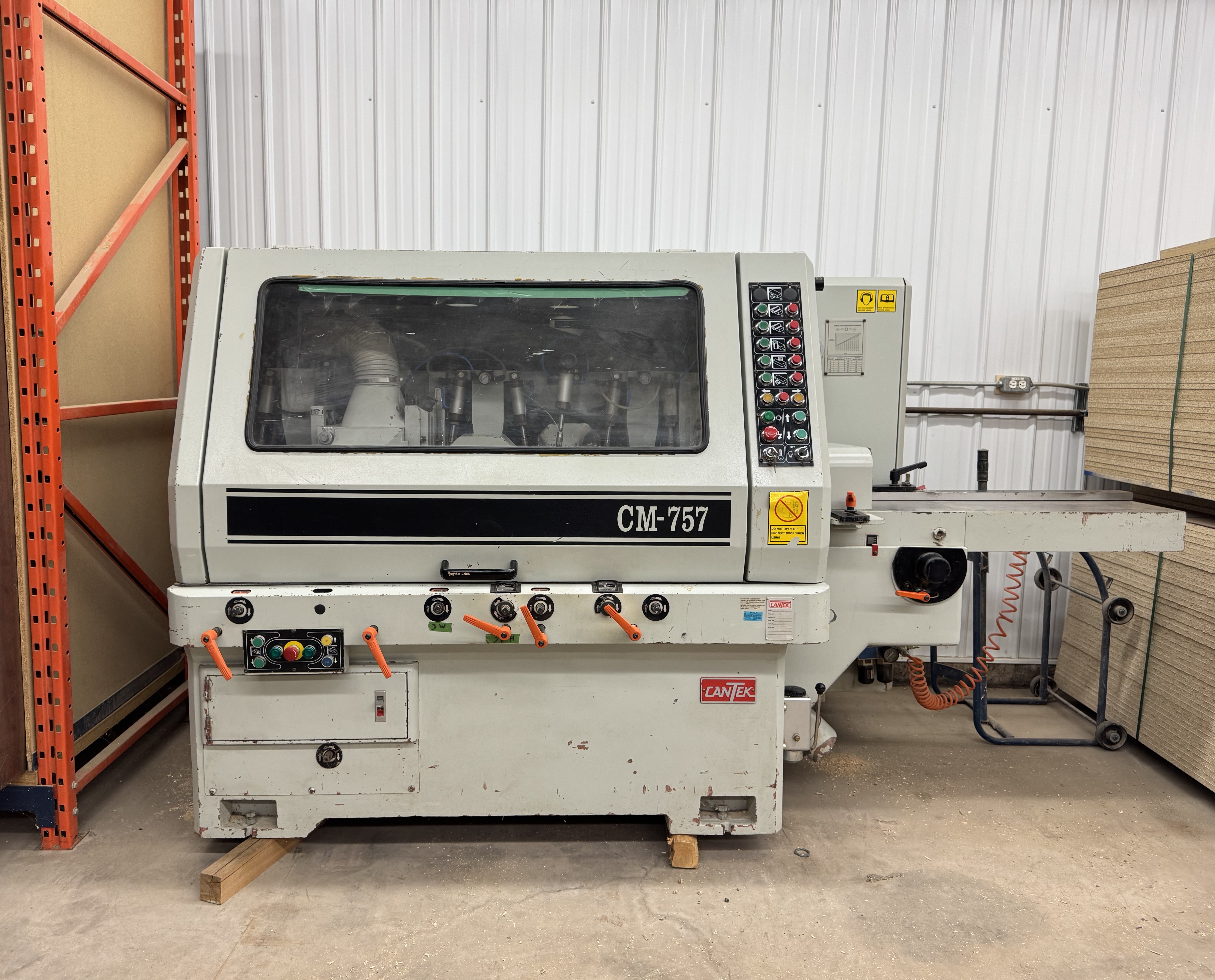

CM757 - Five Head Planer/Moulder

Individual motor drive to each cutterhead
Chrome plated bed plates after 1st bottom head
Chrome plated fence after 1st bottom head
Chainless drive to top and bottom feed rolls
Infeed and outfeed driven bed feed rolls
Digital readouts to all head movements
Pneumatic pressure adjustable to all top feed rolls
Sound enclosure with full view window
Central control panel with all push buttons

Specifications :
Maximum capacity = 5” x 8” wide
Minimum capacity = 5/16” x 1” wide
Minimum length to thru feed = 9-1/2” long
4 Head = B-L-R-T
First bottom head = 7.5 HP
Fence side head motor = 7.5 HP
Front side head motor = 10 HP
Top head motor = 15 HP
Feed Motor = 5 HP
Power rise and fall to top head / feed rolls = 1 HP
Feed speeds = 21 to 75 ft/min
Spindle speeds = 6000 RPM
Spindle diameter = 40mm

Reason behind selling is to create room for new machines as it is no longer in use.

Call for more information. Ask for Simon.
