Description
Complex machine, with many operations, well maintained, in very good working condition!
Selling for upgrade/change to another model.
Current machine in operation, can be seen and tested in Ramnicu Valcea

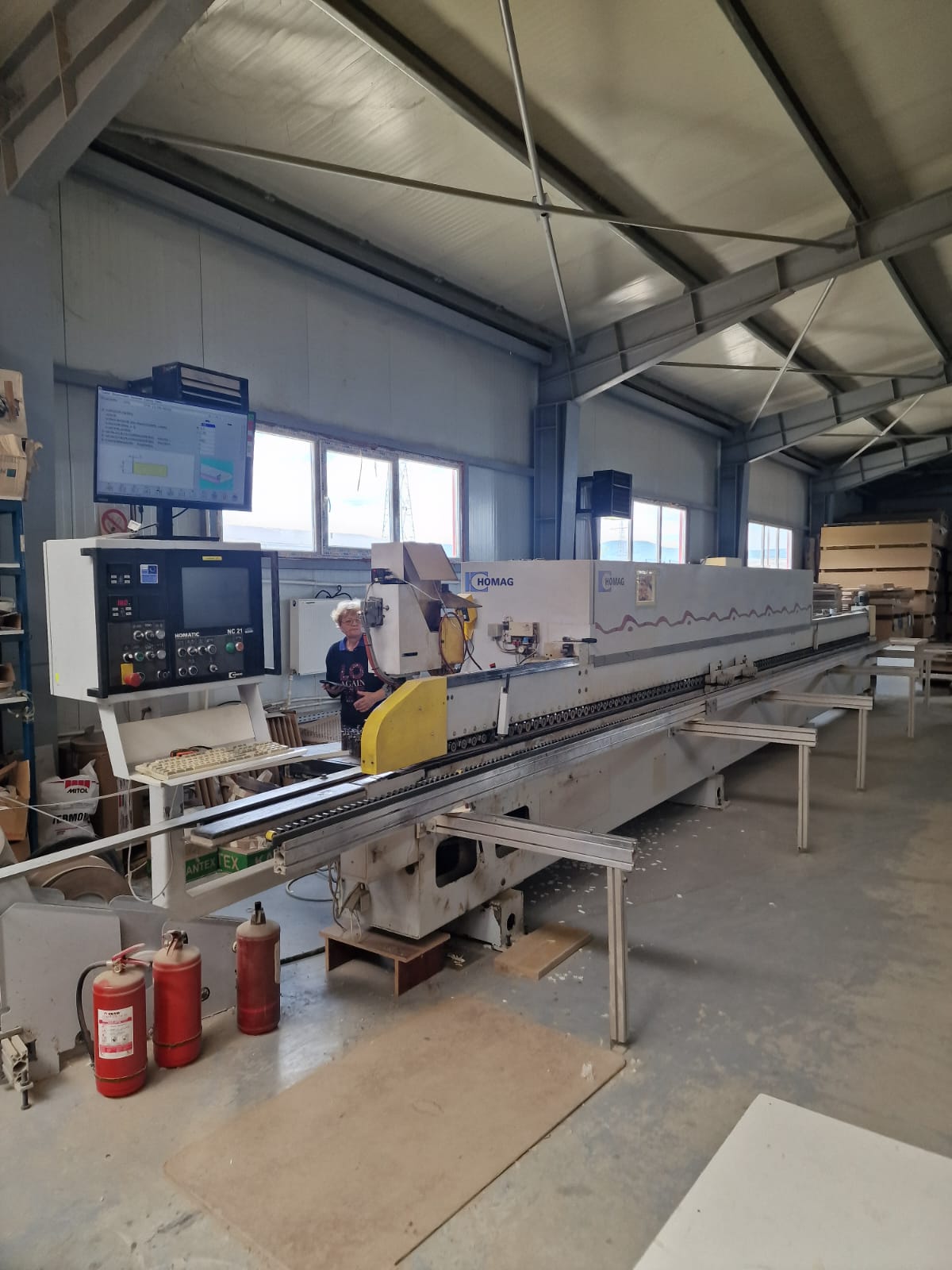

ABS edge banding machine Homag Optimat KL
With the following operations: gluing, cutting at the ends, surface brushes, and others.
Specifications:
Gluing on granules from the factory
Voltage 400v
Workpiece width min.-max. mm: 60,
Min.-max. feed: 10-25 m/min,
Axis control: linear,
Linear feed: yes,
Pre-milling: yes,
Fine milling: yes,
Releasing agent application: yes,
IR zone: yes,
Vertical grooves: 2,
Rotary-controlled grooves: yes,
Replacement device: PU,
EVA bonding piece: yes,
Edge sanding: KS 10,
Top-bottom profile sanding: yes,
Polishing unit: yes,
Workpiece feed: Bartgstedt ZHR,
Compressed air bar: 6
