This machine has never been set up. It is a brand new package.
Spindle; 13.2 kw - (17.7hp) programmable speeds (0-24,000 rpm) (prearranged for add-on C-axis) (Has 4 blowing nozzles)

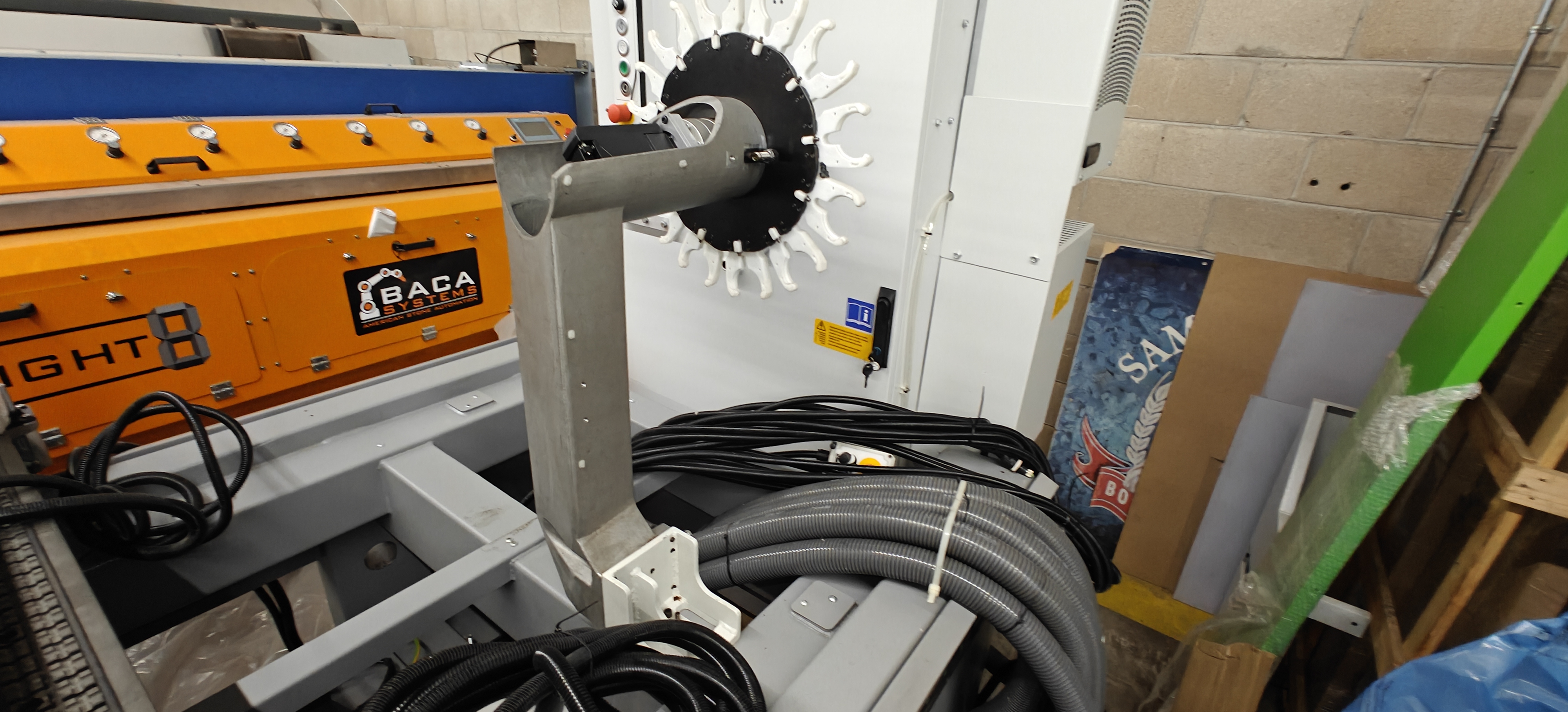

12 position ride-along tool change capacity
Tool length measurement tool
18 Spindle Drill Block
"Plug and Play" is "Prearranged" for add on offload table and infeed tables. The machine is already outfitted with the push bar/vacuum bar and the vacuum cups for infeed.
1536 Worktable dimension FT: X=X=3763mm; Y=1558mm
X axis speed - 60 m/min
Y axis speed - 60 m/min
Z axis speed - 25 m/min
X / Y Vectorial speed – 85 m/min
Phenolic work table has 2 rear pneumatic stops + 1 left side stop + 3 front stops
8 zones Multizone vacuum system
2- Becker Vacuum Pumps
Auto Lube system
Frontal light barriers- 3 sides high fence 2 m high (complete with side openings on right side)
THIS IS A BRAND NEW UNIT (2020) . It is in our Hudson, NH facility and ready to ship.
