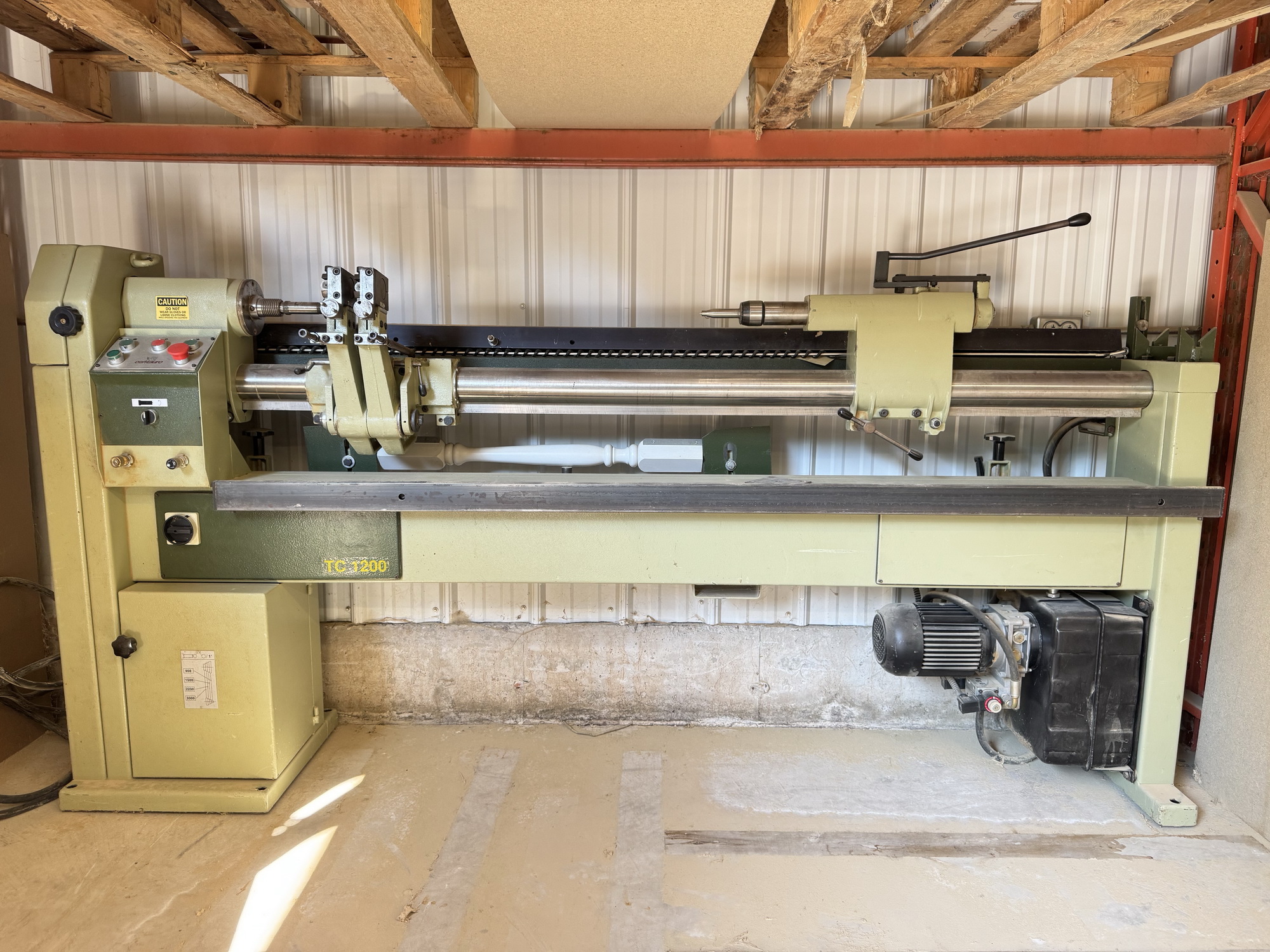

Lathe TC 1200

Suitable for the production in small and medium series of stair spindles, table and chair legs, furniture components in general.
Workpiece centering device, which permits rapid centering of workpiece.
Hydraulic pump with pressure valve.

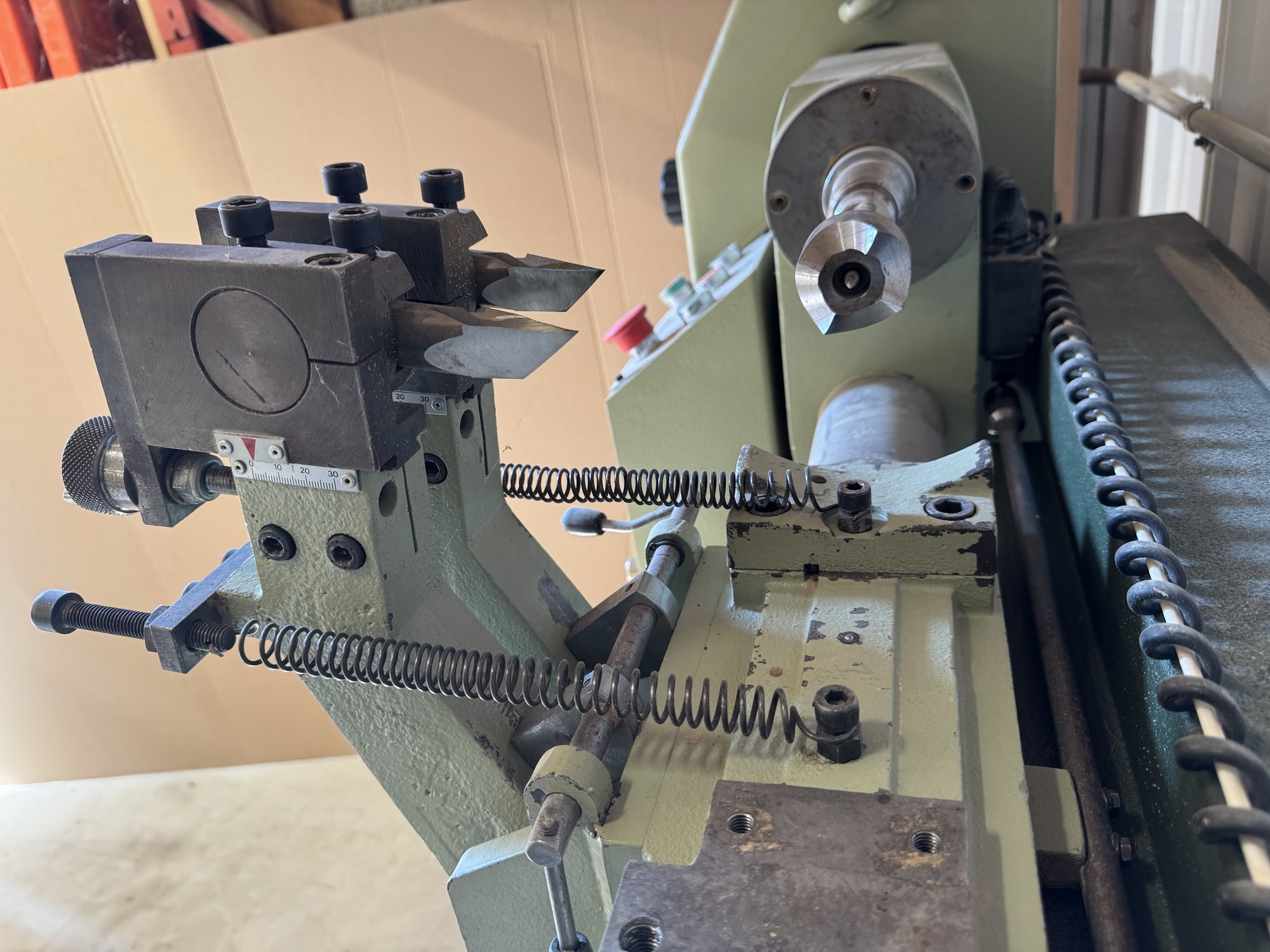

Copying saddle assembly with dust extraction.
Copy system with roughing and finishing tools.

Max. Workpiece Length = 48"(1219 mm)
Max. distance between centres = 1200 mm
Swing over bed = 150 mm
Swing over steady = 90 mm
Max. square in steady = 65 x 65 mm
Headstock and tailstock morse taper = 3 cm
Spindle speed = 900-1500-2200-3000 RPM
Saddle speed in both directions = 0 / 7 min

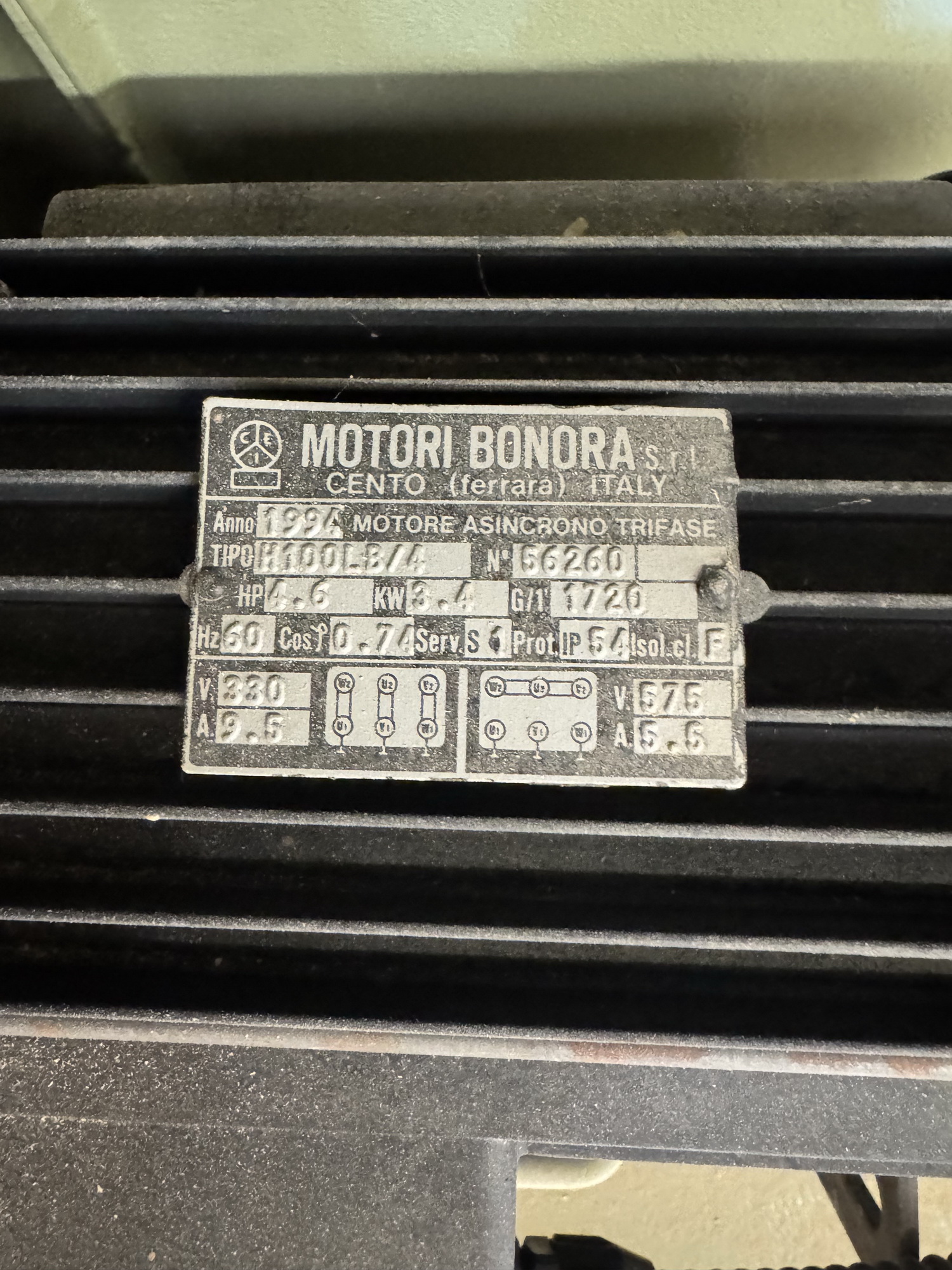

Spindle motor power = 4HP (3 KW)
Motor power of Hydraulic unit = 1HP (0.73 KW)
Total power requirement = 3.73 KW
Hydraulic pressure = 25/30 Bar

Overall dimensions = 2750mm (L) x 500mm (W) x 1180mm (H)
Approximate weight = 400kg

Runs smoothly.
Reason behind selling is that it is no longer in use.

For more information give us a call and ask for Simon.
