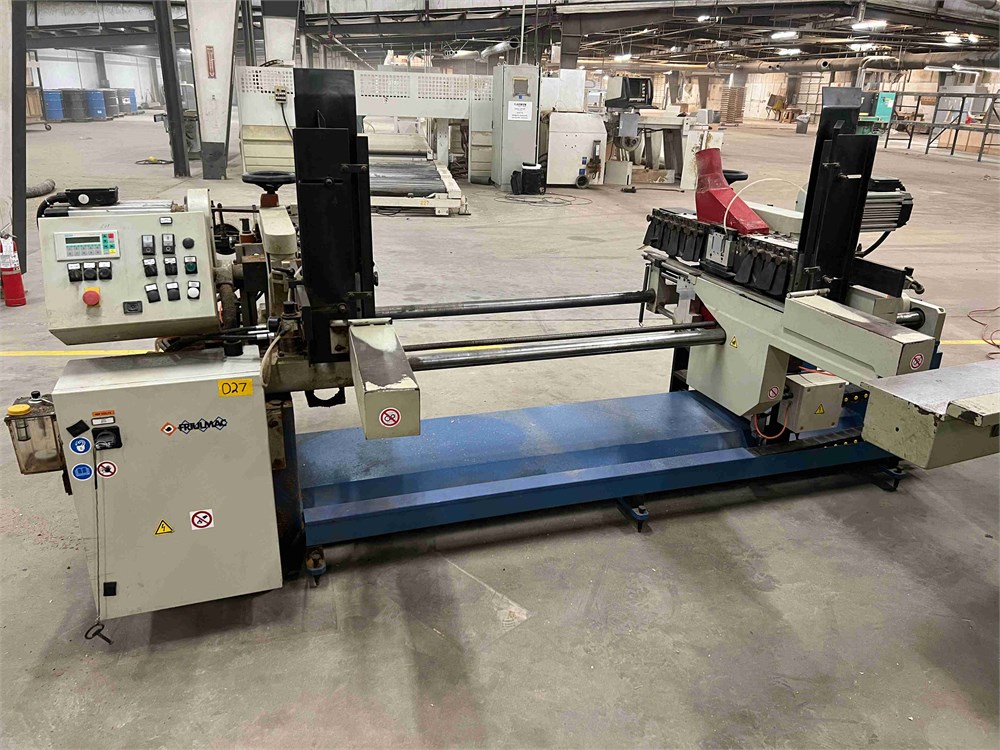

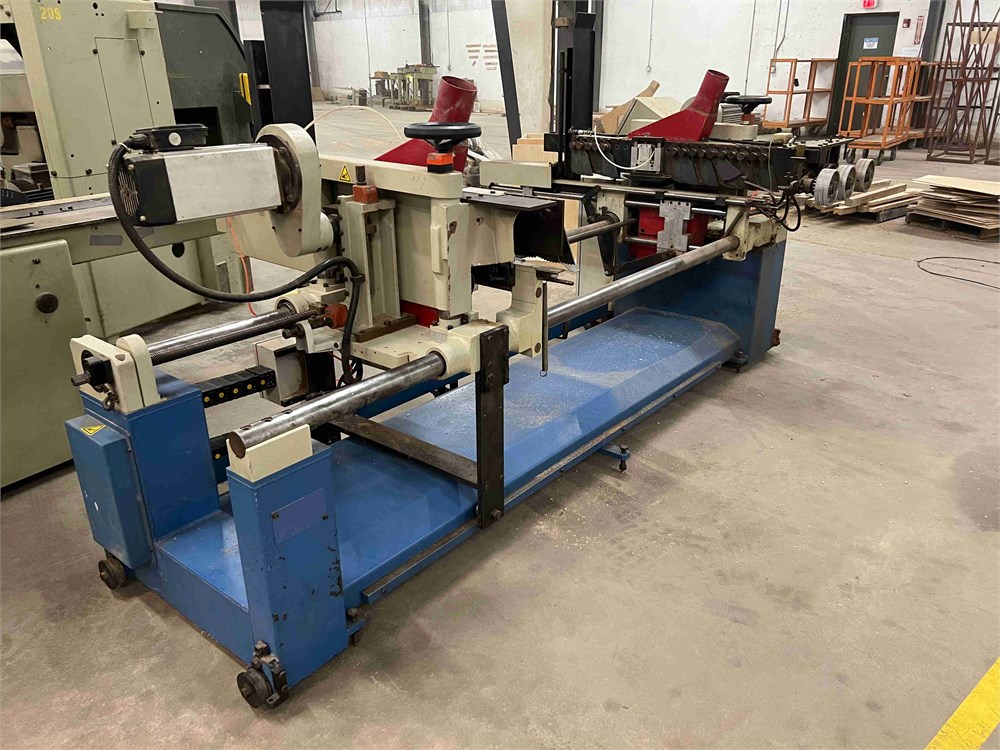

Friulmac Model Dualfeed Double-End Trim and Moulder Feeder
Serial #:3956A
Condition: As Is
Stock Number: 471004
The Dualfeed Precision End Trims Work Pieces and Automatically Feeds Them to a Moulder
Work pieces vertical hopper-feeder, adjustable in width, provided with pneumatic equalizer for the correct positioning of the parts before the entrance into the working stations; max. tolerance allowed in the work pieces length: 70 mm
Work Pieces is Advanced via Pusher Arms Hydraulically driven

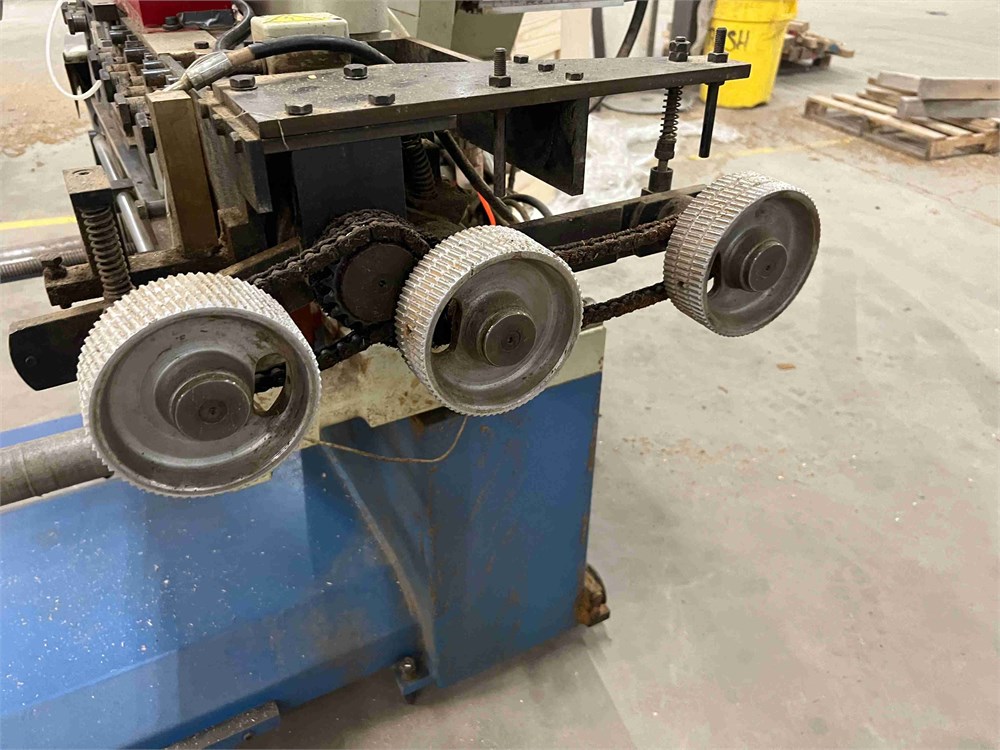

Work Pieces by Three Rollers driven by Hydraulic Motor
Working Length: 10.23" - 59" (260 - 1500mm)
Working Width: 1.57" - 4.33" (40 - 110mm)
Working Thickness: 0.39" - 3.15" (10 - 80mm)
Two Trim Saw Motors: 5.36 HP Each
Blade Diameters: 400mm
Blade Bore: 35mm
Hopper Fed
Hydraulic Feed Unit: 3 HP
Motorized Open/Close
Maximum Production Capacity: 40pcs/min
