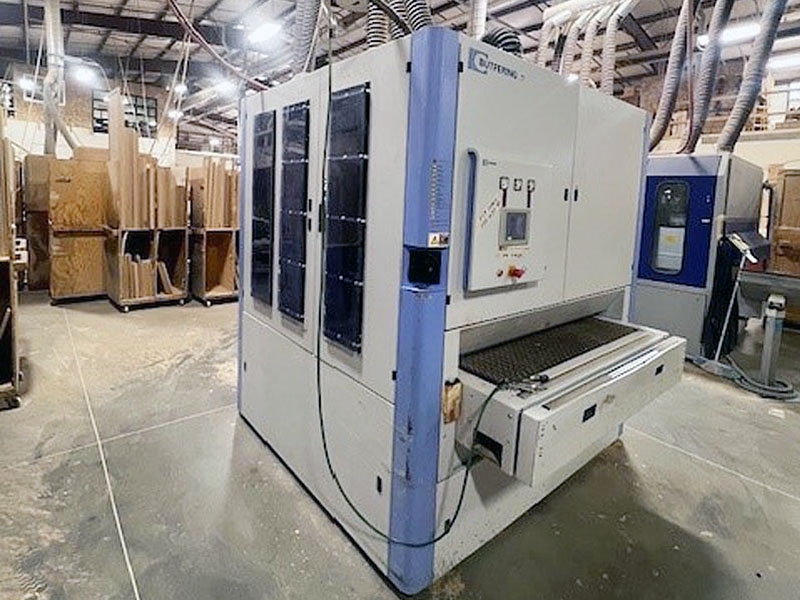

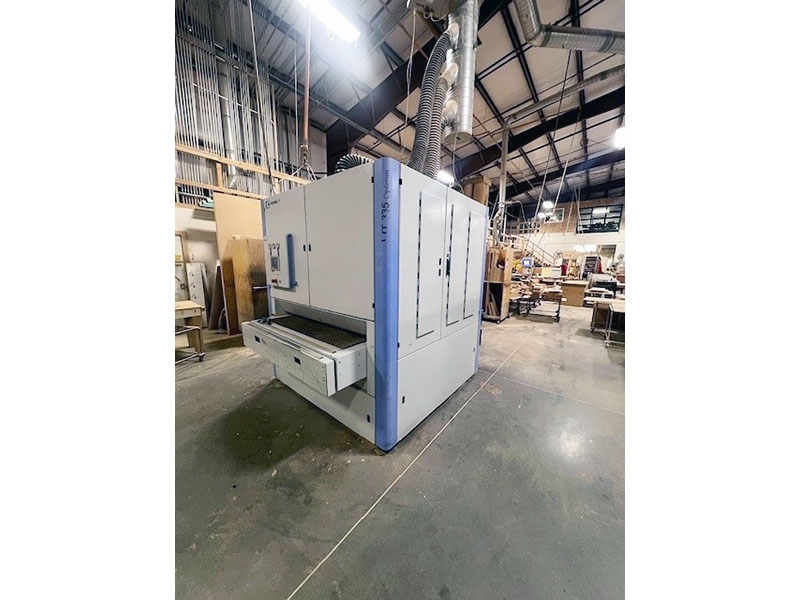

Butfering Model SWT 335 RRL Three Head 53" Wide Belt Sander
Serial #:0256-03-1821
Condition: As Taken From Service
Stock Number: 7239
Width capacity 1,350mm (53")
Work Piece Thickness: 3mm to 160mm (1/8" to 6")
Abrasive Belt Width: 1,370mm (53")
Abrasive Belt Length: 2,620mm (103")
Variable Feed Vacuum Feed Belt: 2.5 to 13 m/min(8 to 42 ft/min)
Vacuum is 5.5 KW(7.5 HP)

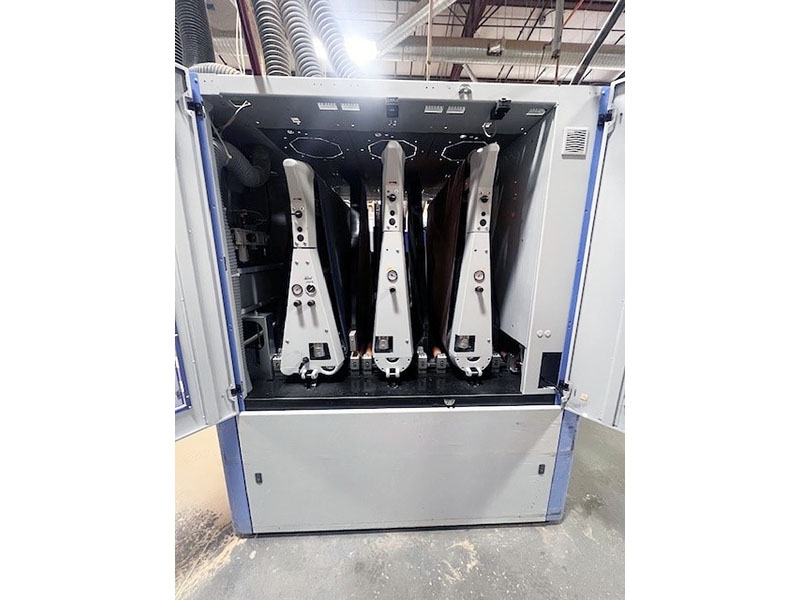

Head Configuration:
1st Head: Steel Profiled Contact Roller 21.5 KW (28.83 HP)
2nd Head: Rubber Profiled Contact Roller 17.4 KW (23.37 HP)
3rd Head: Combination Head: Contact Roller & Air Cushion Sanding Pad/Platen Head 17.4 KW (23.37 HP)
Work Piece Cleaning Device
Voltage: 460 Volts, 3 Phase, 60 HZ (24 Volts Controls)
Full Load Amps: 150 FLA at 460 Volts
Compressed Air: 55 cfm @ 90 PSI Required
Total CFM Required 5,365
