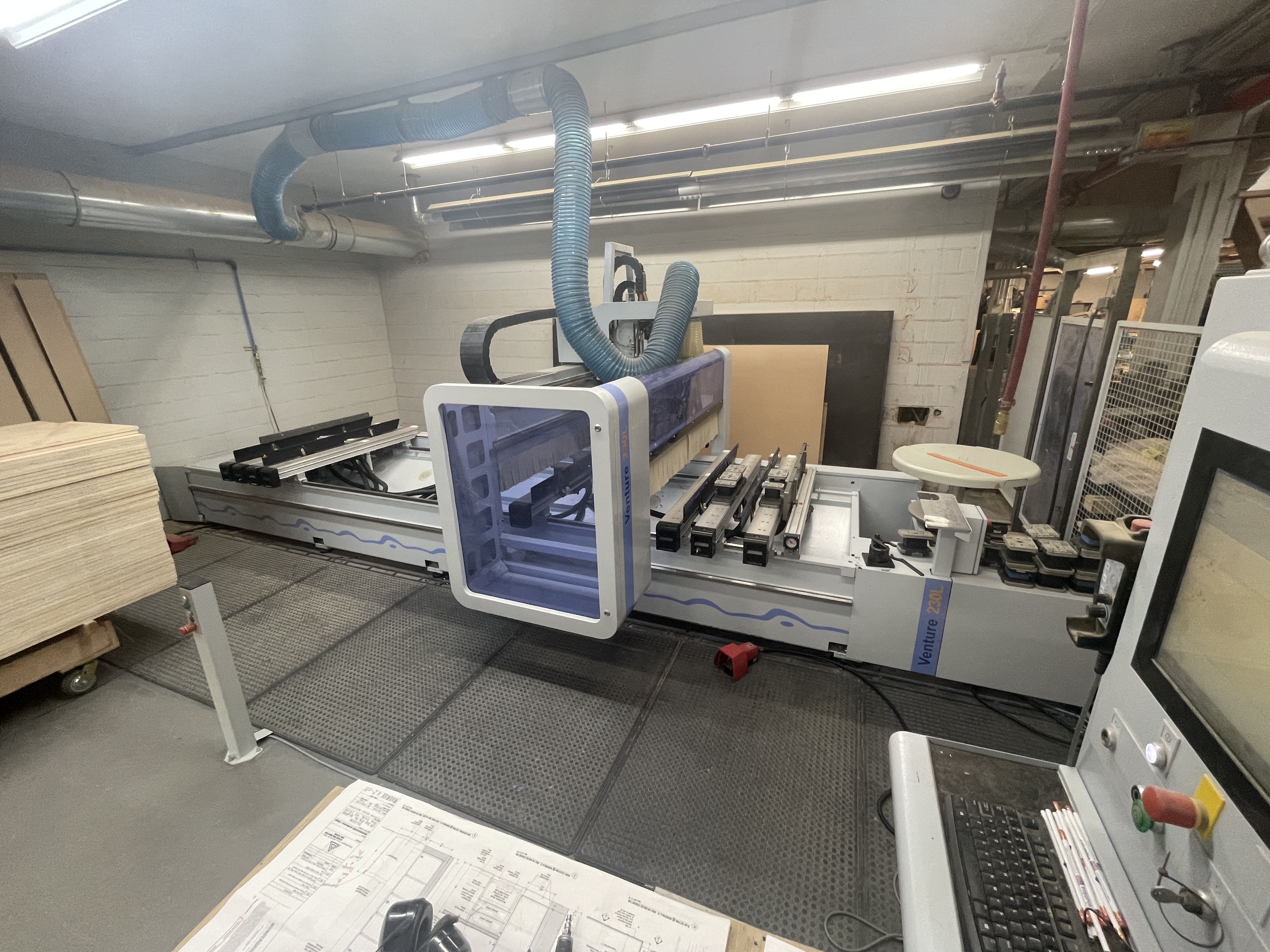

Weeke Venture 230L CNC Machining Center
Condition: As Taken From Service
Year 2013
Stock Number: 57238
Axis Travel: X - 5430mm (213.77"), Y - 2180mm (85.82"), Z1 - 348mm (13.70"), Z2 - 215mm (8.46")
Axis Speed: X/Y - 110m/min, Z - 20m/min

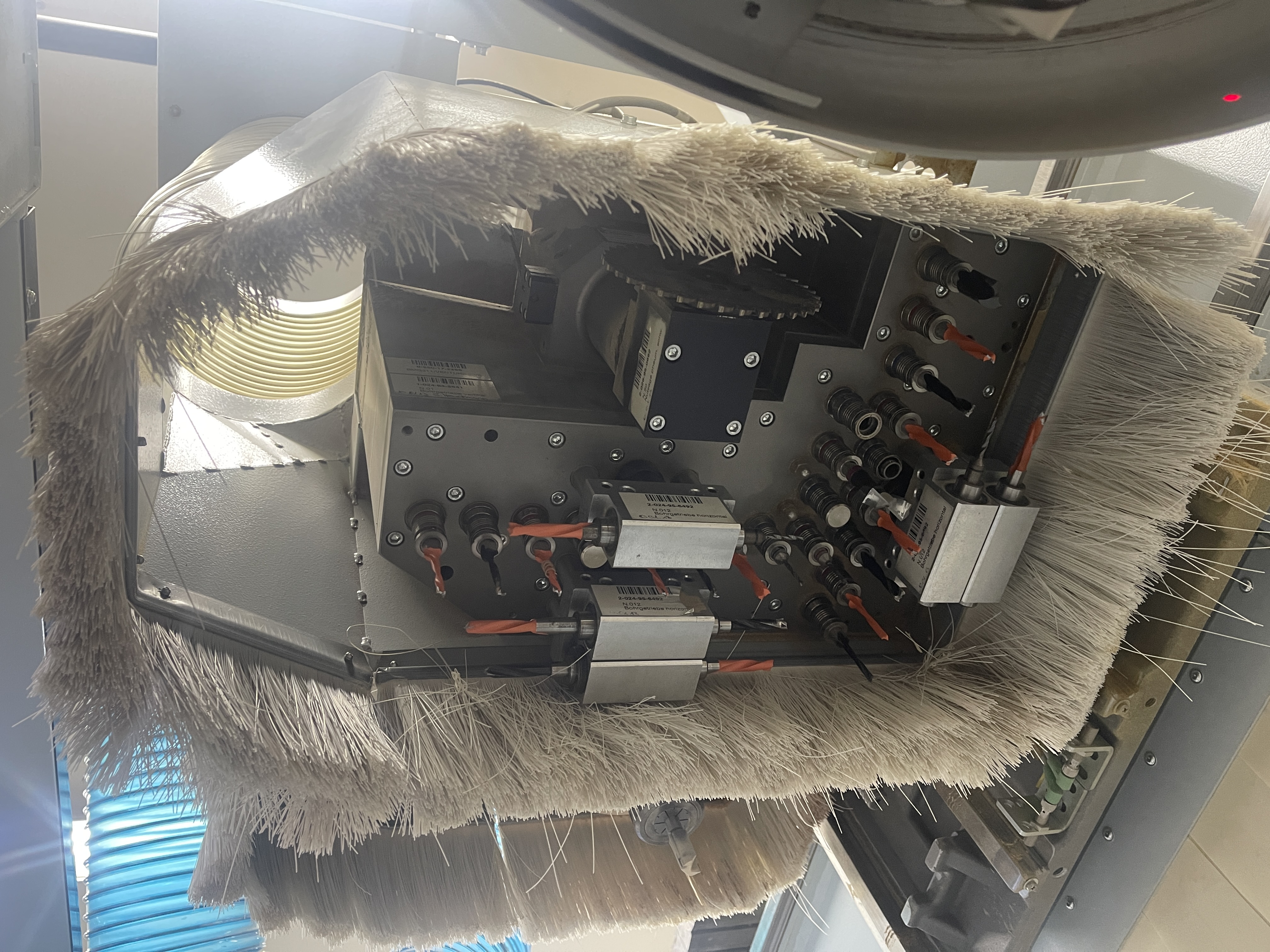

One (1) 21 - Spindle Vertical Drilling Block with 60mm Z-Stroke, Distance between Spindles: 32mm
Horizontal Boring Spindles - 6 Spindles - 32/64mm Pitch - 3 Each Direction (X+/-X), 4 Spindles - 32 Pitch - 2 Each Direction (Y+/-Y)
One (1) Grooving Saw - X- & Y- Direction - 90 Rotation, Cutting Depth - 30mm

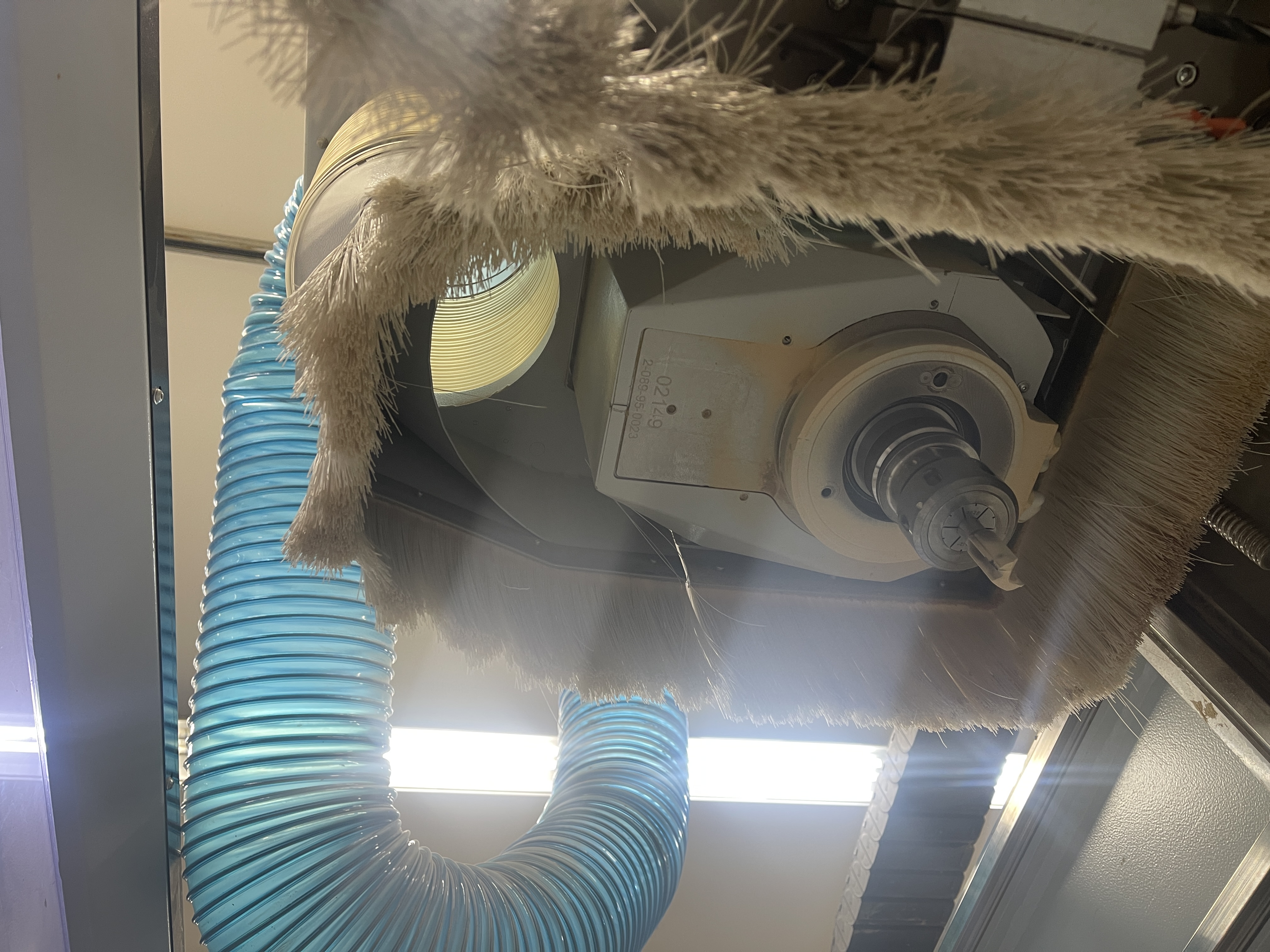

One (1) Vertical Router Motor - 12kW (16HP), Tool Holder - HSK63, Tool Changing - Automatic, Speed - 1250-24000 RPM Stepless Programmable
One (1) C-Axis Aggregate Interface - 360 Degree Interpolating. Includes Pneumatic Interface and Infinitely Variable Swivel of 360 Degree

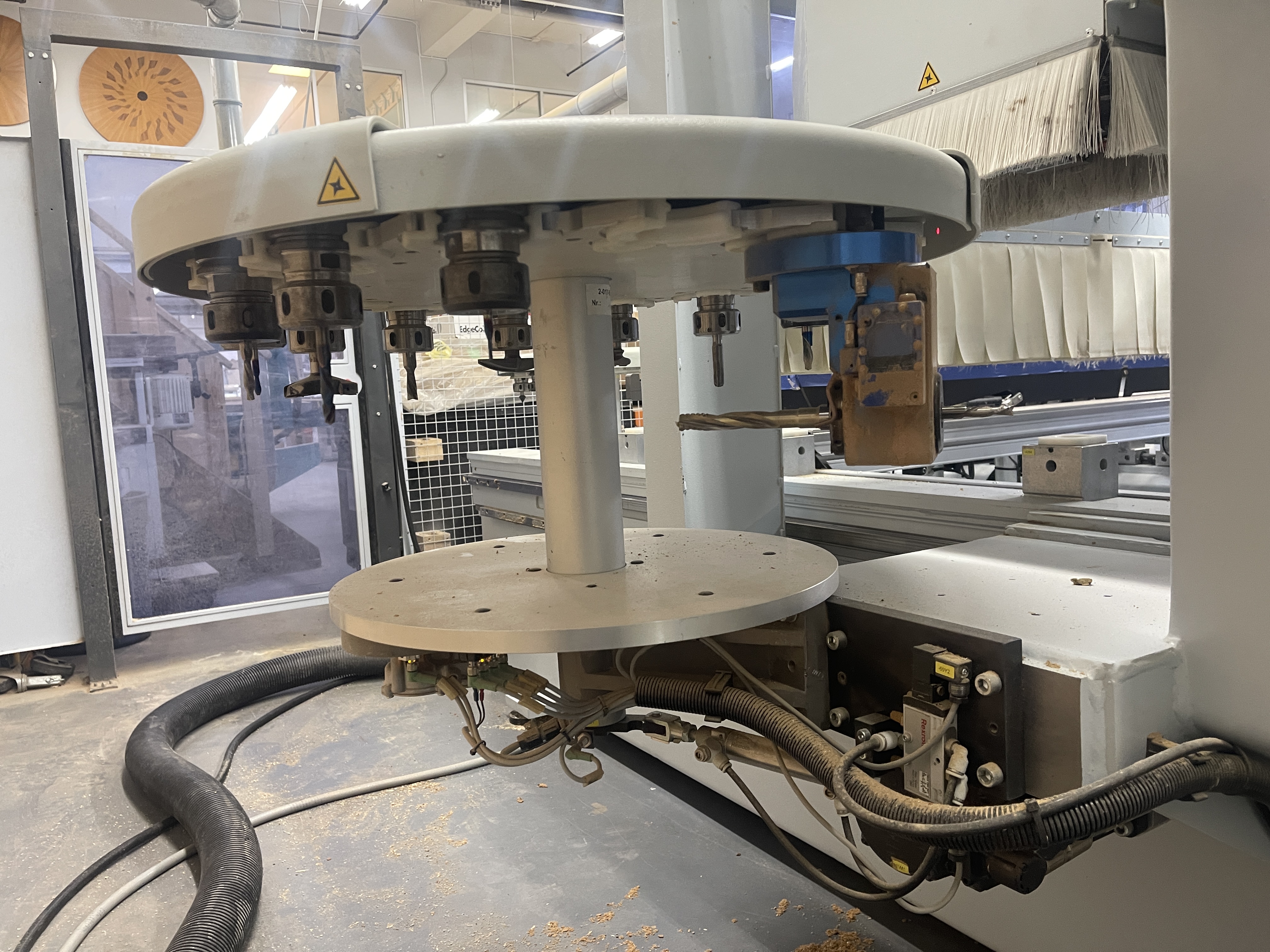

One(1) Fourteen (14) Place Automatic Tool Change Carousel(Rear), Arrangement is Moving with the Support in the X-axis Direction
One(1) Fourteen (14) Place Automatic Tool Change Carousel(Right Side), Arrangement is Mounted Laterally at the Right Hand Side of the Machine Frame,
One(1) Console Table with Diode Light Band (LED) Positioning System, Tubeless Vacuum Clamping System for Clamping of Panel Material, Working Field X=4500mm (180" Max Length), Y=1500mm (60" Console Length), Y=1600mm (64"Max Routing width and Workpiece Passage, Z=125mm(5" Maximum Thickness)
Two(2) Vacuum Pumps
Chip / Scrap Conveyor integrated into the Machine Frame for disposing of Chips and Waste Parts
Complete Detailed Specification Available Upon Request, Includes Console Table Details, CDS Condition Monitoring, PowerControl Hardware and Software, And woodWOP 6.0 Information
480 volt 3ph
Tool holders and aggregates do NOT come with machine
