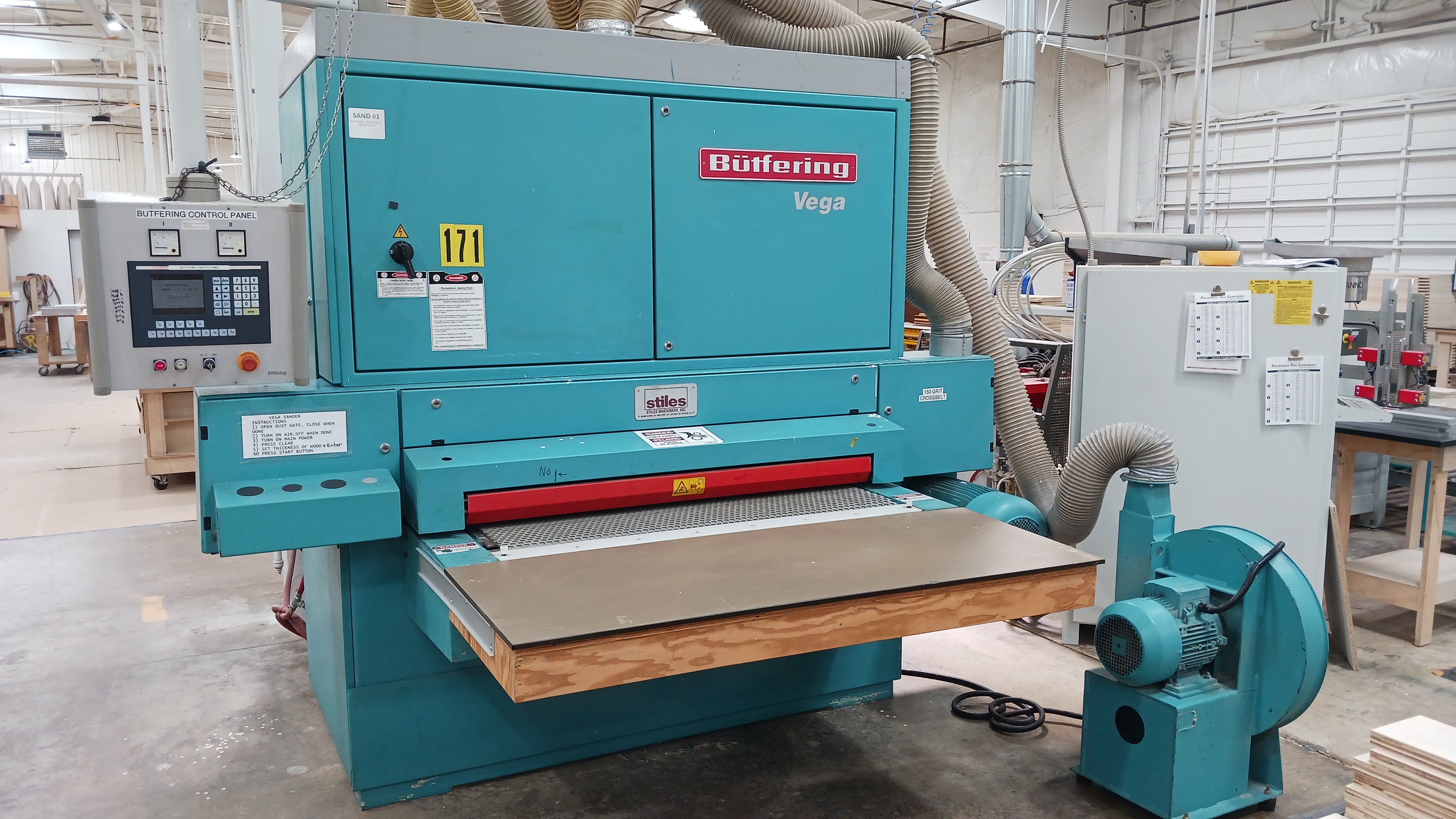

Butferring Cross-Belt lacquer Finish Wide Belt Sander

• Rugged heavy-duty sheet metal construction.
• Powerful industrial motors drive sanding and auto in-feed smoothly.
• In & out-feed equipped with spring-loaded hold down rollers.
* Cross Sanding Unit for Lacquer sealer sanding

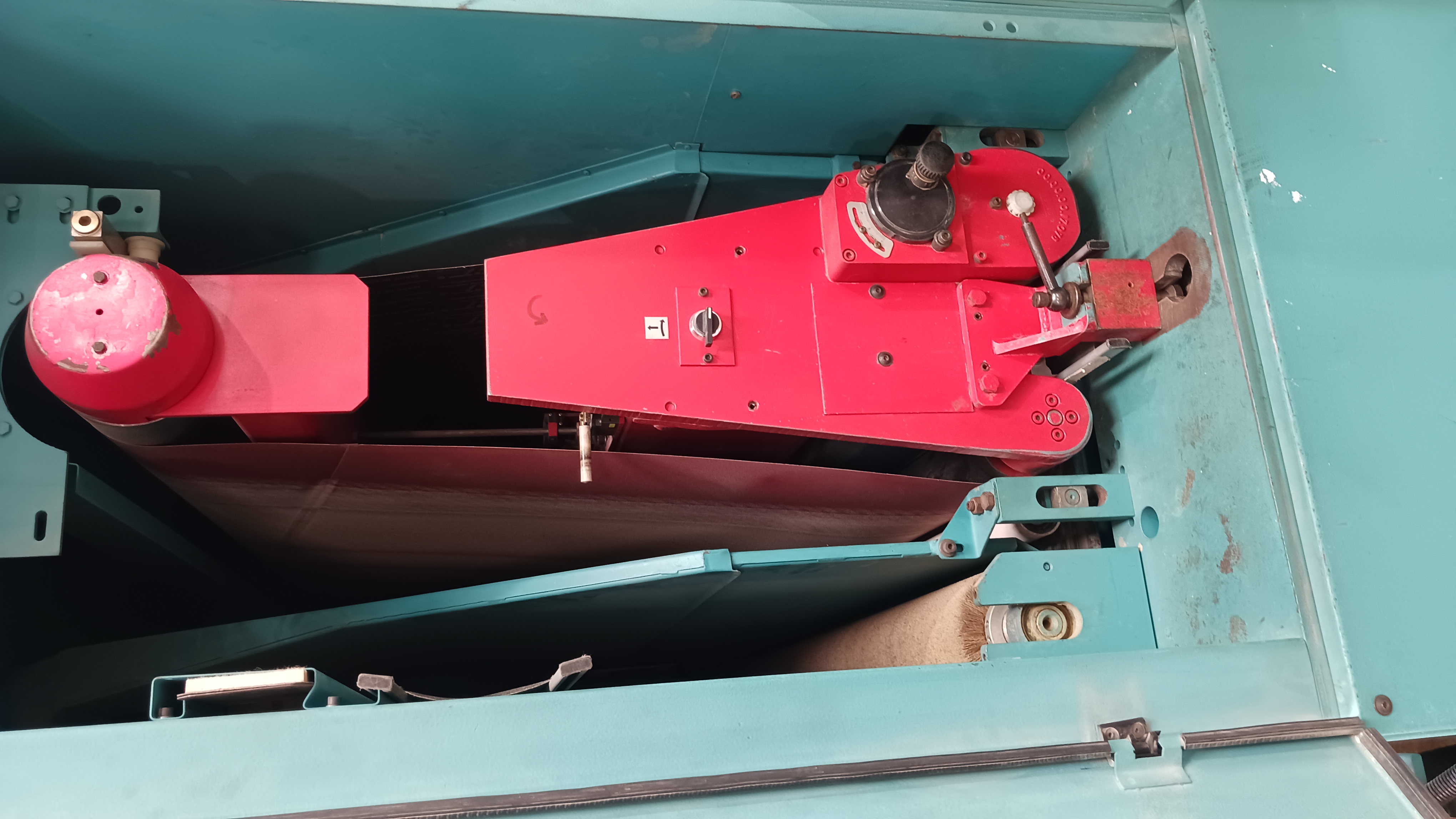

• Combination platen & drum sanding head.
• Computerized thickness adjustment control with accurate digital readout. * Automatic table movement for sanding thickness within 0.005” accuracy.
• Special rubber feed belt with vacuum hold-down.
*Automatic Air Blowers to clean panels and Feed Matt.

Max. Working Width: 42"
Max. Working Thickness: 5"
Min. Working Length: 14½"
Sanding Belt Dimensions: (W x L) 43" x 75"
Dust Collection Hood: (Dia. x Holes) 8" x 2
Main Motor: 30, 20 HP
Feed Motor: 3 HP
Table Raising / Lowering Motor: ½ HP
Var. Feed Speed (FPM): 28 ~ 80
Working Air Pressure: 6 CFM
Exhaust Volume Requirement: 3800 CFM
N.W.: 6160 LBS
G.W.: 6820 LBS
