Exceptional SCMI double head sander!
30HP 230v 3ph drive
Delta soft start motor controls
Electrical requirements: 91amps

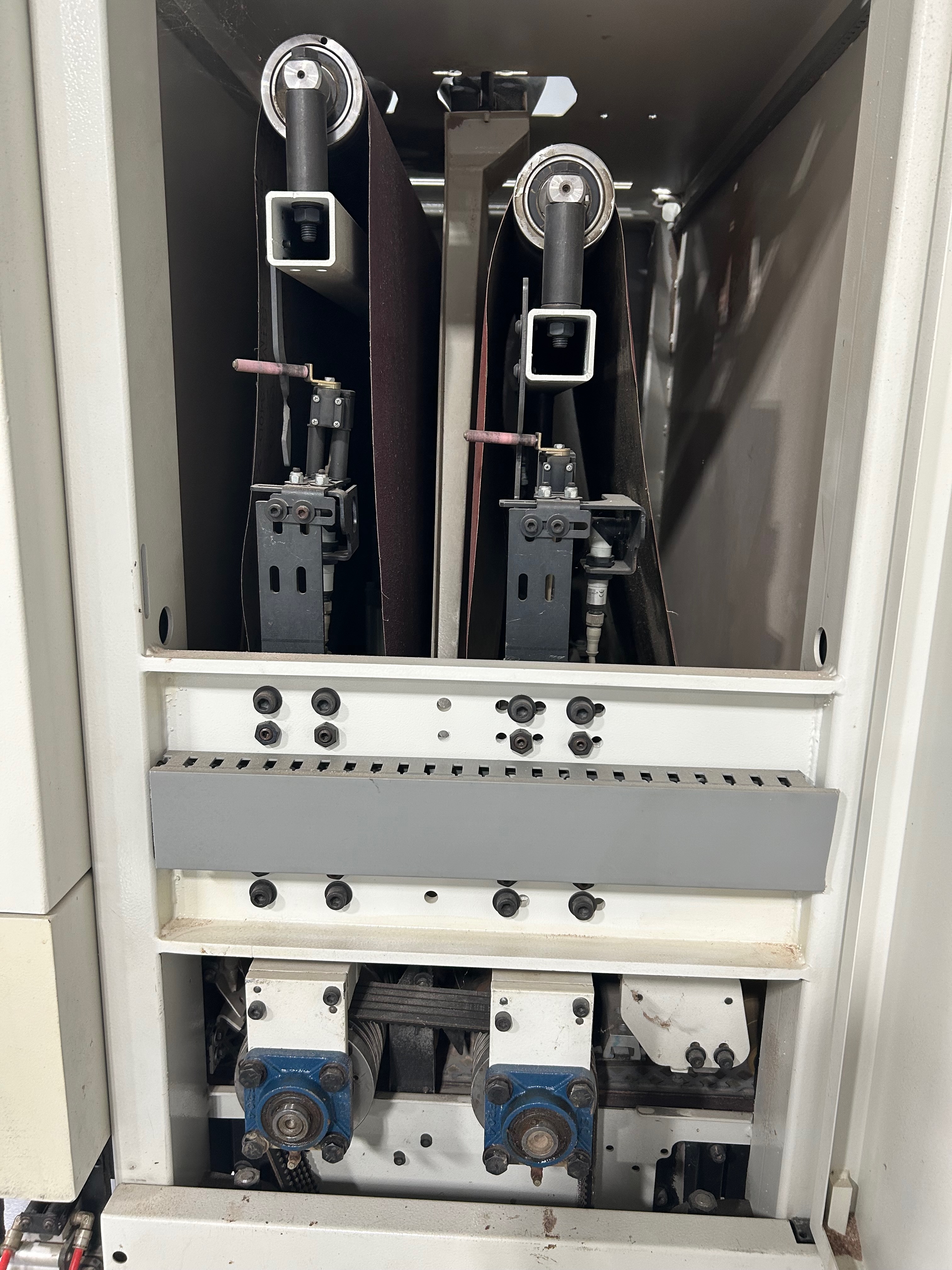

1st head: 4.5" diameter steel contact drum with manual grit set
2nd head: 4.5" rubber drum with 2" wide soft platen
Anti-dubbing control of platen rise-fall to protect leading and trailing edges of panels
Variable speed conveyor by inverter 12-60 fpm with digital display for working height
Automatic thickness set up
Automatic conveyor belt tracking (pneumatic cylinder)

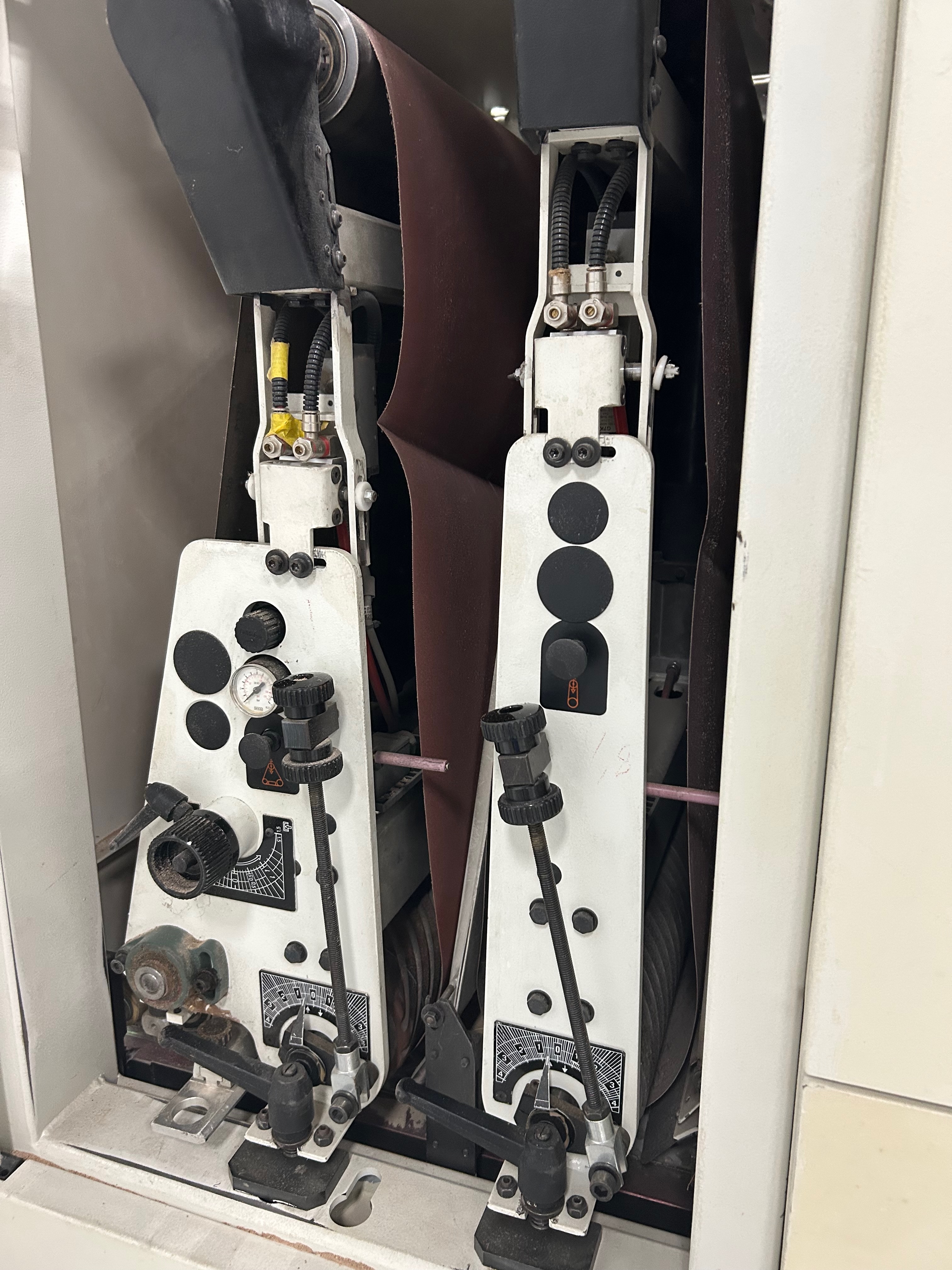

Two platens, soft (for veneer), semi-stiff (solid wood)
50 durometer conveyor belt
2 roller infeed and outfeed roller tables
4 Top and bottom fastened jack screws
6.6" max thickness capacity
Manual adjustment of contact roller and platen positions
1800 CFM
Two (2) 5" dust ports

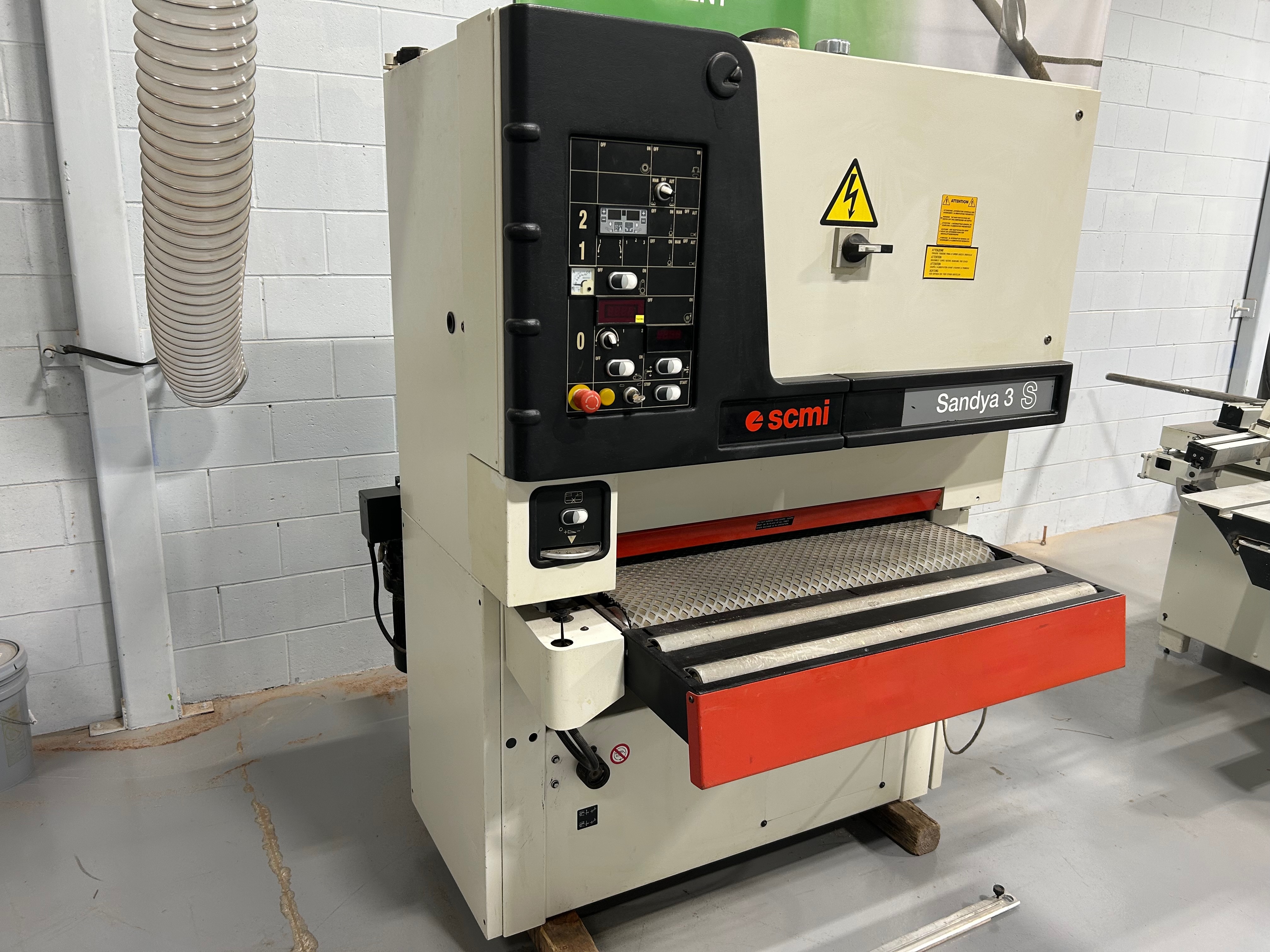

SCMI Sandya 3 RCS
