Thermwood Corporation

Woodtek Horizontal Boring Machine With 3 Spindle Boring Head

Listing #552154 Listed on: 06/29
Details - Machine for Sale
Category:Boring Mach-Horiz
Price: $1,500.00
Type:Used - Good
Manufacturer:Woodtek
Model:62788
Location:Kingston, TN
Sale Type:Dealer
Seller:360 Degree Machinery LLC [Contact]
Phone:630-229-6705
Year:n/a
Electrical:1PH
More Info:Link to more images and info at 360
Description

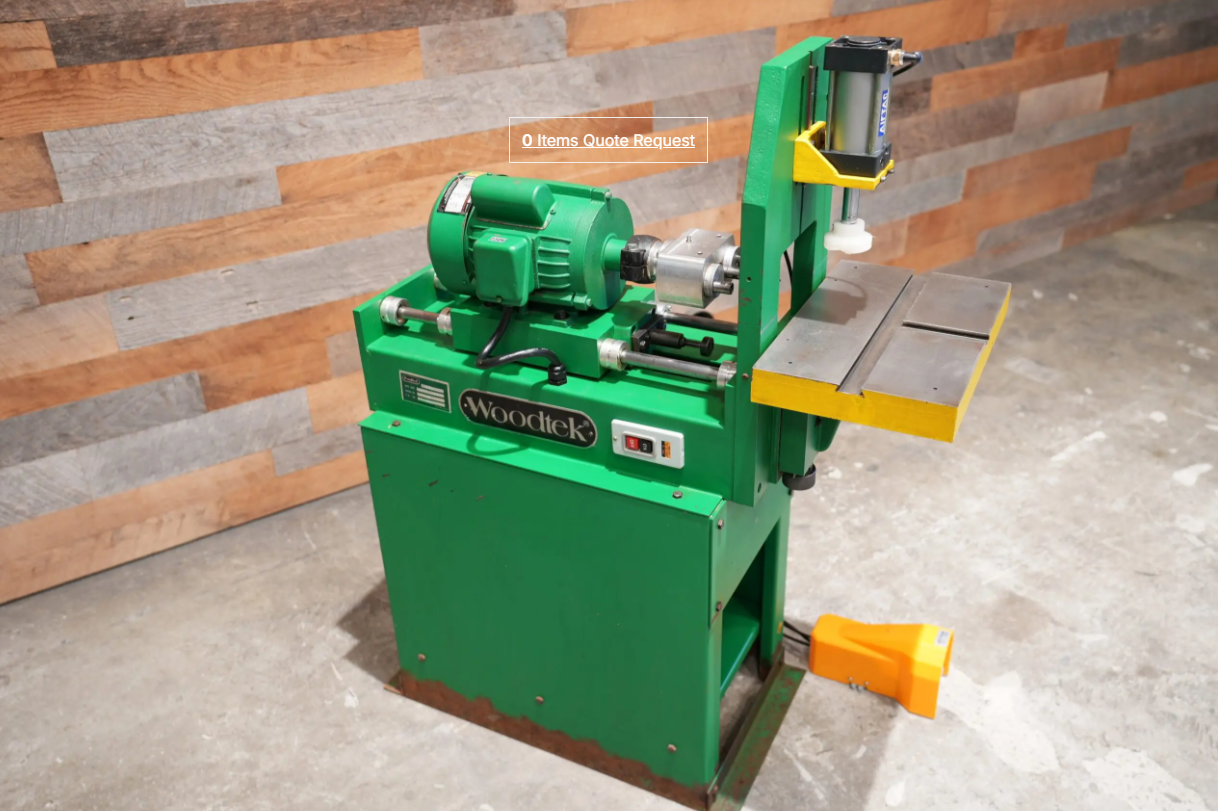

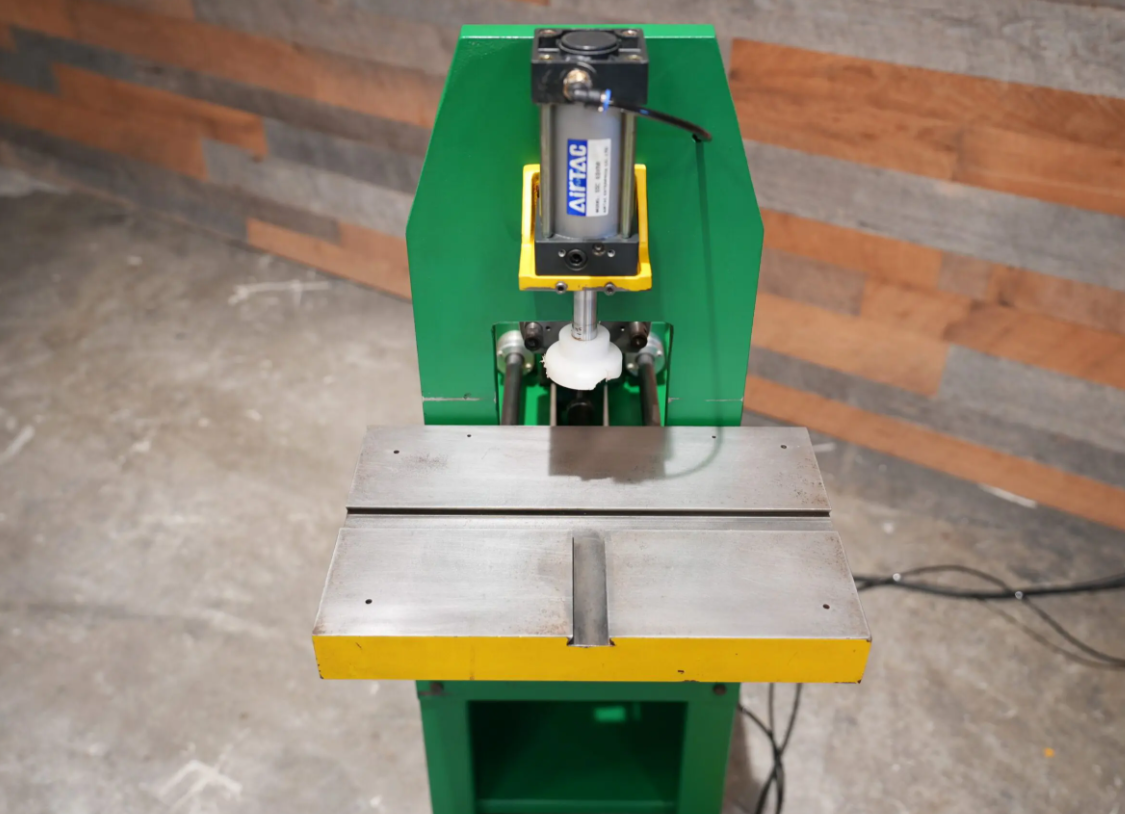

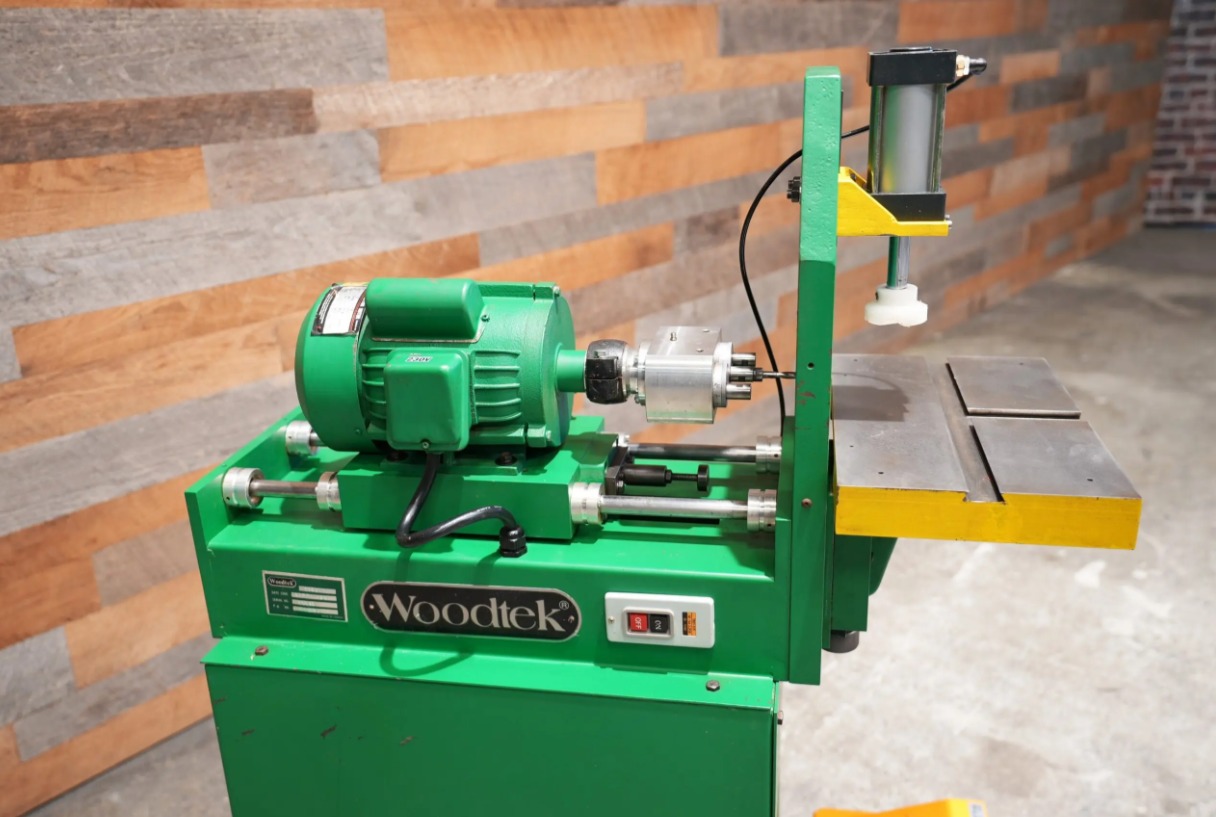

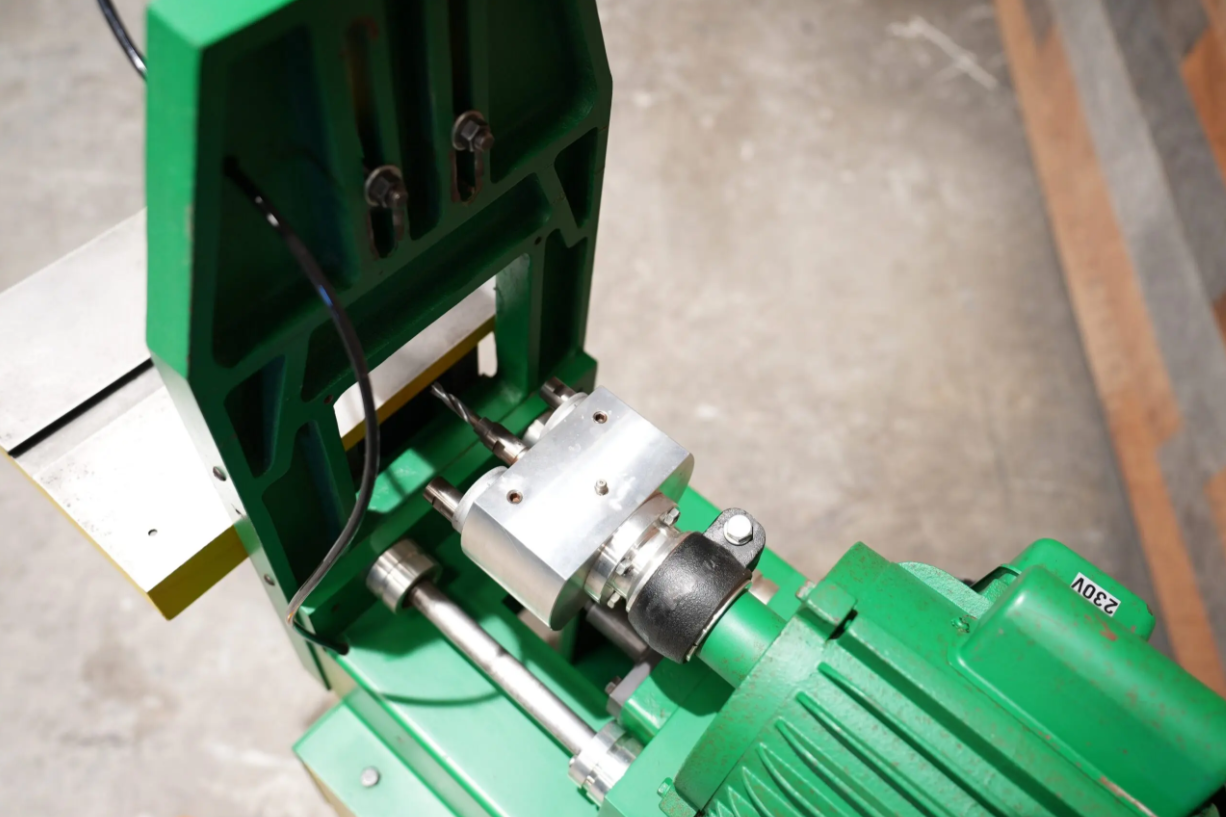

Clean Woodtek 62788 Horizontal Boring Machine with a 3 Spindle Boring Head. 2 HP, 220V, single-phase motor running at 3,450 RPM. Minimum centers for all (3) spindles is 7/8″ while the maximum between centers would be 2″.

SPECIFICATIONS
Motor: 2 HP, 220V, single-phase, 12A
Spindle travel: 3”
Spindle speed: 3,450 RPM
Maximum strokes per minute: 12 at 90 PSI
Maximum stock width: 7-1/2 in.
Air Requirements: 0.5 CFM at 90 PSI
Table travel, vertical: 3-1/2”
Table size: 15-3/4” wide x 9-3/4” deep
Footprint: 15-1/2” x 27-1/2”
Overall size: 15″ W x 37-1/4″ D x 47-1/2″ H
Approximate shipping weight: 346 lbs.
FEATURES
Precision-ground cast-iron table
Pneumatic clamp and spindle travel
Preformed steel stand
Convenient foot pedal control
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN

Link to more images and info at 360
