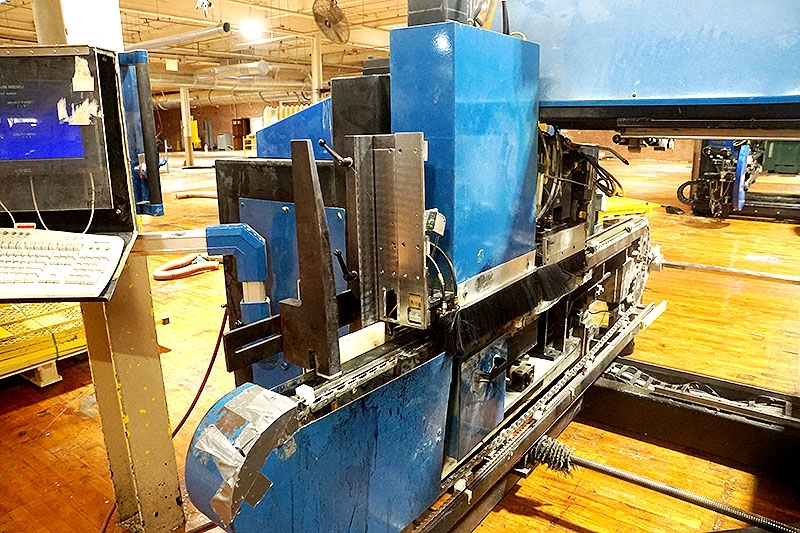

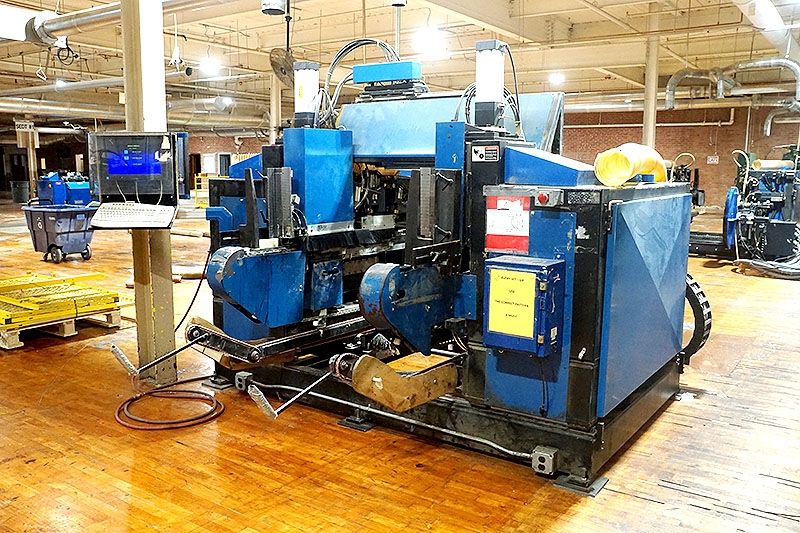

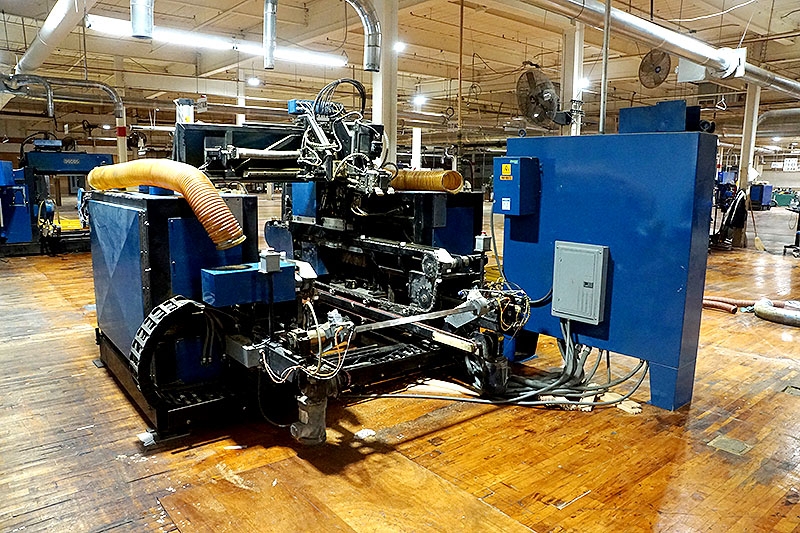

Dodds DE-790CNC Double End CNC Automatic English Drawer Dovetailer With Trimming And Notching
Condition: As Is
Stock Number: 2187
Product length (left to right) 8-7/8" to 42"
(8-7/8" length must be 6" wide for processing)
Product depth (front to back) 1-3/4" to 12"
Product thickness 7/16" to 1-3/4"
Machine foot print 14'-4" wide x 14'-2" long (suggested area 18' x 18')
Double end machine design
Infeed gravity hopper part feeder arms
Feed through drive chain with push type feeder dogs
Pneumatic stock clamping at process station
1st station: (left and right hand) trim saw heads
Pneumatic cylinder stroke of saw heads

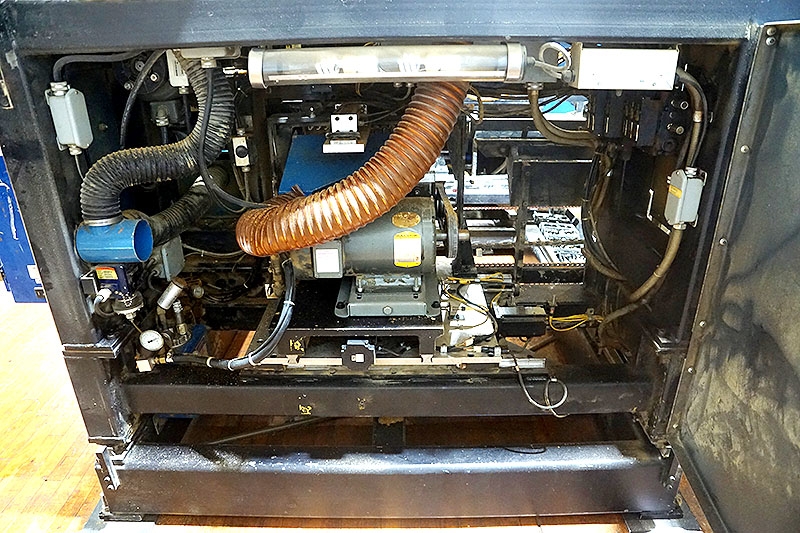

2nd station: (left and right hand) 15 spindle dovetailer heads
1" spindle centers machines english type dovetails
Automatic CNC control of spindle heads
7-1/2 Hp, 230/460 volt three phase spindle drive motors
Oil mist spindle lubrication system
3rd station: top mounted CNC controlled drawer edge notching head
