Description
Unique "336" Shape and Sand
Made in USA
One shape/route station 7.5 HP
Variable spindle 0-7050RPM,
1.25" spindle diameter 6" spindle length Reversible rotation
Two sand stations 1 HP
1" spindle diameter 6in spindle length
tiltable heads
Variable spindle RPM, 0 -1740rpm Adjustable infeed fence
Panel infeed device
Bottom feed track and top pressure rollers
Outboard support rail
Variable track speed 0-35FPM
2in maximum part thickness

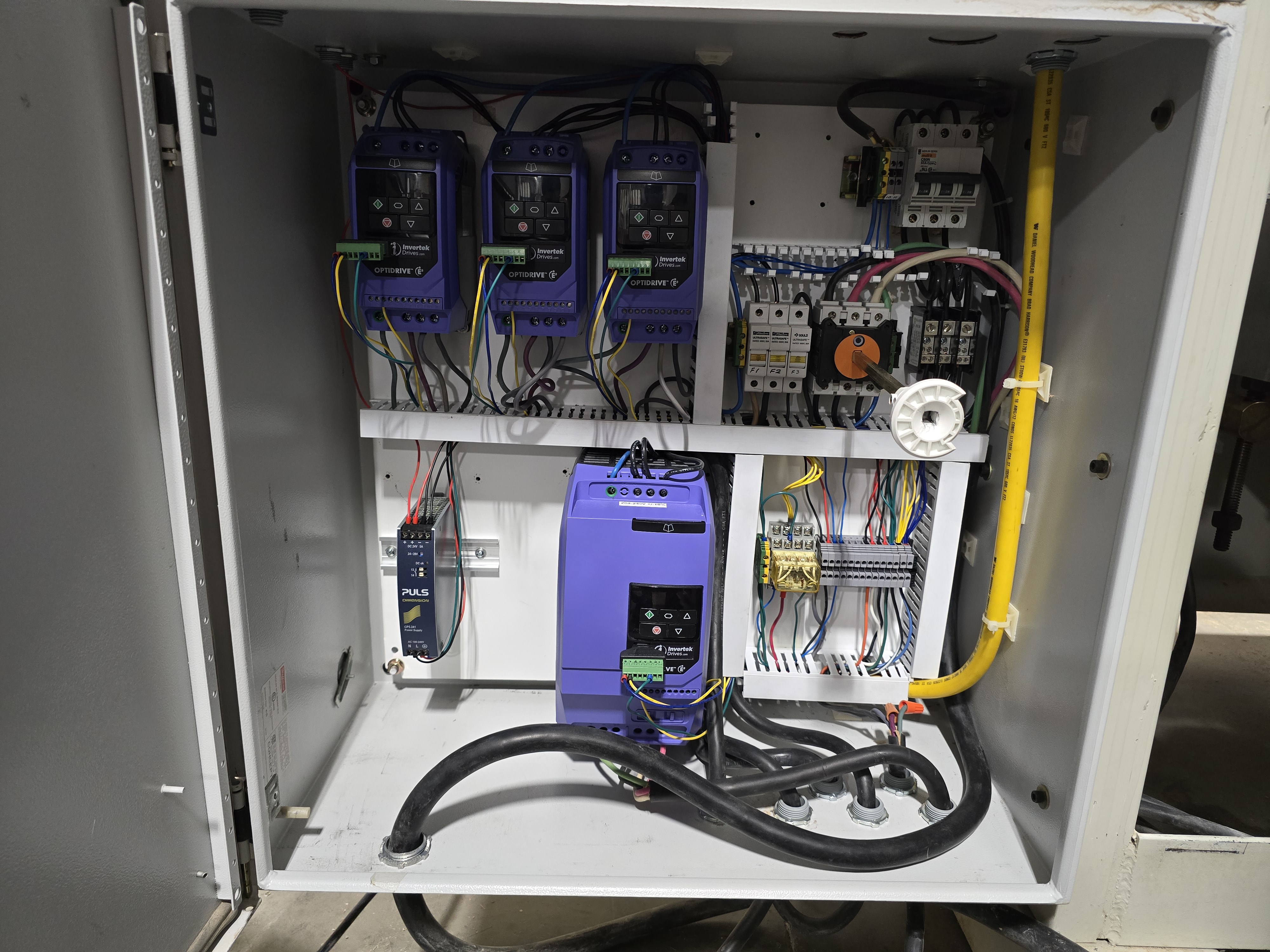

The machine was fully rebuilt in 2025. During the rebuild process we replaced all the pneumatic components, redid the entire electronic cabinet, brand new HMI controller, brand new VFD drives, all the electrical motors were tested for functionality and everything is good with them, the pressure beam rollers were replaced, the undercarriage rollers were replaced, all new conveyor pads. The machine is fully ready for heavy production use. We left the cosmetics as-is. Unfortunately we don't have a use for this machine in our production that's why we are selling as our production has largely gone away from 5 piece doors.
