Working width: 180 - 760 mm (7.09" - 29.92"). Working length: 250 - 2,500 mm (9.84" - 98.43"). Working height: 250 - 1,300 mm (9.84" - 51.18"). Working table height: 500 mm (19.69").
Conveyor speed: 35 MPM (114 FPM). Beam speed: 18 MPM (59 FPM); horizontal: 20 MPM (65 FPM); Vertical (Combined). Beam pressure: 1,800 kG Horizontal (3,968 Lbs); 2,000 kG vertical (4,409 Lbs).
Motorized belt conveyor: 31” W x 17’ L x 26-1/2” H.
(2) Vertical beams with: Ball screw drive; each with: (3) Pressure bars; 0.37 kW (1/2 HP) - 2,750 RPM motor; rack & pinion drive.
Top beam with: 2.9 kW (4 HP) - 1,500 RPM AC Servo motor and rack & pinion drive. Length & height Sensors.

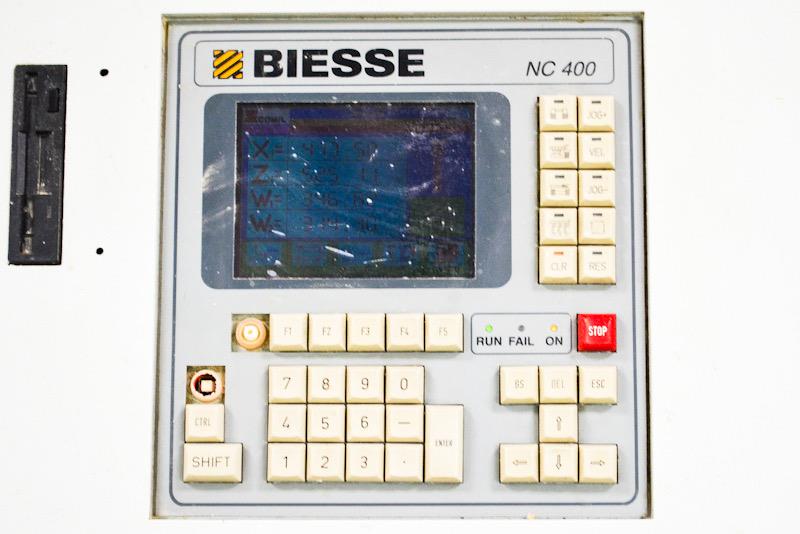

BIESSE "NC 400" CNC Control with: 6" Color LCD display.
*** Please click the link for full description***

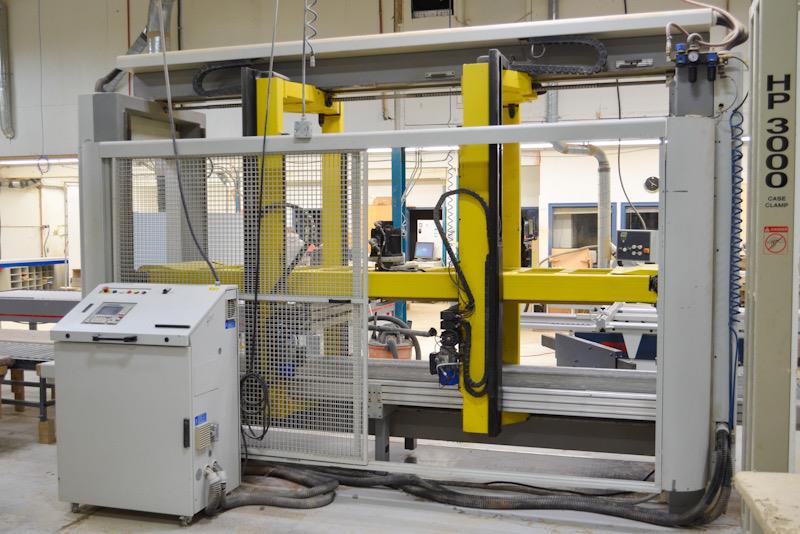

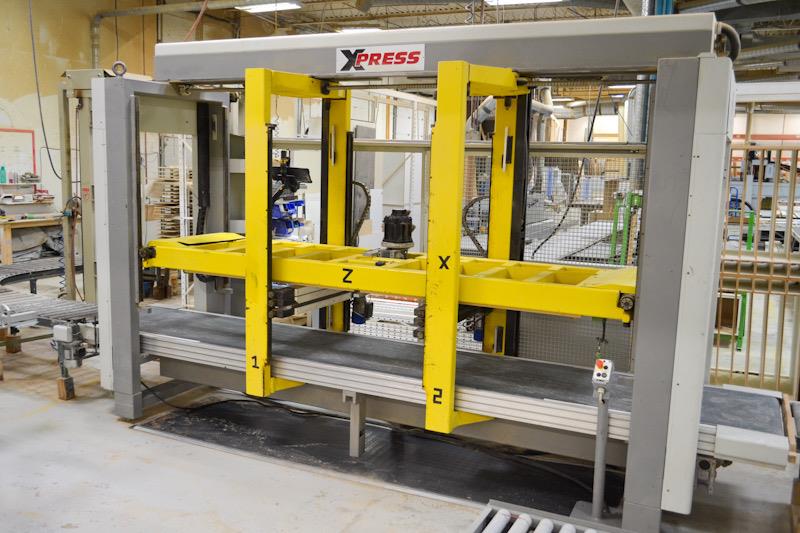

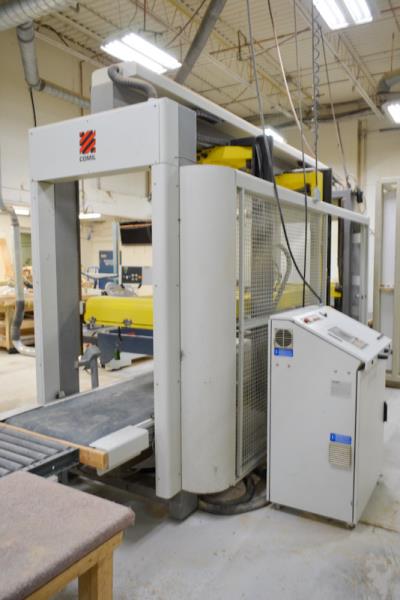

Comil XPRESS Case Clamp
