Quick melt glue unit with 10 -12 minute heat up

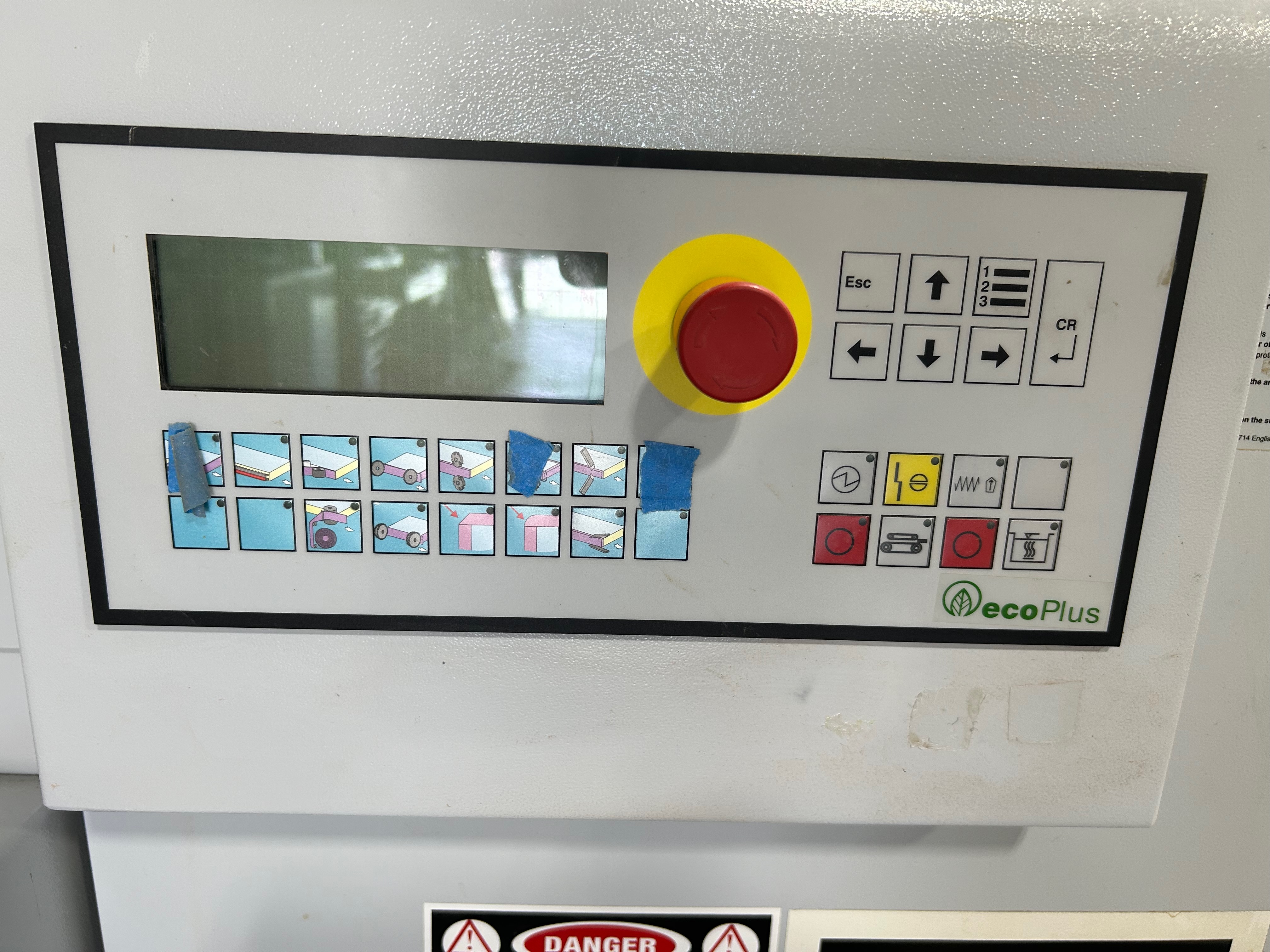

ECO-Plus PLC controller for machine operation

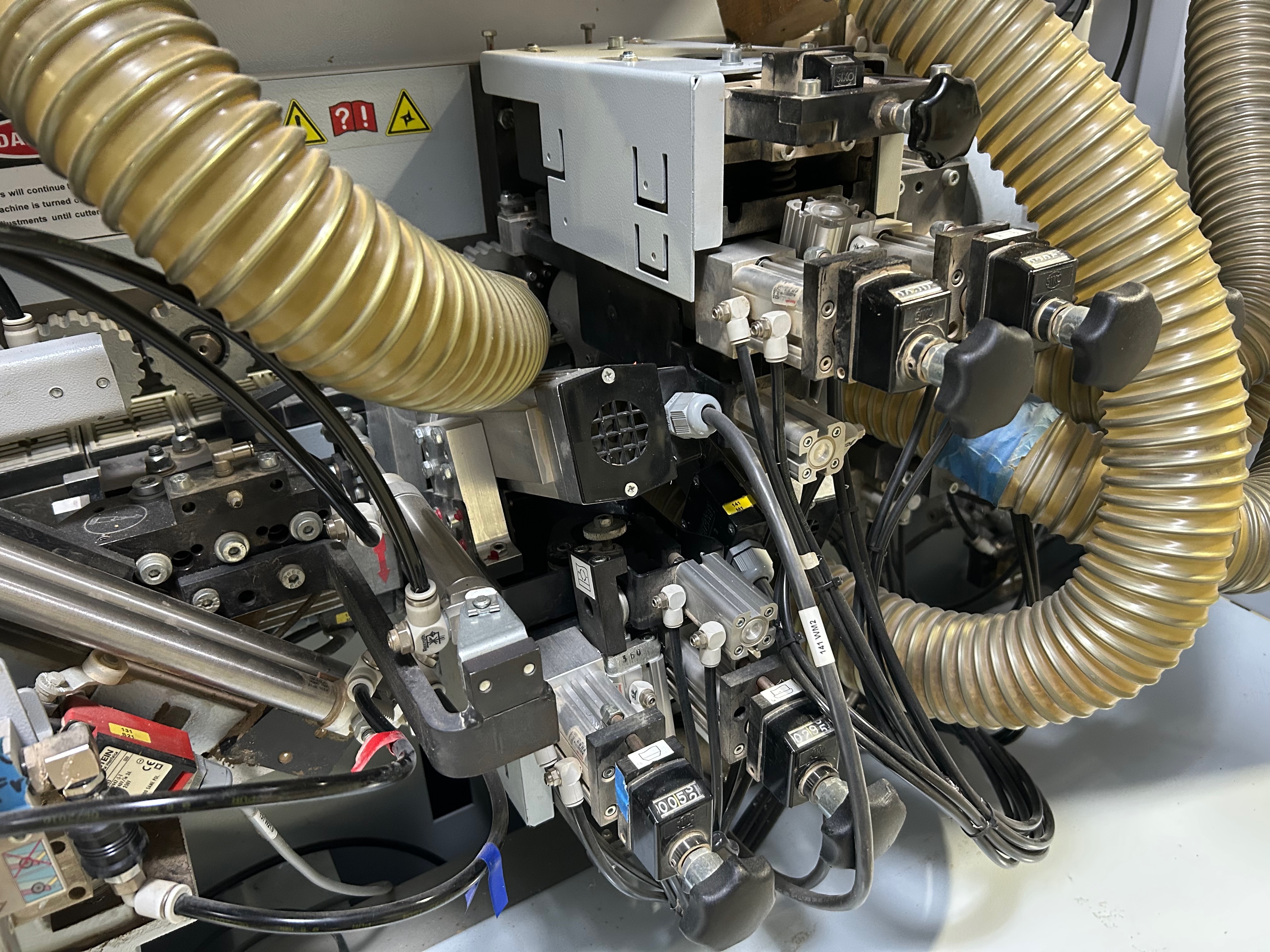

Double motor end trim on linear guide with bevel control from 0-15 degrees; .24HP @ 12,000 rpm
Top-Bottom tilting fine trim with insert tooling; .36HP each motor @12,000 rpm
Top-Bottom Quick change radius scraping unit
Glue scraping unit
3mm coil and strip capacity
2" max panel thickness
Automatic coil-strip magazine
3 roller pressure section
Digital trim adjustments on all trim units
30 ft/min track speed (10m/min)
Electric motor brakes on all trim motors
Auto Transformer for different voltages
2010 machine

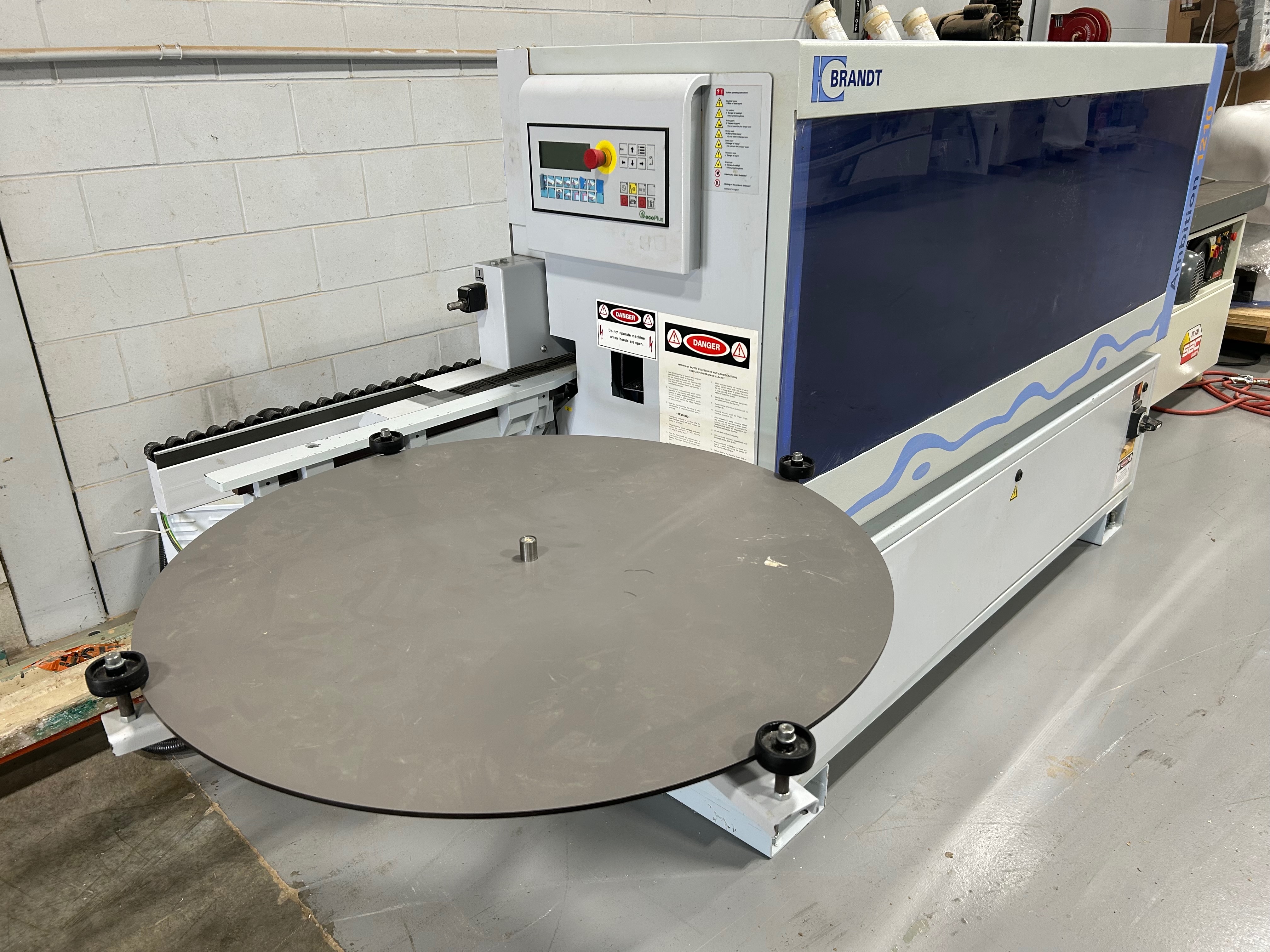

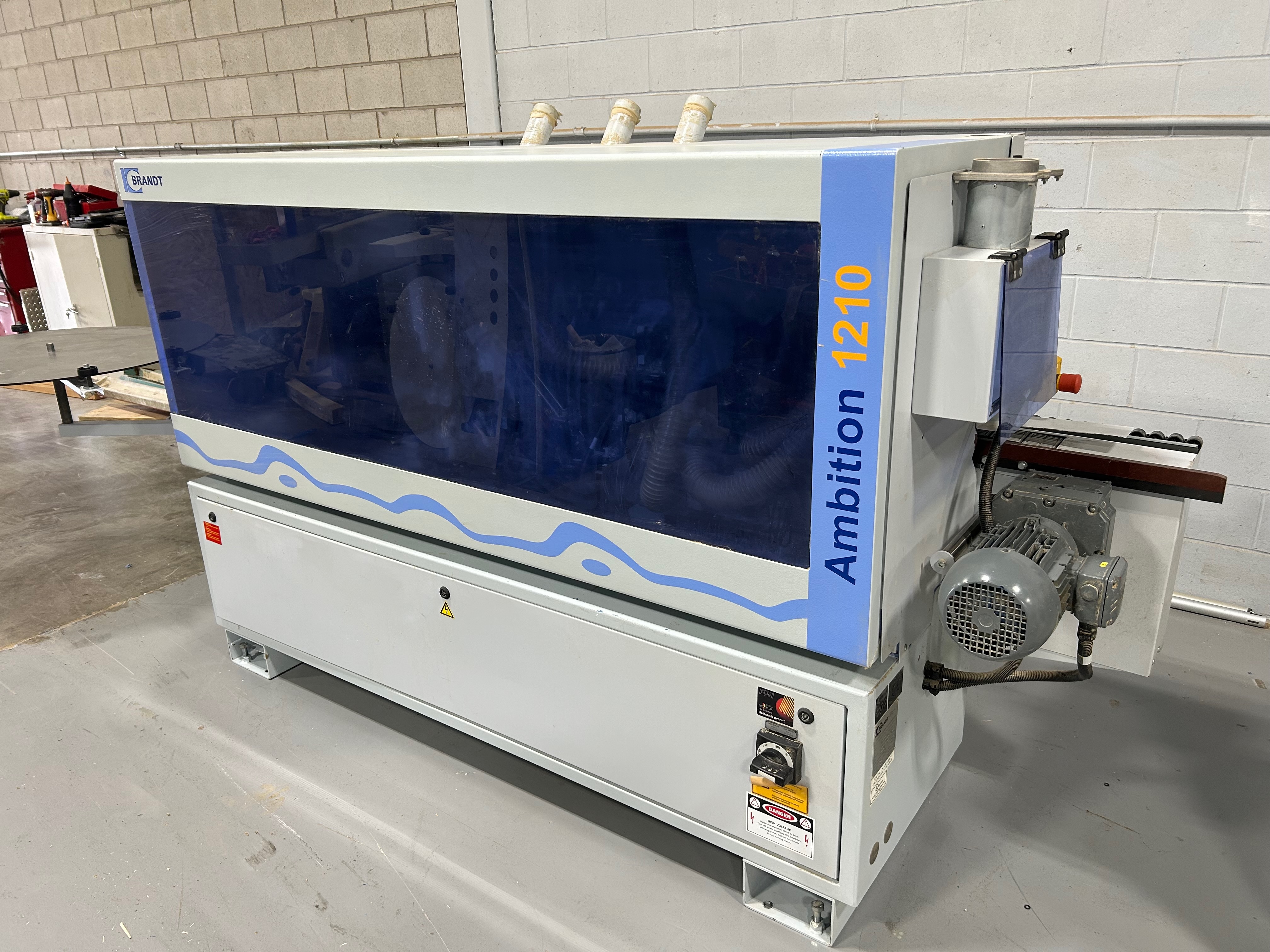

Brandt KDN210
