BRAND NEW, not Rebuilt Glue system. Super clean very low hr. machine!

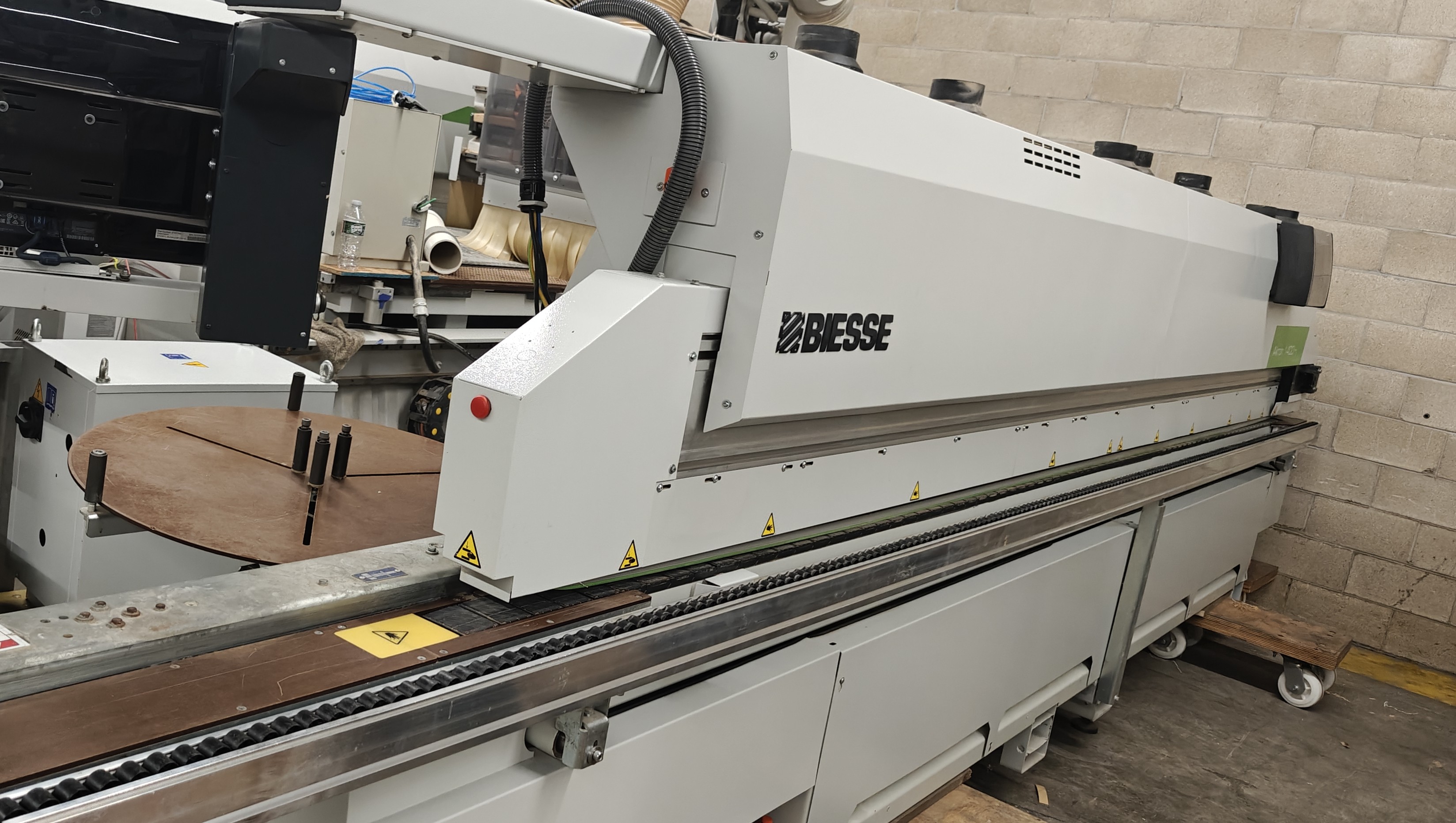

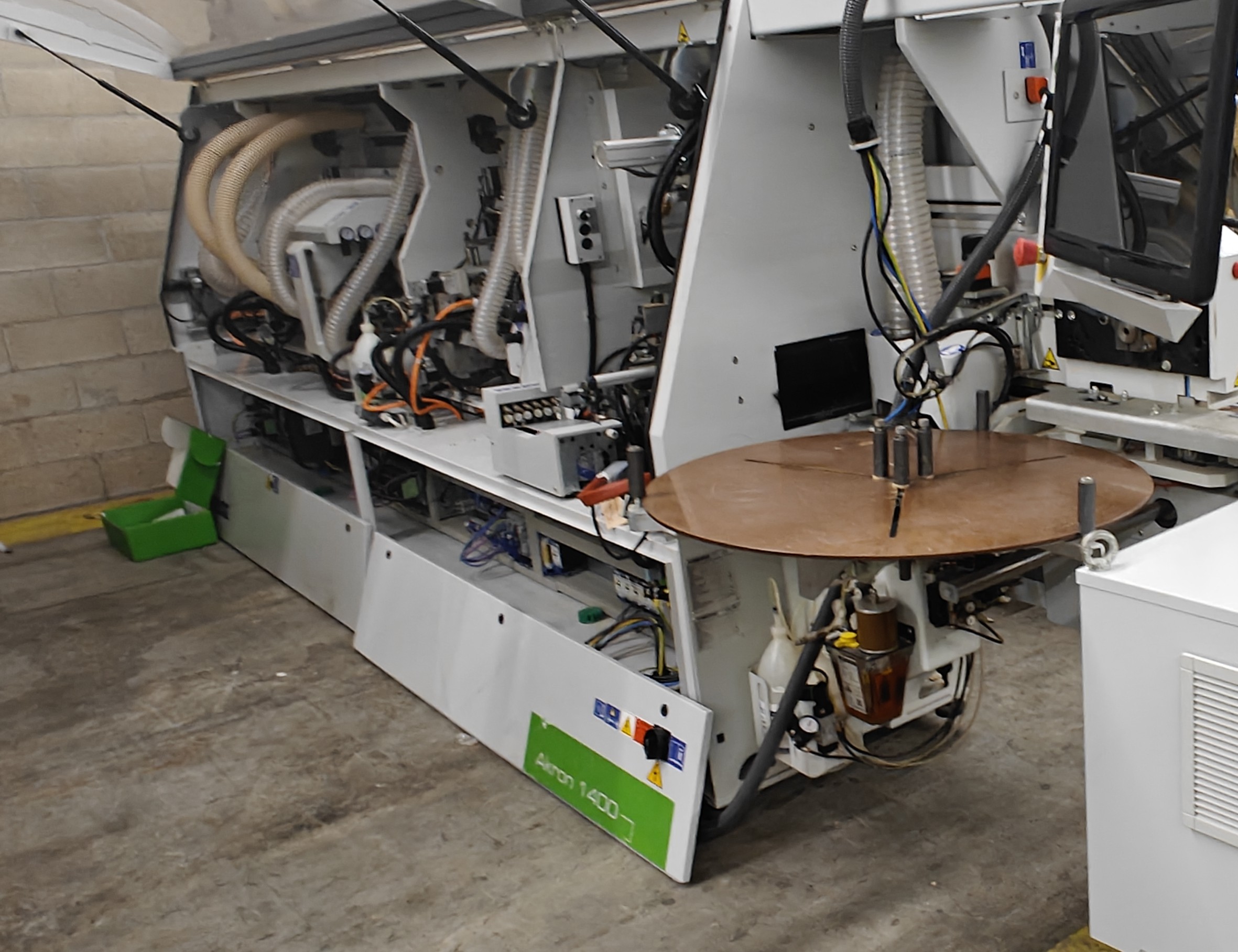

Biesse "Akron 1440 A" Edgebander
This machine will do PUR pucks or EVA granuals
Min. panel height: 10 mm
Max. panel height: 60 mm
Height of edgebanding material: 14-64 mm
Thickness of edgebanding material in rolls: 0.4-3 mm,
Thickness of edgebanding in strips: 0.4-12 mm
Min. panel protrusion from the track: 25 mm
Panel length: 140 - 3200 mm
Min. panel width (with length 140 mm): 85 mm,
Min. panel width (with length 250 mm): 50 mm.
Pre-milling unit
Gluing, edge feeding, and pressing unit
End trimming unit
Fine trimming unit
Multifunction 2 motor corner rounding unit
Edge scraper unit
Glue scraper unit
Brushing unit
Belt pressure beam. The top presser comprises a rubber belt with a stain-proof coating. The thrust exercised on the panel is provided by springs housed on techno polymer connecting rods.
Automatic track lubrication system with dynamic track absorption.
Multiple speed kit, 12 - 18 m/Min
Manual infeed system for narrow pieces
This machine has brand new gluepot and premelter. It is an upgraded version of the TM10 system that it came with from the factory
This machine has processed 3300 meters of banding. This is SUPER LOW.
