Description

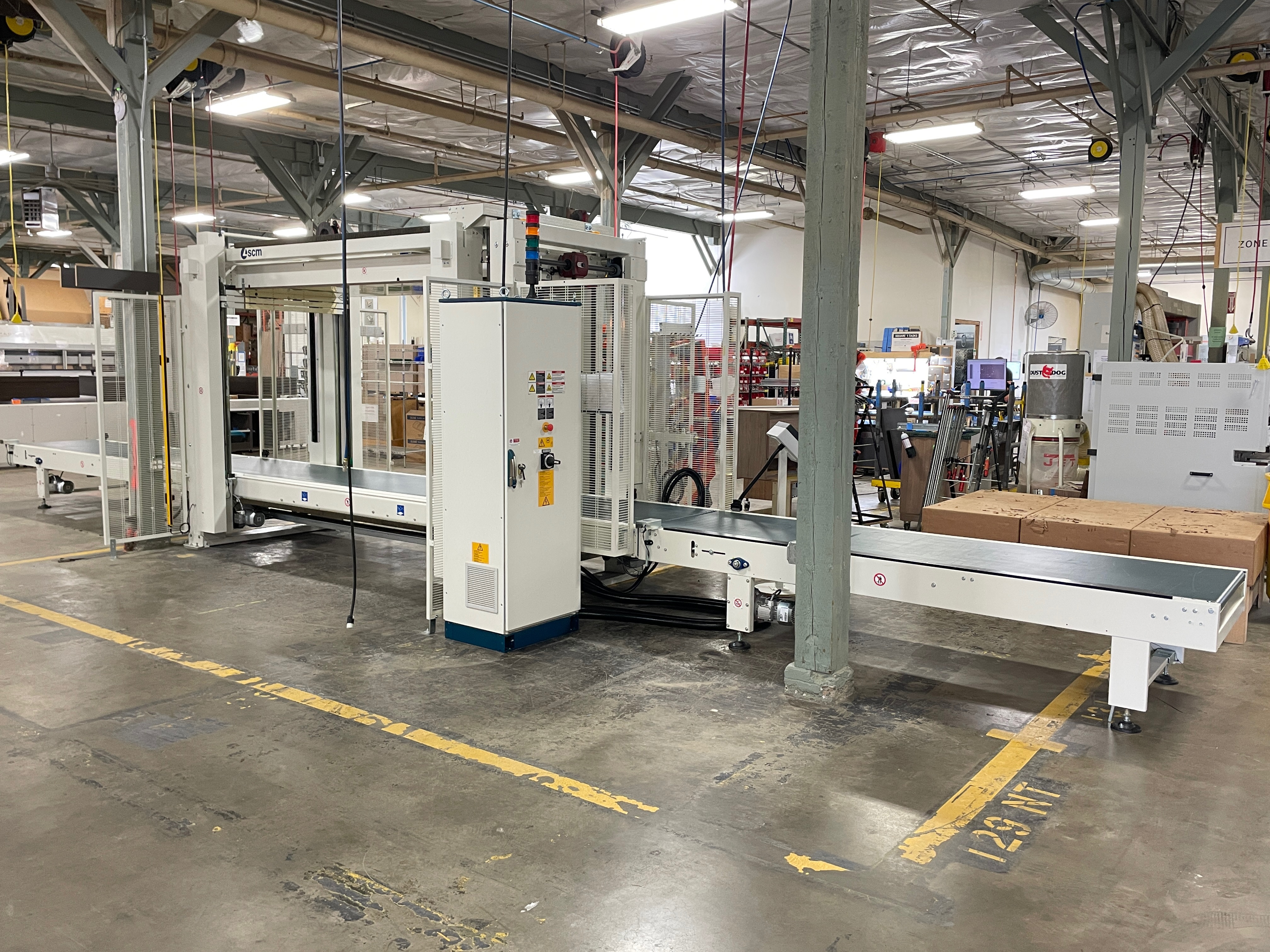

2022 SCM Action TF2500 feed through case clamp. The clamp was installed by SCM in September of 2024 by SCM and is in excellent condition. The clamp has just 104 total clamping cycles on it.
High production feed through case clamp, with up to 600 cases per shift, using a 45 second cycle time.
Automatic sequencing of different part sizes without manual intervention
Automatically adjusts both height and length with photoelectric cells and encoders.
Possibility to adjust the pressing strength, both vertically and horizontally, via brushless electric motors.
Very quiet operation with low energy consumption

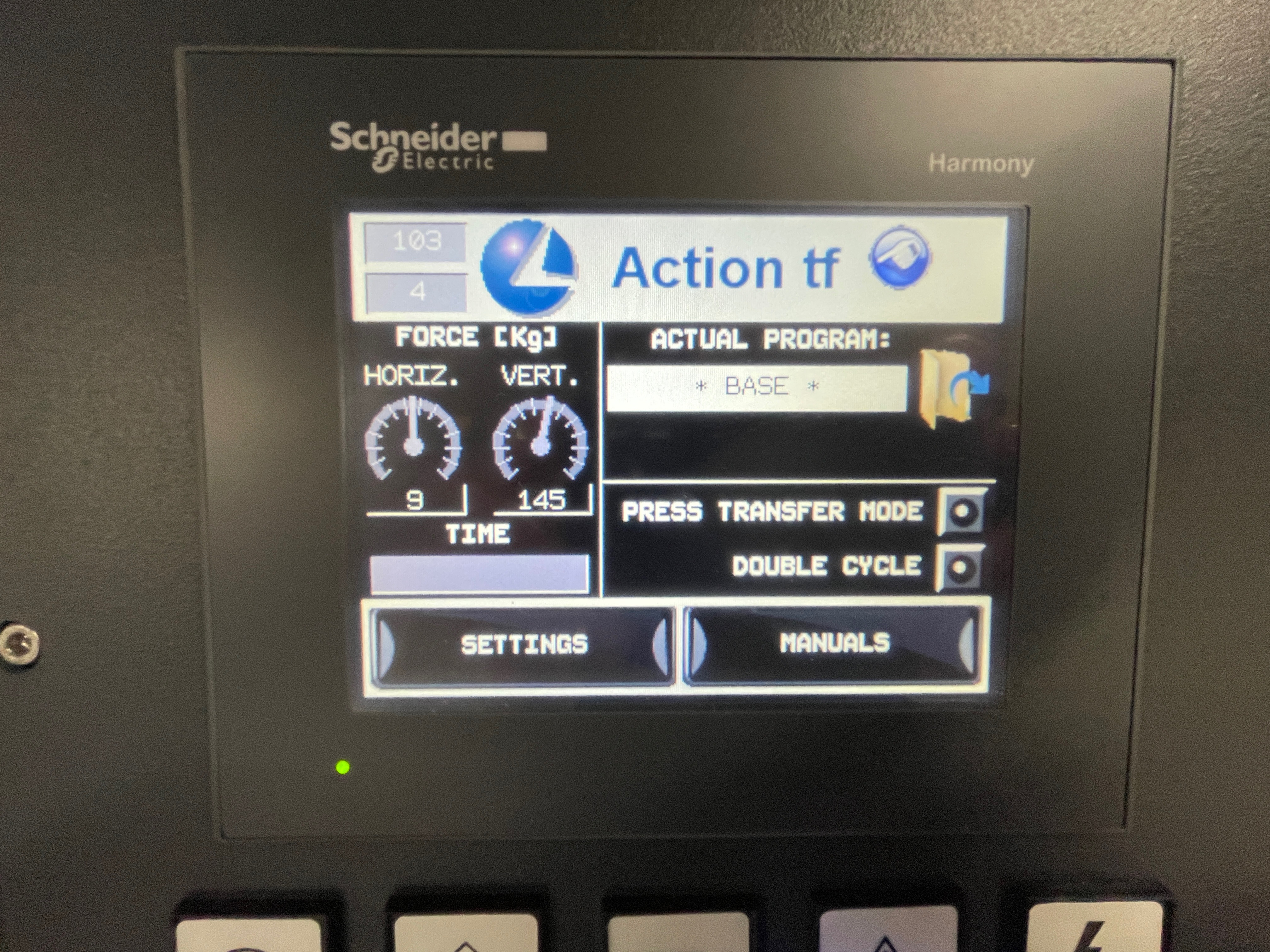

The color touch screen utilizes presets for different clamp pressures.
Touchscreen controls allow for automatic and manual modes.
Specs.
Maximum Clamping Opening:
Width: 98.5” / 2500 mm
Height: 51.18” / 1300mm
Depth: 29.52” / 850 mm
Minimum Clamping Opening:
Width: 7.8” / 200 mm
Height: 7.8” / 200mm
Depth: 7.8” / 200mm
Electrical:
- Voltage: 460 - 480Volts, 3 Phase, 60 Hz
- Installed power total (clamp + infeed conveyor): Kw 8 ; 22A
Dimensions:
Overall Length 38.5’
Width including fences 60” +
Height 105”

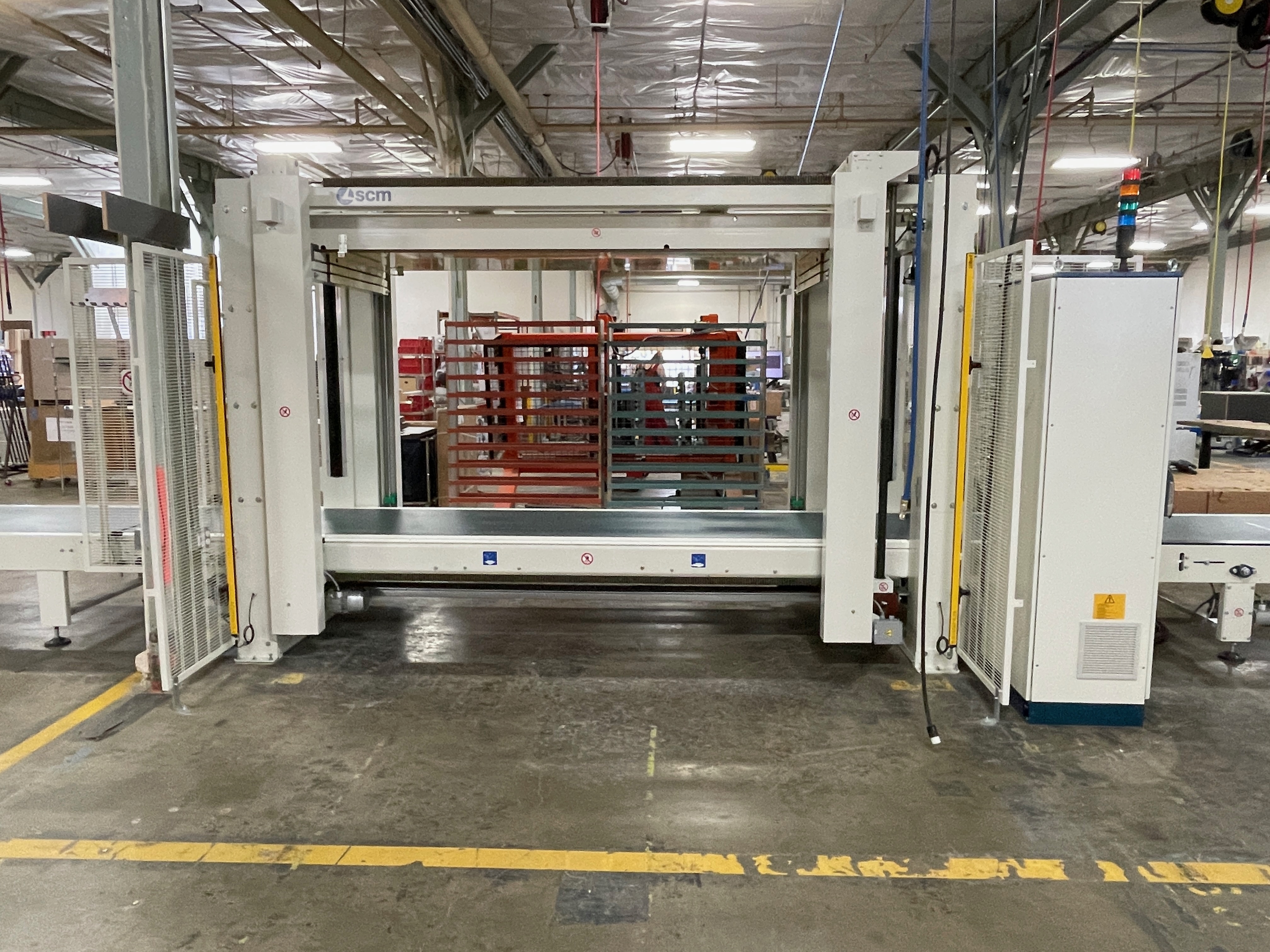

The safety fence light curtains cover both the front and back of the clamp.
SN# AE00003186
The clamp is located in Downtown Seattle Wa, and is owned by the seller.
