Line was designed to use the HMT Laminator as a pinch roller with heaters for large quantity runs. The HMT Laminator was used as a stand-alone machine for small quantity runs.
Max. panel size 60" x 120" (Based on current outfeed scissor lift platform size. With a 60" x 144" or larger scissor lift, 144" L panels could be run.)

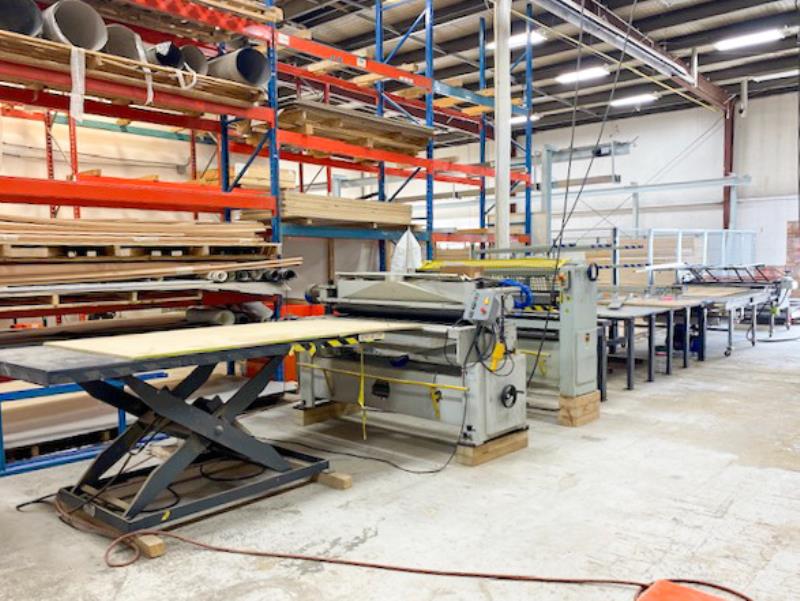

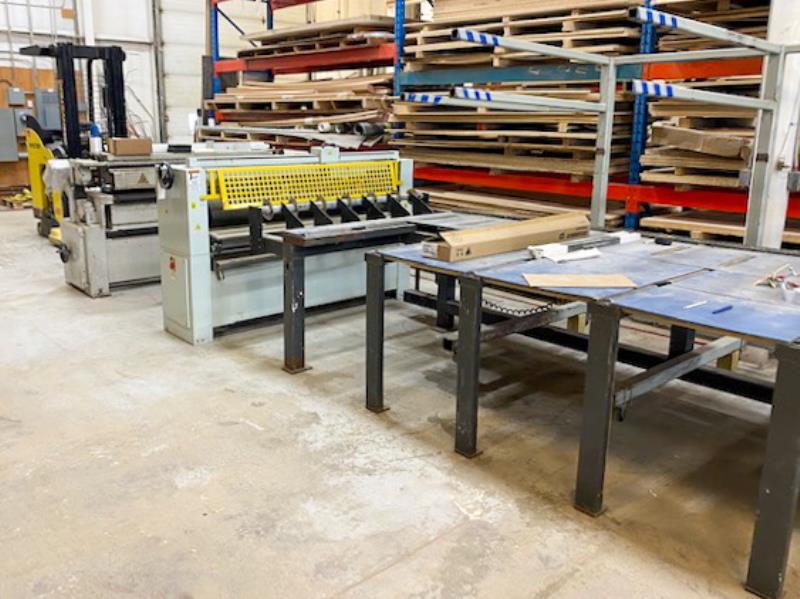

Consisting of the following machines as late as 2016:
AREDON 48" x 96" Electric/Hydraulic Scissor Lift Platform.
2007 OSAMA SP/RSI-1600 1600 mm (63") Top & Bottom Brush Panel Cleaner. Min. panel length 430 mm (16.93"), Panel thickness 0 - 100 mm (3.94"), Feed speed 22 MPM (72 FPM), with 290 mm (11.42") Dia. Top & bottom brush rolls with 0.6 mm (0.02") Dia. Black nylon bristles, 460 V, 60 Cy, 3 Ph., Dimensions 110" X 34" X 58" H, Weight 1,100 Lbs., NOTE: This machine is also being offered for sale separately (EXF #GE-011041). Spare pair of brushes available at additional cost.

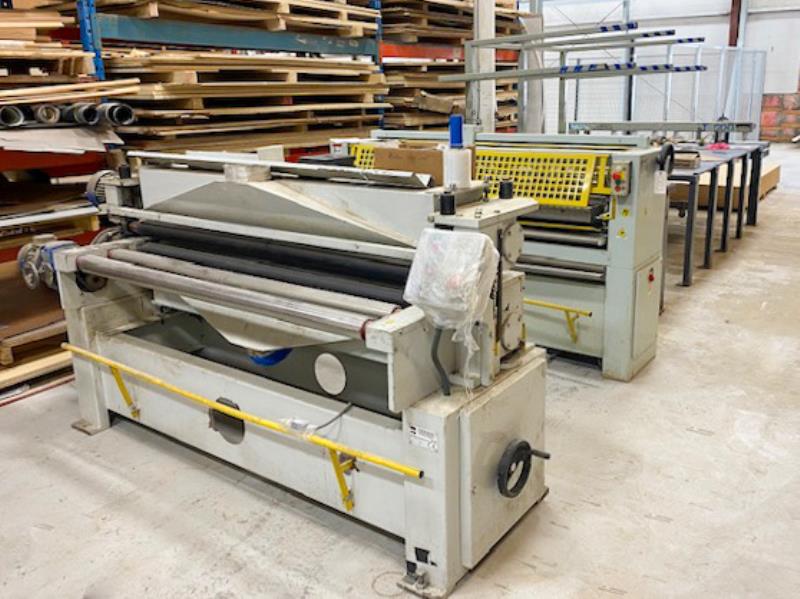

2006 OSAMA S2R-1600 1600 mm (63") Top & Bottom Glue Spreader. Panel thickness 0 - 100 mm (3.94"), Pass line height 800 mm (31.50"), Feed speed 18 MPM (59 FPM), with 185 mm (7.28") Dia. x 64" L Grooved anti-acid rubber-covered top & bottom applicator rolls, each with Manual brush washer, Side glue wipers, 21-3/4” x 72” x 2-3/4” D Removable stainless steel bottom pan, Front & rear safety fences, 230 V, 60 Cy, 3 Ph., Dimensions 88" x 28" x 67" H, Weight 1,500 Lbs., NOTE: This machine is also being offered for sale separately (EXF #GE-011042).
MIDWEST AUTOMATION LT 500 60” x 144” Laminate Indexing/Lay-up Table.
2016 HMT ADVANTAGE PLUS 61" Laminator, S/N 5A391, with 10.5 kW Heatbank, 208 V, 60 Cy, 1 Ph., Dimensions 120" x 83" x 55" H, Weight 1,400 Lbs., NOTE: This machine is also being offered for sale separately (EXF #LA-011186).
SOUTHWORTH 5,000 Lb. Capacity 60” x 120” Electric/Hydraulic Scissor Lift Platform, with Gravity roller conveyor top.
*** Please click the link for full description***
Osama Feed Through White Glue Laminating Line
