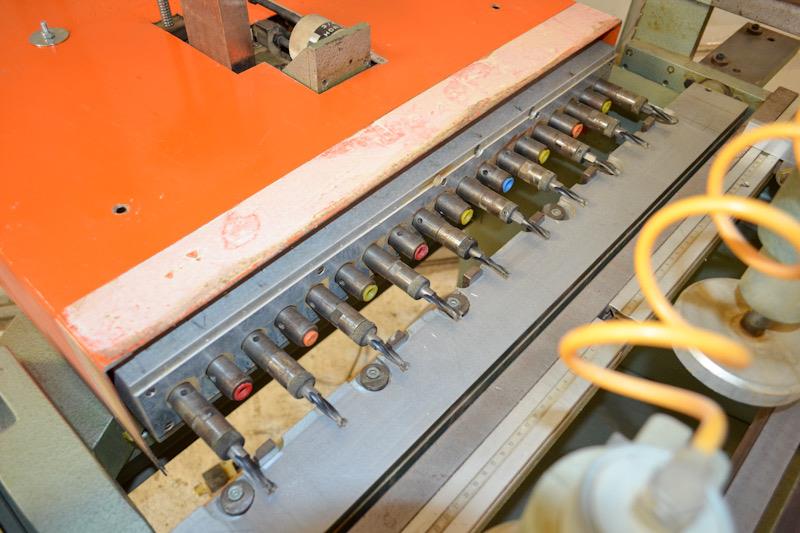

(19) Spindles on 32 mm centers; bores vertically from top and horizontally from the rear; repositions via manual air shock assisted tilting.
2 HP Motor with: 2,800 RPM Gear driven boring head.
4-Position turret style depth stop for boring depth and a 4-3/4" max. stroke of boring head.
24-3/4" Working width; 27-1/8" max. panel width; 19-1/2” x 38” x 32-1/2” H table size.
RH & LH Indexing fence with flip stops; (2) indexing pins (for continuous line boring); (3) 4" dia. pneumatic holddown clamps; foot pedal actuator; magnetic push button starter.
*** Please click the link for full description**

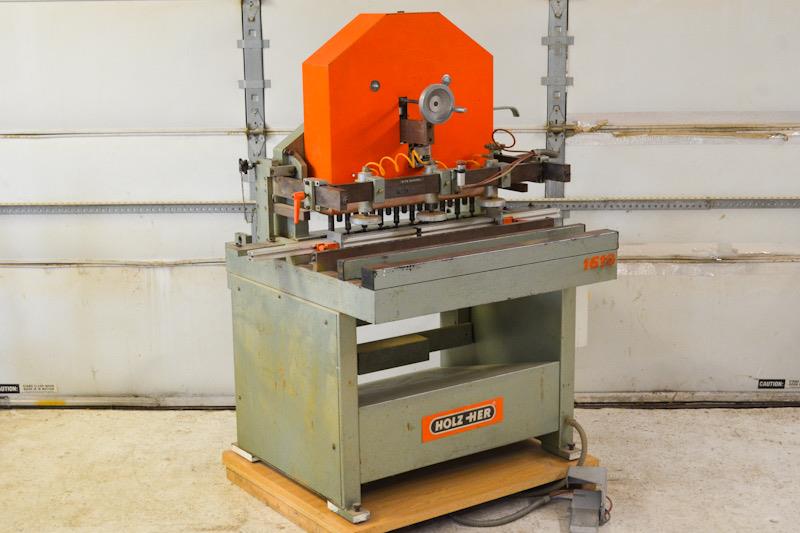

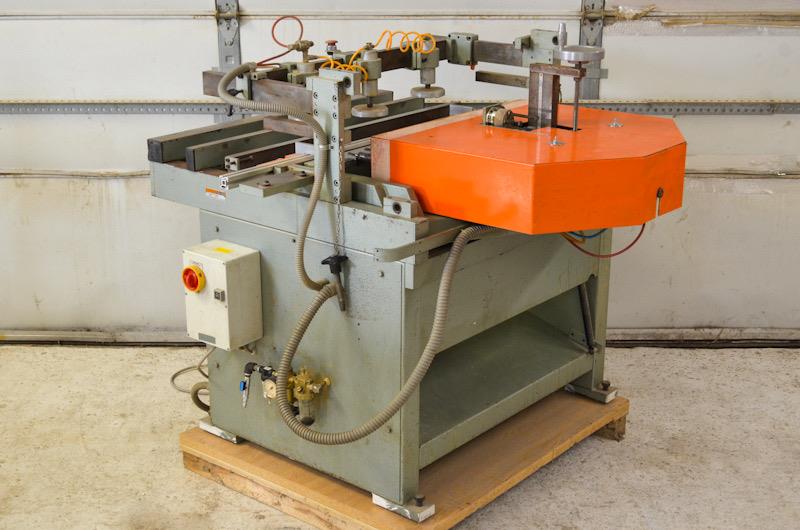

Holz Her 1619 Boring Machine
