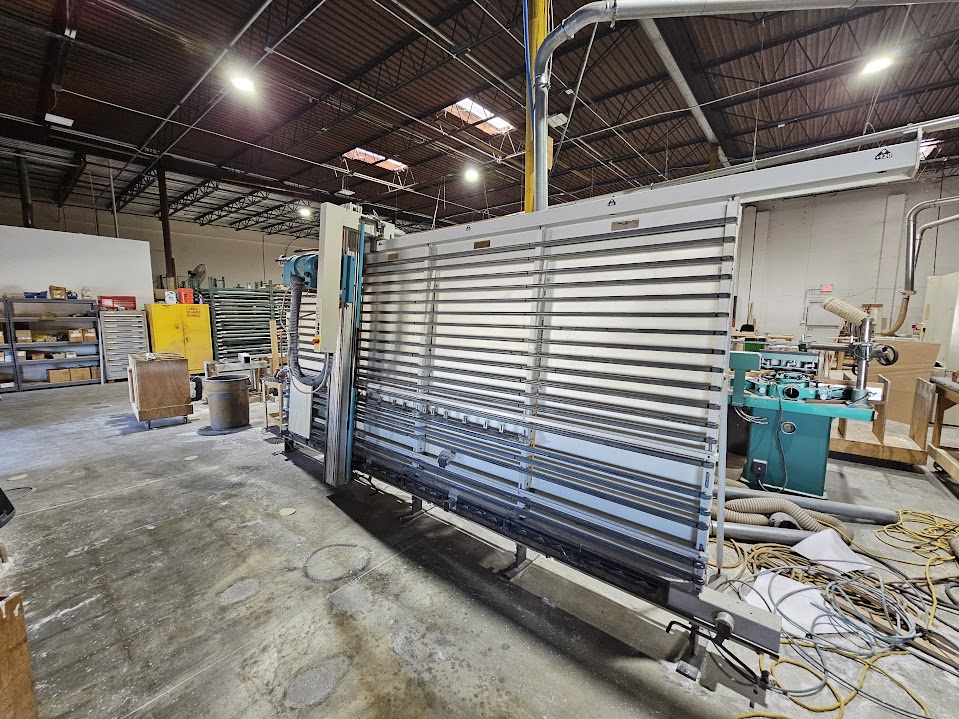

Machine Description:
Main motor 4 HP
Depth of cut 2” max
Scoring unit with insert knives

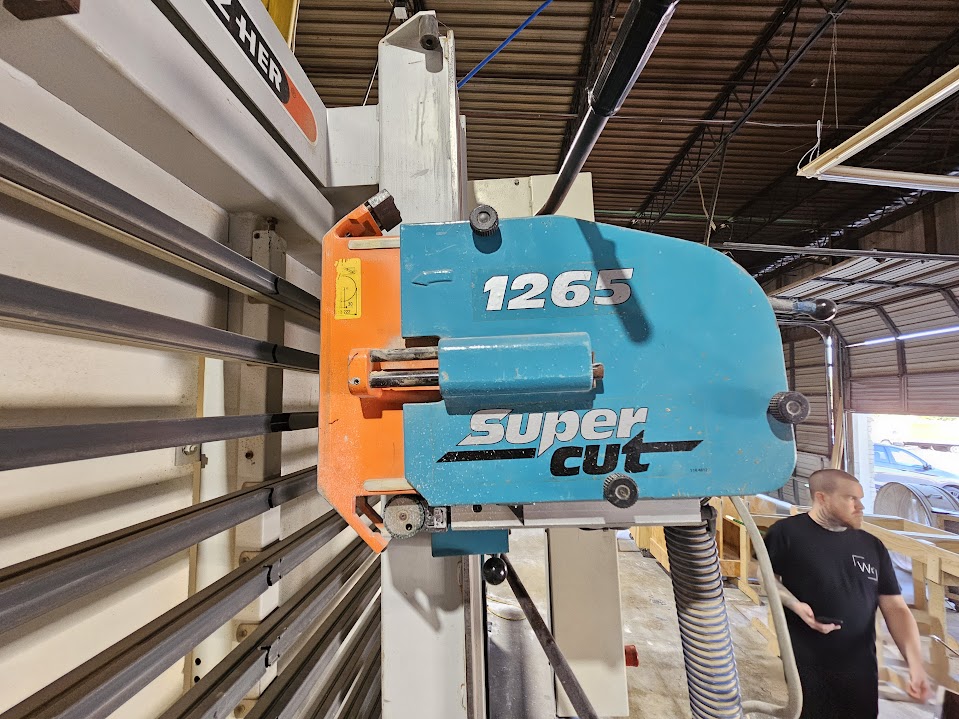

Saw head rotates 90 degrees for rip or cross cutting
Manual shifting back grid
gauging bar with flip stop for midway fence with scale
Bottom roller with manual control for easy movement of panels
Integrated dust collection
Working dimensions:
Cutting dimensions (inches)
Length x height 129 x 64
Edging height 62 1/2
Cutting depth 2 (max)
Cutting depth depends on material type
Saw blade dia. 8.6’’ (220 mm)
Saw blade speed (rpm) at 60Hz 6540
Extraction Air requirement (cfm) 825
Air speed (fpm) 3936
Unit connection (mm) 65 (2 1/2’’)
Static under pressure (Pa) 900
Machine dimensions Floor space required (in./mm)
Length 163 / 4150
Depth 56 / 1420
Height 89 / 2260
