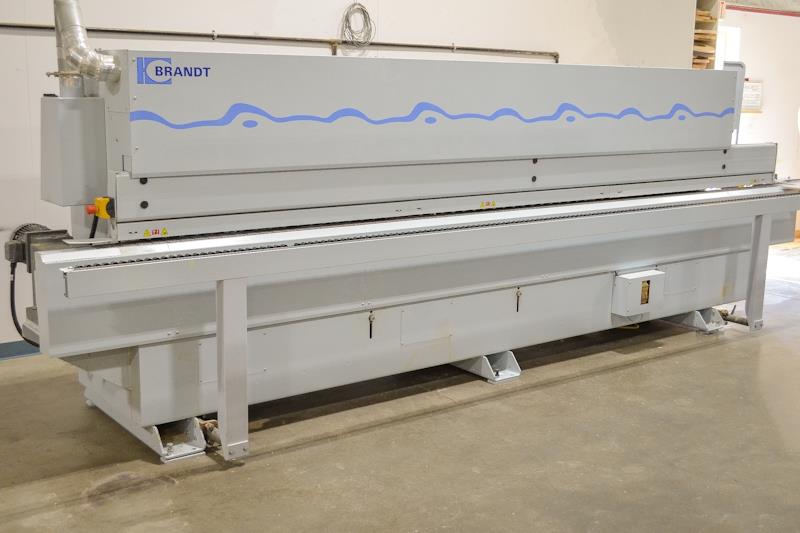

BRANDT OPTIMAT KDN 650 C Edgebander, with Corner Rounding & Pre-Melt
Edgebanding thickness 0.4 - 8 mm (0.02" - 0.31").
Panel thickness 8 - 55 mm (0.31" - 2.17"), Min. panel width 65 mm (2.56"), Min. panel length 160 mm (6.30").
Feed speeds 11/14 FPM (36/46 FPM). ≈≈ Working height 950 mm (37.40").

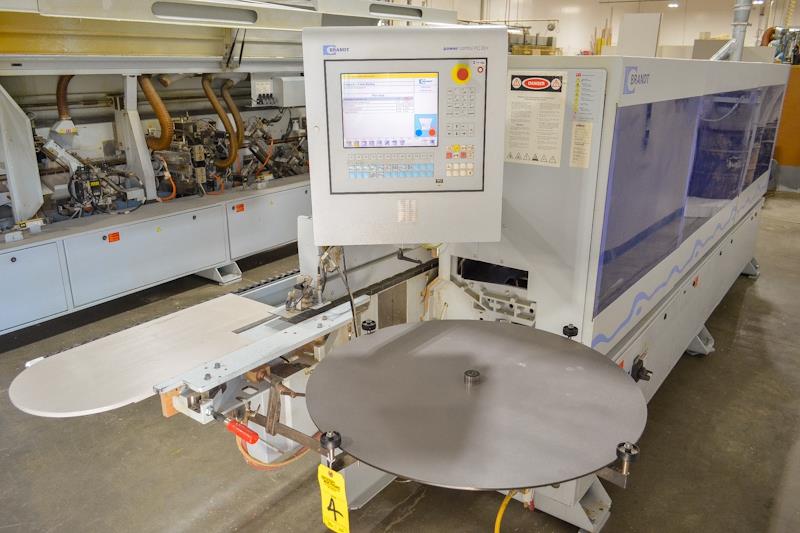

32-1/2" Dia. Coil table. Automatic magazine. 3 mm (0.12") Guillotine. "Quick-Melt" Hot melt glue unit, with Heat-up time: Approx. 12 min., Pre-melt hopper feed, Quick-change hopper & tank for color changes, Reversible glue applicator roller rotation, & Retractable glue roller.
Pressure section, with (1) Large driven & (3) Small pneumatically-controlled idler rolls.
"POWER CONTROL PC 20+" Control, with 600 MHz, 256 MB RAM, USB Port, 1 GB Flash card, Internal modem for remote diagnostic access link, & 12" TFT Flat screen monitor. Line control (no limit switches) for workstation functions. Feed chain, with 2.2 kW (3 HP) Feed motor & Automatic chain track lubrication.
Digital height indicator. Sound enclosure.

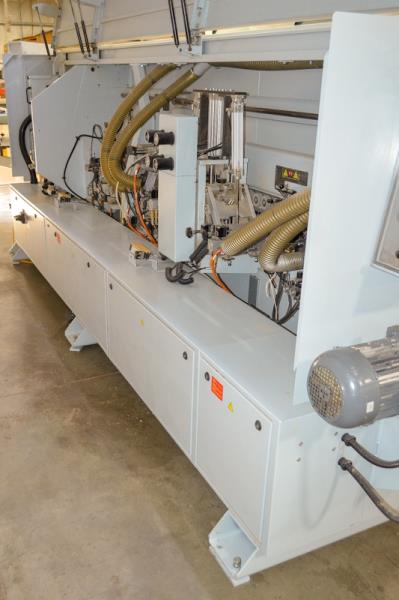

Workstations: Front & rear end trimming unit, with (2) 0.35 kW (1/2 HP) - 12,000 RPM High frequency motors, 0° - 15° Chamfer, & Programmable pneumatic control for straight or chamfer trimming.
Top & bottom flush trimming unit, with (2) 0.55 kW (3/4 HP) - 11,300 RPM High frequency motors, 0° - 25° Swivel, & Combination straight/radius cutters.
Corner rounding unit, with (2) 0.35 kW (1/2 HP) - 10,940 RPM High frequency motors & 3 mm (0.12") Radius insert cutters.
Top & Bottom Profile scraping unit, with Vertical & Horizontal tracing.
Top & bottom buffing unit, with (2) 1/4 HP - 1,400 RPM Motors and Vertical & Horizontal tilt.
