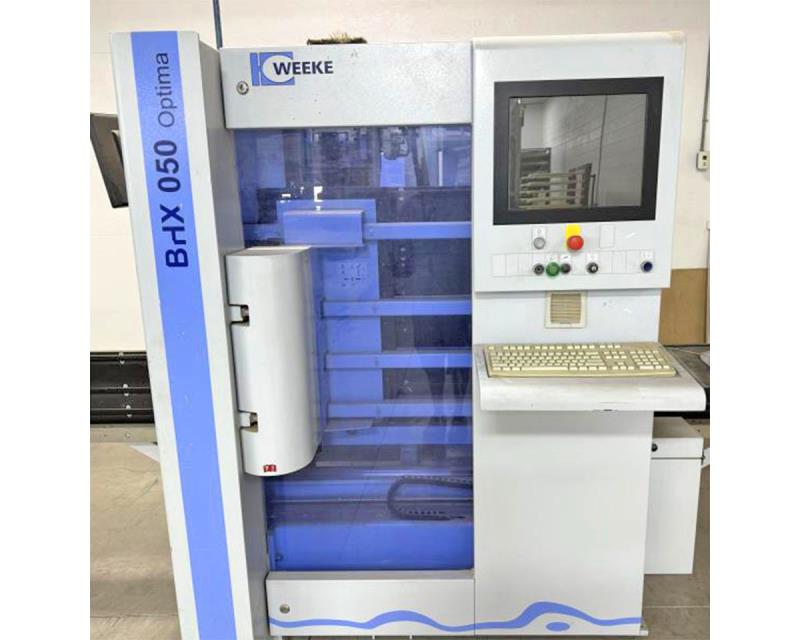

WEEKE - BHX 050: CNC Machining Center (Vertical)
Flexible "Vertical" Machining Center that uses less than 5 meter² of valuable floor space in addition to an innovative Panel Handling System.

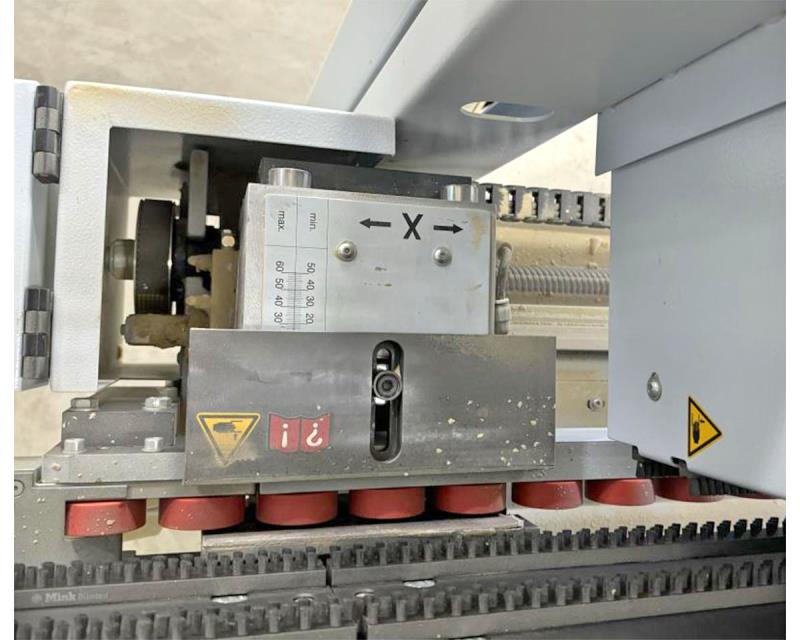

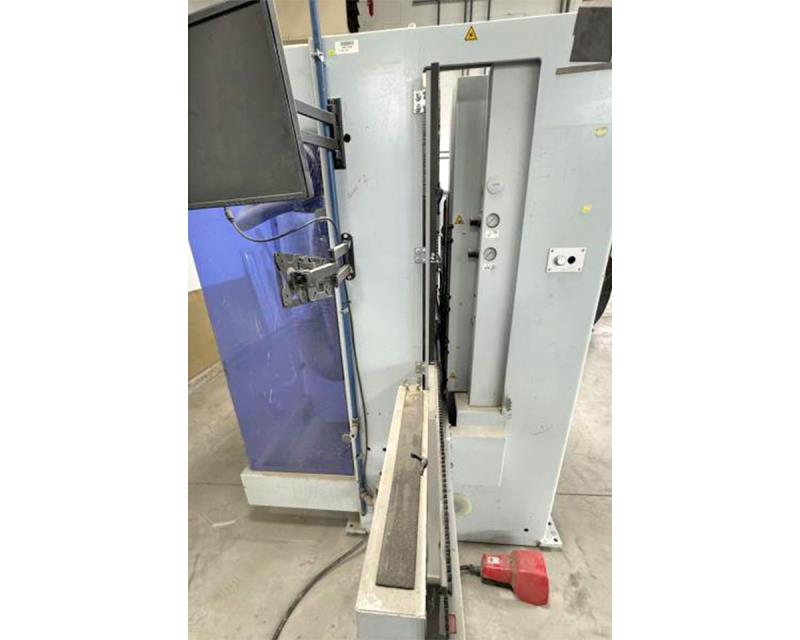

Working Cap.: Max. workable part size for: "X" Axis: 98.4" (2,500 mm); "Y" axis: 33.4" (850 mm); max. part thickness: 2.4" (60 mm). Min. worktable part size for: "X" Axis: 7.8" (200 mm); "Y" axis: 2.7" (70 mm); min. part thickness of: 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side.
Positioning Speed: The BHX 050 reaches movement speeds of: 164 FPM (50 MPM) in "X" & "Y" axis; 50 FPM (15 MPM) in "Z" axis with total safety; provides an unmatched working capacity.
Boring Unit: (1) 2.4 HP (1.8 kW); Variable speed from: 1,500 - 7,500 RPM motor; (8) independent spindles with: (4) Spindles in "X" axis & (4) spindles in "Y" axis.
(6) Horizontal spindles with: (2 + 2) In "X" axis; (1 + 1) in "Y" axis. Boring block has "QUICK CHANGE" Spindle System.
Operator Interface WEEKE "POWER CONTROL" + Windows + WoodWOP 5.0 + Operating System; "IntelCore 2 DUO" Processor. 17" TFT Monitor; ...
*** Please click the link for full description***
Weeke BHX 050 Cnc Machining Center
