X-Axis 122.6 (3,105 mm); Y-axis 40.3" (1,020 mm); Z-axis stroke is 5.3" (135 mm); max. material thickness 3.9" (100 mm).
Positioning Speed: X-Axis is 213 FPM ((65 MPM); Y-axis 164 FPM ((50 MPM) & Z-axis is 49 FPM (15 MPM); head travels on THK linear ways on all axes.
Worktable: (6) Movable support rails with: (2) Square matrix vacuum cups ea.; (6) pneumatic backstops & (2) pneumatic side stops creating (2) working zones.

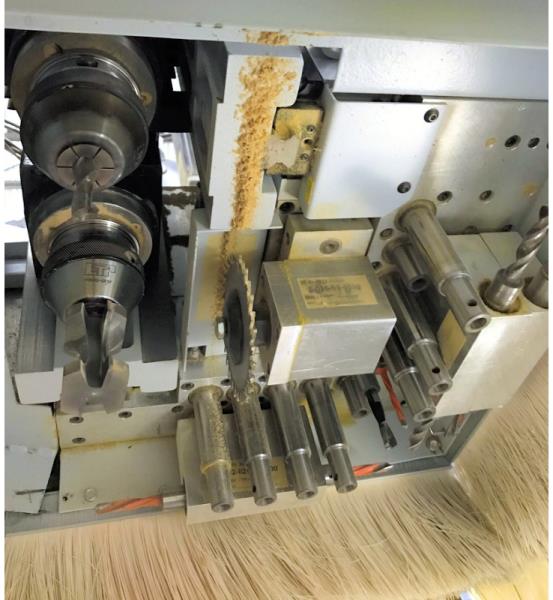

Boring Unit: 2 HP (1.5 kW) Motor; (11) independent vertical spindles: (6) in X-Axis & (5) in Y-axis; (6) horizontal spindles with (1 + 1) in X-axis & (1 + 1) in Y-axis; (1) X-axis grooving saw with 100 mm dia. blade.
Machining: (2) 7.5 HP (5.6 kW) High speed routers with: "Hydro-Grip" Spindle & EPT 25 adaptors, 6,000 - 18,000 RPM; controlled by frequency inverter. (One of the router spindles is not operational & needs rebuilding.)
Operator & Machine Control: PC Front-End with: HOMATIC + Windows + WoodWOP 4.0 Operating System; NUM PLC for (3) axes; linear, circular & helical interpolation;
*** Please click the link for full description***

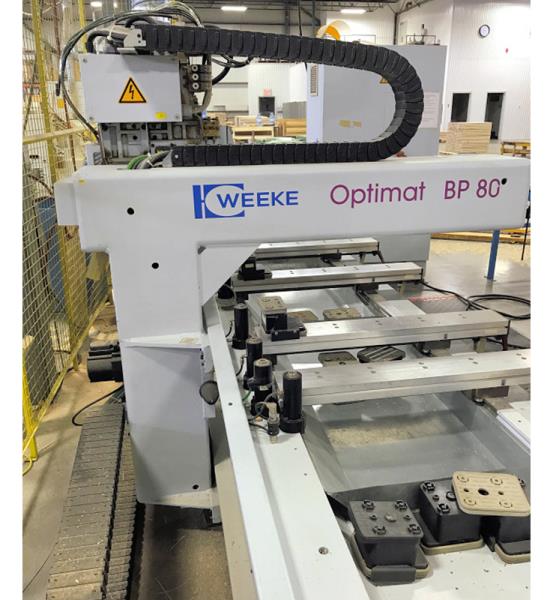

Weeke BP 80 CNC Machining Center
