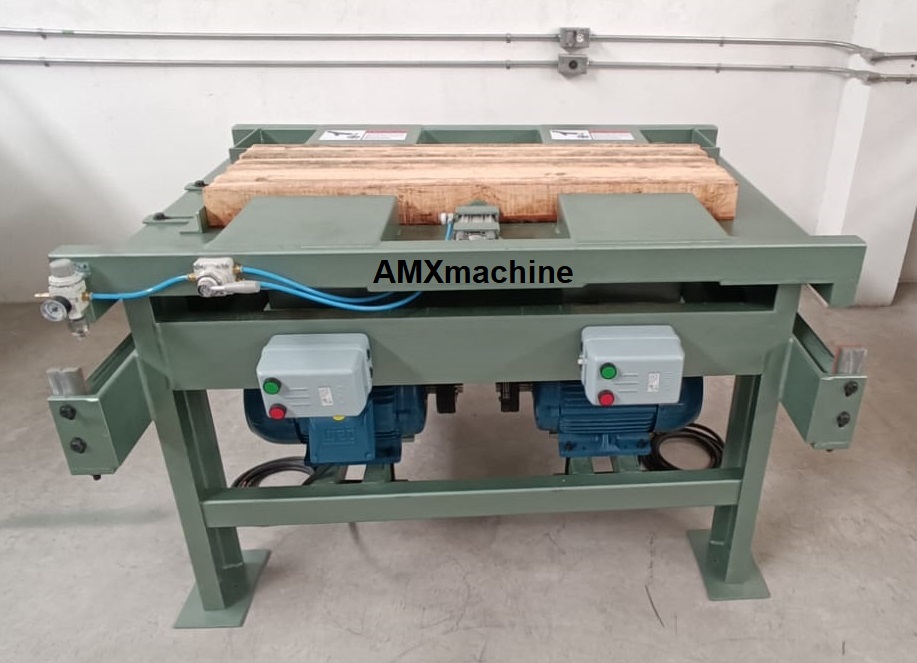

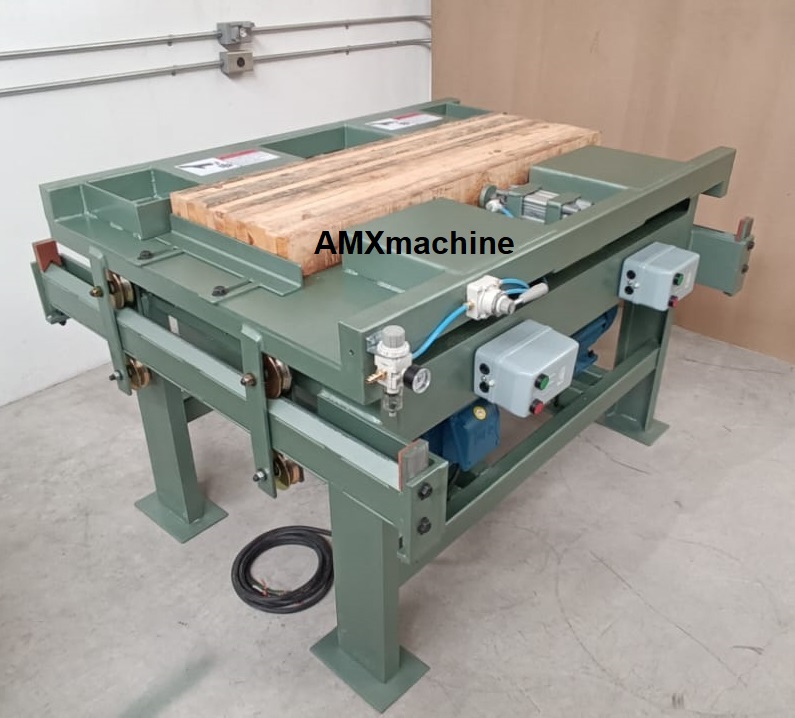

PART: 1AM-1250 - PALLET NOTCHER - DOUBLE HEAD - 9” LENGTH - HEAVY DUTY
New with warranty – 6-month warranty on manufacturing defects on mechanical parts only
2 Motors 10 HP, 220/440V, 3 phase - connected to 220V
2 On/Off Switch with magnetic starters

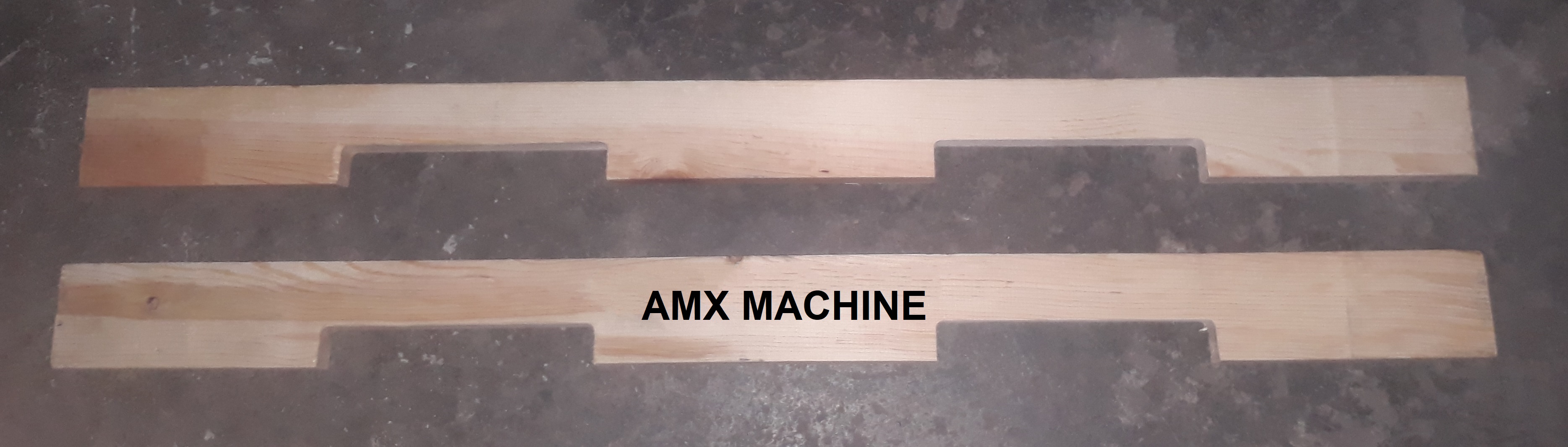

Maximum notcher size 9” long x 2-1/2” height x 1-5/8” depth

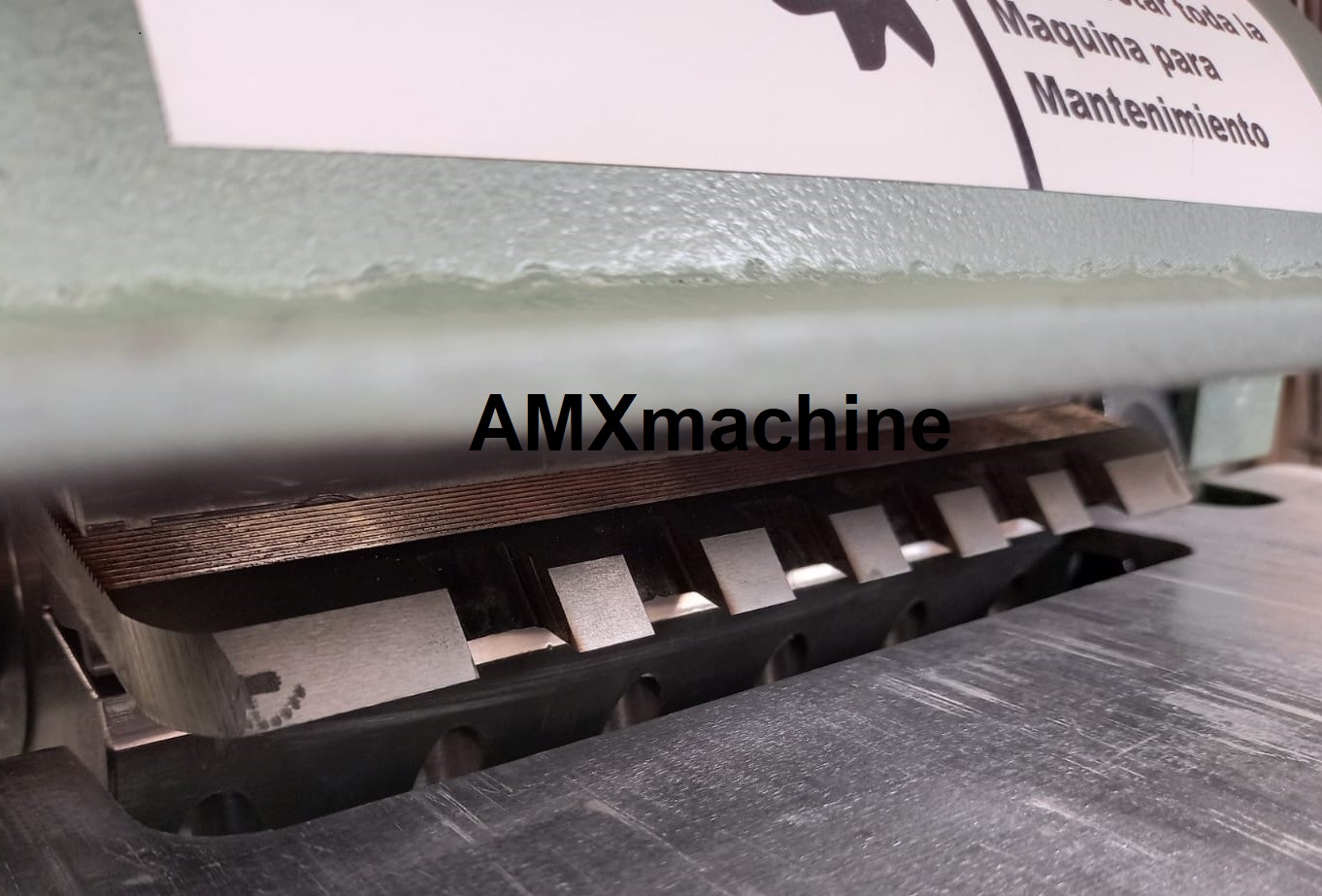

Each cutterhead with 4 HSS knives installed
Saw dust removal: 12.25” wide x 10.5” tall each opening in the back side
Saw dust removal: 2,300 CFM recommended, equivalent to a 3 HP dust collector for each opening
Products specifications are subject to change without notice
PART: 1AM-1250 - PALLET NOTCHER - DOUBLE HEAD
