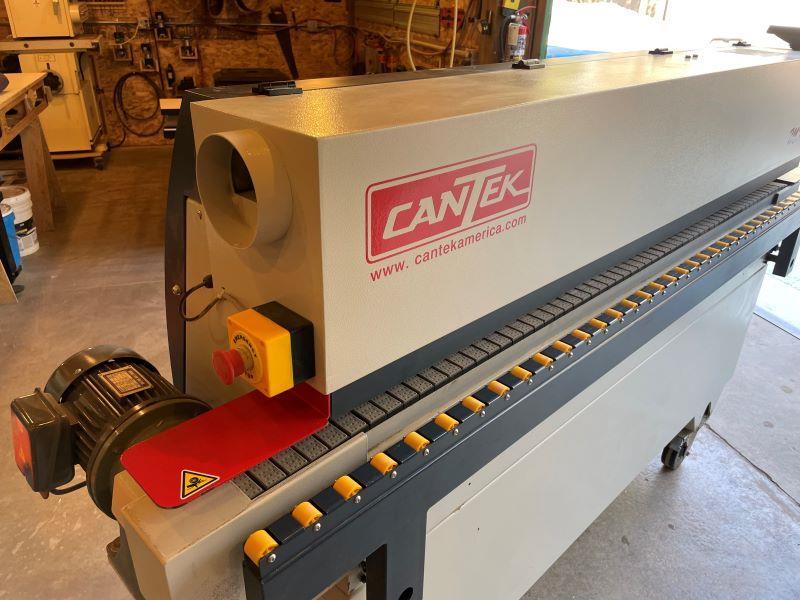

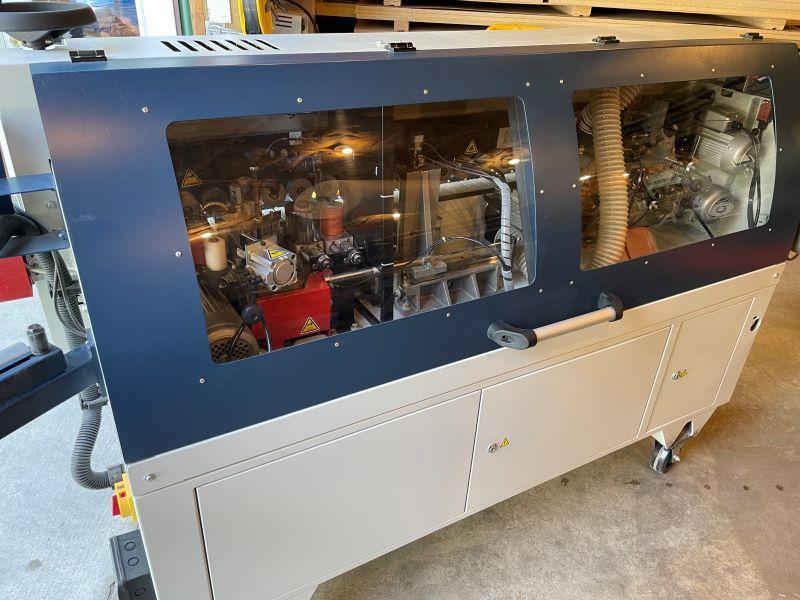

CANTEK - MX340, Edgebander (Single Phase)
The CANTEK "MX340" is designed to be a compact and durable Edgebander.
Equipped with: End trimming, flush trimming, PVC scraping, and buffing.

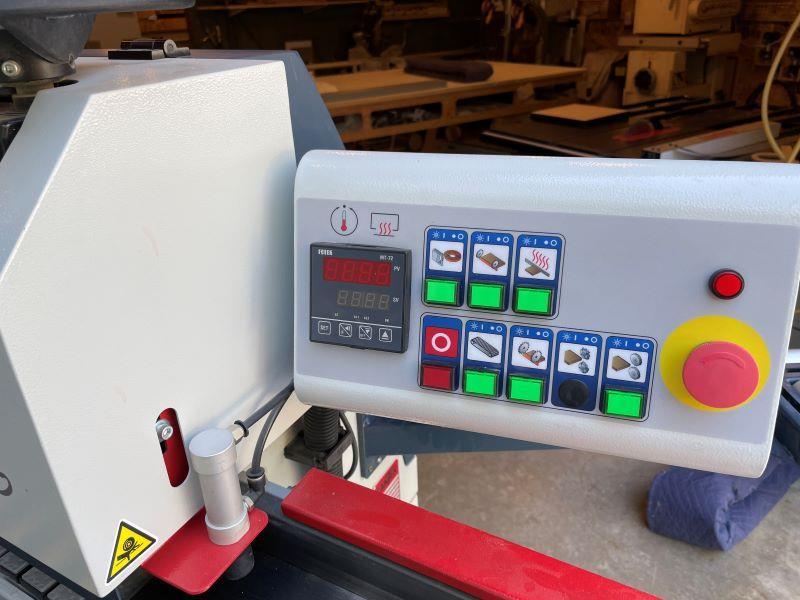

Edgebander is operated through: PLC Control System, LED display, and keypad.
Panel thickness cap.: 0.315" to 1.77" (8 mm to 45 mm). Edgebanding coil feed accepts: 0.4 mm -3 mm Thick; strip material can be hand-fed.
Conveyor feed speed: 29-1/2 FPM (fixed).
Workstations: Heated infeed fence for optimum glue penetration; large capacity Teflon coated glue pot (2.64 Lbs).

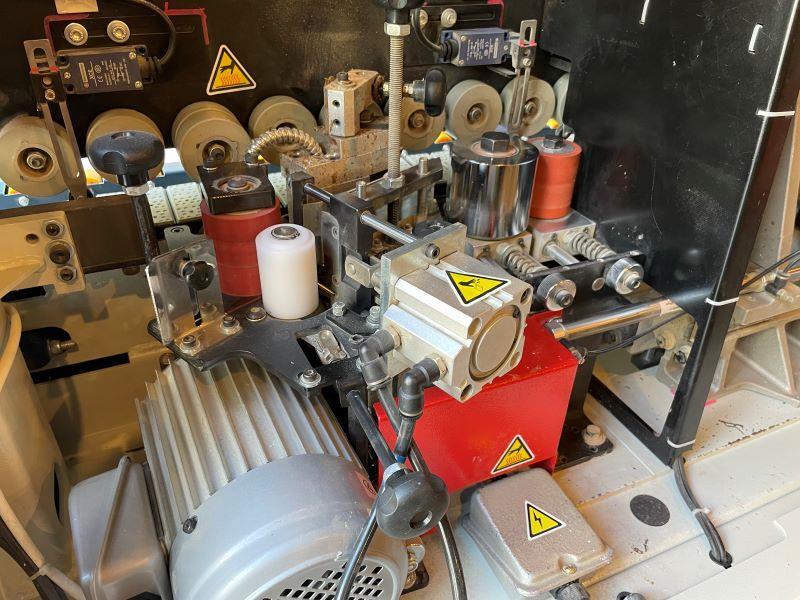

Pneumatically operated guillotine: 3 mm Max. thick banding; followed by spring loaded double pressure rollers.
Single front/rear trimming unit: 0.3 HP Motor.
Double top & bottom trimming units: (2) 1/2 HP motors.
Top & bottom scraper/radius scraper.
Top & bottom buffing station: (2) 0.16 HP Motors.
*** Please click the link for full description***
Cantek MX-340 Edgebander
