Stock Number: 201568
Paul C14 Scan II w/ Paul Wood Scanning System
Condition: As Is
- Paul Optimizing Crosscut Saw C14 Scan II w/ Paul Wood Scanning System
- Optimizing Crosscut Saw and Scanner for Cedar, Hemlock, Pine, and Fir
- Timber Length (Min/Max): 6ft-20ft
- Timber Thickness (Min/Max): 1"/2-1/2"
- Min/Max Timber Cross-section: (2"x5/8")/(12"x2-1/2")
- Min/Max Cut Length: 36"/240"
- Scanner Working Height: 51"
- Crosscut Working Height: 31-1/2"
6-Chain Conveyor with Stops/Duckers:
- 4m Fixed Chain Section
- 1m Tilting Chain Section
- Lateral Plastic lugs
- 3 Pneumatic Buffer Stops with Sensor
Measuring Station
- 2 Overhad Measuring Station Rollers with integrated Rotary encoders for accurate Length Measuring
- Photocell for Precise workpiece Recognition
- Sturdy Pressure Rollers independently pressure-loaded via pneumatic cylinders
- 8m Belt Conveyor
- Centering Device

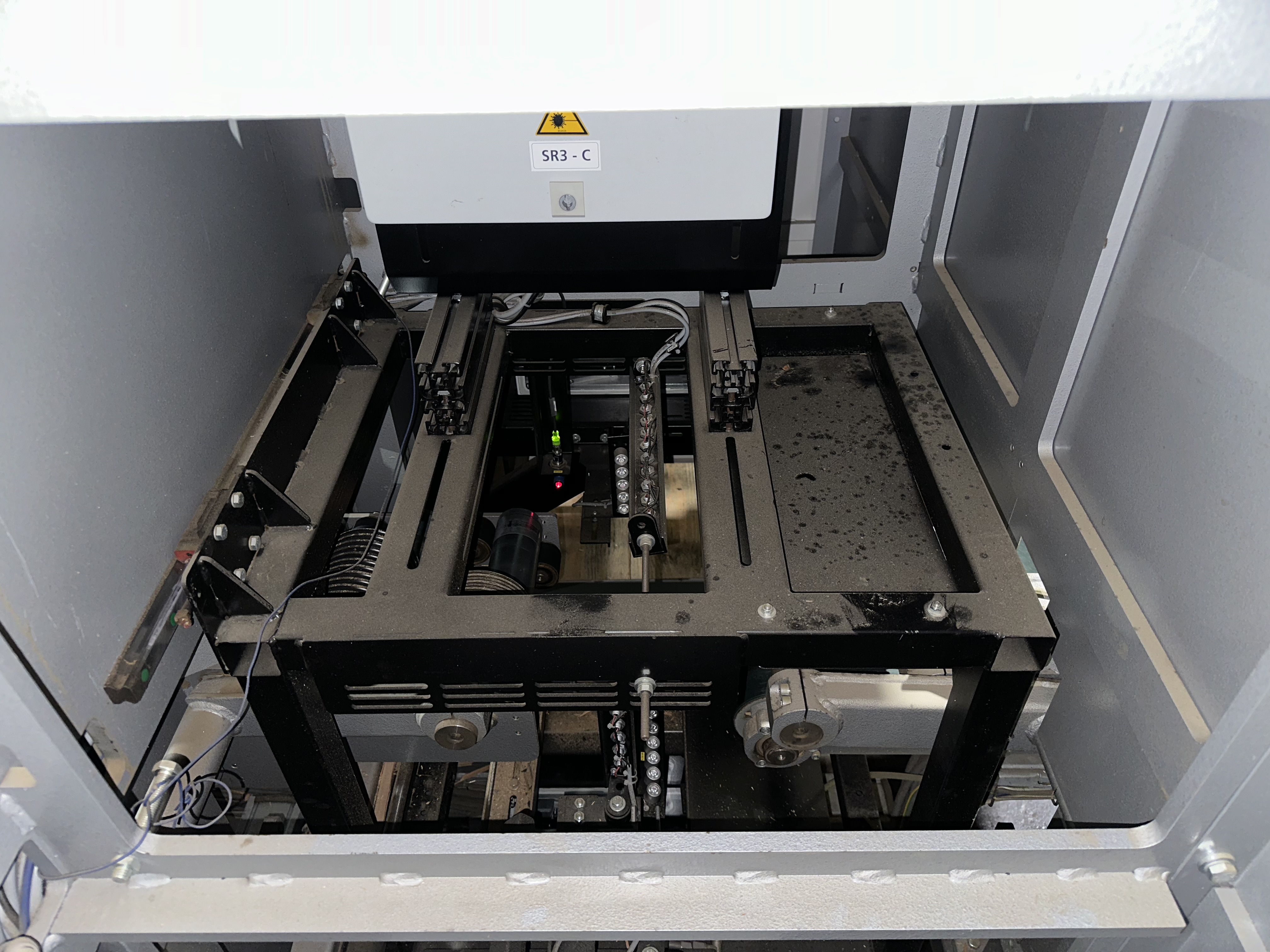

- Paul Wood Scanning System
- 4 Cameras for Defect Identification and Yield Improvement
- 4 Line Lasers for 3-D Profile Identification
- 4 Dot Lasers for Fiber Analysis
- Feed Speeds up to 300m/min
- Scanning Frequency: 3000 Line/Sec
- Camera Resolution: 1280 Pixels
- Recognition of Geometric Defects
- Recognition of Wood Characteristics, such as Knots, Cracks, Resin Pockets, ETC.
- Highly Efficient, Effective Full Optimization
- Value Optimization of different quality zones in longitudinal and transverse direction
- Inferface/communication with Maxi Control of Crosscut Saw

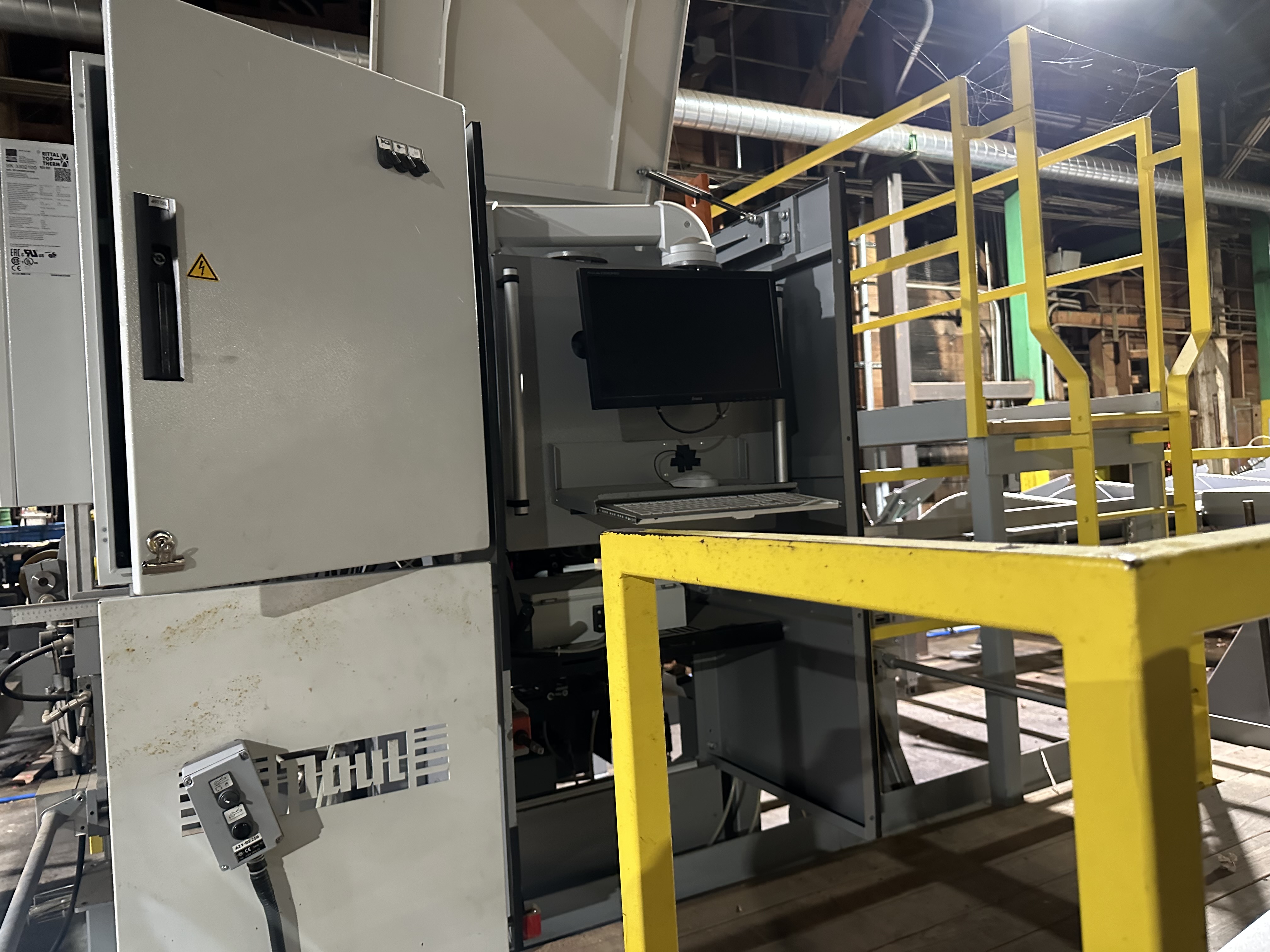

- Operating Terminal with User-Friendly Interface incorporated in scanner casing
- Customized System Solutions for Economical Processes and Maximum Yield Optimization
Scanner Outfeed Belt Conveyor
- 8m Belt Conveyor with guided belt, Powered by 1.5HP
- Fixing Rail: 1m
- Set of guide rails
- Frequency Converter for stemless feed speed control of the outfield station and indeed conveyors ahead of the Paul Wood Scanning System
- Basic Ejection equipement, Including Filter Pressure Regulator and reflex light barrier with light band of 50mm in height
- Fixed End Stop, Spring Loaded
- Pneumatic Ejector/Stroke:320mm with 24v Solenoid Valve, Safety Enclosed
Combined 6 Chain Conveyor
- Fixed Chain Conveyor: 1m Long
- Fixed Chain Conveyor: 0.4m Long

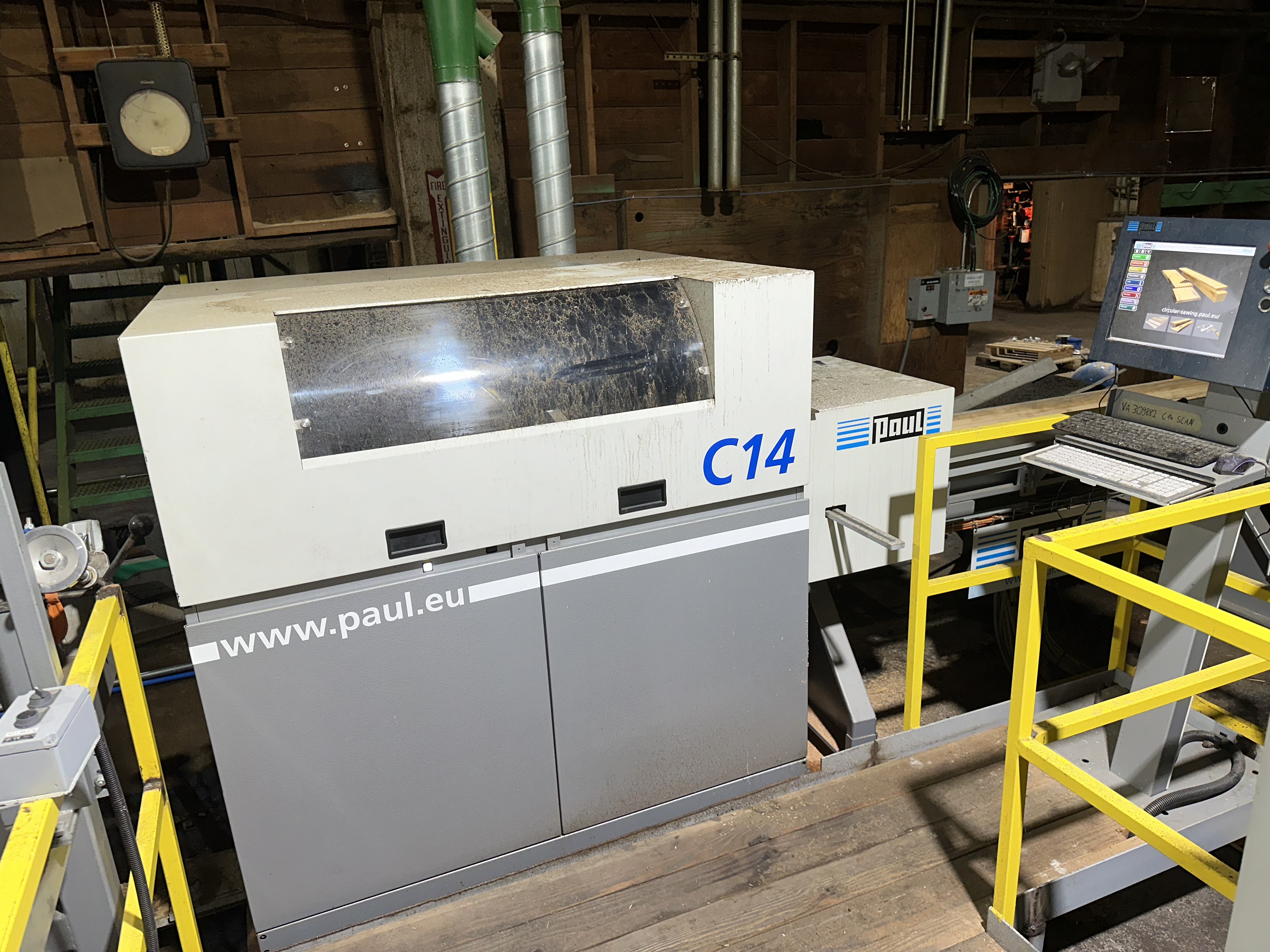

C14 Cross Cut Saw
- Saw Motor: 10HP
- Saw Blade: 600mm
- Feed System with Highly Dynamic infinitely Variable Servo Drive
- Six Large Diameter, Precision Hard-Chromed Plated Bottom Rollers with Spiral-Fluted surfaced for accurate workpiece guidance, driven by a wear-resistant, Maintenance Free and non-stretching Timing Belt
- Six Top Feed Roller Coated with a easily replaceable polyurethane segments, Independently - - - - - Pressure-loaded by Pneumatic Cylinders.
- Cutting Stroke Activated via Servo Motor
Outfeed
- 6.5m Belt Conveyor with guided belt
- 11.5 Belt Conveyor with guided belt
- 7m Long Fixed Fence
- 2m Guide Rail
- 2.5m Guide Rail
- 2.5m Guide Rail
- Length Sorting to the Right side
- 9 Pneumatic Ejectors with 320mm Stroke, w/ Solenoid Valve
- Basic Sorting Equipment including Filter Pressure regulator, and reflex light barrier w/ 50mm band width
Control System

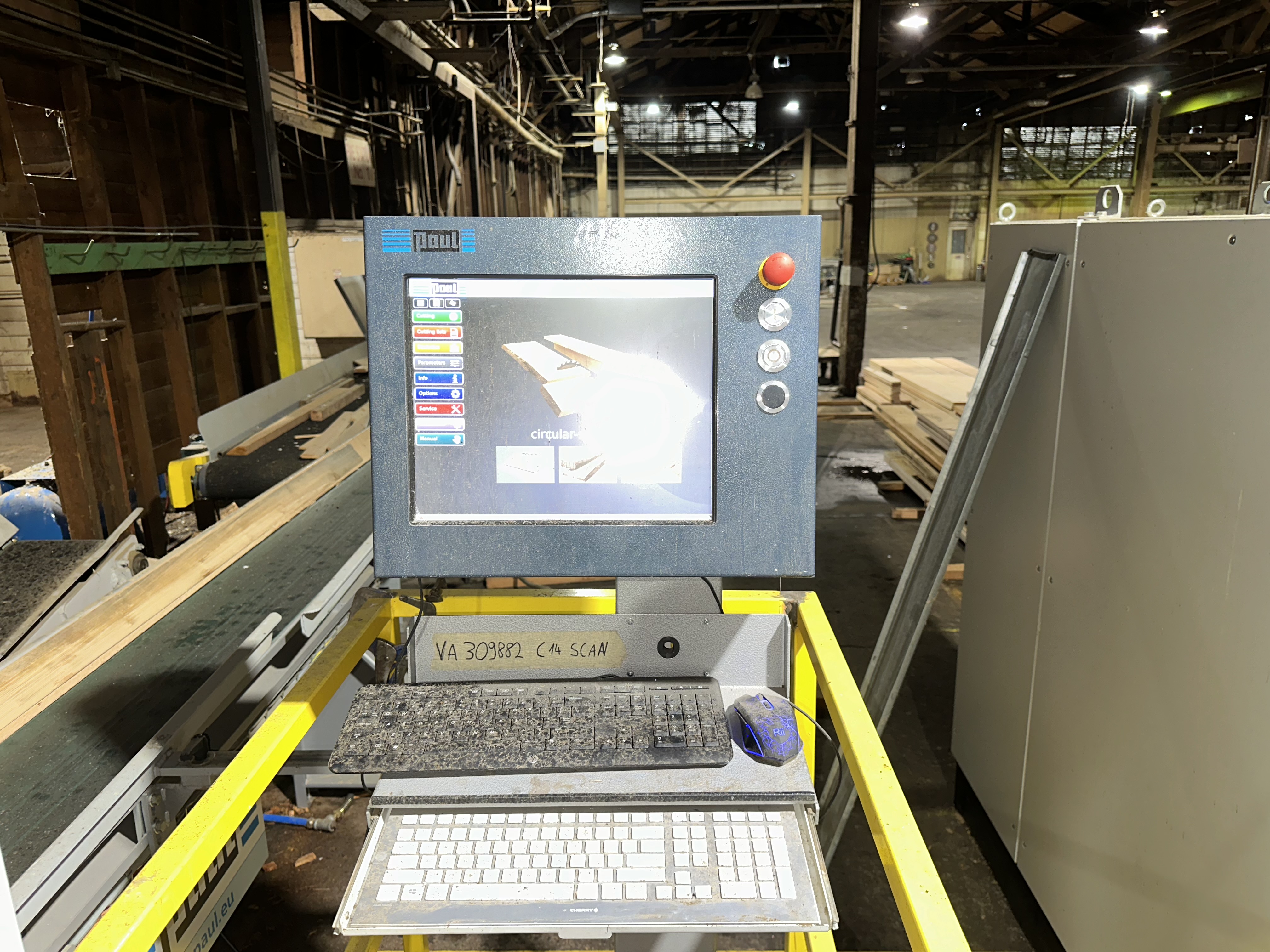

- Operator Control, Maxi 7 Premium with 17" Touch Panel - Free Standing Operator Terminal
- PC Based System w/ Linux Operating System
- Current Voltage: 480V 3ph
Paul C14 Scan II w/ Paul Wood Scanning System
