pics: http://www.bowenecmsolutions.com/altf45/pics.pdf
buildsheet http://www.bowenecmsolutions.com/altf45/build_sheet.pdf
Do not need help brokering, thank you. Location is 44256 zip.

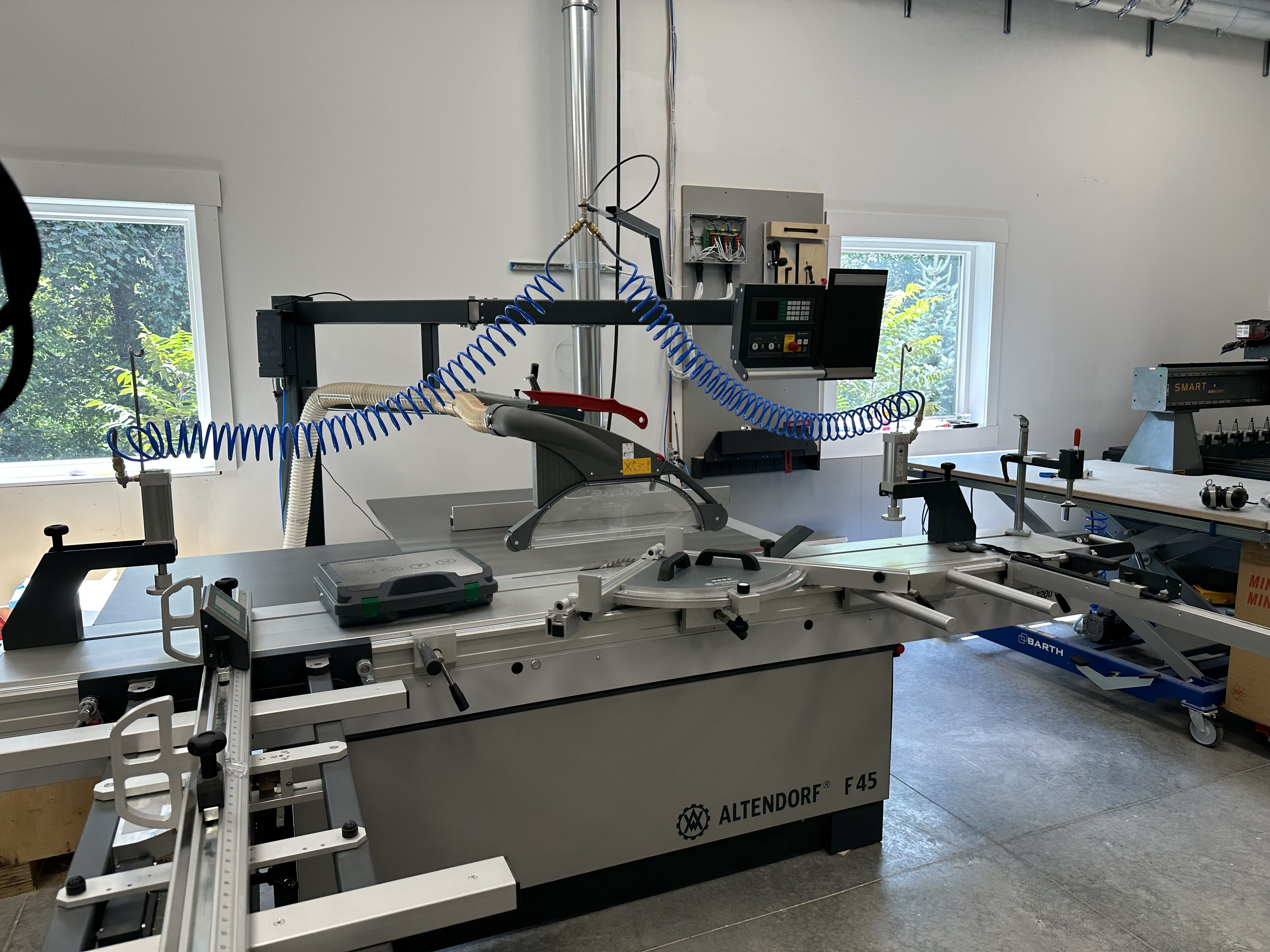

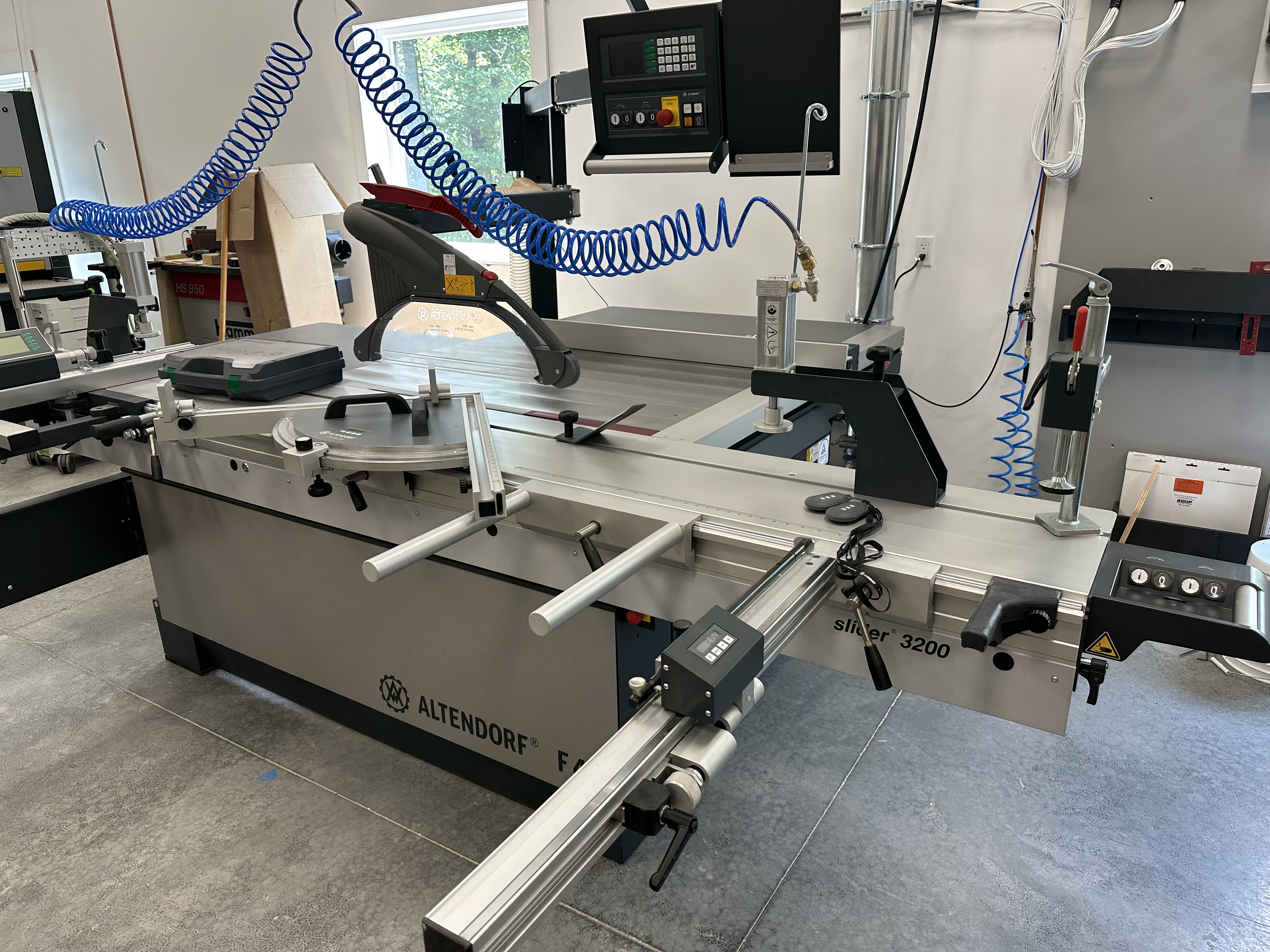

Hi, very low hour like new Altendorf F45 Elmo drive single bevel with all the options. 7.5hp 230v three phase 23 amps FLA, two axis Rapido scoring blade, scoring blade light, two digital stops on fence, parallelogram fence with digital position indicators and length compensation. Parallelogram fence is Altendorf’s top of the line outrigger allowing precision angle cuts and continuous length compensation. Outrigger supports slide forward to allow pushing thick material through blade or material can be placed behind for sheet goods.
Has almost every accessory you can get from Altendorf including factory remote control air clamps (two), ripping shoe, manual clamp, Palin parallel cutting device with digital readout, Digital Duplex for small parts and angles, front roller to support infeed side of rip fence. Still under warranty will need to check if that will transfer to new owner. Forklift on site, will help load and palletize. Drive up to rollup door and go. Deposit required to hold machine certified funds verified by bank prior to machine leaving premises.
I am home user about 20 hours on this machine, had surgery, expanded my shop, replaced transformer on property all took me out of comish' couldn't do anything. Its been delay after delay to get things going. Based on where I am in life, work, family I decided to upgrade to a dual tilt saw.
Build list
M18150 Model F45 PRO 7.5HP 3 phase 230v 23 amps FLA, Pro Drive
M44487 Parallelogram crosscut table PQS including DIGIT LD with stops to 3200mm (125.9”)
M34304 126” long sliding table
M51100 7.5 hp main motor

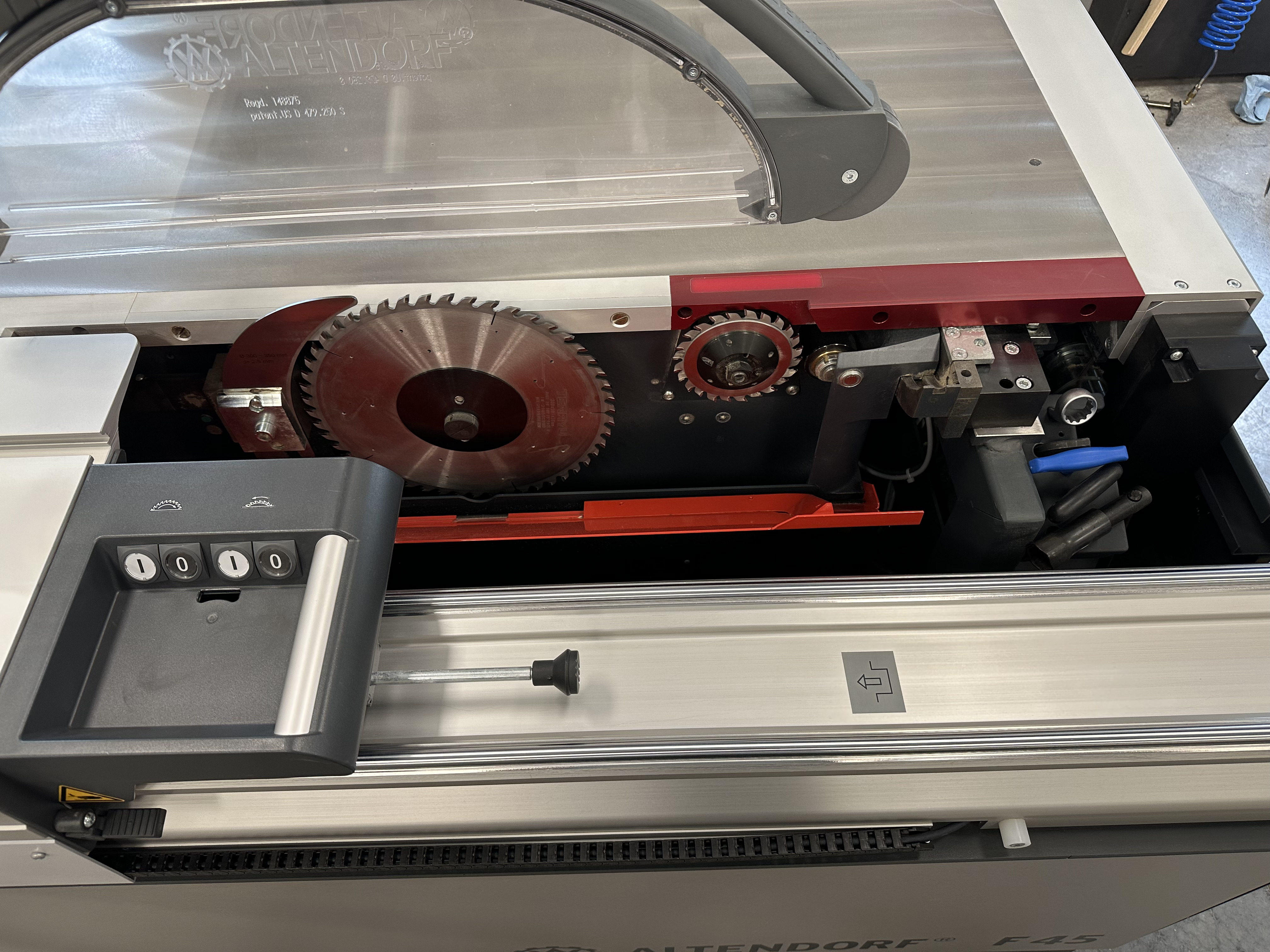

M24030 Two axis scoring
M24031 RAPIDO scoring system
M24037 LED illumination for scorer
M37003 On / off switches on table

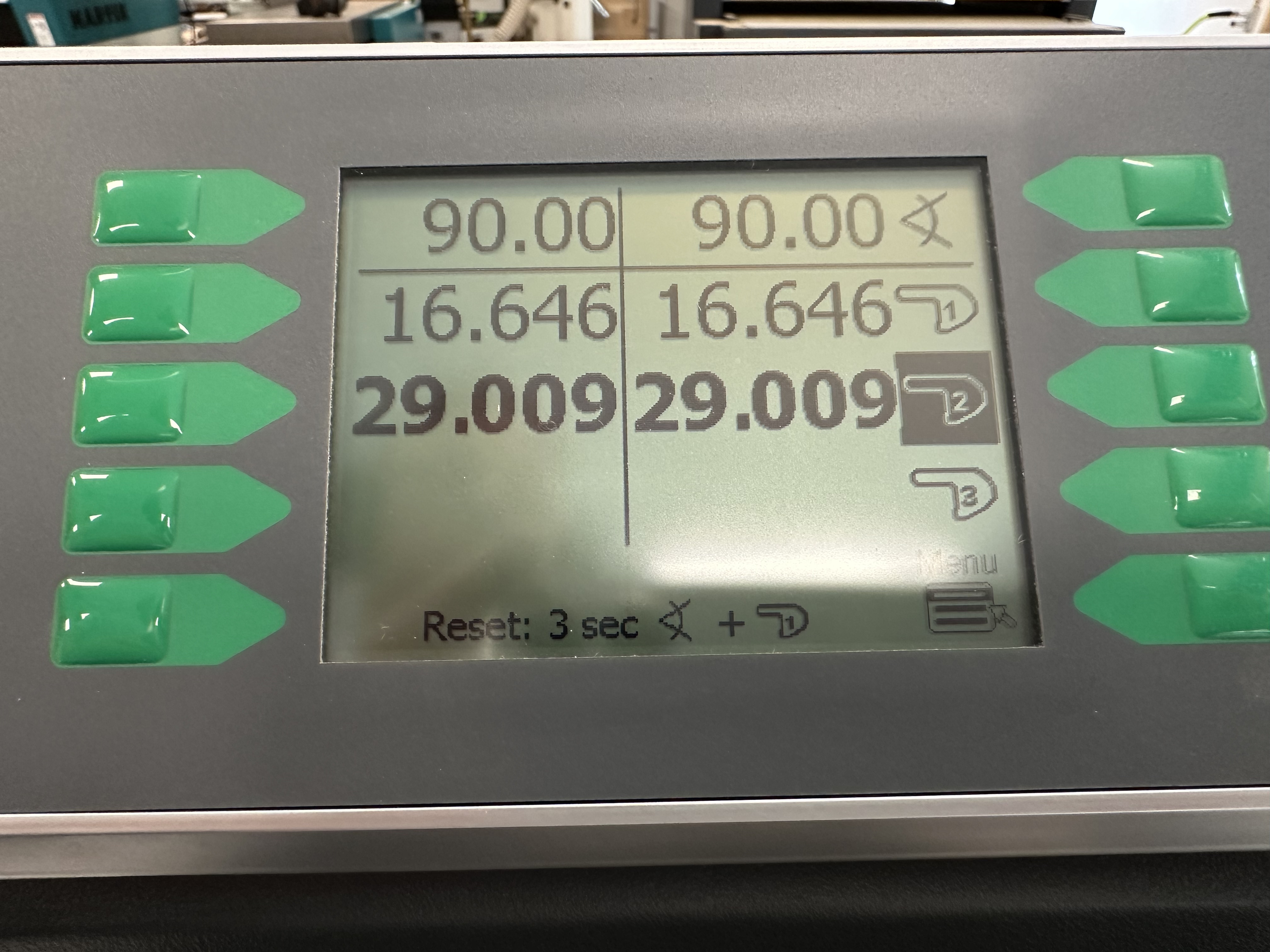

M44408 DIGIT LD crosscut miter fence with angles to 49o and stops to 126”
M44442 CNC rip fence 51”
M44450 Roller support
M64191 PALIN D
M64092 Two pneumatic quick action clamps with wireless remote
12” dia 72 T sawblade and Rapido scoring blade
M44452 STEG Second support makes sizing large panels easier for the operator
M64090 Manual Quick action clamp
