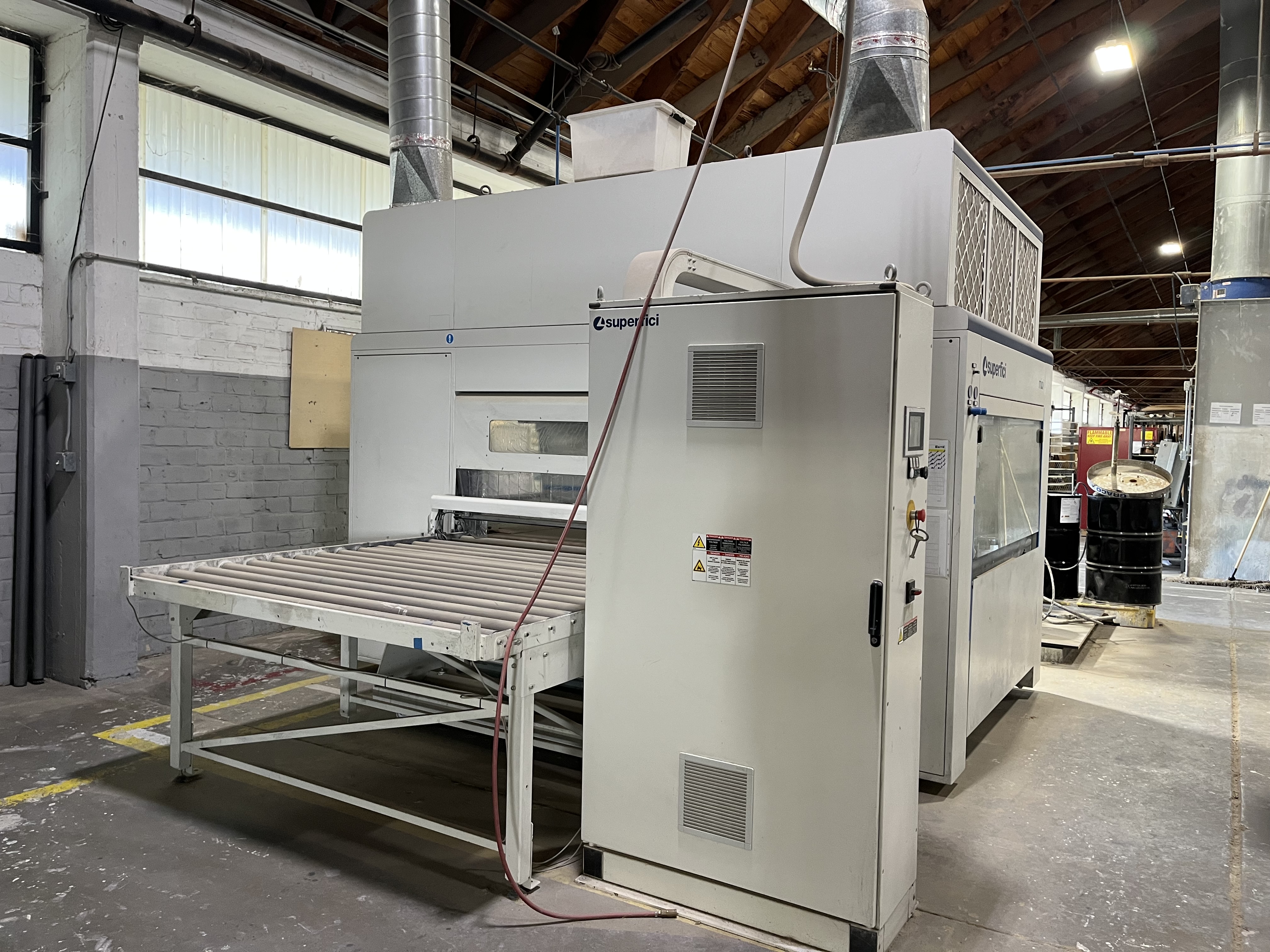

Superfici Model Mini Plus "P" Reciprocating Spray Machine - 2020!
Condition: As Is
Stock Number: 29158
Workpiece Dimensions
- Min/Max Length: 300mm/4880mm (12" /16')
- Min/Max Width: 25mm/1300mm (1"/51")
- Min/Max Thickness: 3mm/90mm ( 1/8" / 3-1/2")
- Max Weight: 3lbs per SqFt
Conveyor System & Paper Protection System
- Infeed & Outfeed Driven Roller Conveyor
- Central Belt Conveyor with Paper Protection System
- Unwinding Station @ Infeed / Rewinding Station @ Outfeed
- Paper Roll Size - 1600mm Wide x 300mm Max Diameter

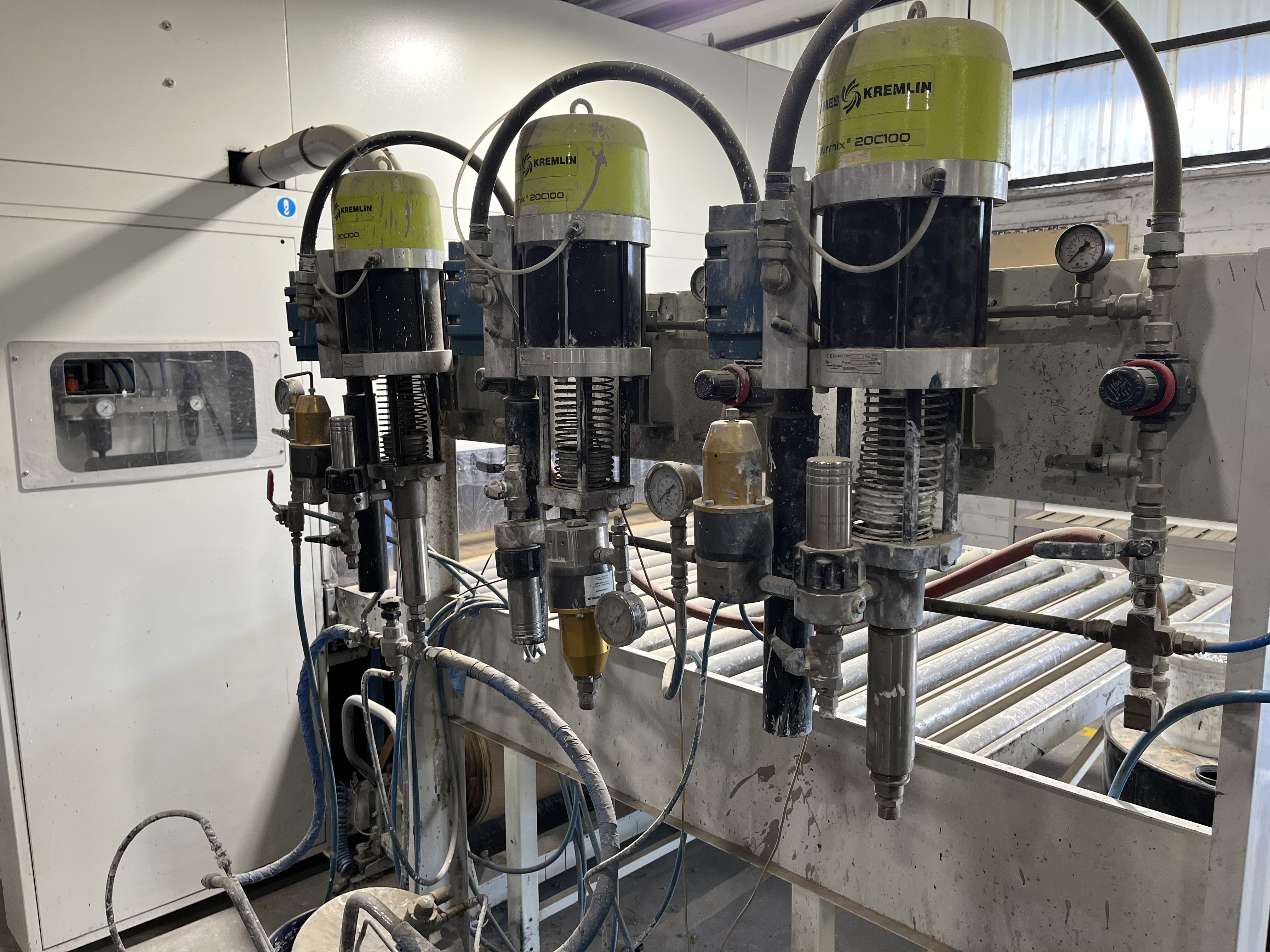

Spraying Arm & Lacquer Circuits

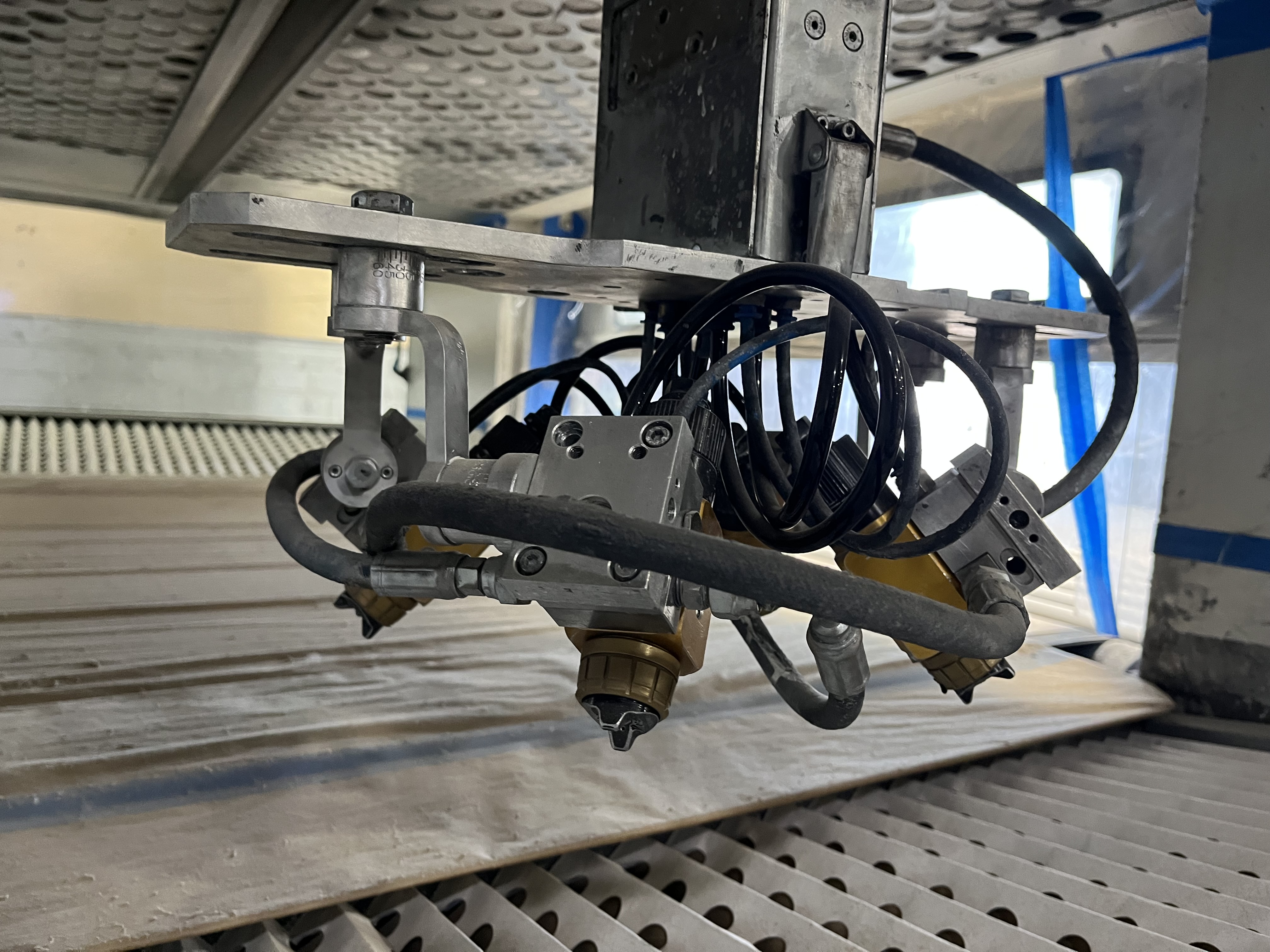

- Reciprocating Spray Assembly
- Up to 4 Guns & 2 Lacquer Circuits
- Quick Change system for Gun Holders
Enclosed Cabin
- Controlled Environment with Double Sided Suction System
- Double Stage Dry Filters to Left and Right of Conveyor
- Inspection Windows
- PLC Controlled - 5.7 Color touch screen w/ OPTISPRAY Software
Wired for 480v 3Ph
