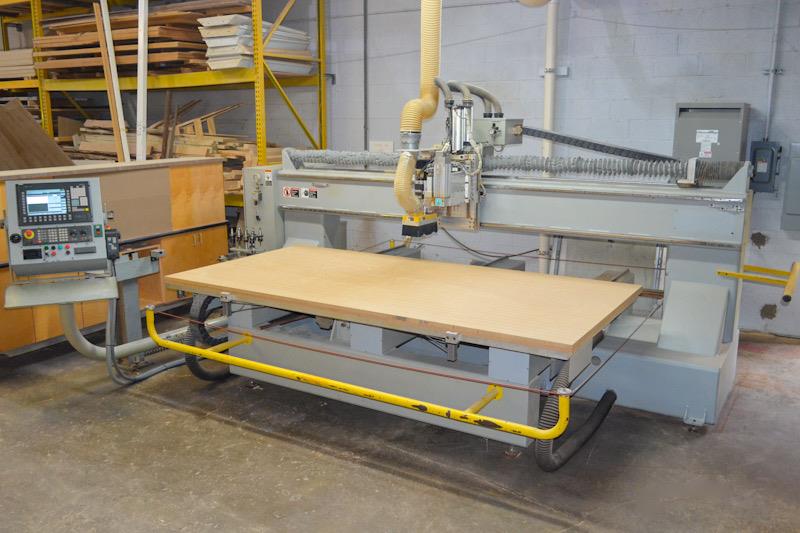

NORTHWOOD NW-105 NT 5' x 10' CNC Router, with ATC, Boring, & Vacuum Pump – 4,535 Hrs. only!
Table size 60" x 120" x 34" H, with Table thickness 1-1/2".
Positioning speed 2,500 IPM.
Moving cast-aluminum single-zone vacuum table, with Front-to-back configuration & (3) Pop-up location pins.

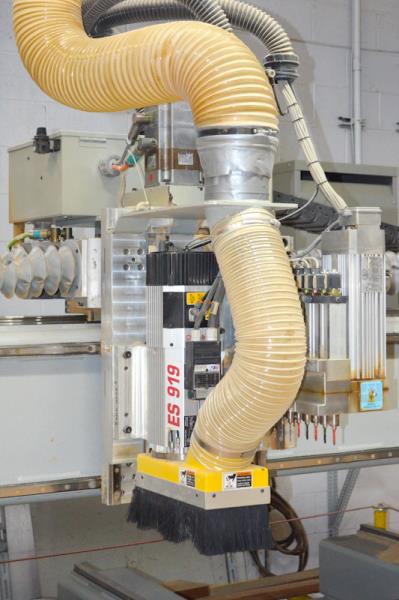

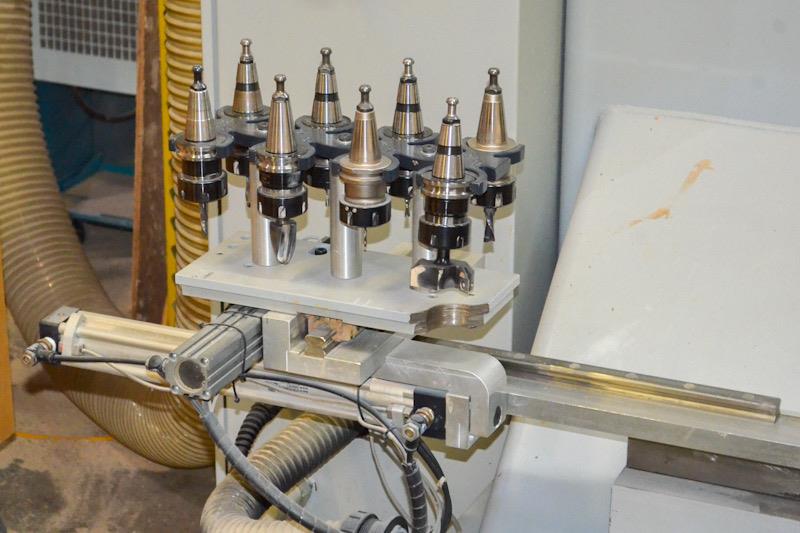

HSD "ES 619" 8 kW (10-3/4 HP) - 24,000 RPM SK-30 Air-cooled electrospindle; Variable spindle speeds to 24,000 RPM. ≈≈ 8-Position Pneumatically-actuated tool changer, & Tool pre-setter.
Boring unit, with (13) Pneumatically-actuated Vertical spindles, (8) in X-Axis & (5) in Y-Axis, with 1.7 kW (2.25 HP) - 3,490 RPM Motor.
All Axes with THK Precision contour linear guideways. X & Y-Axes with Closed loop AC Servo drives & Precision ground ball screws. Extra heavy-duty bridge.

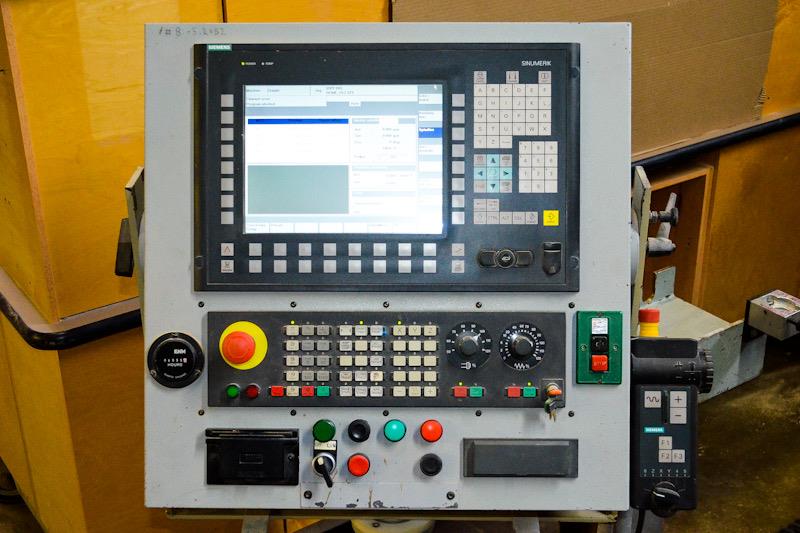

Operator Control: SIEMENS "SINUMERIK" CNC Touchpad Control, with 12" Display, RS-232 Port, & Remote pendant control with Touchpad.
*** Please click the link for full description***
Northwood NW 105 CNC Router
