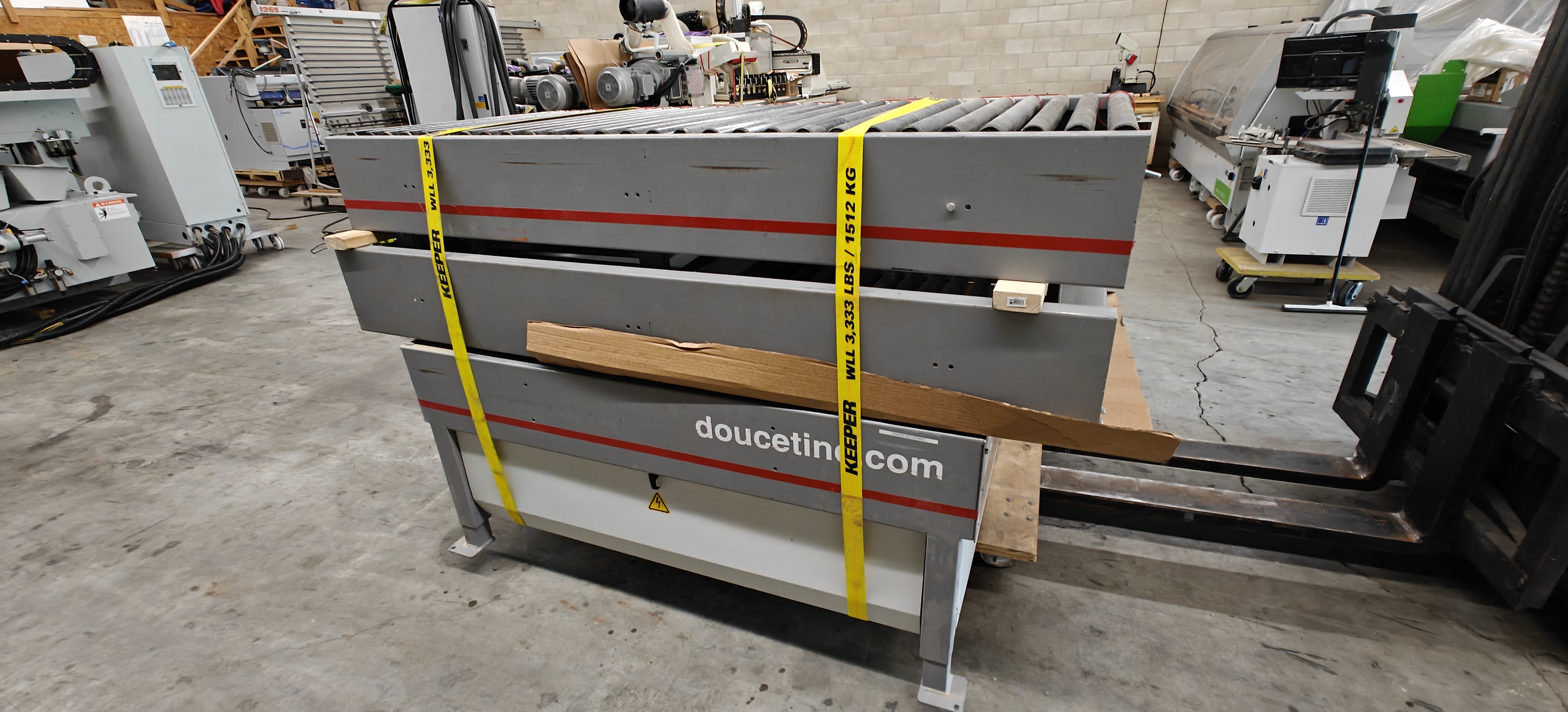

Return Conveyor for Edgebanders For Left-Hand feed Edgebanders with Right-Hand Return Conveyor.
Small (14") offloading conveyor is placed in front of edgebander @ offloading area, this keeps the panel moving toward the receiving table.
Receiving Table: 69" L x 36" W;

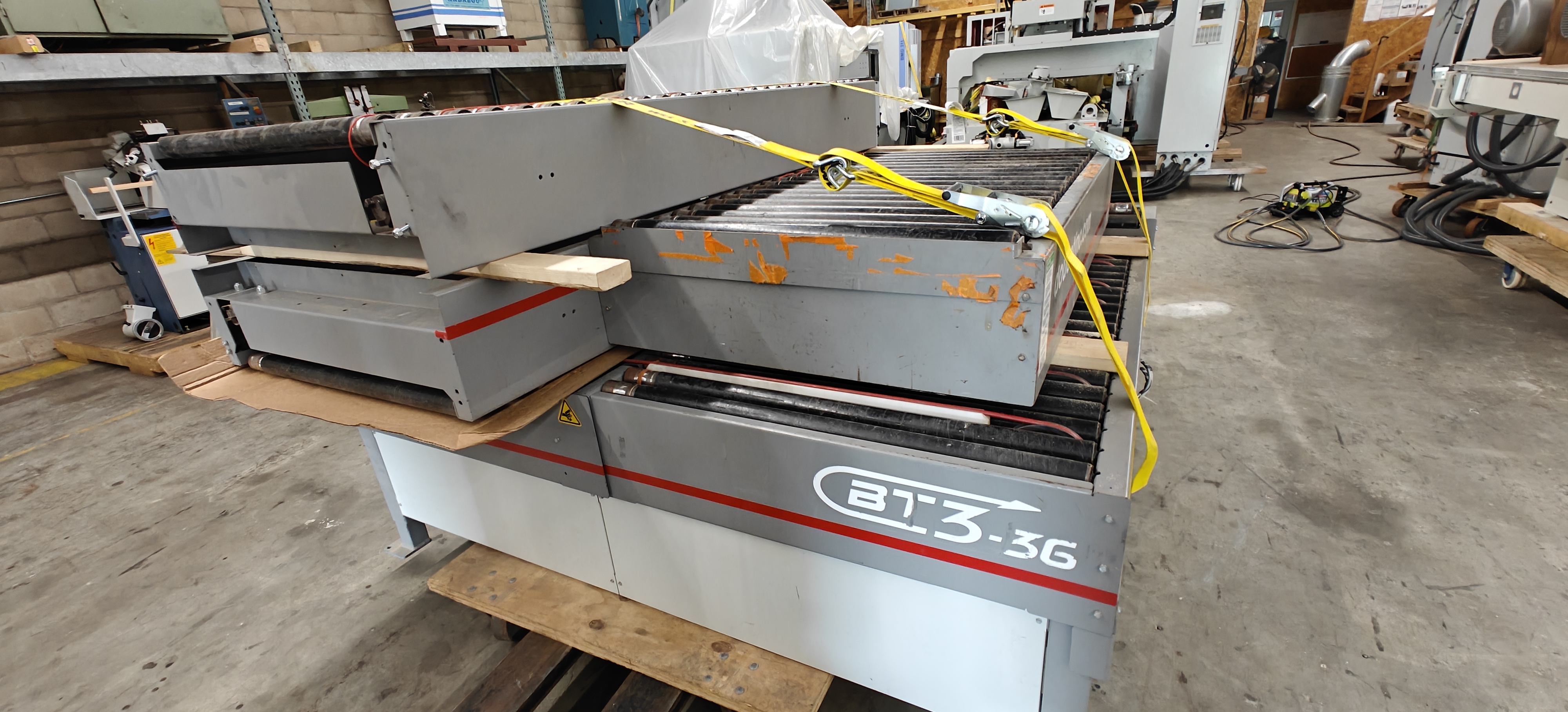

Cross transfer

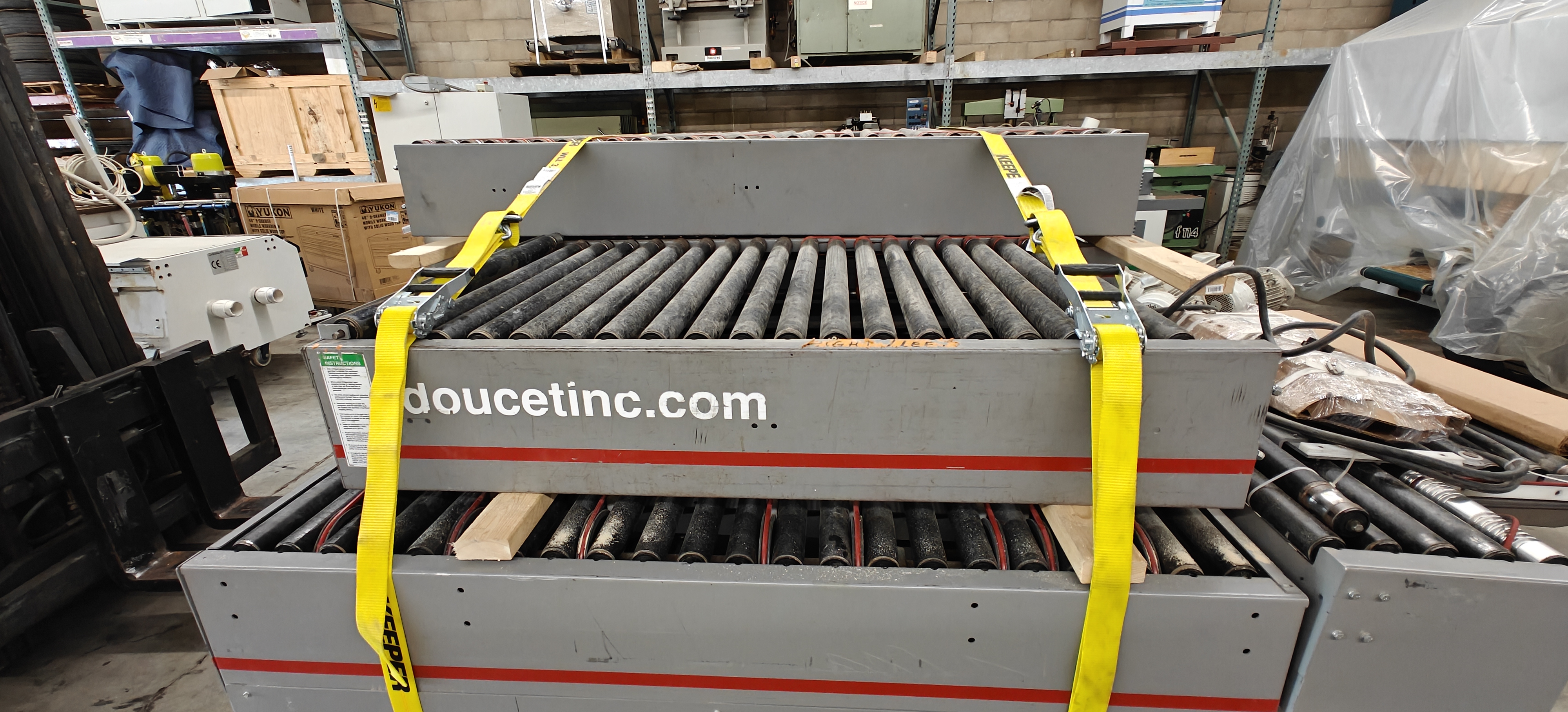

Return Conveyor: 36" W x 69" L With 2 additional 84" sections and 1 60" section totaling 28'
This machine will process 52" Wide x 96" length panels
Minimum part capacity of 4" x 12"
Specifications
Receiving table speed: 30 to 90 FPM
Return conveyor speed: 60 to 180 FPM
Cross transfer belt speed: 180 FPM.

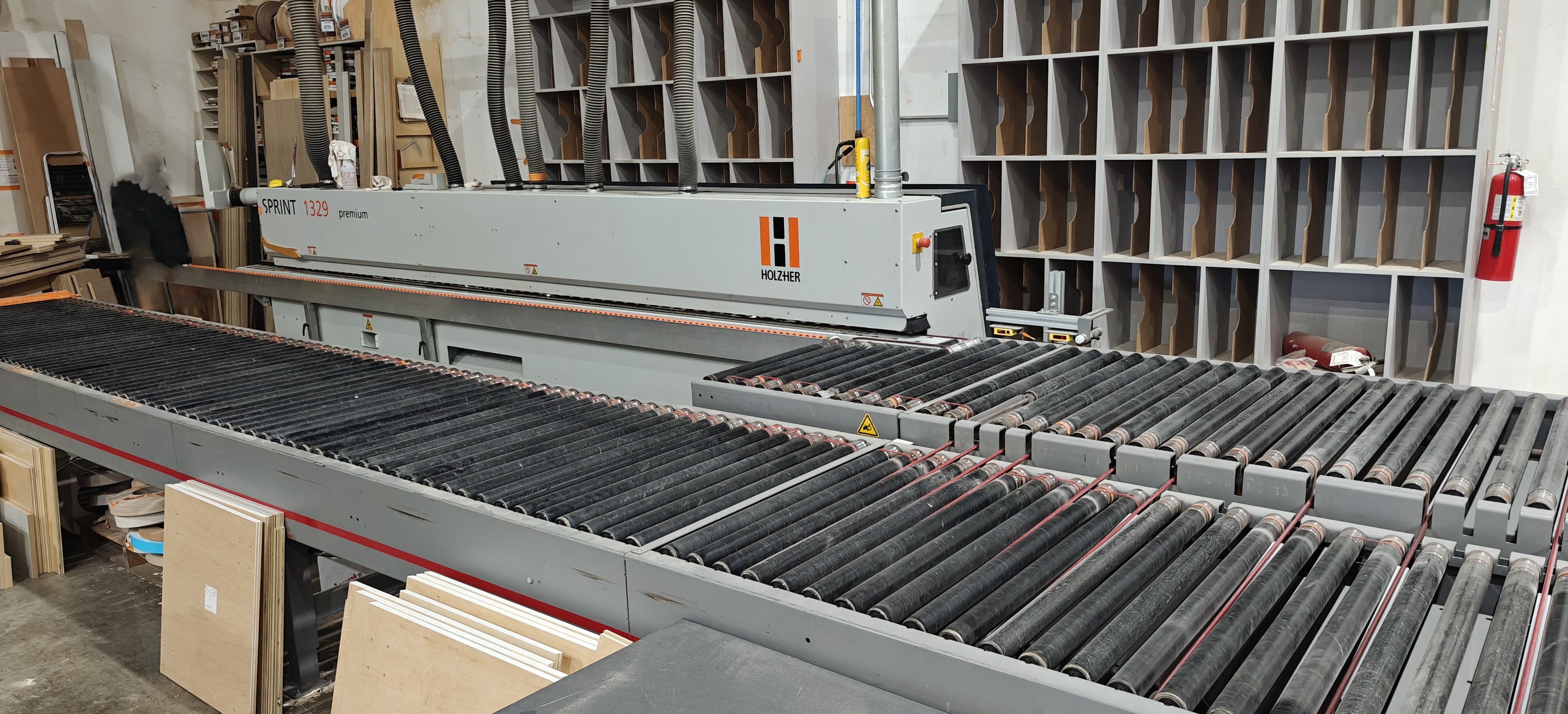

This came off a Holzher 1329. The length of that machine is 16'
Biesse Holzher SCM. Ott, and most other brands are left to right feed. This will fit them all
THIS WILL COME WITH ALL NEW RUBBER BANDS AND O-Rings
Its smart to refurb these components while the machine is apart
These will come direct from Doucet.
