Description

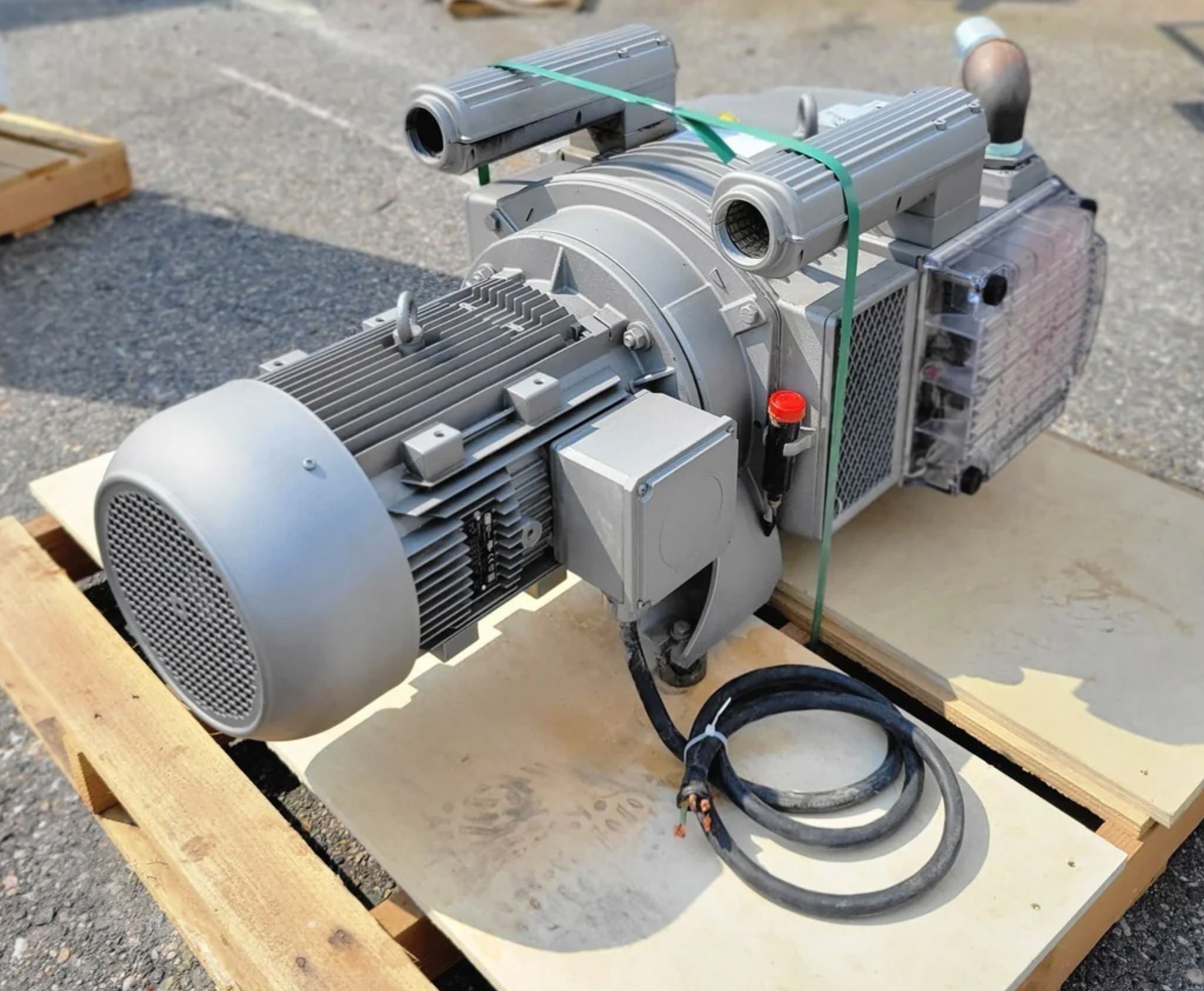

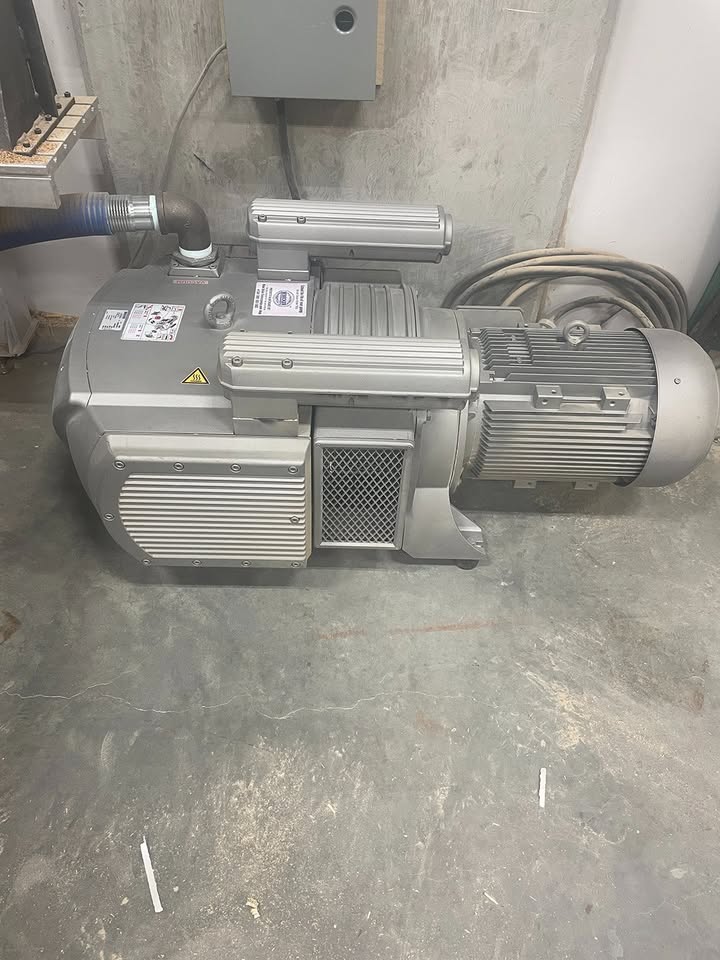

VTLF 2.250 DRY VACUUM ROTARY VANE PUMP (G050375) used for 5x10 3-axis CNC router. Bought new in 2020, single owner, in great shape.
"The VTLF 2.250 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilizes self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change. This specific pump has a peak pumping speed of 169 CFM at 60 Hz and a nominal rotation speed of 1167 rpm."
100% dry-running (oil-less) operation
Long vane life
Continuous duty rated
VTLF 2.250 VACUUM PUMP 6.6KW IE3
3PHASE MOTOR, 6,6KW, 1167 RPM
60HZ: 230/460V +/- 10%, IE3
60HZ: 208V +/- 10%
THERMAL CONTACT 155C, ISO CL. F, IP55
UL/CSA, UL# E235514, CC329B
BLOW-OFF VALVE
VACUUM SAFETY VALVE
COMPLETELY ASSEMBLED
151kg weight
Local delivery available in Vancouver.
