Summer Inventory sale! Price reduced from $15,500
Exceptional SCMI double head sander!
30HP 230v 3ph drive
Delta soft start motor controls
Electrical requirements: 91amps

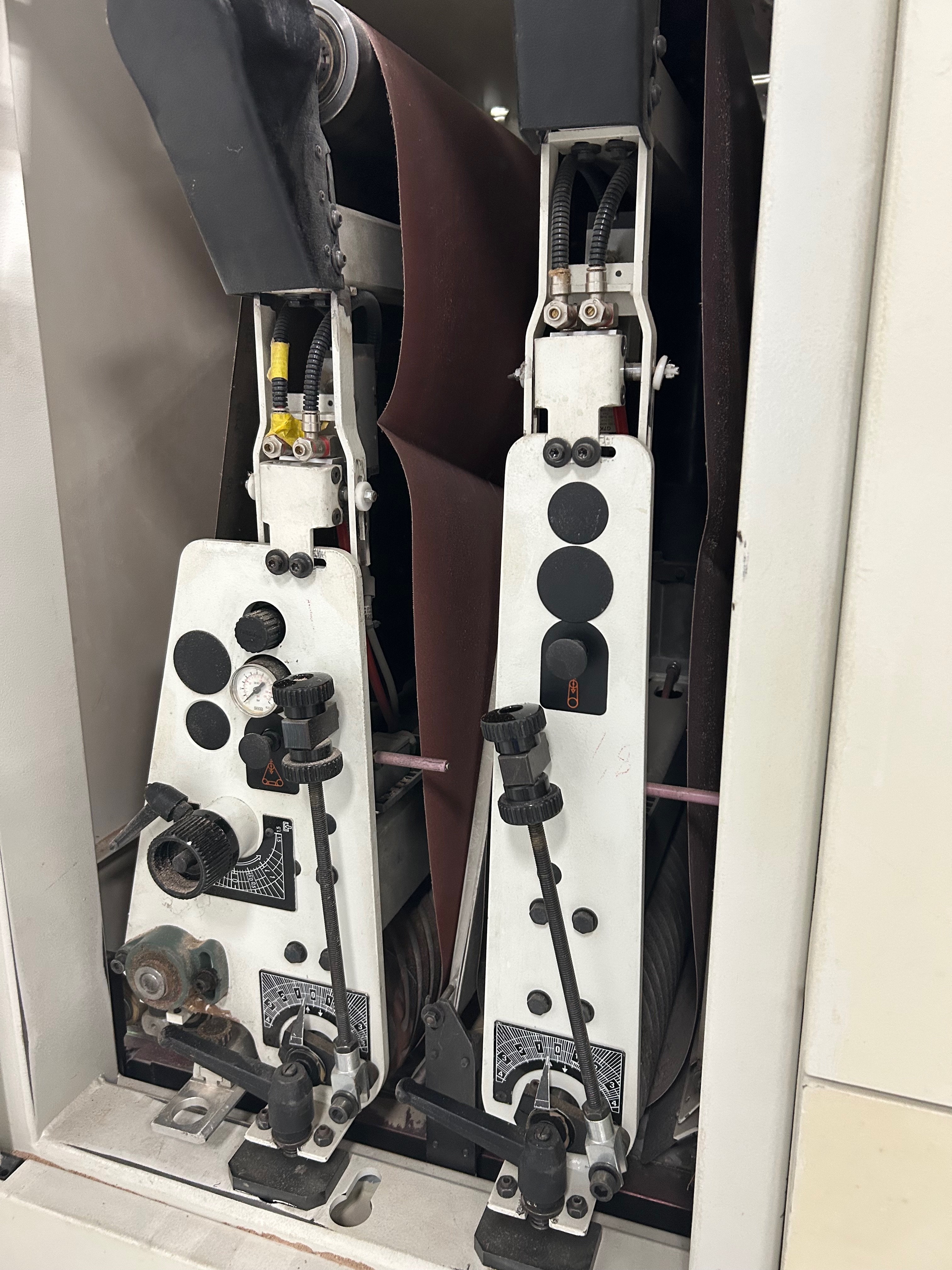

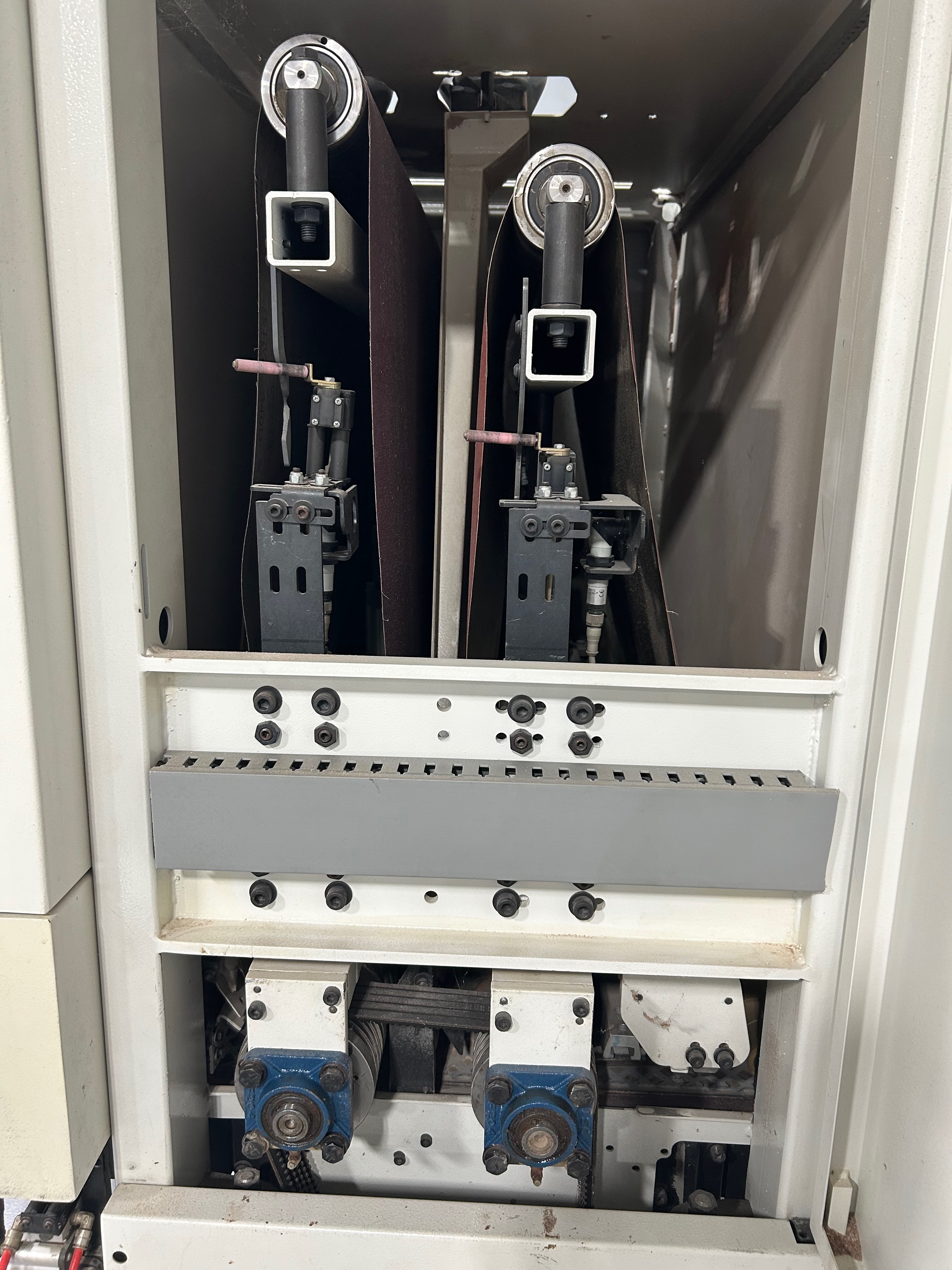

1st head: 4.5" diameter steel contact drum with manual grit set
2nd head: 4.5" rubber drum with 2" wide soft platen
Anti-dubbing control of platen rise-fall to protect leading and trailing edges of panels
Variable speed conveyor by inverter 12-60 fpm with digital display for working height
Automatic thickness set up
Automatic conveyor belt tracking (pneumatic cylinder)
Two platens, soft (for veneer), semi-stiff (solid wood)
50 durometer conveyor belt
2 roller infeed and outfeed roller tables
4 Top and bottom fastened jack screws
6.6" max thickness capacity
Manual adjustment of contact roller and platen positions
1800 CFM dust requirement
Two (2) 5" dust ports
Lease to own available for approximately $260/mo

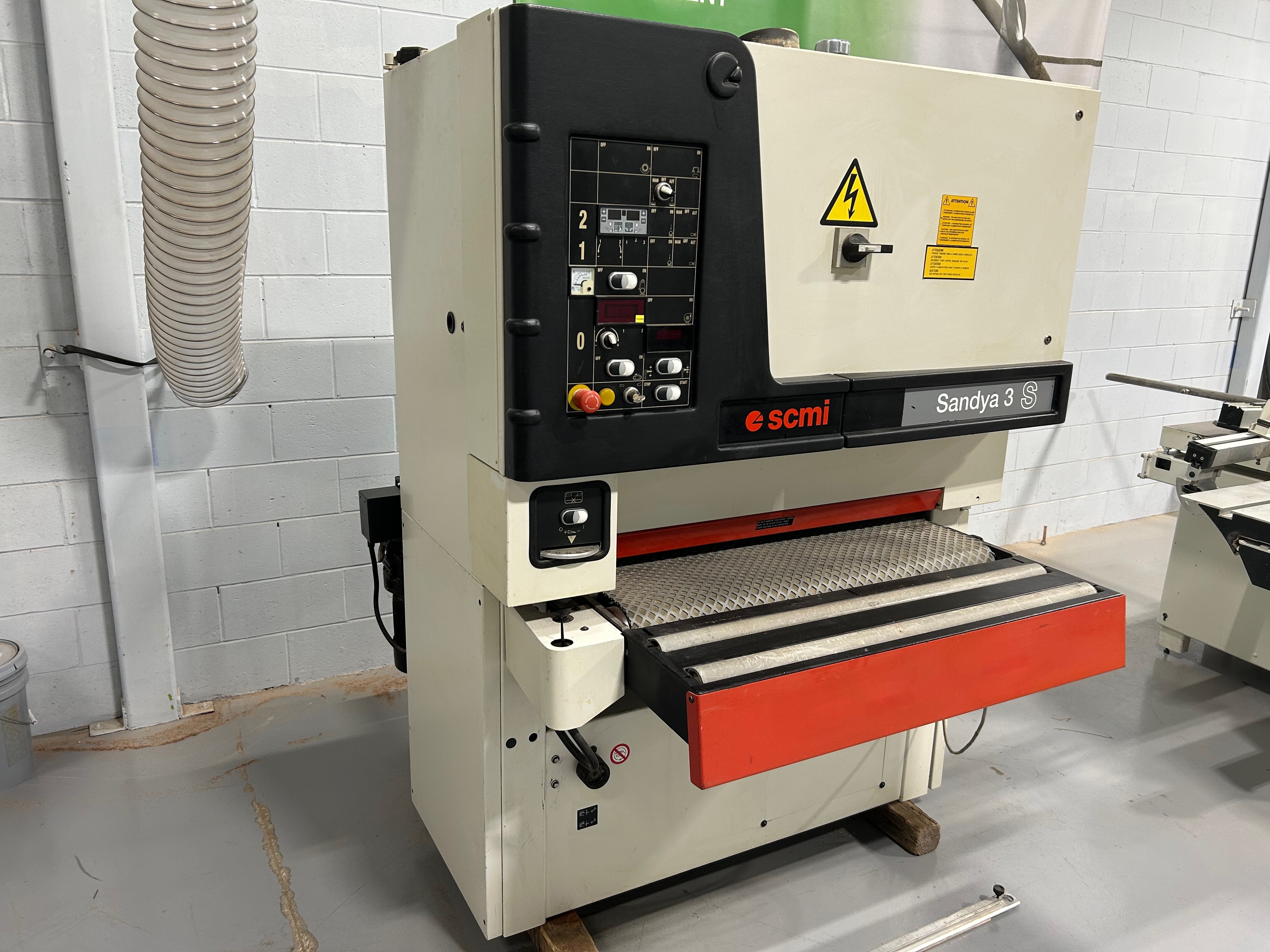

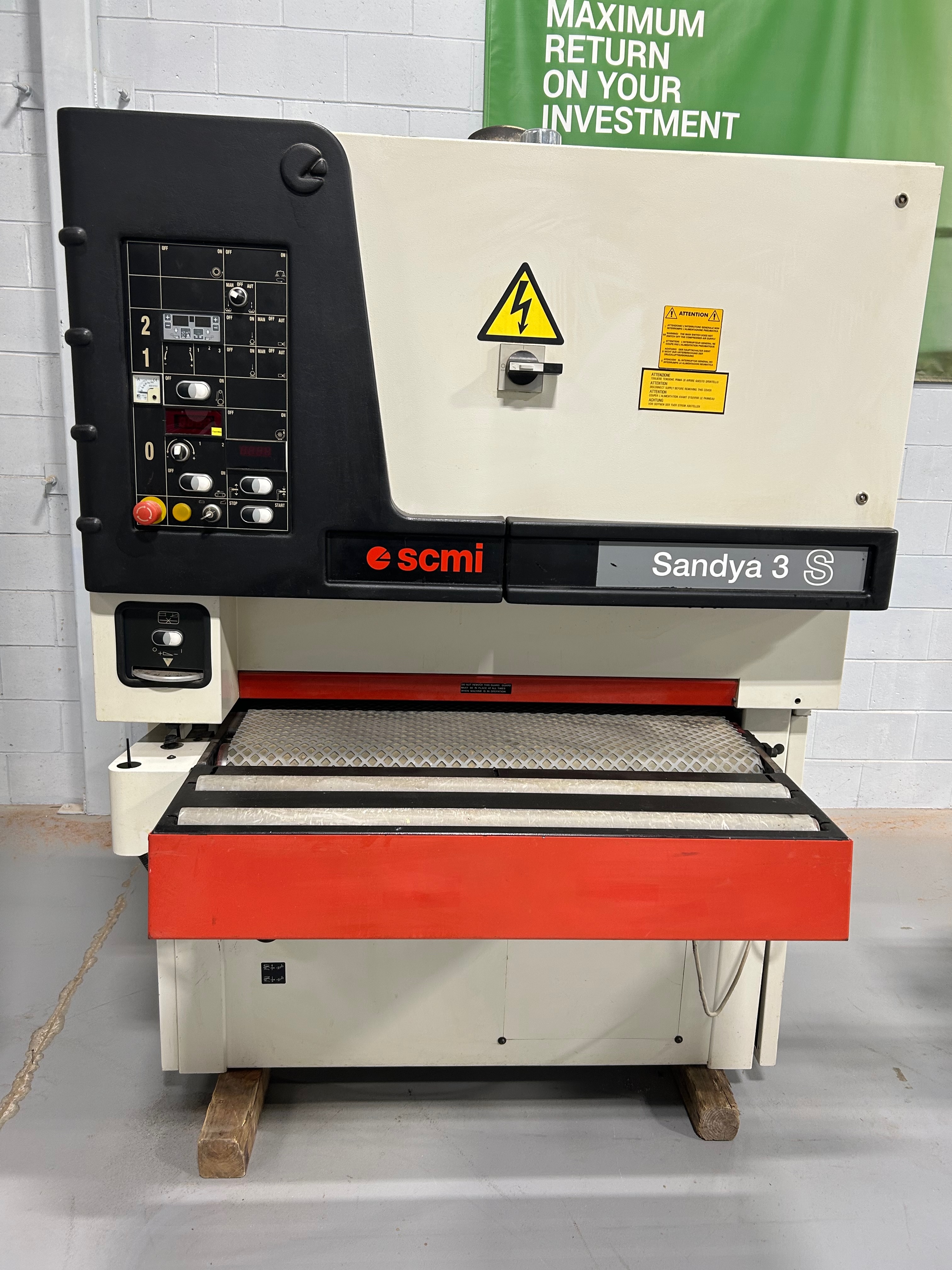

SCMI Sandya 3 RCS
