Spindle; HSD 16.1 HP (HSK F63 Tool Holders)
12 Position Tool Carousel (Ride along)
Auto Tool Length Touch-Off
Boring Head; 10 Independent Controlled Spindles (vertical)
(7) in X-Axis & (3) in Y-Axis
Work Table Dimensions (mm); 2511x1249 (99"x49")
Precision Matrix Type Table
Table Accepts Standard Vacuum Pods
Sweeper Arm for Unloading
Equipped with Dust collection on arm, to clean the table as it sweeps nested parts onto the conveyor
Factory powered conveyor w/Dust collection (top)
Busch Rotary Claw Vacuum Pump
Automatic Centralized Lubrication System
Air Conditioned Control Cabinet
PC Driven CNI XP600 NC Control
IPC Computer w/15" Color Screen
40 GB Hard Drive, Keyboard, and Mouse

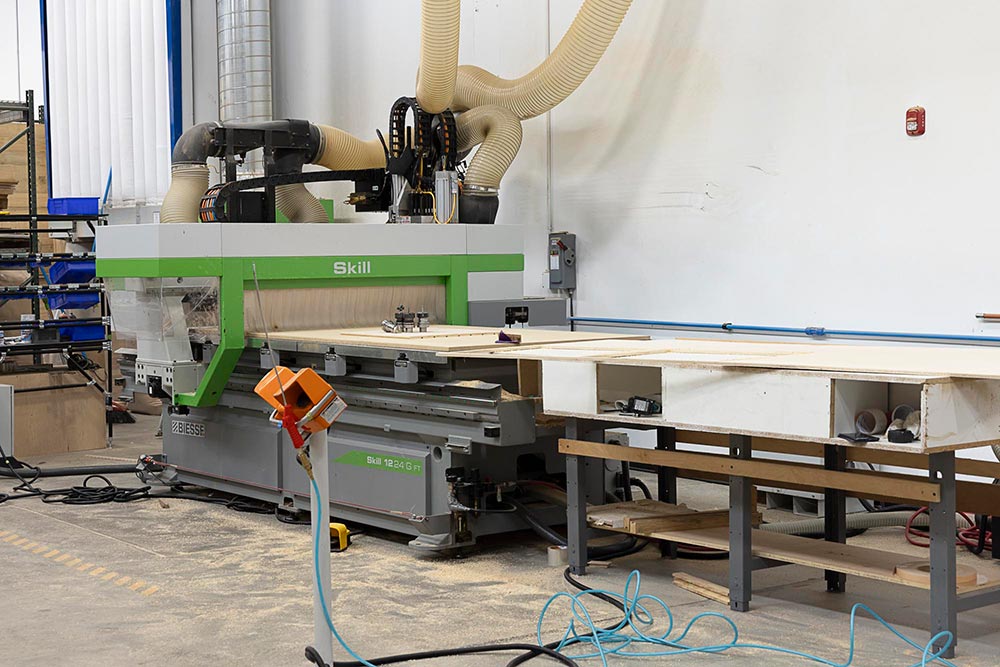

We have one picture of this machine but others are on their way.
This machine is in the shop getting a newly rebuilt spindle. A truly safe buy!!
