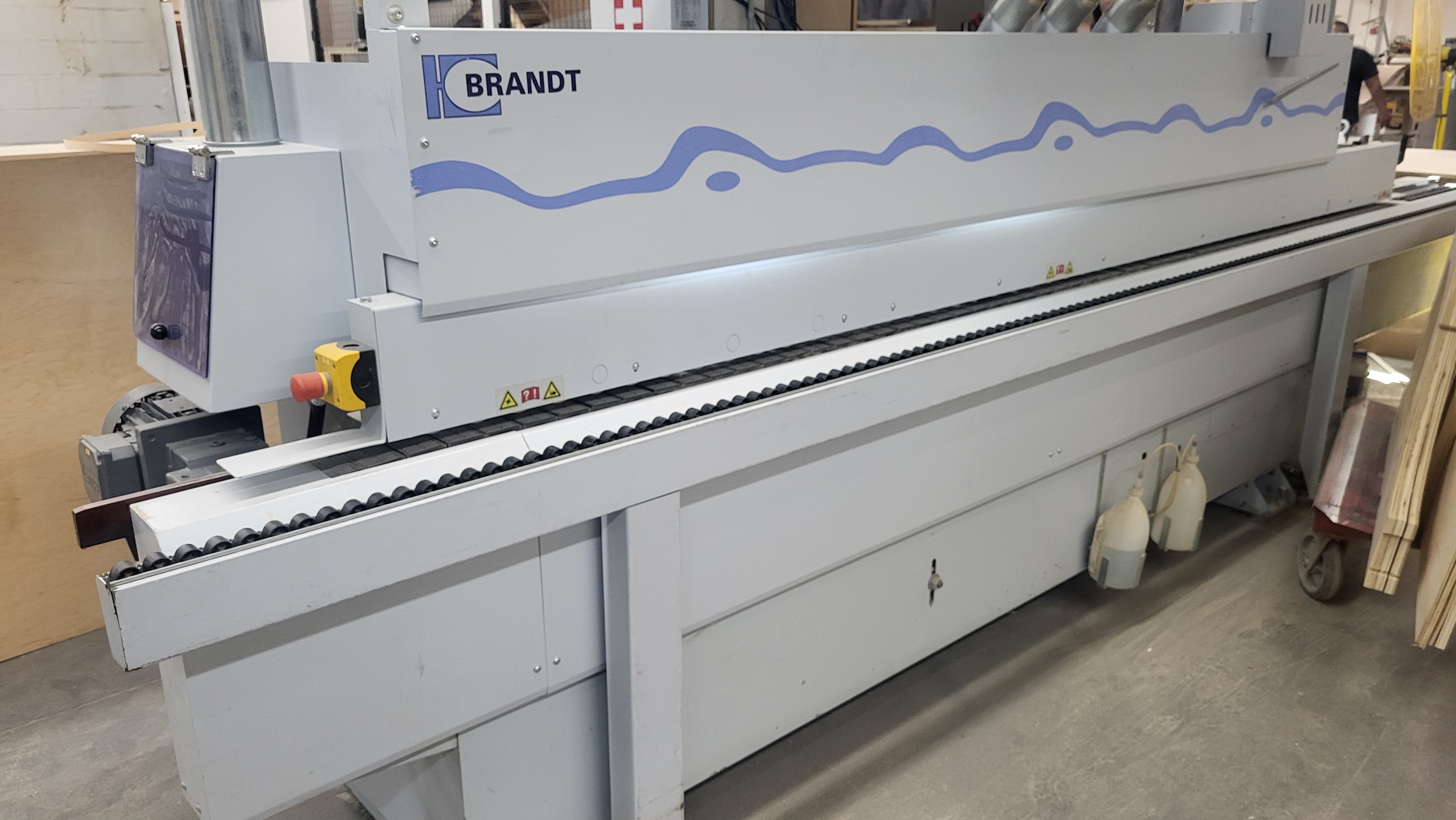

Well kept machine that can go right to you and get to work. This is fully optioned with premill, corner rounding and HOT AIR
General specifications
Feed speed: 11 m/min.
Workpiece thickness: 8–50 mm, with optional extensions to 60 mm.
Edgeband thickness:
Coiled material: 0.4–3 mm.
Strip material: Can handle solid strips up to 6 mm.
Minimum workpiece width: 70 mm (for 8–22 mm panel thickness) or 120 mm (for 23–50 mm panel thickness).
Glue system: EVA hotmelt glue pot. ALSO EQUIPPED WITH AIR TEC for use with pre-glued edgebanding
Control system: EASYTOUCH or EASYCONTROL EC 10+ with a 7-inch touchscreen.
Compressed air: Minimum 6 bar.
Length: 4,773 mm.

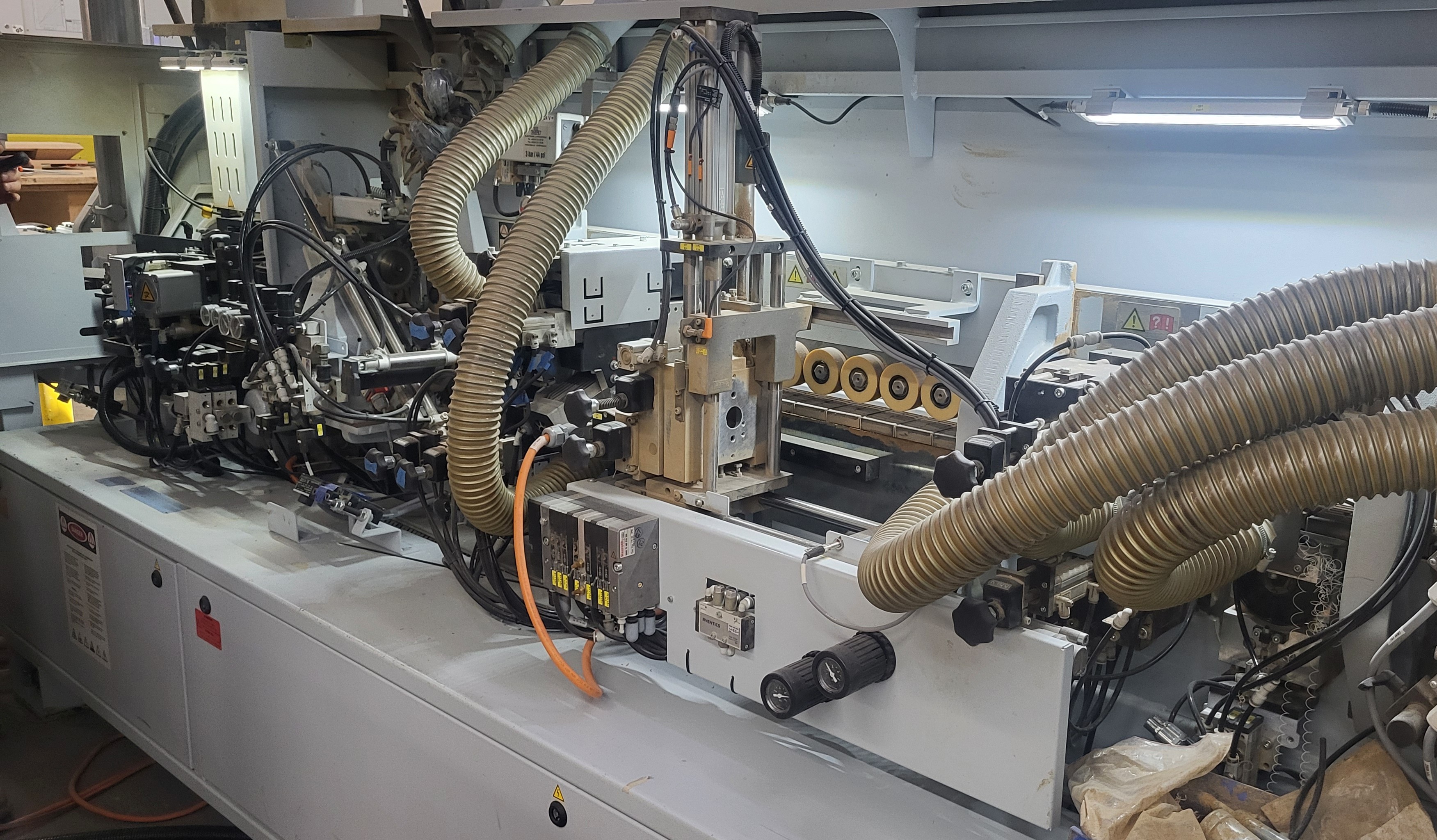

Machine Layout
Premill unit: Equipped with diamond-tipped tools.
Gluing unit and magazine: For both coiled and strip material.
Pressure zone: Heavy-duty to ensure a strong glue joint.
End-trimming unit: 2 motor front and rear trimming.
Top and Bottom Trim; 2 motor tiltable
Corner rounding unit; Single motor with vertical and lateral movement
Profile scraper: For smoothing the trimmed edge.
Flat scraper: For removing any excess glue.
Buffing unit: For a final, polished finish.
