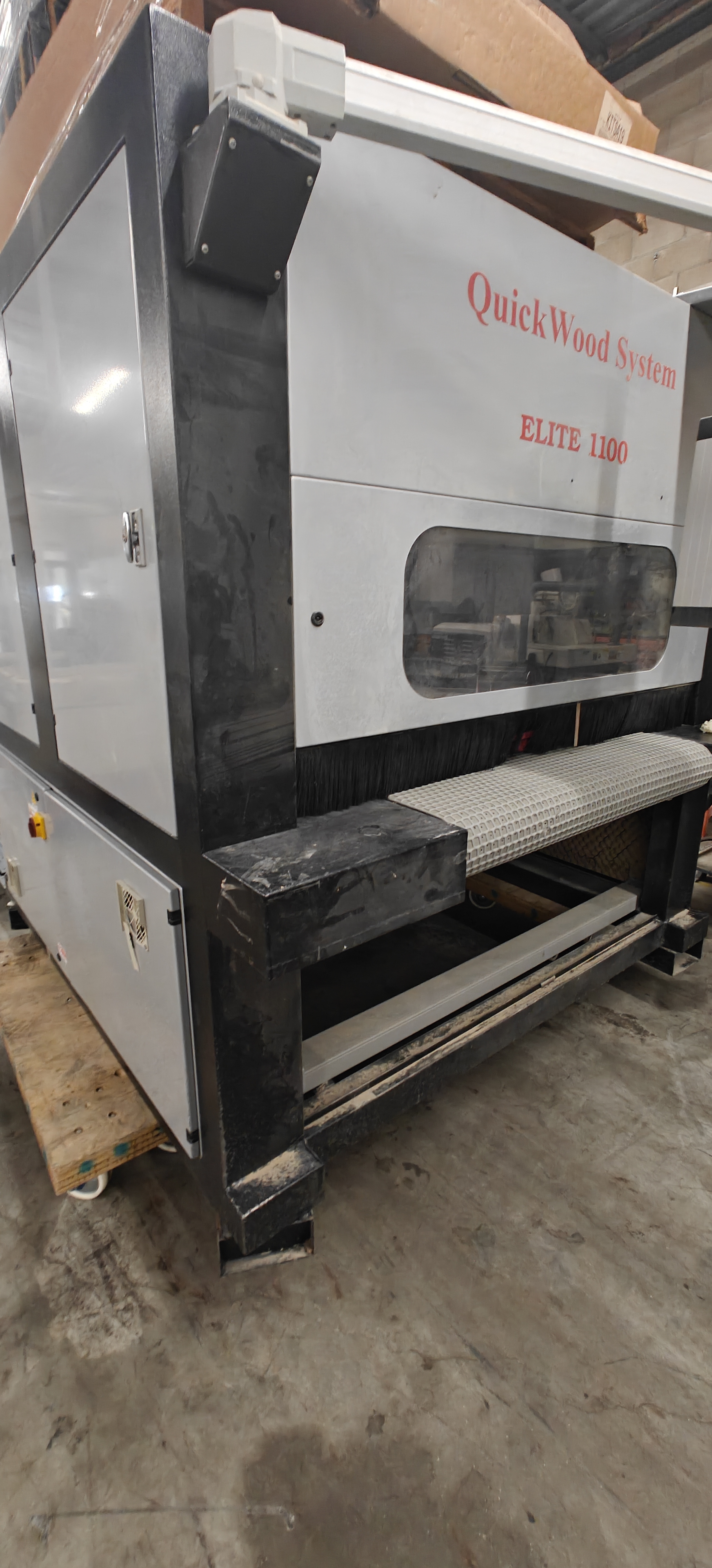

Super clean inside and tons of extra heads! This gets you ready to go, quickly!
Tech specs:
Dimension of work piece:
-Height max.:100mm,
-Width max.:1100mm, (43"+)
-Length: infinite,
Trough feed width: m/min. 2-12,
Spindle speed RPM: 300-1150,
Rotation speed RPM: 3-16, REVERSIBLE This allows 2 different grits on the brushes. There are some at 180 in one direction and 220 in the opposite direction
Spindle length: 90mm,
Number of spindles: 8 (counterrotating )
Diameter of tool max.: 350mm,
Main motor: kW 4 x 1.5,
Frequency alternator spindles:kW 7.5,
Conveyor motor: kW 1.1,
Rotation motor: kW 1.1,
Vacuum pump: kW 11,
Height adjustment: kW 0.45,
Dust collection duct: mm 4 x 140,
Exhaust capacity: m³/h 5600 8000,
Dynamic Dims. 2020 x 2410 x 2050,
Net weight: kg Aprox. 1800
See Video of walk around.

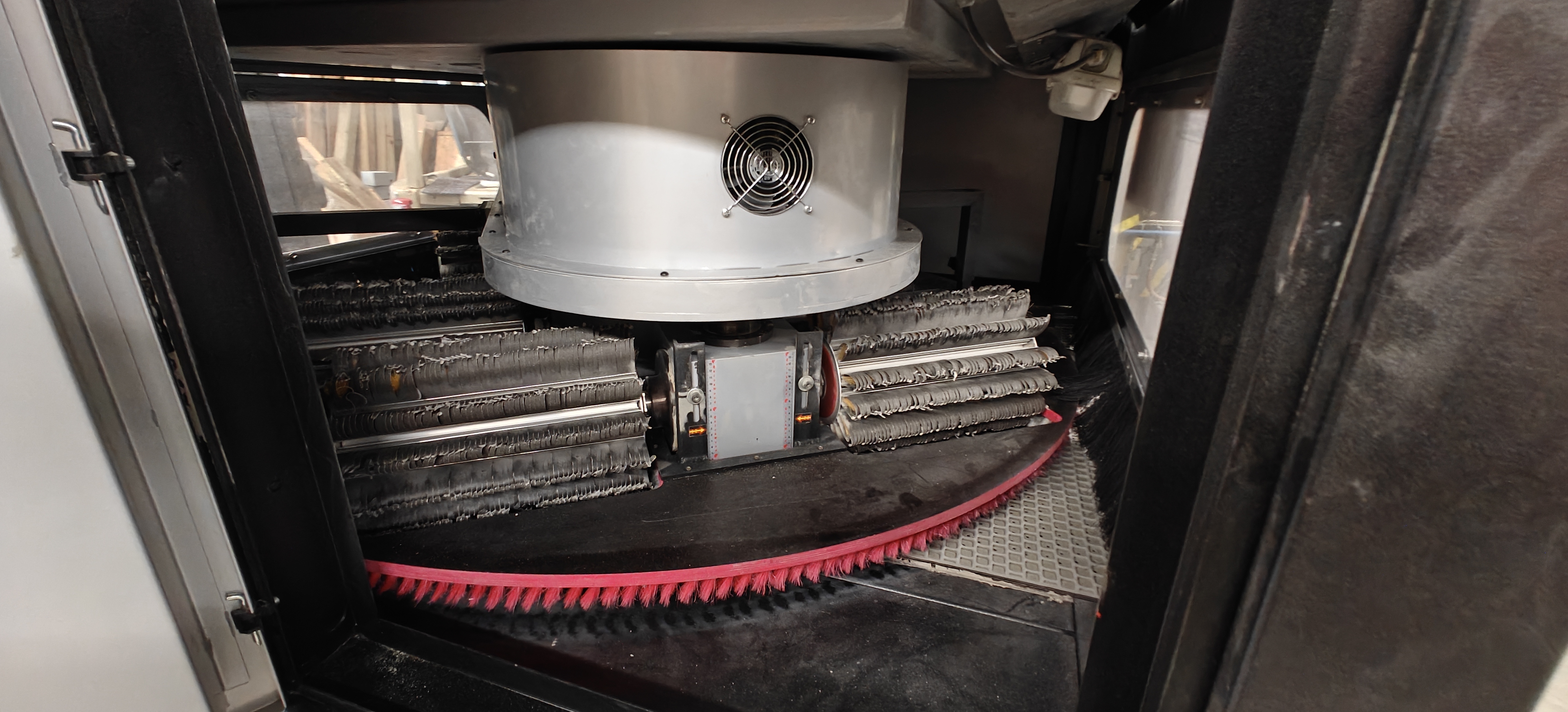

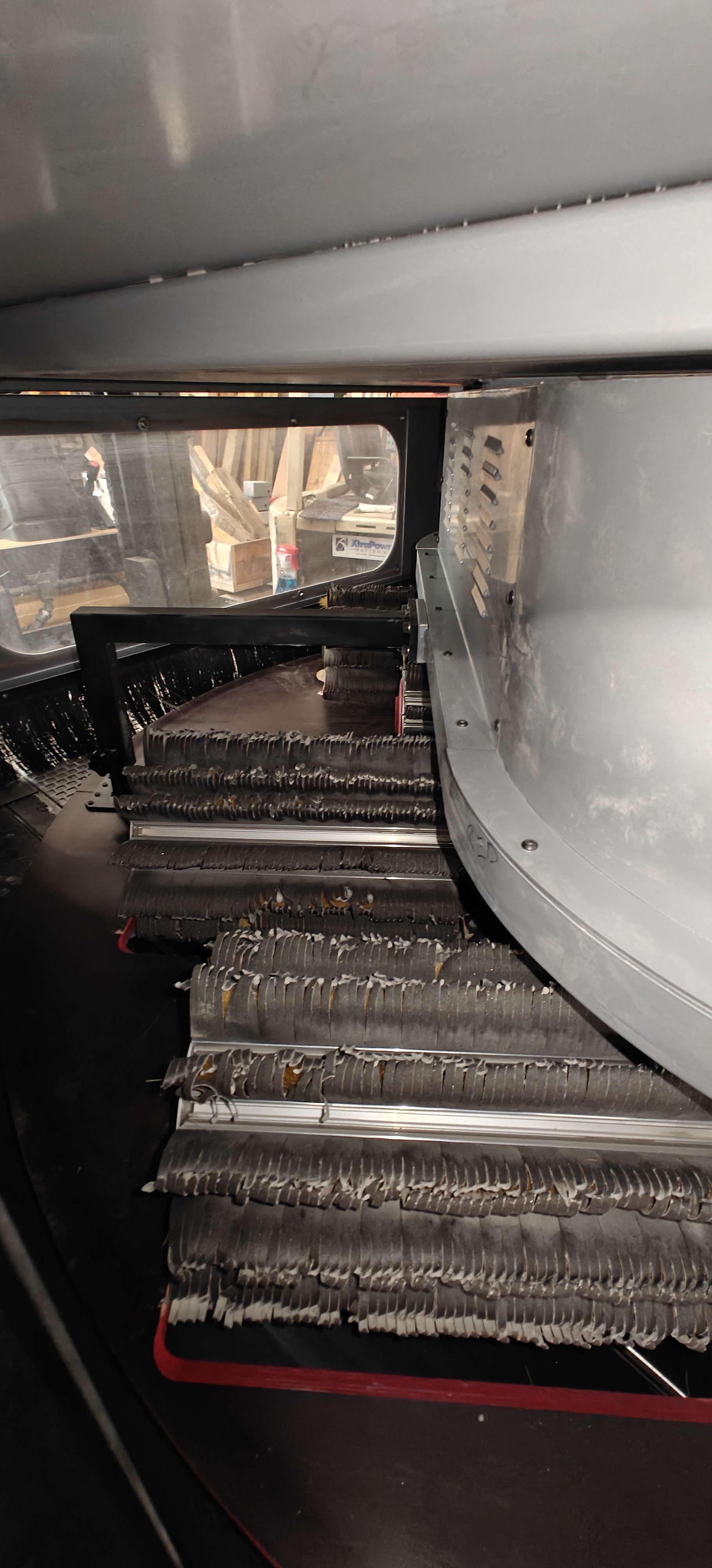

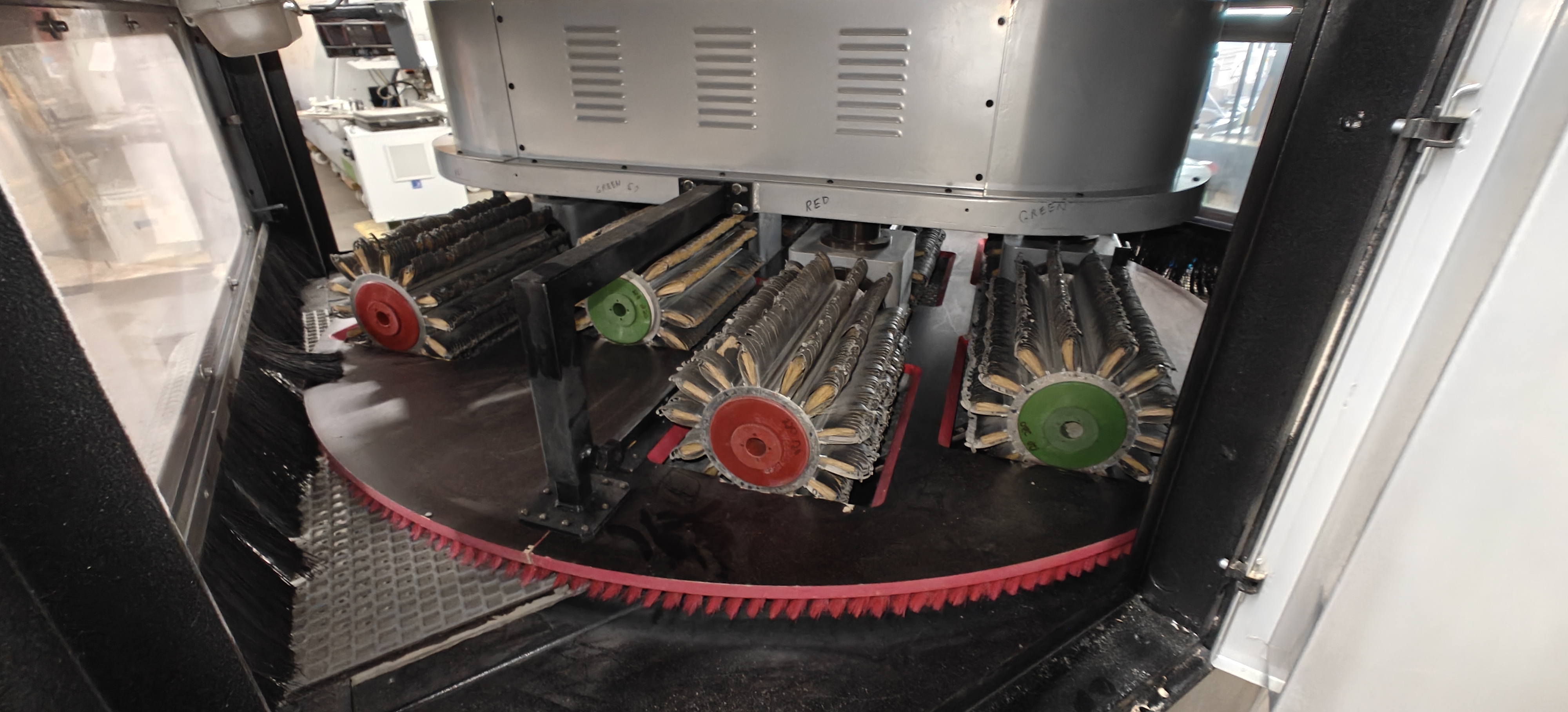

Check out the amount of extra brush heads!
