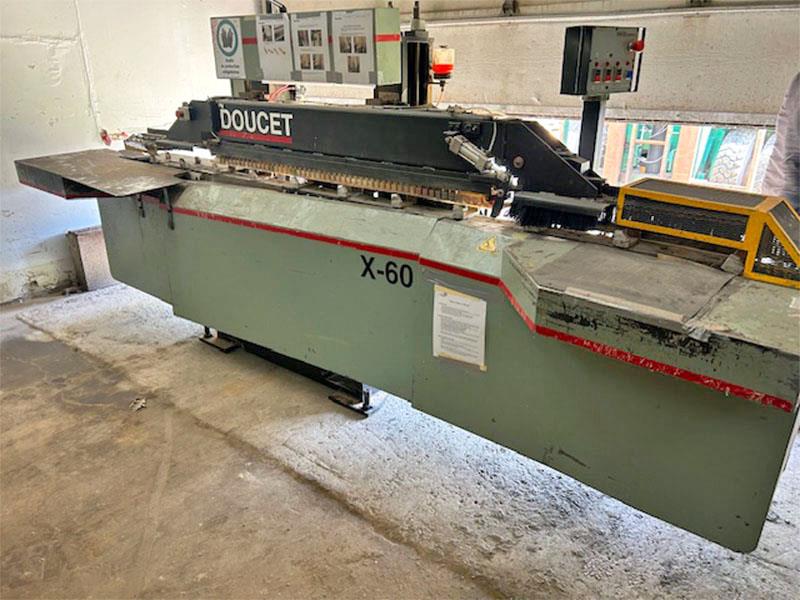

DOUCET X 60: Finger Jointer Line for Medium Production
"X 60 DG" - Automatic feed Finger Jointer has Chain Feeding System: Driven on the bottom & right-and-left side; feeds board up to 6" max. width.
Capacity: 3/4" - 2" Max. thickness; 1-1/2" - 8" max. width with lugs on 11" centers; 5" min. - 48" max. material length.

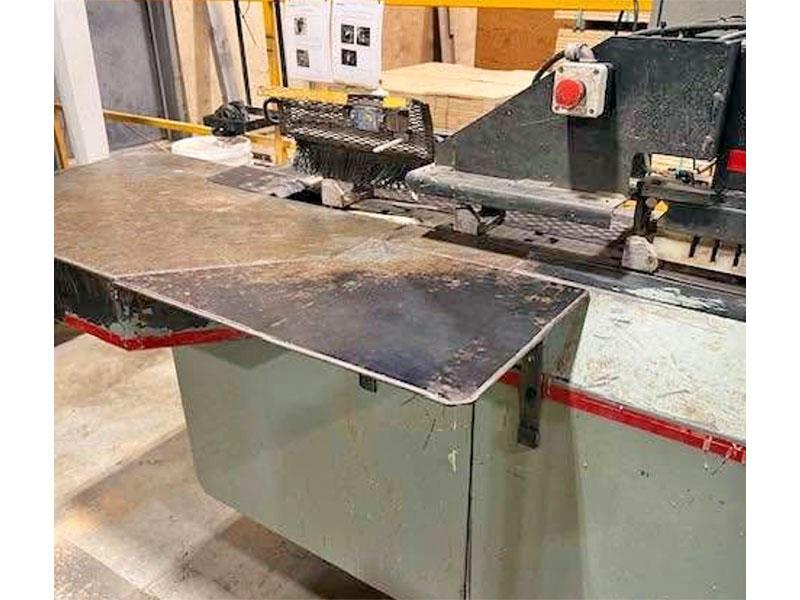

"X60 Right-Hand Shaper Sections; equipped with:
5 HP Trim Saw; 3 HP scoring; 15 HP Shaper motor.
PLC Controls on Shaper section.
Dual feed chain with: Lugs on 11" centers; 10 - 75 FPM variable feed speed; 5 HP feed drive.
Max. width: 8"; Thickness from 3/4" to 3 1/2".
PLC Controlled extrusion type Glue Applicator with: 12-Gal. tan; sound enclosure & cabinet type base. Transfer to the Assembly Press.

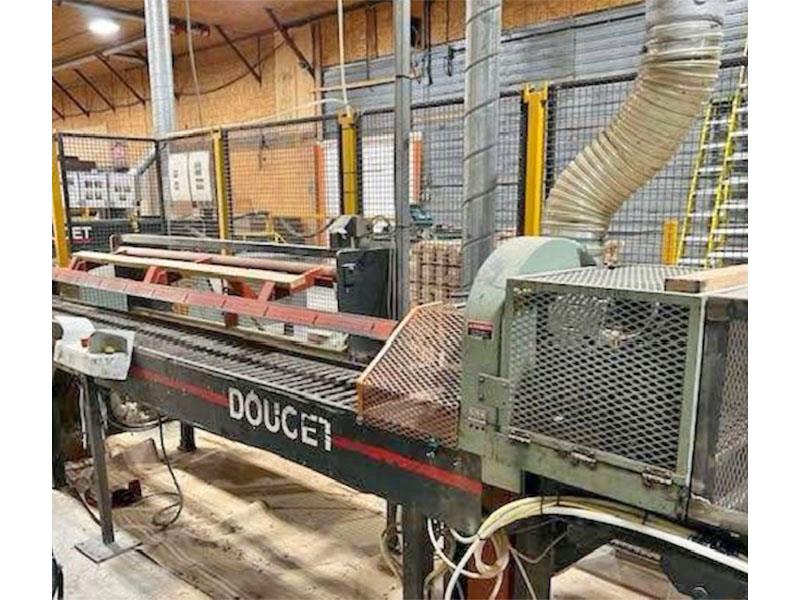

Model "MP-32" Assembly Press:

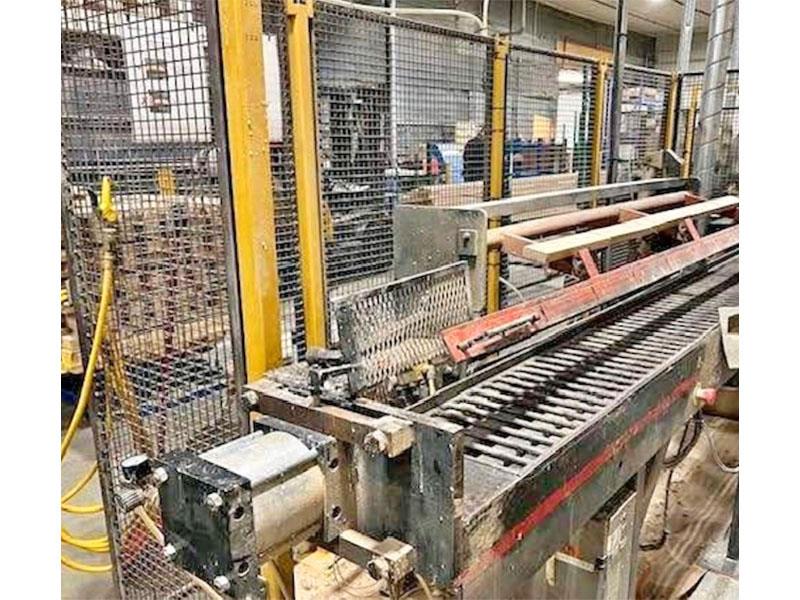

7' - 10' Max. in automatic mode & up to 20' in manual mode cutoff cap.; automatic cycling; 90 FPM powered infeed flat top chain with side alignment rolls to the pre-assembly tunnel.
Pieces are fed through with bottom & side chain through the Cutoff Saw to a movable limit switch and cut to length; 5 HP upcutting Cutoff Saw for continuous assembly; 2" x 9" cap. with 14" blade; finished lengths are pushed out by the next piece onto material outfeed arms.
PLC Controlled Press section;10 HP hydraulic unit; 10,000 Lbs max. pressure.
Gluing system with pump.
