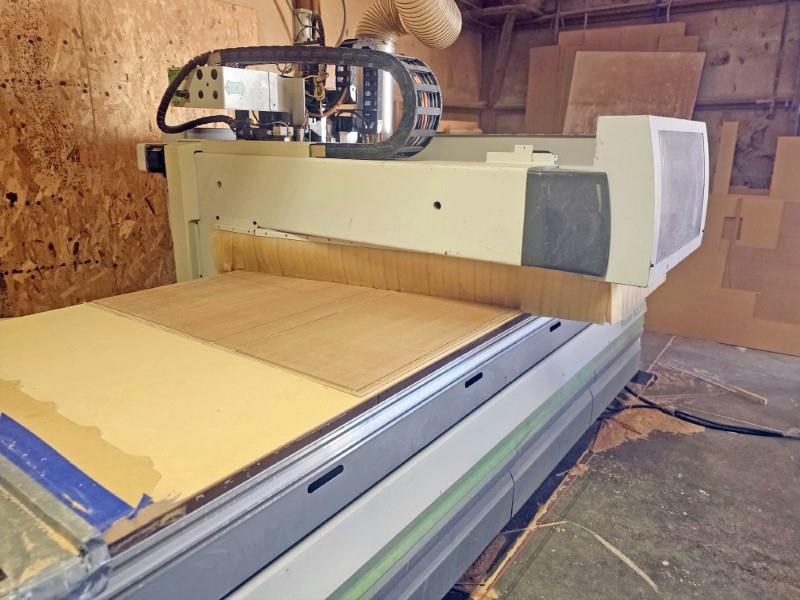

4' x 21.3' with (2) 10' Long Flat Table Workstations: "GANTRY TYPE" "Phenolic" Table machine for Nested Base Manufacturing.
Working Capacity: "X" Axis: 254" (6,450 mm); Any unit; "Y" Axis: For routing; 51" (1,290 mm); "Y" Axis: Vertical drilling, 57" (1,436 mm); "Z" Axis: Stroke, 7.9" (200 mm); max. material thickness: 6.2" (160 mm). ≈≈ Positioning Speed
"X" & "Y" Axis: 262 FPM (80 MPM); "Z" Axis: 82 FPM (25 MPM); helical rack & pinion drive on "X" Axis; ball screw: "Y" & "Z" Axis.

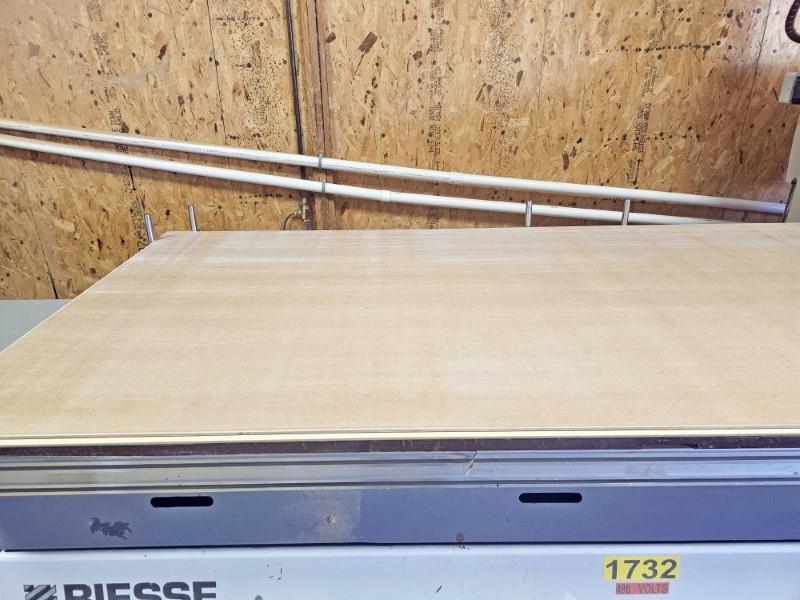

Worktable: Flat table designed for "Nested Base Manufacturing"; (2) independent vacuum zones and working areas.
(16) External pop-up reference pins with: (2) On RH side; (2) on the LH side; plus (6) on the front of the table & (6) on the back of the table.
Prepared for (optional); "Quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with: (1) "Quick connect" vacuum outlet for custom vacuum fixtures.

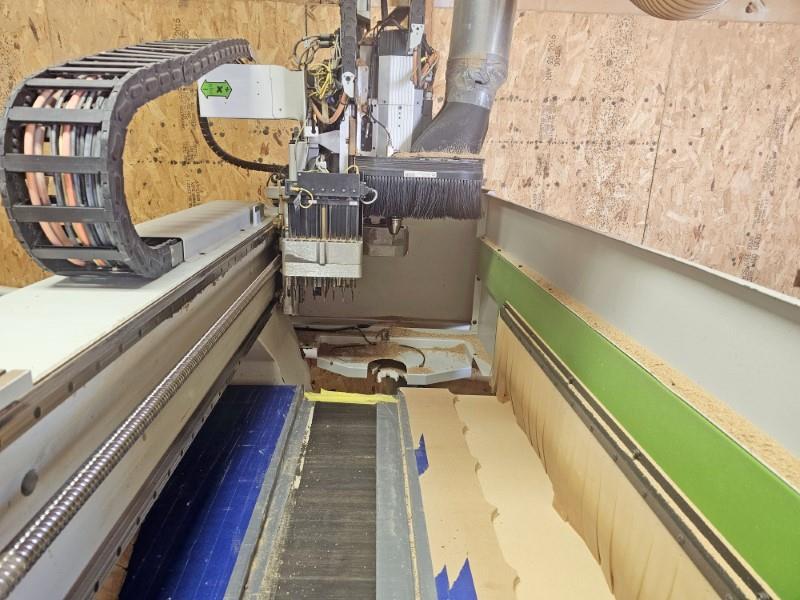

Boring Head with: (7) Independent vertical boring spindles in "X" axis.
Machining: (1) 16.1 HP (12 kW) Liquid-cooled electrospindle with: HSK F63 Adaptor; 14 kW inverter; 1,000 - 24,000 RPM with max. torque from: 12,000 - 24,000 RPM.
(1) 10-Position "Ride-Along"; gantry mounted automatic tool changer.

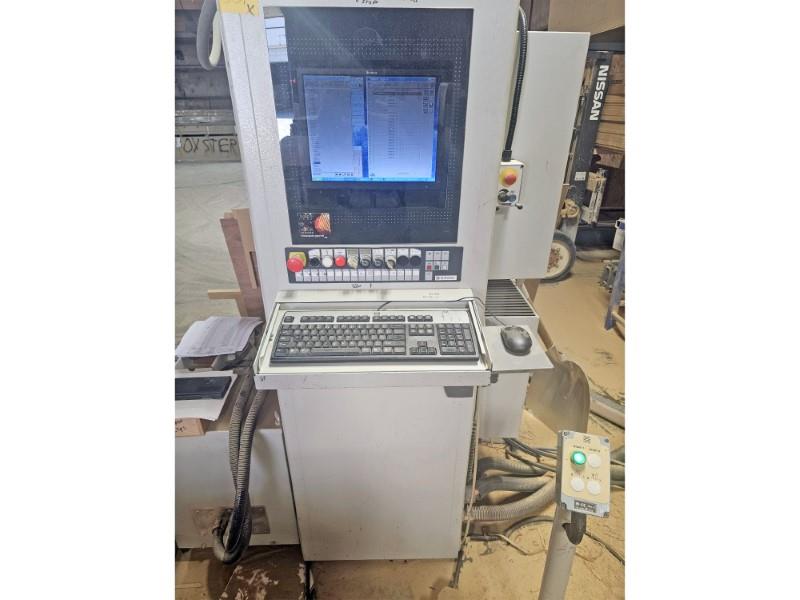

Operator Interface
PC Front-end with: BIESSE "XP600" + "BiesseWorks" + Windows "XP Professional" Operating System; 15" color monitor; international keyboard; soft touch keypad; Industrial mouse; RS-232 serial port; (1) 1.44 MB; CD ROM disk drive.
BiesseWorks: Easy Operating System for real-time multitask processing
*** Please click the lick for full description***
Biesse ROVER A 3.65 Flat Table Machine
