Ex-Factory Biesse

Rosenquist EG-500-A Slant Bed Radio Frequency Edge Gluer

Listing #553405 Listed on: 10/05
Details - Machine for Sale
Category:Other
Price: $12,500.00
Type:Used - Good
Manufacturer:Rosenquist
Model:EG-500-A
Location:Kingston, TN
Sale Type:Dealer
Seller:360 DEGREE MACHINERY LLC [Contact]
Phone:630-229-6705
Year:200?
Electrical:3PH
More Info:Link to more images and info at 360
Description

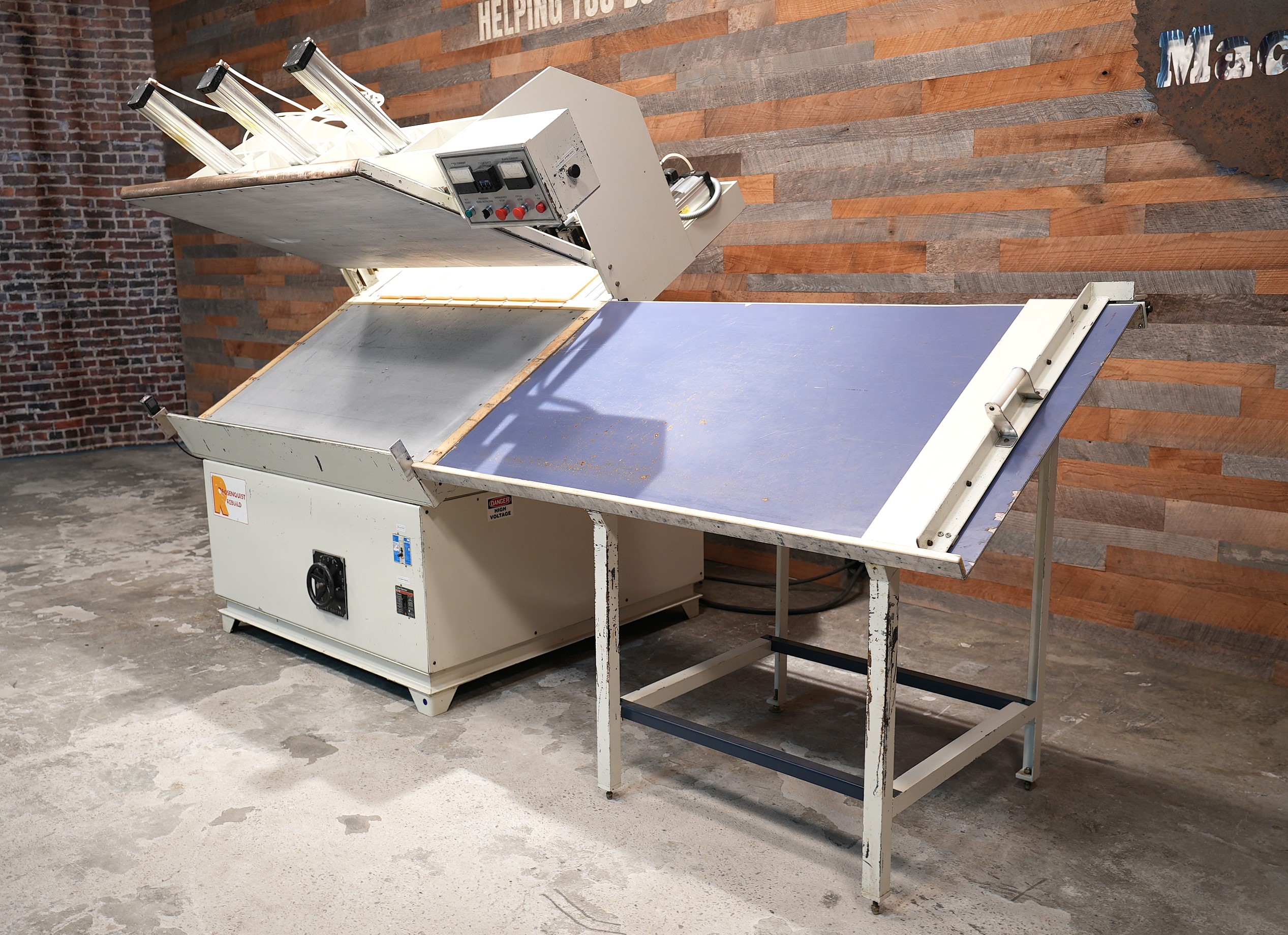

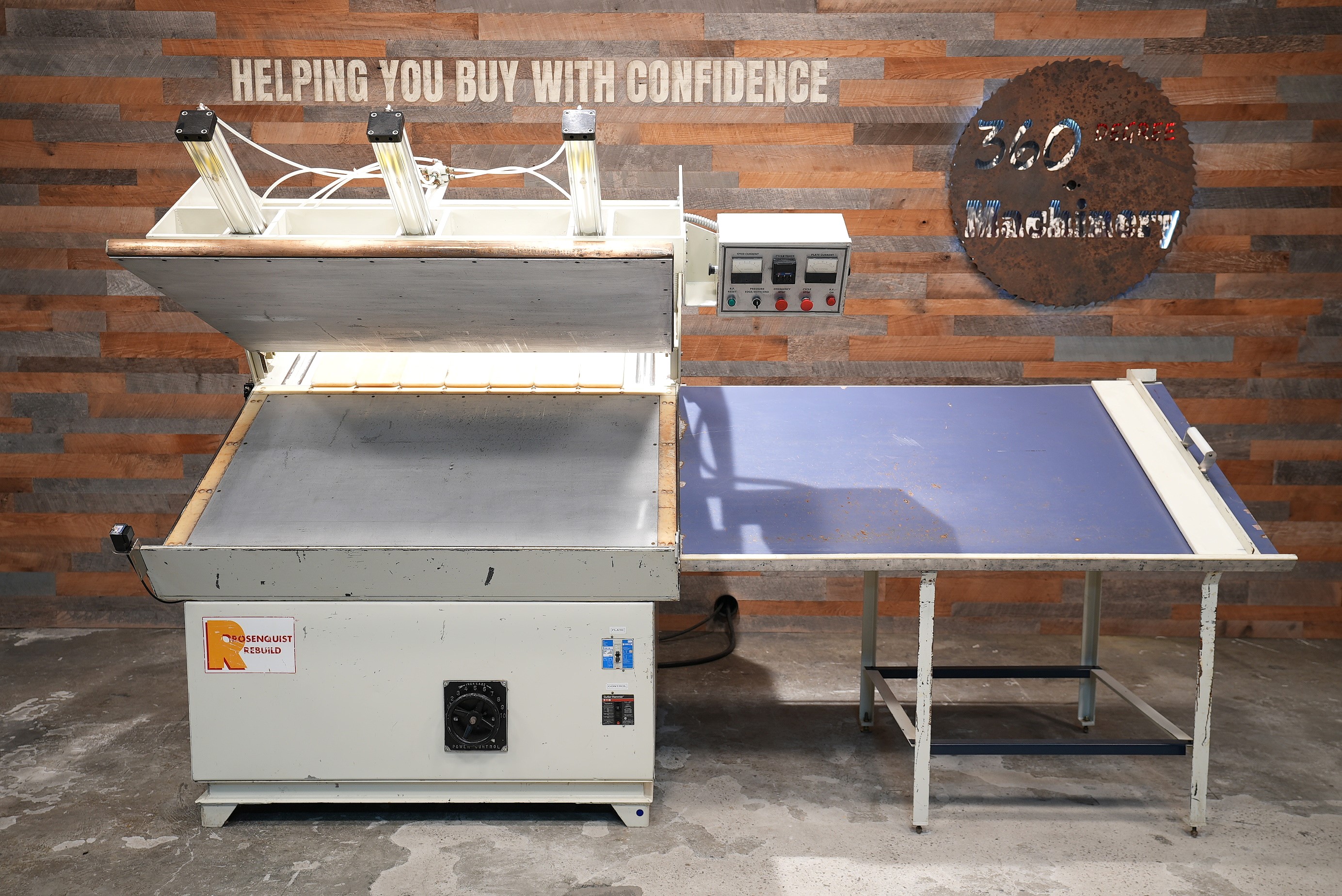

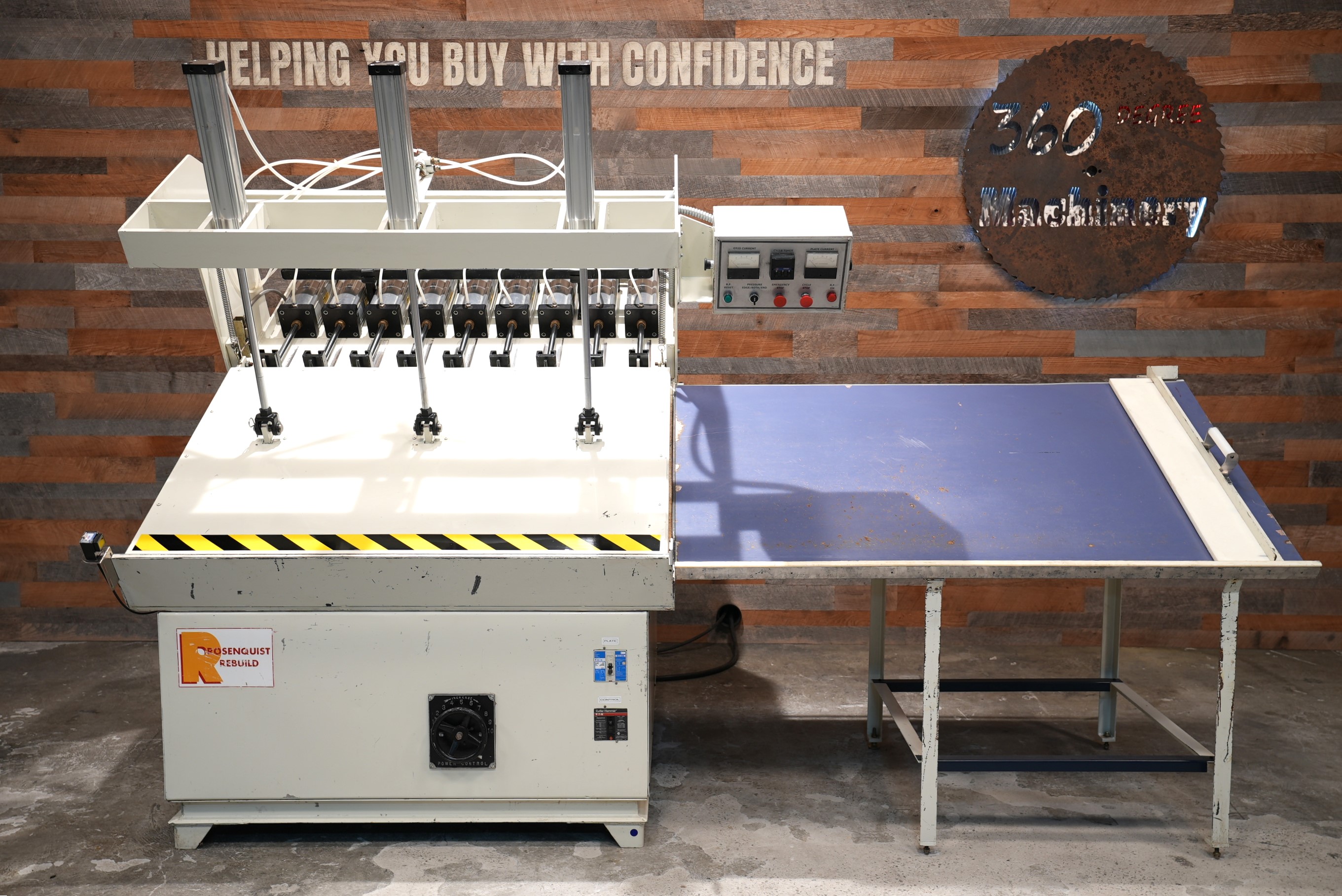

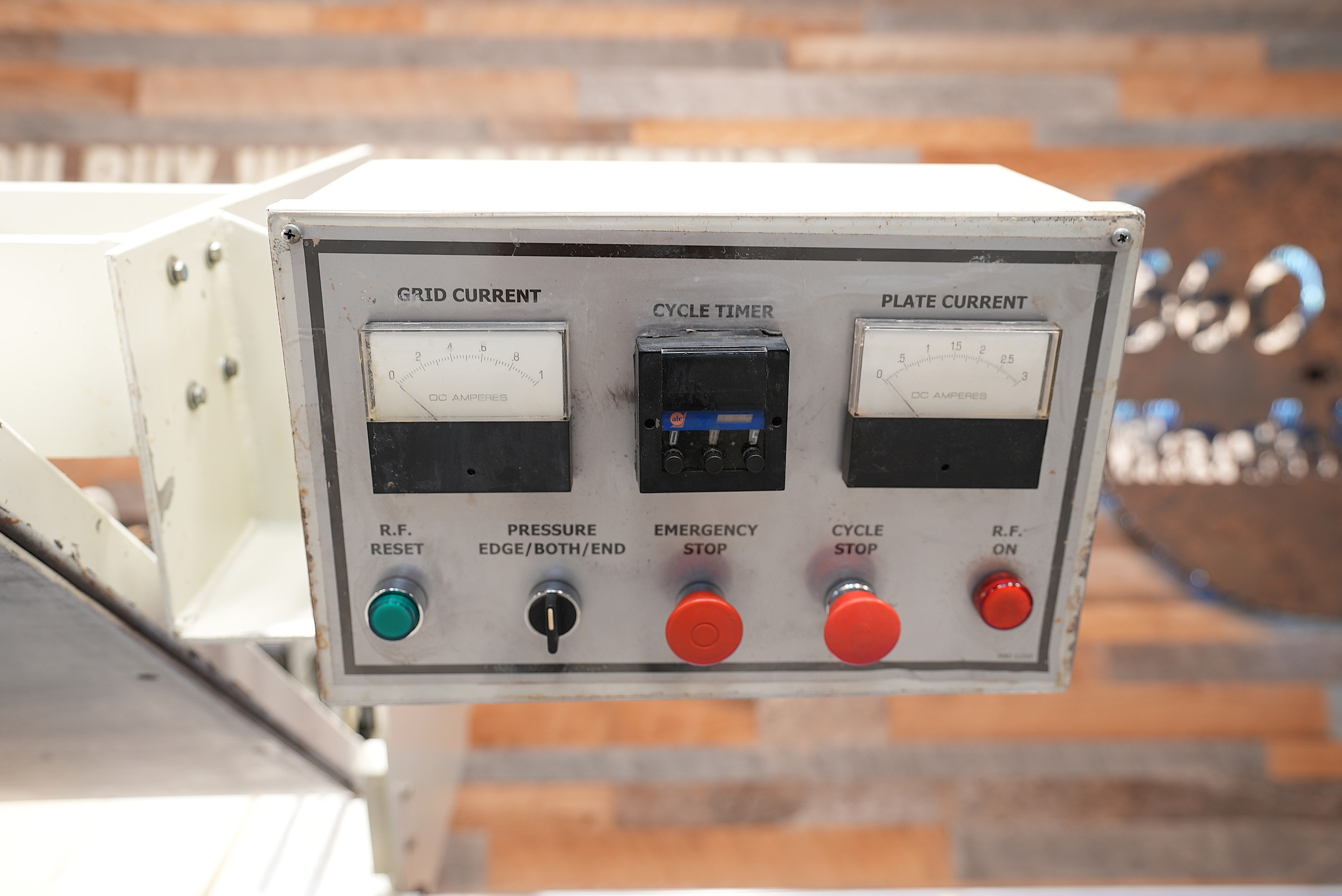

Clean Rosenquist Model EG-500-A 30-degree RF Glue Press with a Hand-Powered Infeed Lay-Up Table. CAPACITY: 41″ wide by 66″ long by 2″ thick with a 37″ X 61″ curing plate. SIDE PRESSURE: Applied by (9) 5″ bore by 12″ stroke air cylinders. System is provided with a filter and lubricator to ensure long cylinder life. A panel-mounted regulator provides precise pressure control. TOP PRESSURE: Applied by (3) 3-1/4″ bore by 14″ stroke air cylinders. System is provided with a filter and lubricator to ensure long cylinder life. A built in RF generator will cure approximately 600 square inches of glue line per minute. CONTROL PANEL: Includes adjustable cycle timer, necessary meters, indicator lights, control pushbuttons and a two hand, no-tie-down control system for closing the press. SAFETY: An electronic eye prevents closing of the press in the event any objects are inserted from the front. All access doors are interlocked to prevent use of the generator in the event any are open. A safety switch is used to prevent the use of the generator when the press is in the open position. Hand Powered In-feed Table: provides a convenient workspace for the operator to compose a panel while the press is closed. Pusher is guided by a Thompson lineal bearing. Easier and faster than tables equipped with hand cranks. Currently wired for 230V/3-Phase operation @ 50 amps.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.

Link to more images and info at 360
