German-Made 2022 F5 Edgebander – EVA/PUR – Full Station Package

2022 Altendorf / Hebrock F 5 Edgebander – Corner Rounding – Full Station Package
German Built – EVA & PUR Capable – Quick-Change Glue Pot + Pre-Mill + Buff

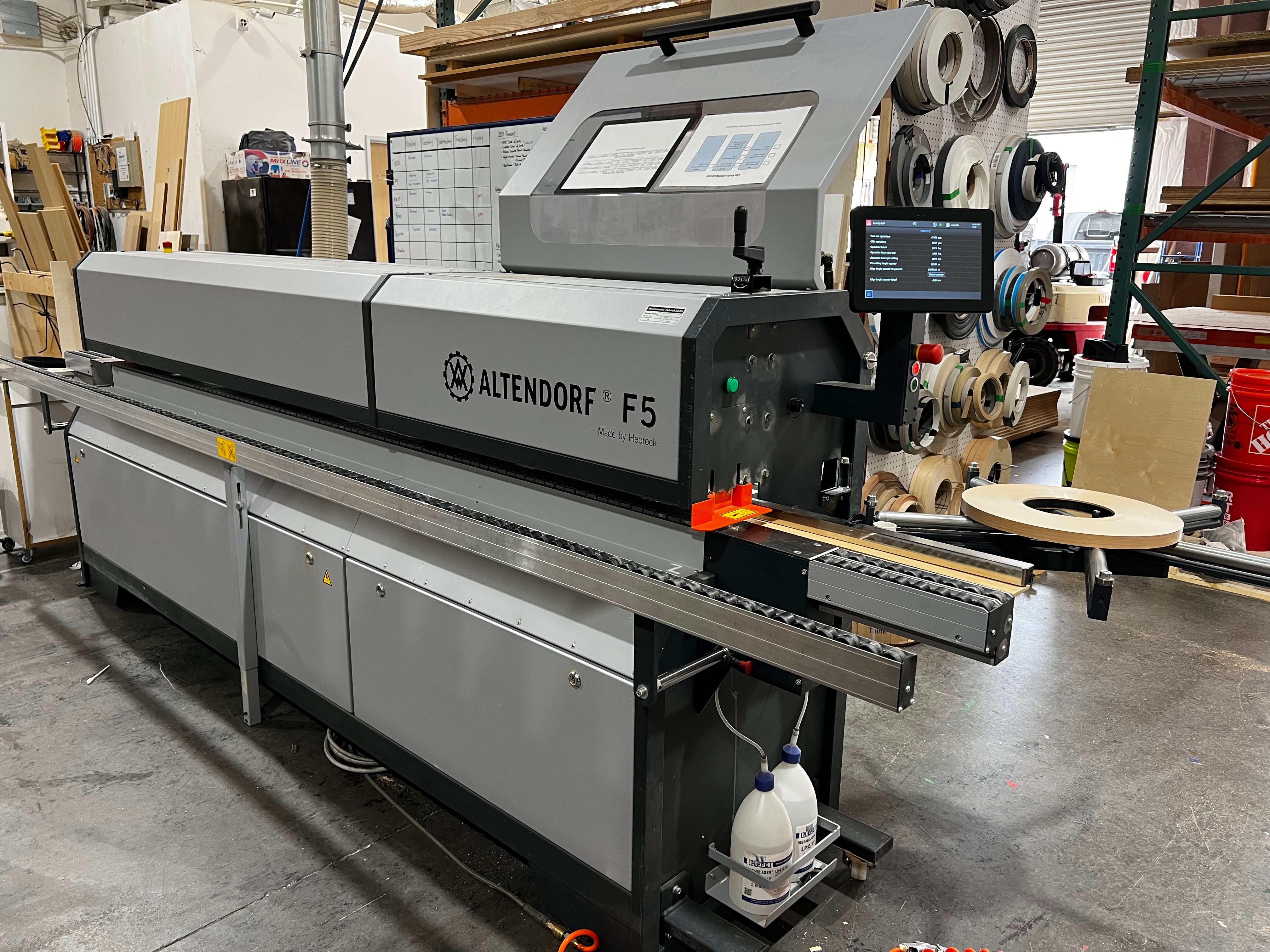

Used 2022 Altendorf F 5 Series automatic edgebander, full production configuration with corner rounding, pre-milling, and profile scraping. Machine includes quick-change glue pot system suitable for EVA and PUR adhesives. Built for professional cabinet and millwork shops needing fast, precise, and flexible edge processing.

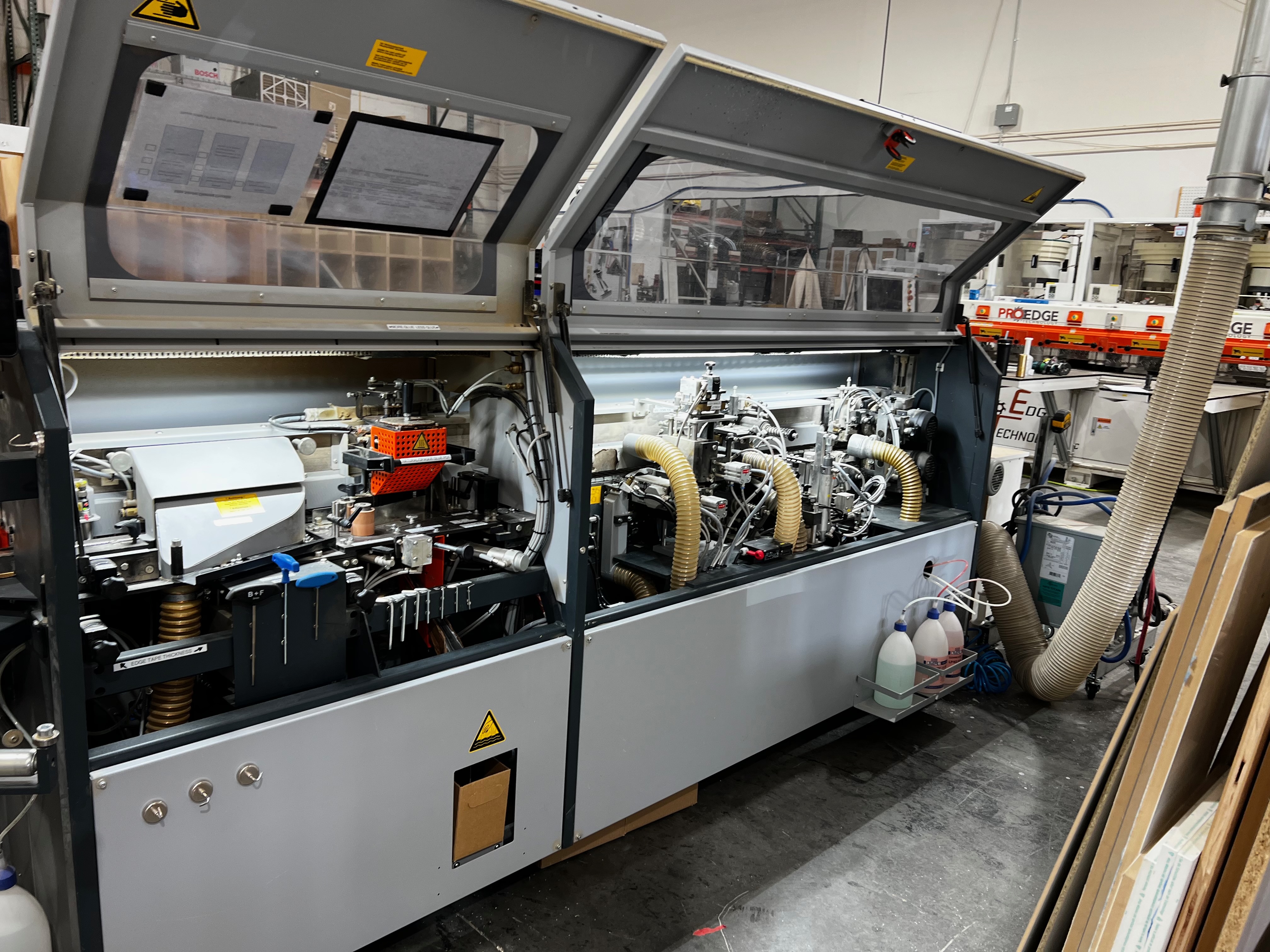

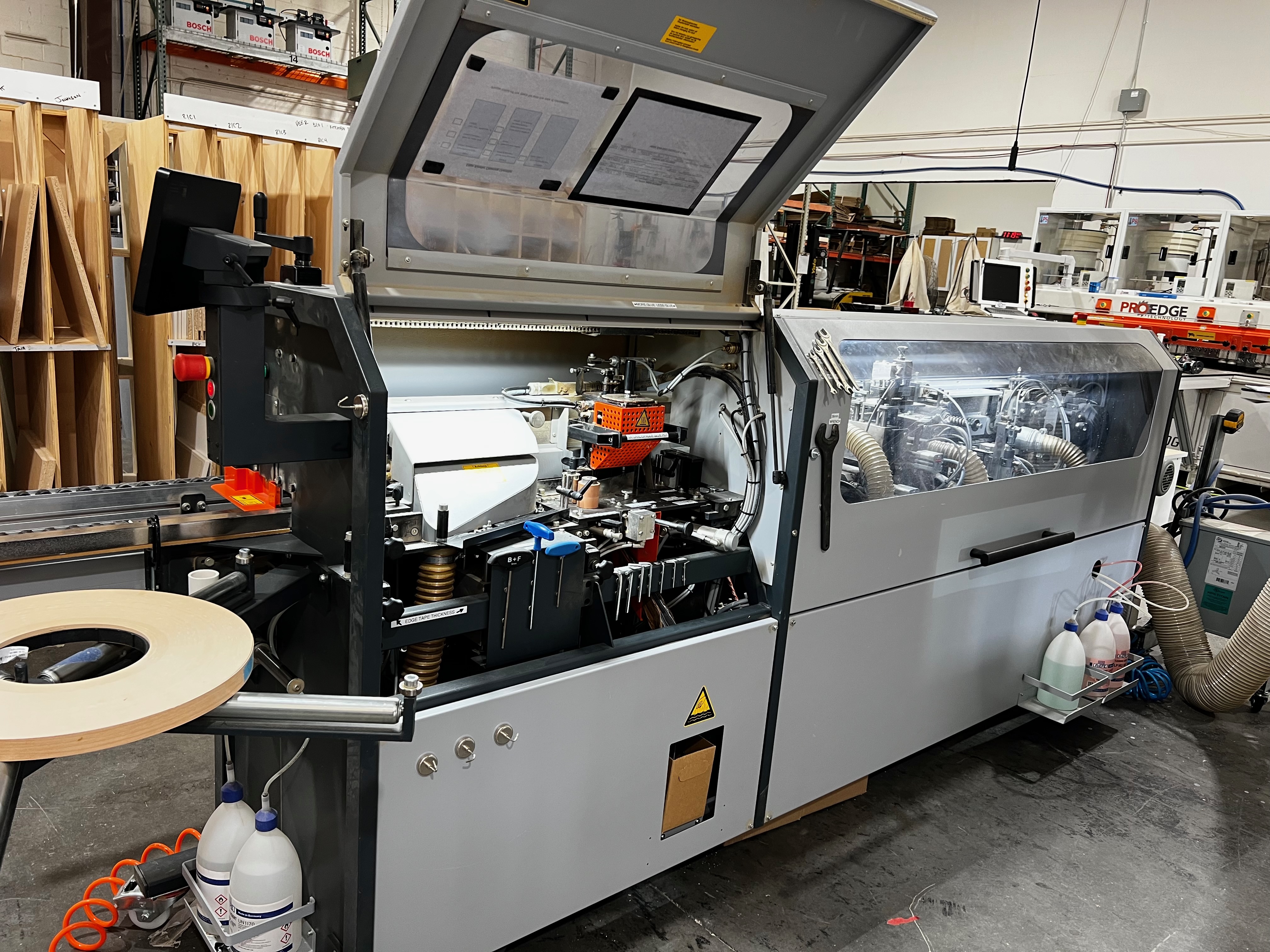

Includes:
• Pre-milling station with diamond cutterheads
• Quick-change glue station (PUR/EVA capable)
• End trim station – dual saws
• Top and bottom trim units – radius, chamfer, or flush
• Corner rounding station – dual motor
• Radius profile scraper (dual-radius, pneumatic)
• Flat scraper with pneumatic disengagement
• Buffing unit – dual wheels

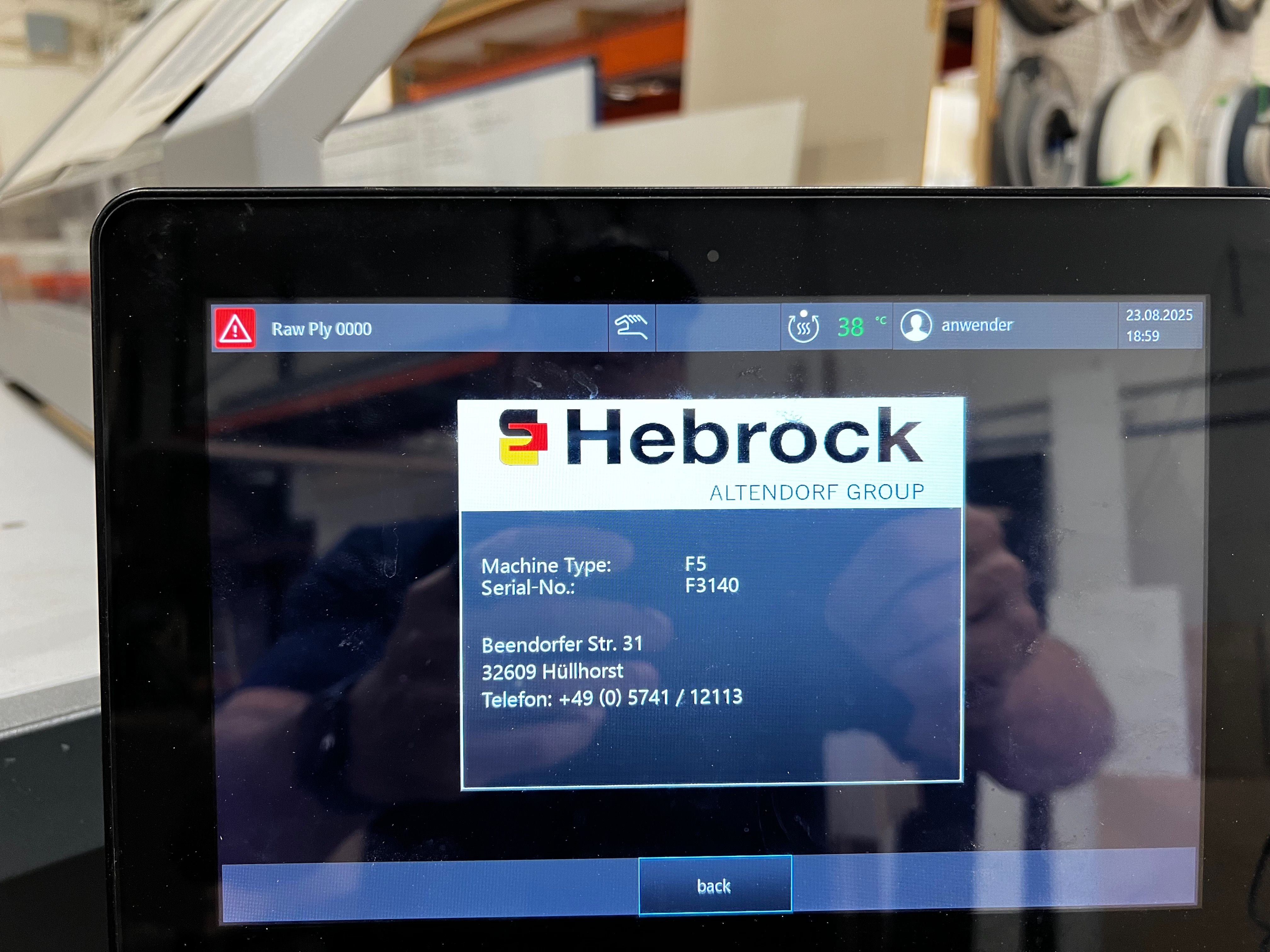

• 10” touchscreen with PLC control
• LED interior lighting
• Second glue pot included for fast changeovers

Specs:
• Edge thickness: up to 3 mm
• Workpiece thickness: 8–40 mm
• Min. part size: 160 mm L x 80 mm W
• Feed speed: 7 m/min (22 fpm)
• Total power: 7.4 kW (10 HP)
• Voltage: 220V, 3-phase, 60 Hz
• Dust outlet: 140 mm / ~900 CFM
• Dimensions: 170” L x 52” W x 55” H
• Weight: Approx. 2,000 lbs

Condition:
• Standard shop use – excellent mechanical shape
• All functions tested and operational
• Second glue pot and tooling included
• Normal cosmetic wear – see photos

Machine located in Las Vegas, NV. Available for inspection. Forklift on-site for loading. Contact for photos, videos, or shipping quote.

All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
