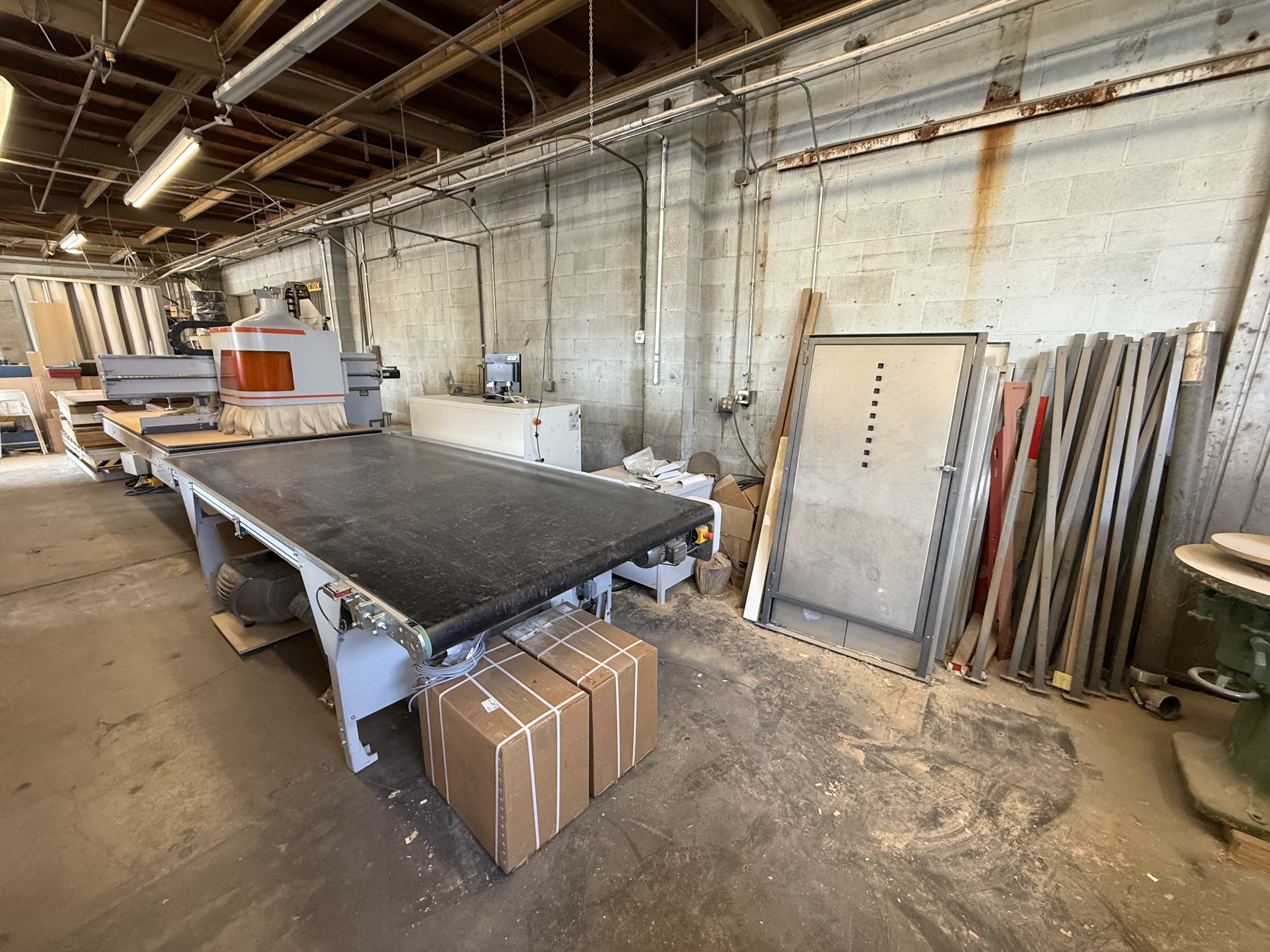

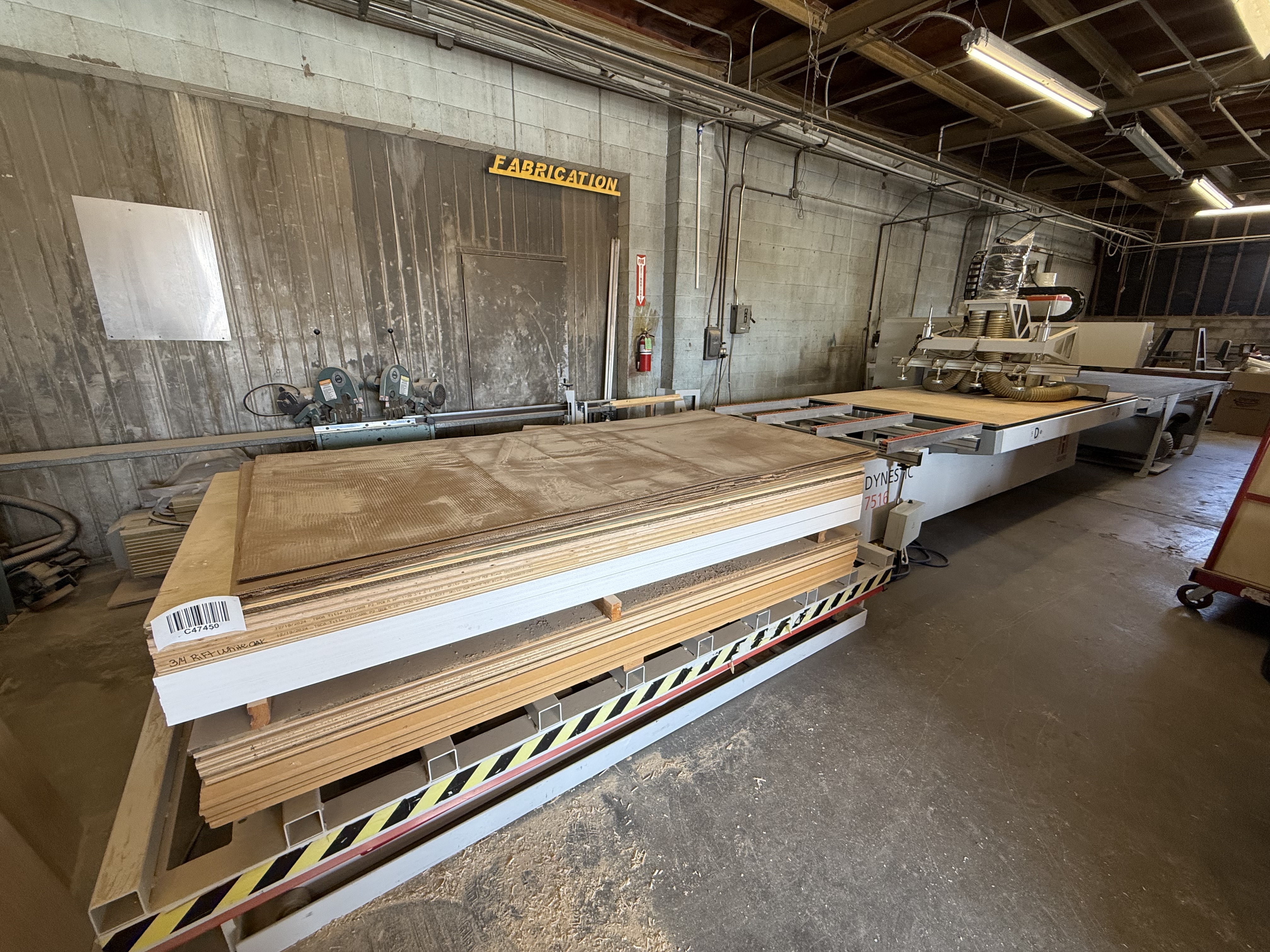

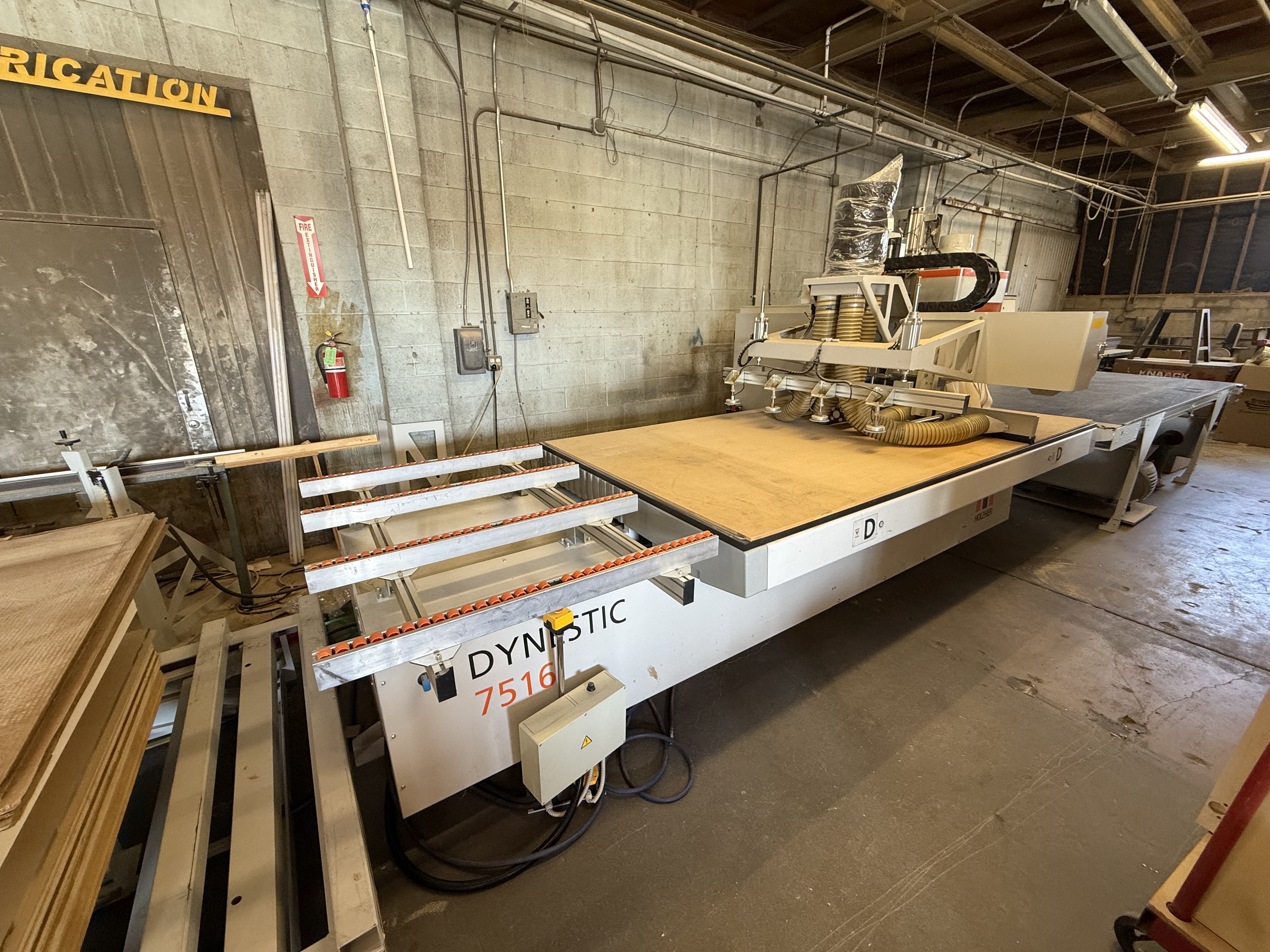

Holz-Her "Dynestic 7516" CNC Machining Center
We purchased this machine in February 2021 from a warehouse sale at Holz-Her. It had very low run time on it since it was a demo machine at their HQ and we have not used this machine in our current shop since we had a second CNC and didn't end up needing to use this one. We did contract Holz-Her to send a technician out and get it set up and running, which they did and we actually never completed the training so we still have about 3-4 days of Holz-Her tech time paid for that we can transfer to the new owner.
Flat nesting table
124" L x 63" W
Matrix style for custom fixturing
Router
Eight (8) position rotary tool changer
Drill unit
Sound enclosure
Becker "VXLF 2.250/0-79" vacuum pump
7.4 HP
Infeed system
Powered lift table, 65" x 126"
Idle roller track
Vacuum cup system mounted to machining head
Pusher/rake part unloading system
Integrated dust collection
Powered outfeed conveyor belt, 64" x 144"
Safety fencing
PC control
Flat screen, keyboard, mouse
Windows-based
External electrical transformer purchased in 2021 for 6k
Two vacuum control boxes purchased from Holz-Her (new and never installed) for 7.5k
With the cost of the machine and parts we have about 80k invested to this now. It's a great machine but just too large for our operation at the moment, and we need the space more than we need a second CNC. Please contact with any questions and if you'd like to come and check it out. We're located in Torrance, CA.
PDF Specs
